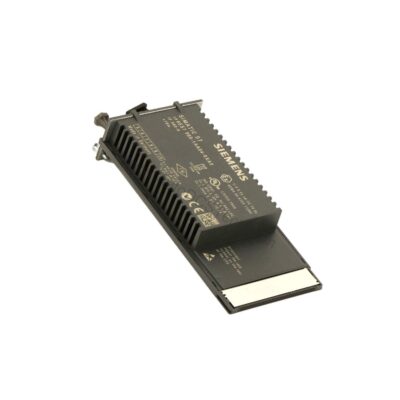

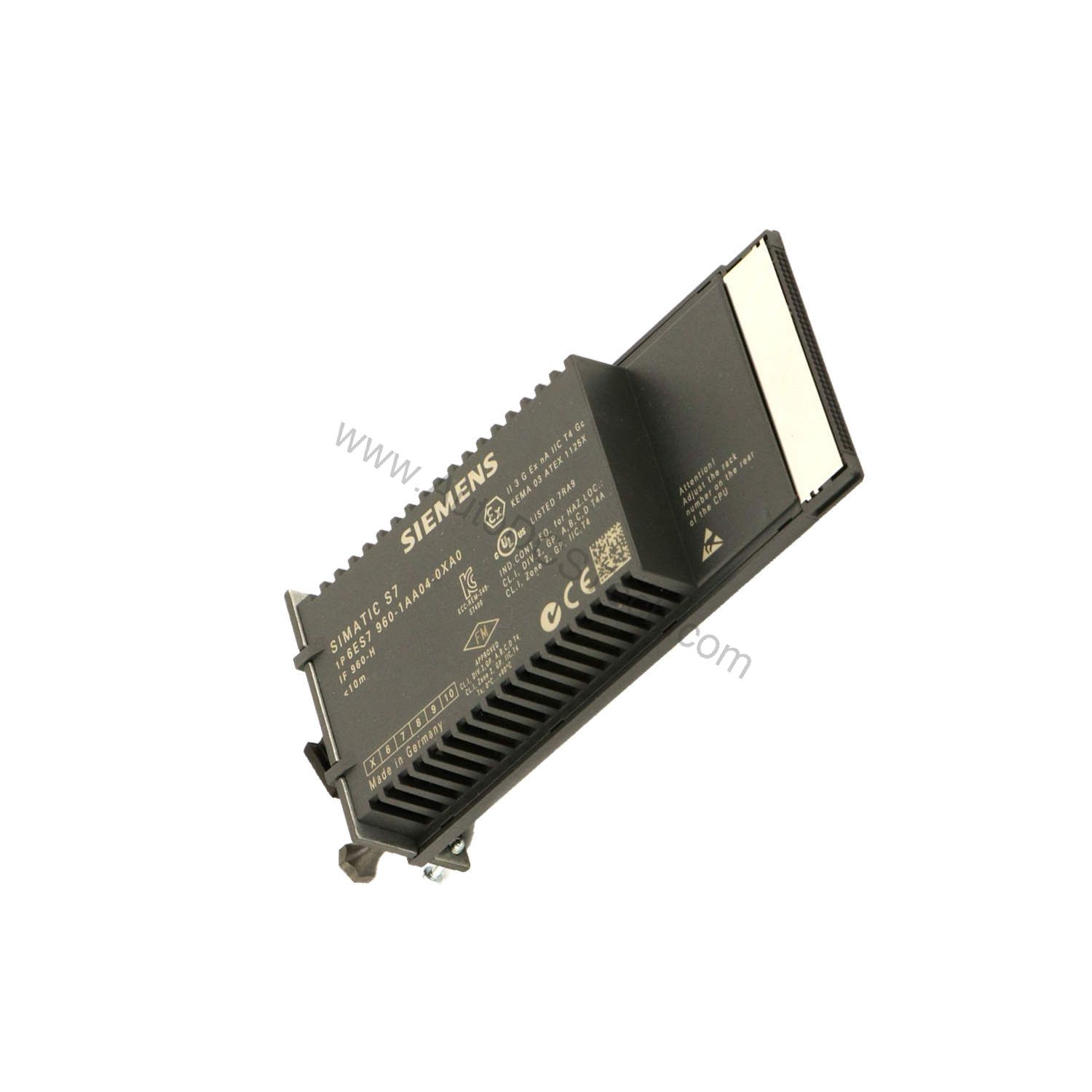

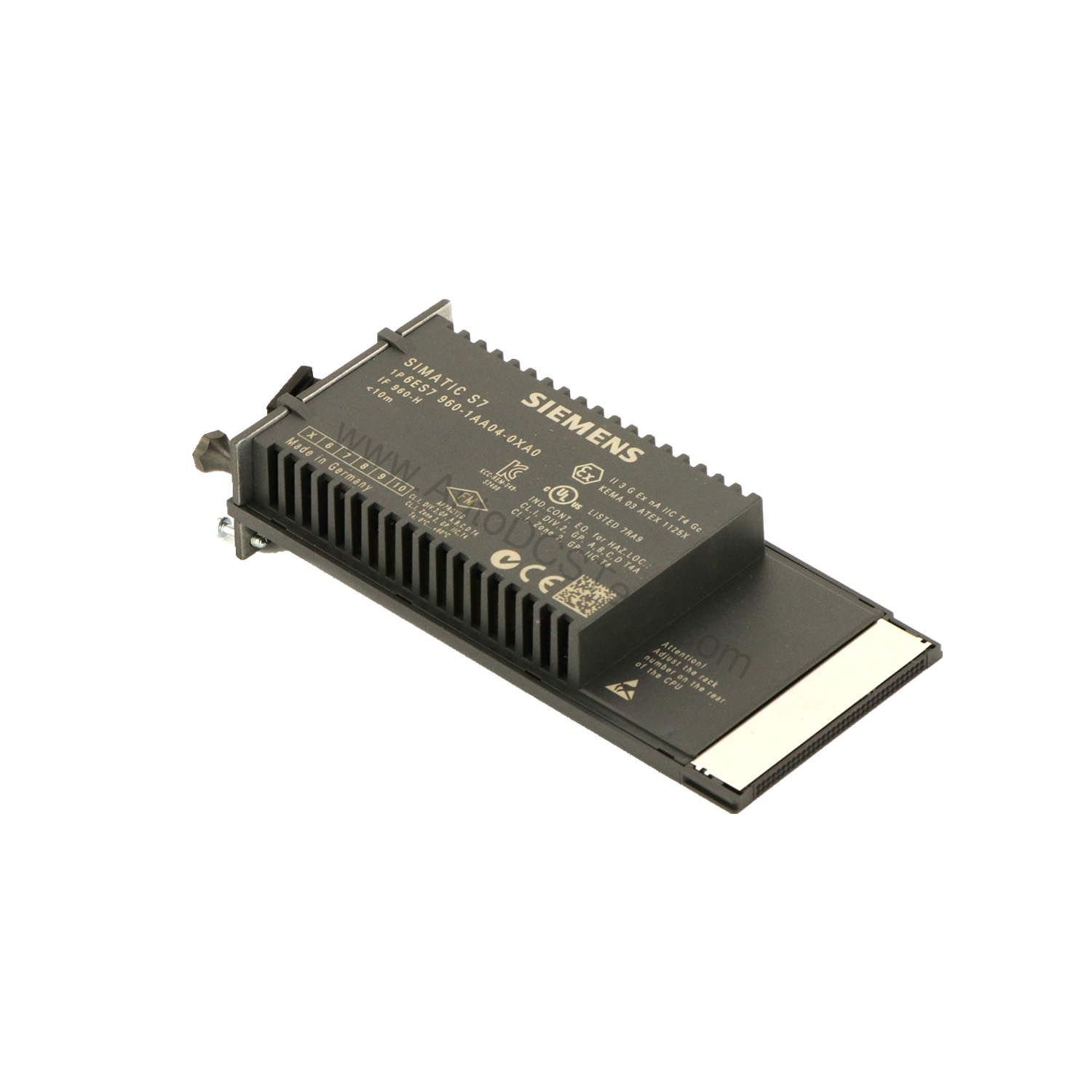

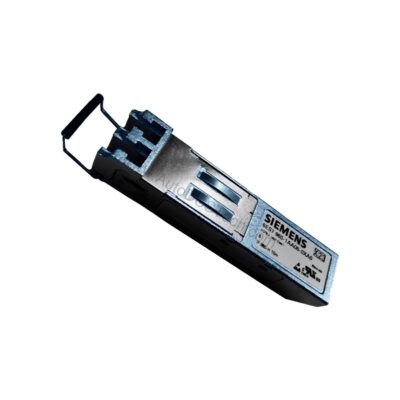

6ES7960-1AA04-0XA0 Sync Module V4 for 10m Patch Cable

Introduction to the 6ES7960-1AA04-0XA0

When redundant control systems demand precise synchronization, the 6ES7960-1AA04-0XA0 from Siemens delivers. This SIMATIC S7-400H synchronization module V4 is engineered for patch cables up to 10 meters. It maintains consistent data alignment between redundant CPUs, minimizing the risk of discrepancies.

As part of the S7-400H family, this module supports high-availability applications. Its compact design fits into existing racks. Engineers rely on it for uninterrupted process control.

Key Features and Technical Specifications

Every parameter of the 6ES7960-1AA04-0XA0 is designed for performance. Below are the core specs:

• Current consumption (max): 210 mA
• Power loss (typ): 1.1 W
• Dimensions (LxWxH): 14 cm x 2.5 cm x 5.3 cm
• Weight: 0.065 kg

The 210 mA current draw is notably efficient for a synchronization module. This low consumption reduces the load on the CPU power supply, contributing to overall system energy savings. The 1.1 W typical power loss further underscores its efficiency, making it suitable for densely populated racks.

Applications and Use Cases

In process industries like chemical, pharmaceutical, and power generation, the 6ES7960-1AA04-0XA0 is critical. It enables redundant CPU configurations to operate as a single logical unit. For example, in a continuous production line, the module ensures that both CPUs process identical data simultaneously. Consequently, if one CPU fails, the other takes over without process interruption.

Moreover, the 10-meter patch cable support offers flexibility in cabinet layouts. Engineers can position CPUs at a distance, improving heat dissipation and accessibility. This adaptability is valuable in large control panels.

Installation and Setup

Installing the 6ES7960-1AA04-0XA0 is straightforward. First, ensure the S7-400H rack is powered off. Then, insert the module into the designated synchronization slot. Secure it firmly to guarantee proper contact.

When connecting patch cables, verify they are within the 10-meter limit. Longer cables may degrade signal integrity. Use only Siemens-approved cables to maintain performance. After installation, power up the system and check the synchronization status via the CPU diagnostics.

Maintenance and Reliability

Regular inspection of the 6ES7960-1AA04-0XA0 ensures long-term reliability. Periodically check that the module is seated correctly and that cables are not stressed. Dust accumulation can affect connectors, so keep the environment clean.

Because the module has no moving parts, its failure rate is inherently low. However, environmental factors like temperature and humidity should be monitored. The compact design dissipates heat effectively, but adequate airflow around the rack is recommended.

Compatibility and Integration

The 6ES7960-1AA04-0XA0 is specifically designed for the SIMATIC S7-400H system. It works with redundant CPU configurations that use patch cables. Ensure your CPU firmware supports V4 synchronization modules.

This module does not require additional communication processors. It integrates directly into the existing backplane, simplifying installation. For systems using older V3 modules, an upgrade to V4 may be necessary for full compatibility.

Troubleshooting and Common Issues

If synchronization errors occur, check the following:

• Verify the module is properly inserted.
• Inspect patch cables for damage or loose connections.
• Confirm the cable length does not exceed 10 meters.
• Check CPU diagnostics for synchronization faults.

Most issues stem from cabling problems. Replacing a faulty patch cable often resolves the issue. If problems persist, consult the Siemens S7-400H manual or contact AutoDCSTech for support.

Product Support and Availability

The 6ES7960-1AA04-0XA0 is available at AutoDCSTech. As a trusted supplier of industrial automation parts, AutoDCSTech ensures genuine Siemens products. Contact them for current availability and lifecycle status.
