6ES7531-7QD00-0AB0 4-Channel Analog Input Module

Introduction to the 6ES7531-7QD00-0AB0

When precise measurement of voltage, current, resistance, or temperature is critical, the 6ES7531-7QD00-0AB0 from Siemens provides a reliable solution. This SIMATIC S7-1500 analog input module, designated AI 4xU/I/RTD/TC ST, is engineered for demanding industrial environments where accuracy and flexibility are non-negotiable.

With 16-bit resolution and an accuracy of 0.3%, this module ensures that your process data is captured with high fidelity. It supports four channels for voltage, current, or thermocouple inputs, and two channels for resistance temperature detectors (RTDs), making it a versatile choice for a wide range of applications.

Key Features and Technical Specifications

The 6ES7531-7QD00-0AB0 is packed with features that enhance its performance and usability. Below are the core specifications extracted directly from the datasheet:

• Product Type: AI 4xU/I/RTD/TC ST
• Resolution: 16 bit (with overrange)
• Accuracy: 0.3% (voltage, current, resistance, RTD, thermocouple)
• Supply Voltage: 24 V DC (19.2–28.8 V DC)
• Current Consumption: Max. 165 mA
• Power Loss: Typ. 2.3 W
• Analog Inputs: 4 (configurable for U/I/RTD/TC)
• Common Mode Voltage: Max. 10 V
• Dimensions: 25 mm x 147 mm x 129 mm
• Weight: Approx. 210 g

One distinctive feature is the ability to measure a wide variety of thermocouples (types B, E, J, K, N, R, S, T) and RTDs (Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000, LG-Ni1000). This flexibility allows the module to be used in diverse temperature sensing applications without needing multiple specialized modules.

Applications and Use Cases

In manufacturing plants, the 6ES7531-7QD00-0AB0 is used for monitoring process variables such as temperature, pressure, and flow. For instance, in a chemical processing line, the module can read thermocouple signals from reactors and RTD signals from storage tanks simultaneously, providing accurate data for control loops.

Moreover, its support for both 2-wire and 4-wire transmitters makes it suitable for current-based sensors commonly found in industrial automation. The module's high input resistance (10 MΩ for voltage and RTD ranges) minimizes loading effects, ensuring signal integrity even with long cable runs.

Installation and Setup

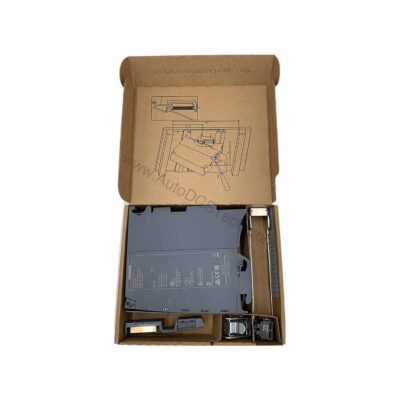

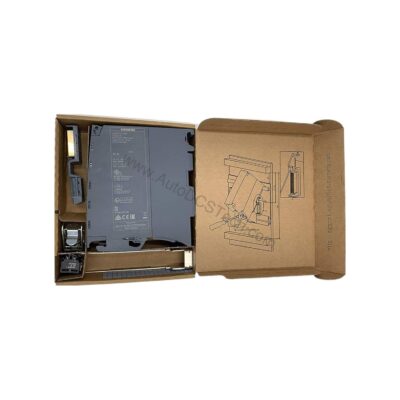

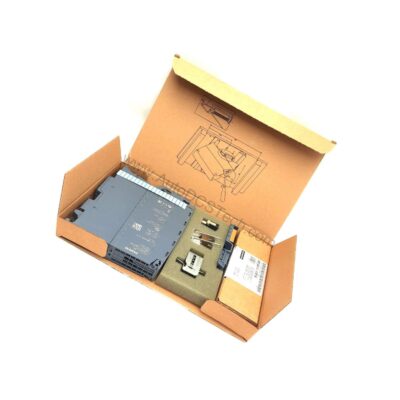

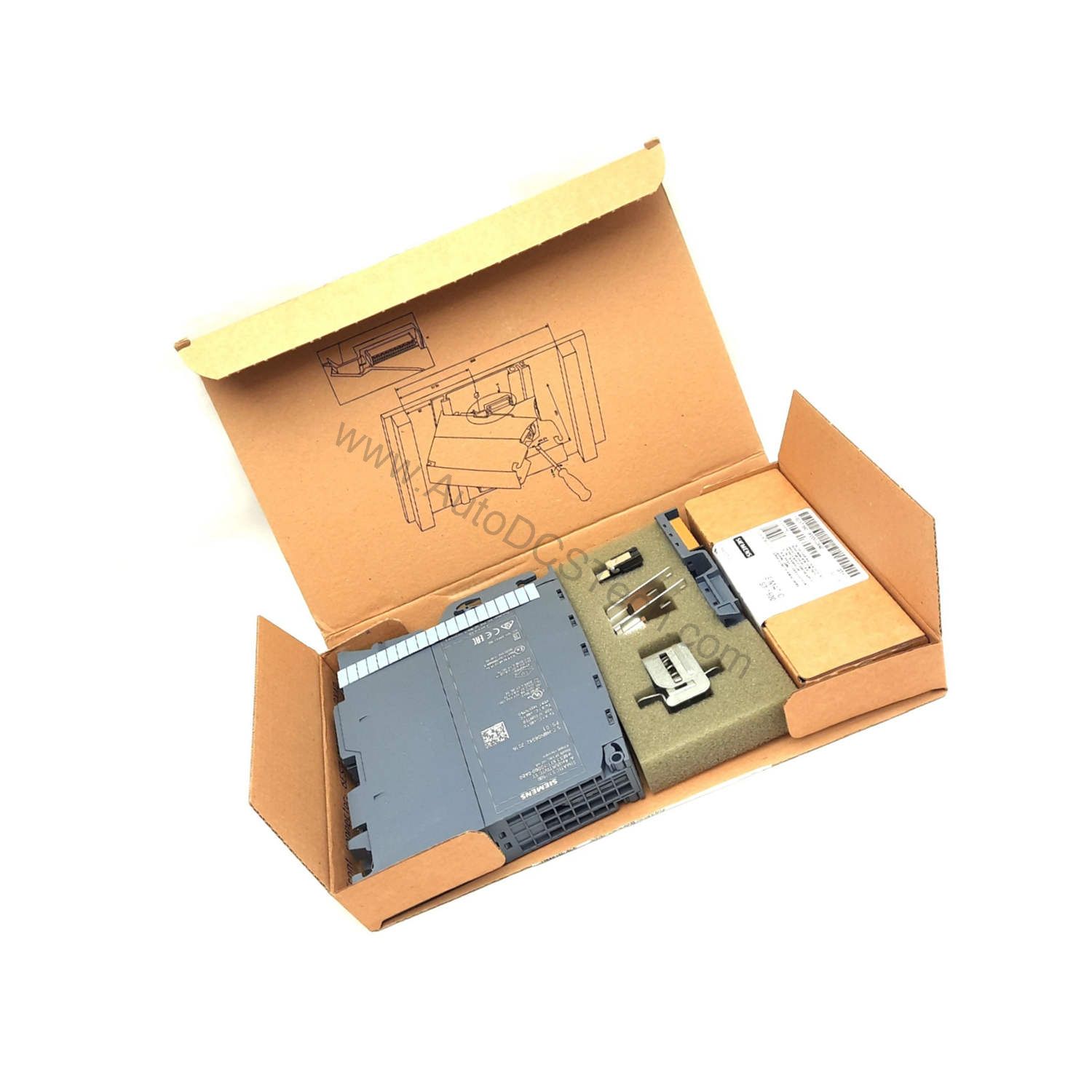

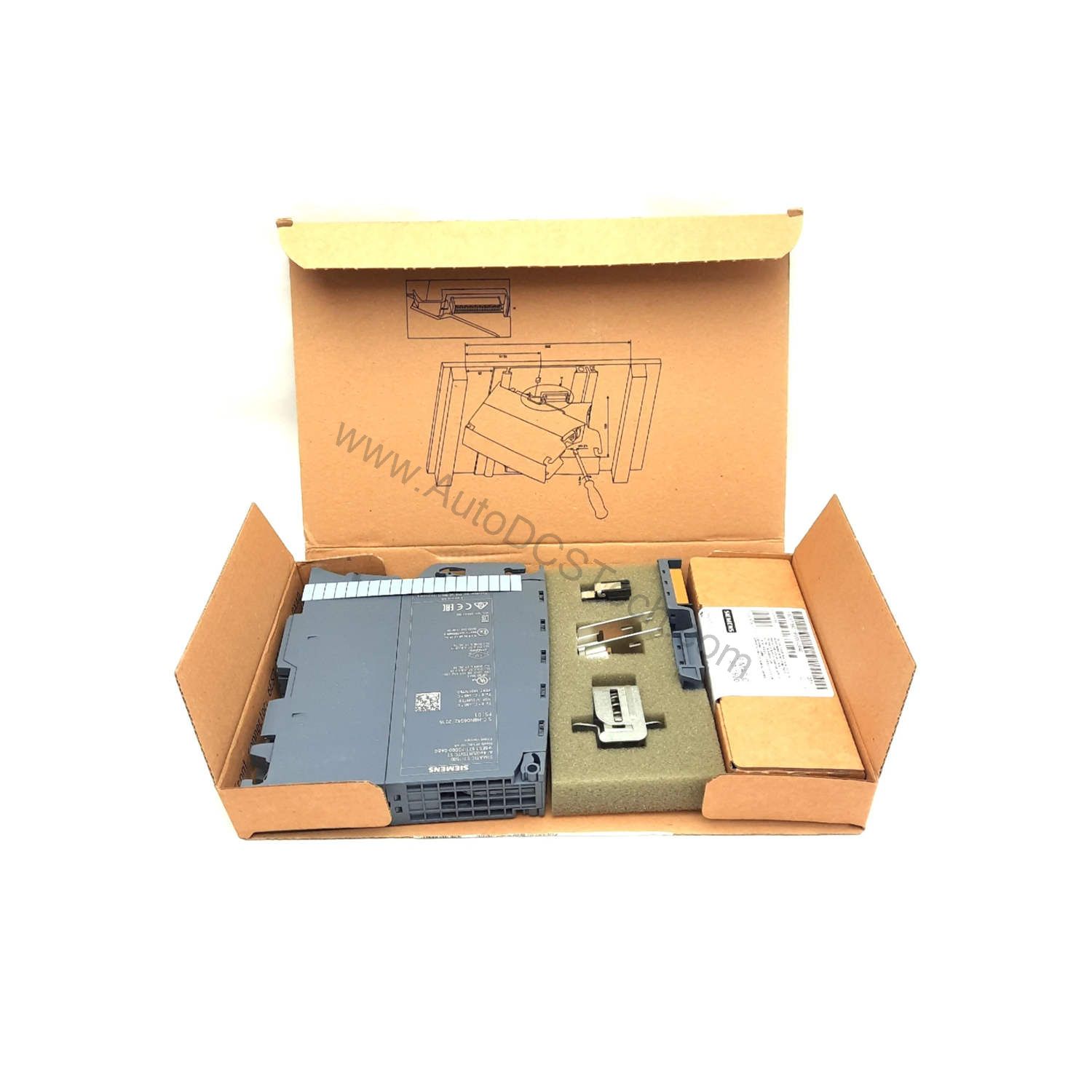

Installing the 6ES7531-7QD00-0AB0 is straightforward. It mounts on a standard S7-1500 DIN rail and connects to the backplane bus. The module includes a push-in front connector, infeed element, shield bracket, and shield terminal, simplifying wiring and ensuring proper shielding for analog signals.

For optimal performance, follow these guidelines:

• Use shielded cables for all analog inputs; maximum cable length is 800 m for U/I, 200 m for R/RTD, and 50 m for TC.
• Ensure the supply voltage is within 19.2–28.8 V DC to maintain accurate operation.
• Configure the module using STEP 7 TIA Portal V13 or higher, or STEP 7 V5.5 SP3.

Maintenance and Reliability

Routine maintenance of the 6ES7531-7QD00-0AB0 is minimal due to its solid-state design. However, periodic inspection of the wiring and connectors is recommended to prevent loose connections that could introduce measurement errors. The module's reverse polarity protection and overvoltage protection (up to 28.8 V on inputs) enhance its durability in harsh environments.

With a typical power loss of only 2.3 W, the module generates minimal heat, contributing to long-term reliability. Its operating temperature range of -25°C to 60°C (horizontal) and -25°C to 40°C (vertical) allows deployment in various industrial settings.

Compatibility and Integration

The 6ES7531-7QD00-0AB0 is fully compatible with the SIMATIC S7-1500 PLC family. It supports I&M data (I&M0 to I&M3) and can be configured via STEP 7 TIA Portal. The module also supports PROFIBUS and PROFINET GSD files, enabling integration into existing networks.

For diagnostics, the module provides a green RUN LED, red ERROR LED, and channel status LEDs, making it easy to monitor operational status. It also supports diagnostic alarms and limit value alarms (two upper and two lower limits per channel), which can trigger maintenance alerts before failures occur.

Troubleshooting Common Issues

If the module is not performing as expected, consider the following:

• Check the supply voltage: ensure it is within 19.2–28.8 V DC.
• Verify wiring: for current inputs, use the correct burden (max. 820 Ω for 2-wire transmitters).
• For RTD/TC measurements, ensure proper temperature compensation is configured (internal or external via RTD).
• If wire-break diagnostics are enabled, confirm that the input signal is within the specified range (e.g., 1–5 V, 4–20 mA).

If issues persist, consult the official Siemens manual or contact AutoDCSTech for technical support.

Product Support and Availability

The 6ES7531-7QD00-0AB0 is available from AutoDCSTech. As an industrial automation parts supplier, we ensure genuine Siemens products with reliable delivery. Contact us for current availability and pricing.
