Introduction to the Siemens 6FX8002-2DC10-1AJ0 DRIVE-CLiQ Cable

When signal integrity matters in industrial automation, the 6FX8002-2DC10-1AJ0 from Siemens delivers a pre-assembled DRIVE-CLiQ connection engineered for demanding motion control environments. This cable is part of the MOTION-CONNECT 800PLUS series and is designed for use with SINAMICS S120 Motor Modules and SINUMERIK 840D sl systems. Its robust construction minimizes downtime and reduces total cost of ownership.

Key Features and Technical Specifications

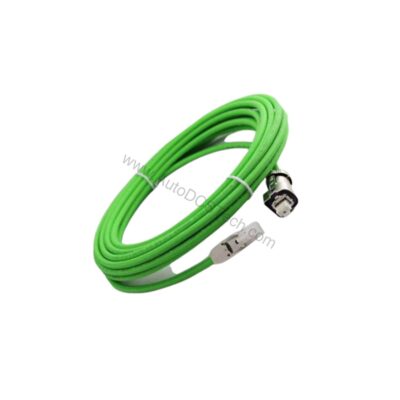

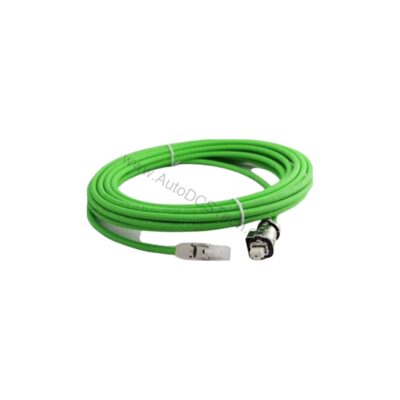

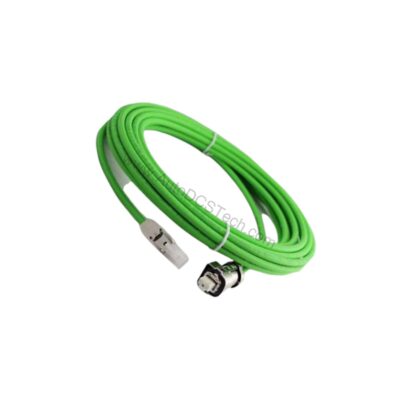

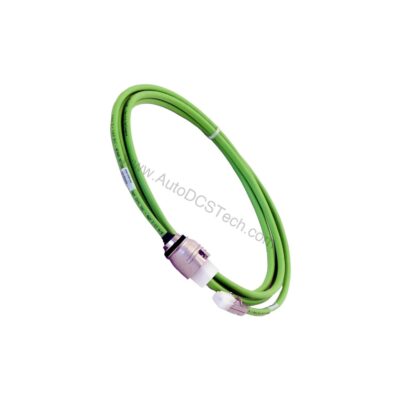

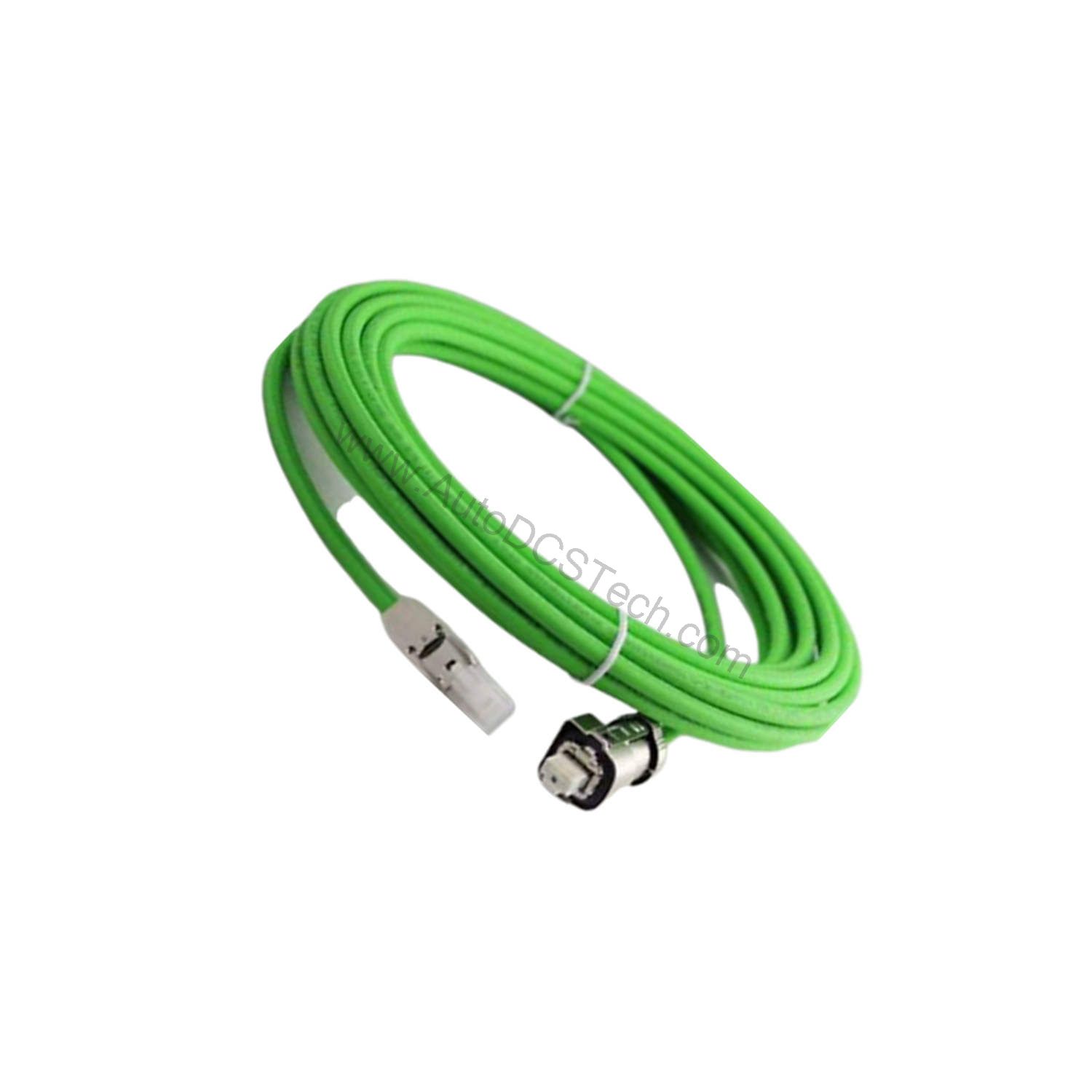

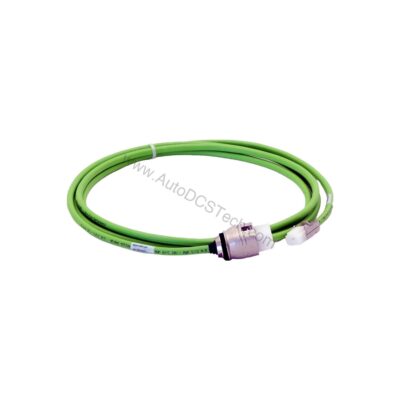

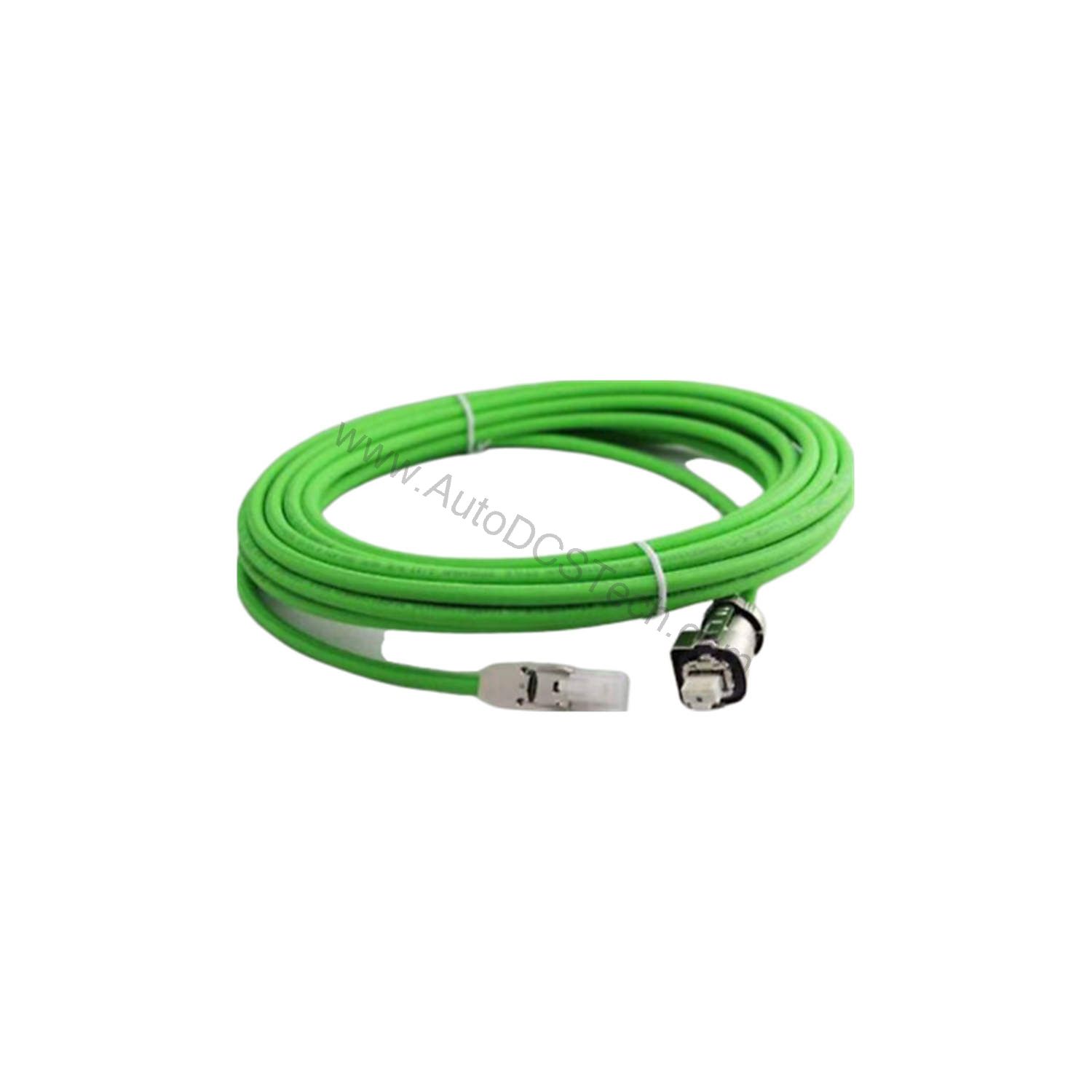

The 6FX8002-2DC10-1AJ0 features a pre-assembled DRIVE-CLiQ connector with a 24 V plug, RJ45 interface rated IP20 on the module side and IP67 on the motor side. This ensures a secure, dust-tight and water-resistant connection at the motor, while maintaining a compact footprint at the drive. The cable is released for lengths up to 75 meters, with a maximum outer diameter of 7.1 mm, allowing flexible routing in tight cable trays.

• Pre-assembled DRIVE-CLiQ cable with 24 V plug and RJ45 connectors.
• IP20 protection on module side, IP67 on motor side.
• MOTION-CONNECT 800PLUS series for high-flexibility applications.
• Approved for cable lengths up to 75 meters.
• Outer diameter max 7.1 mm for space-saving installation.

These specifications directly influence system reliability and installation efficiency. The IP67 rating on the motor side reduces the risk of contamination-related failures, which can otherwise lead to costly unplanned stops. The 75-meter length capability offers design flexibility, potentially reducing the need for additional junction boxes or signal repeaters.

Applications and Use Cases

For example, in a high-speed packaging line, the 6FX8002-2DC10-1AJ0 ensures reliable feedback between the motor and drive, minimizing signal loss and improving overall efficiency. Its robust IP67 motor-side connector makes it suitable for environments with coolant or dust exposure, reducing maintenance frequency and lifecycle costs.

Installation and Setup

Installation of the 6FX8002-2DC10-1AJ0 is straightforward due to its pre-assembled connectors. Ensure that the cable is routed with a minimum bend radius as per Siemens guidelines to avoid damage. The IP20 module-side connector should be plugged into the DRIVE-CLiQ port on the drive, while the IP67 motor-side connector mates with the motor encoder. Always verify the cable length does not exceed 75 meters to maintain signal integrity.

Maintenance and Reliability

Regular inspection of the cable and connectors is recommended to detect wear or damage early. Check for cuts, kinks, or loose connections, especially in high-flex applications. The robust IP67 design reduces the need for frequent maintenance, lowering operational costs. Following Siemens' recommended inspection intervals can extend cable life and prevent unexpected failures.

Compatibility and Integration

The 6FX8002-2DC10-1AJ0 is specifically designed for SINAMICS S120 Motor Modules and SINUMERIK 840D sl controllers. It uses the DRIVE-CLiQ interface, which is a standard for Siemens motion control systems. Ensure that your drive and motor are DRIVE-CLiQ compatible to achieve optimal performance. The cable's 24 V plug provides power for the motor encoder, simplifying wiring.

Troubleshooting and Common Issues

Common issues with DRIVE-CLiQ cables include signal loss due to damaged connectors or excessive cable length. If you experience communication errors, first check the cable for physical damage and ensure that the connectors are fully seated. Verify that the cable length is within the 75-meter limit. Using the correct cable type, such as the 6FX8002-2DC10-1AJ0, minimizes these risks.

Product Support and Availability

The 6FX8002-2DC10-1AJ0 is an active product (PM300) and is available from AutoDCSTech. Contact our team for current pricing and lead times.
