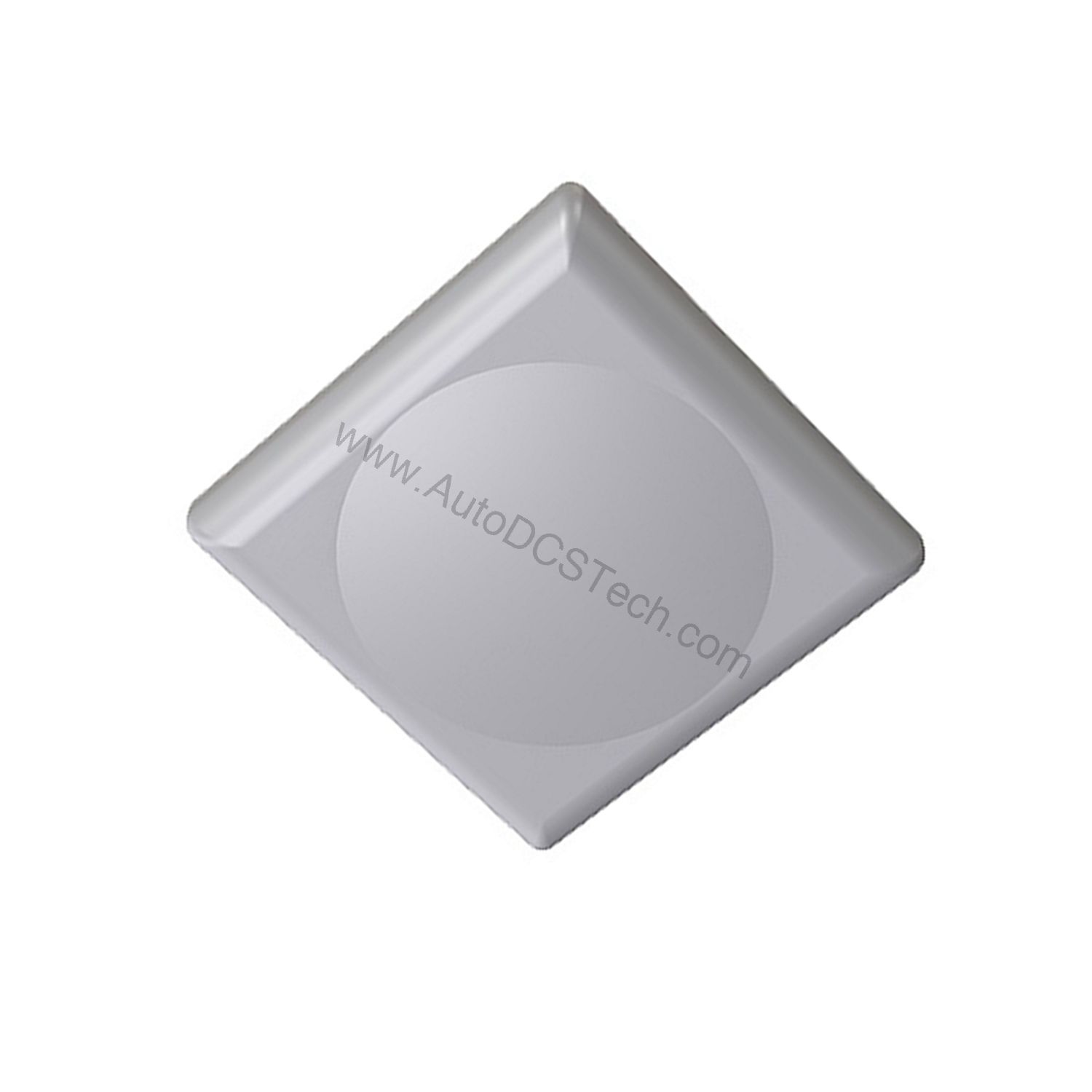

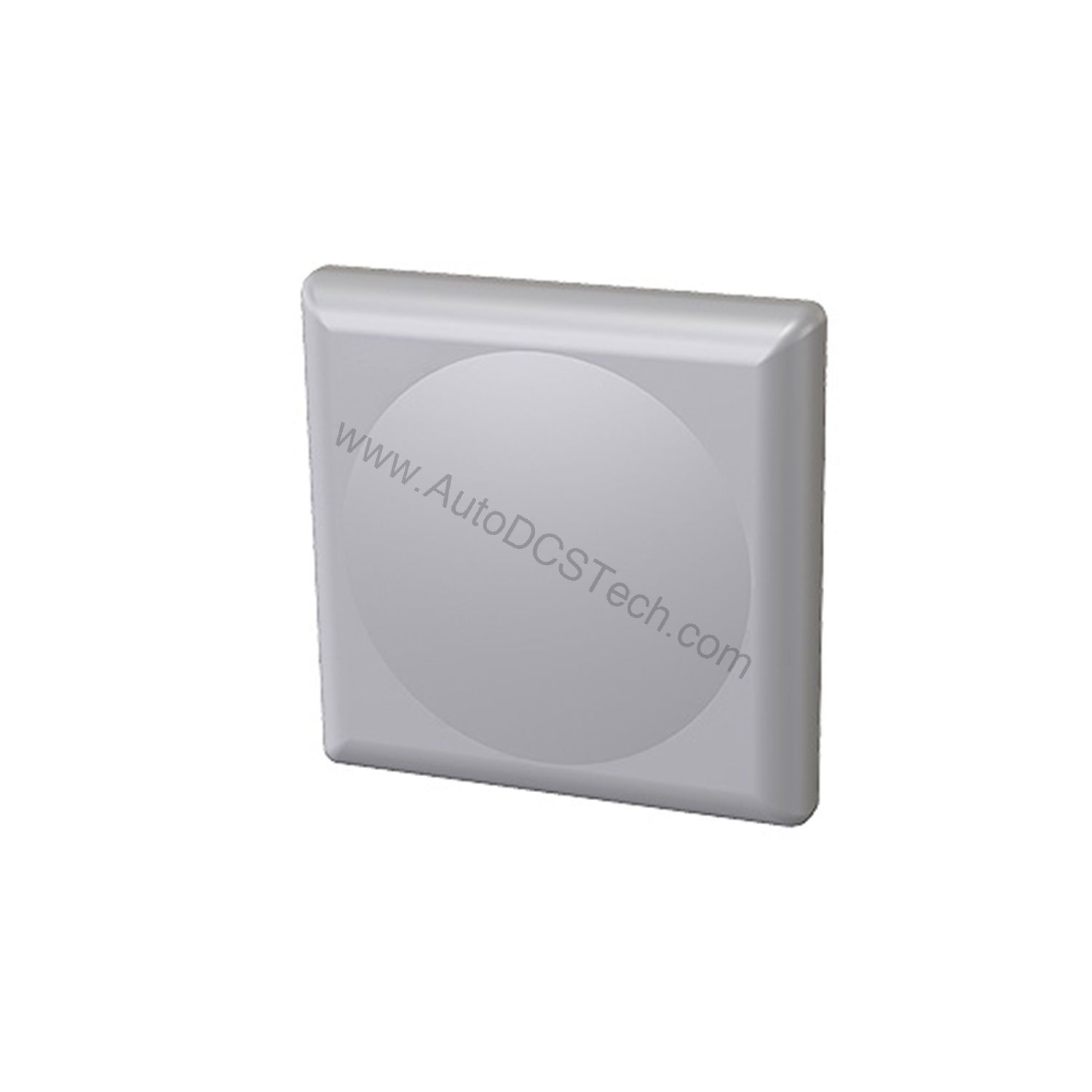

Introduction to the Siemens 6GK5793-8DJ00-0AA0 IWLAN Antenna
When reliable wireless communication is critical in industrial environments, the 6GK5793-8DJ00-0AA0 from Siemens provides a solution. This ANT793-8DJ IWLAN antenna is engineered for demanding applications where signal strength and durability matter. With its strong directivity and dual polarization, it ensures stable connections even in challenging conditions.
Key Features and Technical Specifications
The 6GK5793-8DJ00-0AA0 is packed with features that make it a standout choice for 5 GHz WLAN deployments. Below are the core specifications extracted from the official datasheet:
- Frequency Range: 5.15 to 5.875 GHz (5 GHz Band 1)
- Antenna Gain: 18 dBi
- Impedance: 50 Ω
- Polarization: Dual-linear (vertical and horizontal)
- VSWR (max): 1.7
- Beamwidth (Horizontal & Vertical): 17°
- Connectors: 2 x N-type (female)
- Protection Rating: IP67
- Operating Temperature: -45 to +70 °C
- Dimensions (W x H x D): 190 mm x 190 mm x 30.5 mm
- Net Weight: 700 g
One distinctive feature is the dual polarization, which allows the antenna to receive signals in both vertical and horizontal orientations. This reduces multipath interference and improves link reliability in dense industrial settings.
Applications and Use Cases
The 6GK5793-8DJ00-0AA0Its high gain and narrow beamwidth make it suitable for long-distance connections between buildings or across large production floors. Additionally, the IP67 rating ensures operation in dusty or wet environments, such as those found in food processing or automotive plants.
Installation and Mounting
This antenna supports both wall and pole mounting, providing flexibility for various installation scenarios. The package includes an installation aid for calibration, simplifying alignment. The two N-type connectors allow for dual-cable setups, which can be used for diversity reception or separate polarizations. Always follow the provided manual for proper installation and safety.
Maintenance and Reliability
With an IP67 protection rating, the 6GK5793-8DJ00-0AA0 is built to withstand harsh conditions. Regular inspection of the connectors and mounting hardware is recommended to ensure long-term performance. The polycarbonate and aluminum construction offers durability against UV radiation and corrosion, reducing maintenance frequency and lifecycle costs.
Compatibility and Integration
As a Wi-Fi compliant antenna, it works with standard WLAN infrastructure. It is subject to country-specific licenses, so verify compliance with local regulations. The antenna is compatible with Siemens IWLAN access points and other 5 GHz WLAN devices that use N-type connectors.
Troubleshooting and Common Issues
If signal degradation occurs, check the following: ensure connectors are tightly secured, verify that the antenna is correctly aligned, and confirm that the cable length and quality meet specifications. The VSWR of 1.7 indicates good matching, but any damage to the antenna or cabling can increase VSWR and reduce performance.
Product Support and Availability
The 6GK5793-8DJ00-0AA0 is available from AutoDCSTech. Contact us for current stock and lead times. Please verify the latest lifecycle status and country-specific wireless licenses before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 6GK5793-8DJ00-0AA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
