6SE7011-5EP70-Z 0.55kW Siemens SIMOVERT Compact Plus

6SE7011-5EP70-Z Overview

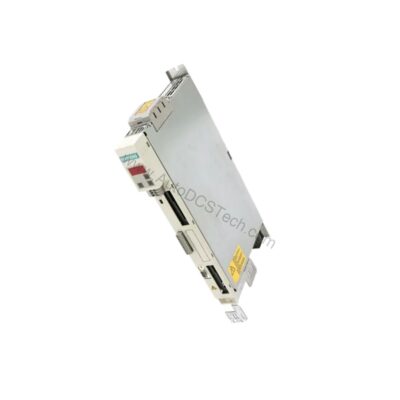

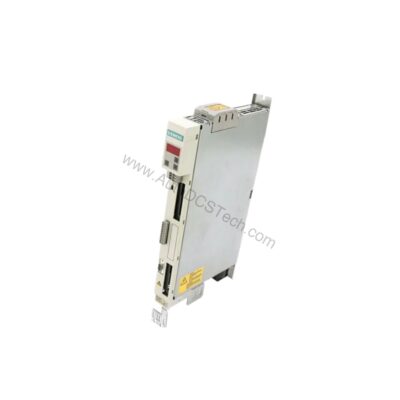

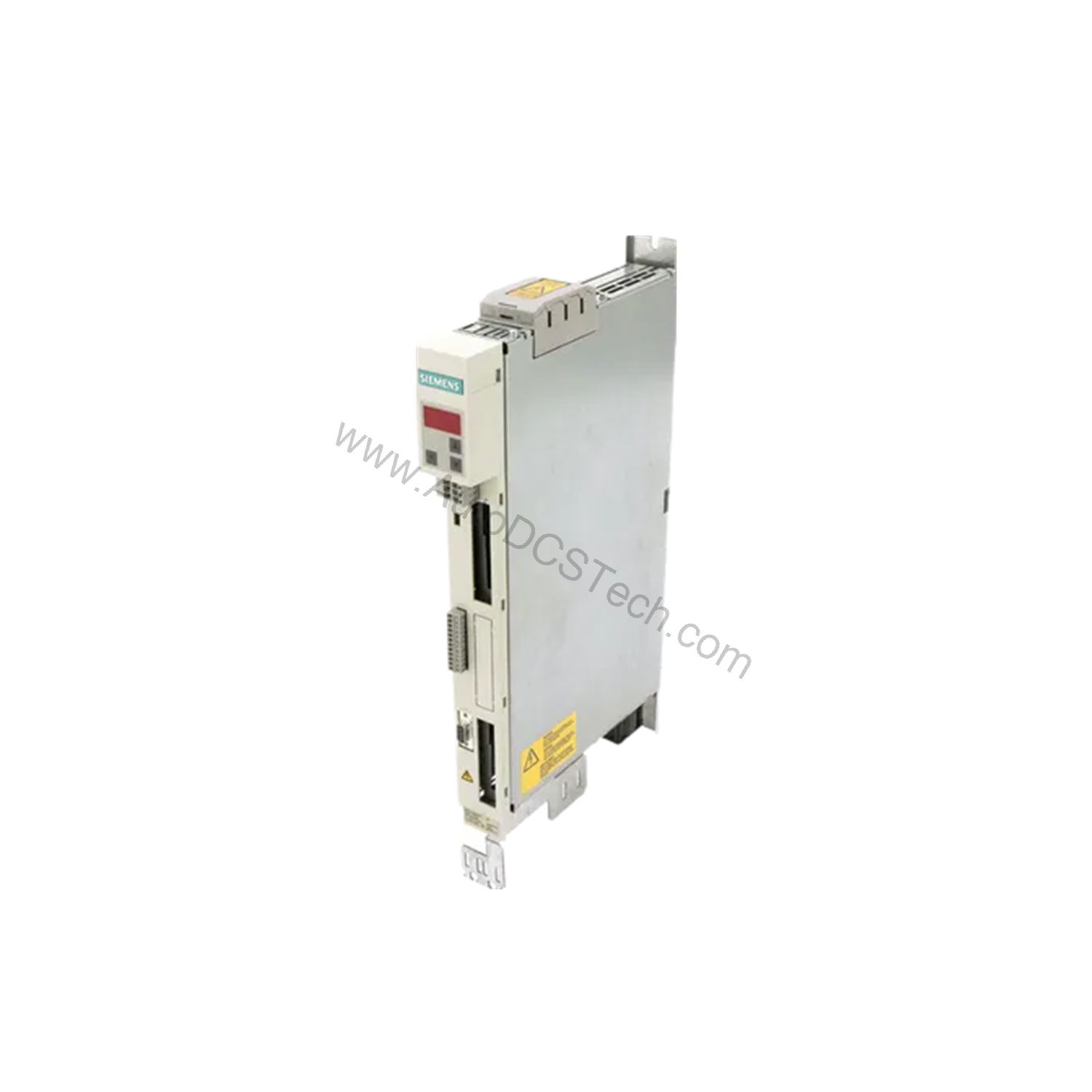

The 6SE7011-5EP70-Z is a Siemens SIMOVERT Compact-PLUS converter unit, part of the Masterdrives Motion Control-Performance 2 family. This AC-AC device is engineered for precise motor control in industrial automation. It operates on a three-phase supply of 380-480 V AC at 50/60 Hz, with a rated output current of 1.5 A and a type rating of 0.55 kW. The unit comes with an IP20 protection rating, making it suitable for enclosed control cabinets. As a spare part, it includes a measuring transducer for resolver without pulse encoder simulation (C23) and a software module for standard technology functions (F01).

Key Features & Technical Specifications

• Input Voltage: 380-480 V AC, 3-phase, 50/60 Hz
• Output Current: 1.5 A
• Power Rating: 0.55 kW
• Protection Rating: IP20
• Communication: PROFIBUS via CBP2 module (G91) inserted at Slot A
• Resolver Feedback: Measuring transducer for resolver without pulse encoder simulation (C23)
• Software: Standard technology functions module (F01)
• Documentation: CD-ROM included

This converter unit is designed for demanding motion control applications. The integrated PROFIBUS communication module enables seamless integration into industrial networks, allowing for real-time data exchange and remote monitoring. The resolver transducer ensures accurate motor feedback, which is critical for precise speed and position control.

Applications & Use Cases

The 6SE7011-5EP70-ZCommon use cases include conveyor systems, pumps, fans, and machine tools. In a typical manufacturing environment, this converter can be used to control the speed of a conveyor belt, ensuring smooth and efficient material handling. Its compact design and IP20 rating make it suitable for installation in control panels, where space is often limited. The PROFIBUS interface allows for easy integration into existing automation architectures, enabling centralized control and diagnostics.

Installation & Setup

When installing the 6SE7011-5EP70-Z, ensure the supply voltage matches the rated input of 380-480 V AC. The unit should be mounted in a well-ventilated enclosure to maintain proper cooling. Follow the manufacturer's guidelines for wiring and grounding to avoid electrical interference. The PROFIBUS module (G91) is pre-installed at Slot A, simplifying network connectivity. For resolver feedback, connect the transducer according to the provided documentation. Always refer to the user manual for detailed installation procedures.

Maintenance & Reliability

To ensure long-term reliability, periodically inspect the converter for dust accumulation and check all connections for tightness. The IP20 rating means the unit is not fully sealed, so keep the enclosure clean and free from moisture. Verify that the cooling fans (if any) are operational and that the ambient temperature remains within specified limits. Regular maintenance helps prevent unexpected downtime and extends the service life of the unit. For any issues, consult the troubleshooting section of the manual or contact AutoDCSTech for support.

Compatibility & Integration

The 6SE7011-5EP70-Z is designed to work with Siemens SIMOVERT Masterdrives systems. It supports PROFIBUS communication, allowing it to be integrated into a wide range of industrial networks. The resolver transducer input is compatible with standard resolver feedback devices. This converter can be used with various three-phase induction motors, making it a versatile choice for retrofit or new installations. For specific compatibility questions, refer to the official Siemens documentation or contact AutoDCSTech.

Common Issues & Troubleshooting

One common issue with converter units is overheating due to poor ventilation. Ensure adequate airflow around the unit. Another issue is communication errors on the PROFIBUS network; check the bus termination and cable connections. If the motor does not start, verify that the supply voltage is within the specified range and that all safety interlocks are satisfied. For resolver feedback problems, inspect the transducer wiring and ensure proper shielding. If problems persist, consult the diagnostic LED indicators on the unit or contact AutoDCSTech for technical assistance.

Product Support & Availability

The 6SE7011-5EP70-Z is available as a spare part. For pricing and availability, contact AutoDCSTech. Our team can provide technical support and assist with integration questions. Please verify the current lifecycle status and availability with AutoDCSTech before ordering.
