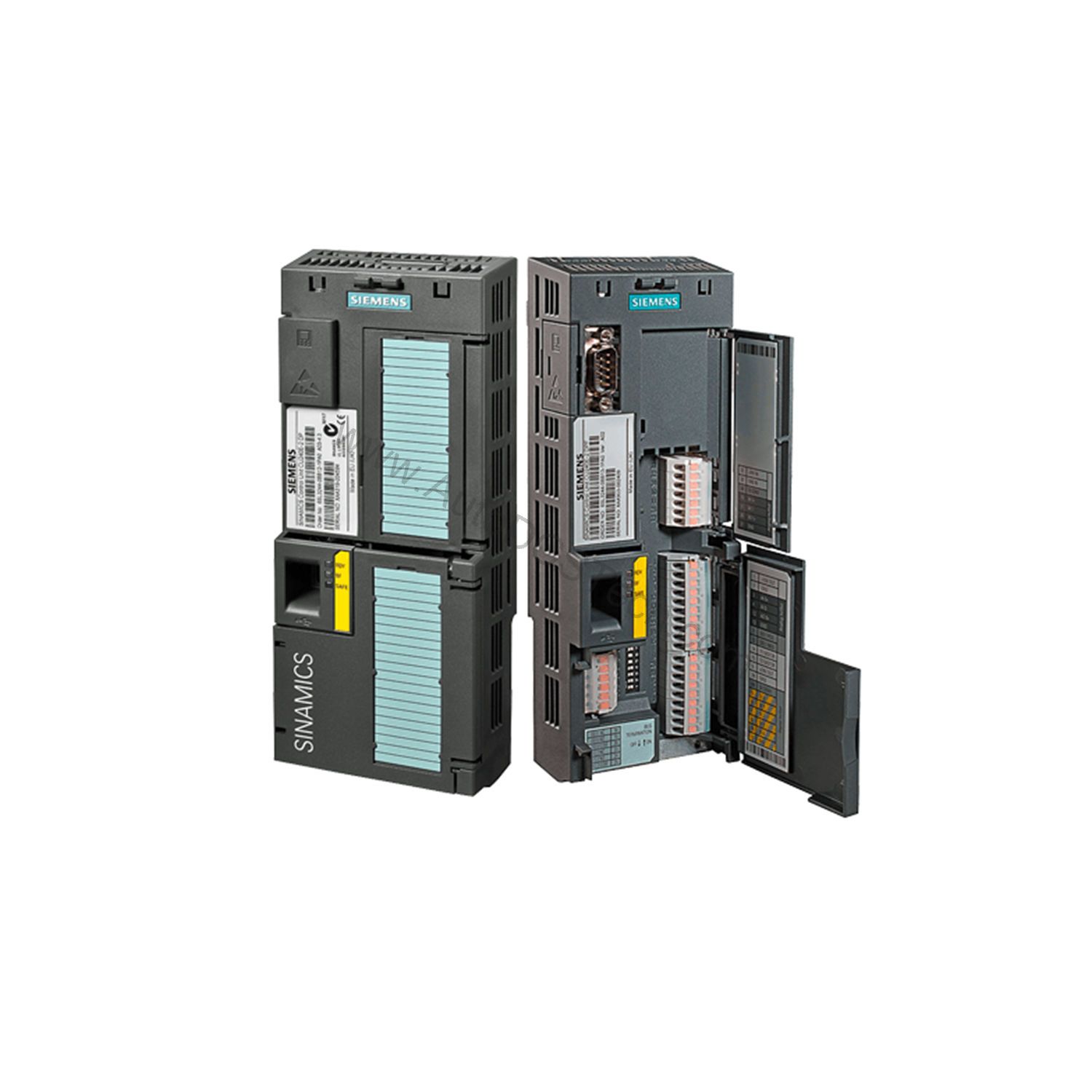

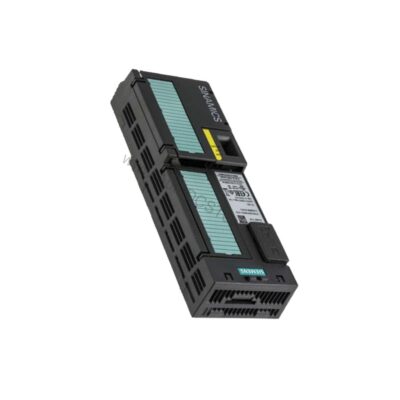

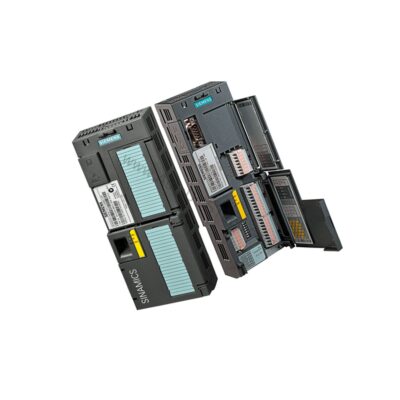

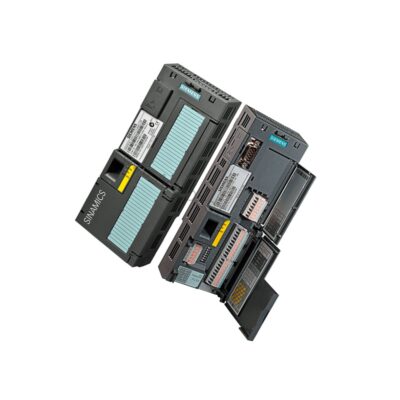

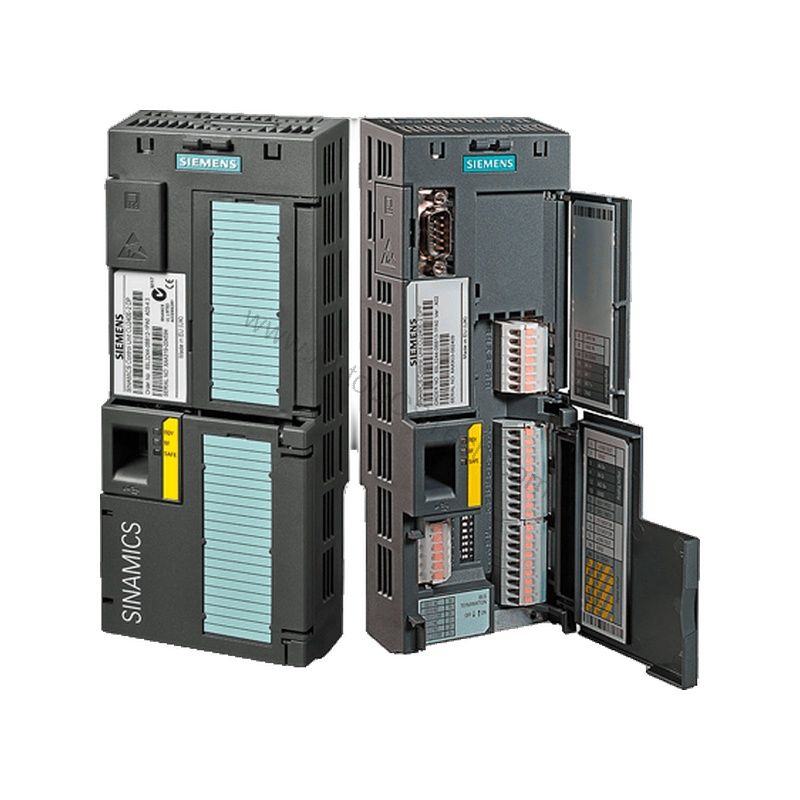

6SL3244-0BB00-1PA1 PROFIBUS DP Control Unit

Key Features and Technical Specifications

The 6SL3244-0BB00-1PA1 is a compact yet powerful control unit designed for the SINAMICS G120 series. It integrates essential I/O and communication interfaces into a single module, simplifying wiring and reducing cabinet space. Below are the core specifications:

• PROFIBUS DP interface: Enables seamless integration into industrial networks.
• 4 digital inputs (DI): Flexible for various sensor and switch signals.
• 1 digital output (DO): For controlling external devices.
• 1 analog input (AI): Accepts analog signals for precise control.
• 1 analog output (AO): Provides analog feedback or control signals.
• PTC/KTY/ThermoClick interface: For motor temperature monitoring.
• USB interface: Convenient for commissioning and diagnostics.
• SD/MMC interface: For data storage and firmware updates.
• Protection class IP20: Suitable for control cabinet installation.
• Ambient temperature 0 to +50 °C: Without power module and panel.

One distinctive feature is the integrated PTC/KTY/ThermoClick interface, which allows direct connection of motor temperature sensors. This enables real-time thermal monitoring, helping to prevent motor overload and extend equipment life.

Real-World Applications

The 6SL3244-0BB00-1PA1For instance, in conveyor systems, the PROFIBUS DP interface ensures synchronized operation across multiple drives. In pump and fan applications, the analog inputs and outputs allow for accurate speed and flow control. Moreover, the compact design makes it suitable for retrofitting existing panels where space is limited.

Installation and Setup

Mounting the 6SL3244-0BB00-1PA1 is straightforward. It snaps onto a standard DIN rail within a control cabinet. Ensure adequate clearance for airflow and cable routing. Connect the PROFIBUS DP cable to the designated terminal, and wire the digital and analog I/O according to your control scheme. Use the USB port for initial commissioning with the SINAMICS Startdrive tool. Always follow the installation instructions in the official Siemens manual.

Maintenance and Reliability

To maintain reliable operation, periodically inspect the control unit for dust accumulation and ensure all connectors are secure. The IP20 rating means it is protected against solid objects larger than 12 mm, but it is not waterproof, so keep it dry. Check the ambient temperature stays within the specified range of 0 to +50 °C. Regular firmware updates via the SD/MMC interface can improve performance and add new features.

Solving Drive Control Challenges with the 6SL3244-0BB00-1PA1

In a busy production line, a sudden loss of communication between the PLC and a variable frequency drive can halt an entire process. The 6SL3244-0BB00-1PA1 from Siemens addresses this by providing a reliable PROFIBUS DP interface. This control unit ensures your SINAMICS G120 drive stays synchronized with your automation network, minimizing downtime and keeping operations running smoothly.

Compatibility and Integration

As a SINAMICS G120 control unit, the 6SL3244-0BB00-1PA1 is designed to work with Siemens Power Modules. It supports PROFIBUS DP, a widely used fieldbus protocol, making it compatible with most PLCs and automation systems. The USB and SD/MMC interfaces provide flexible options for data exchange and parameter backup.

Common Issues and Troubleshooting

One common issue is communication failure on the PROFIBUS DP network. This can often be traced to incorrect bus termination or addressing. Ensure the bus terminator is set correctly at both ends of the segment. Another issue is false motor temperature alarms, which may result from incorrect sensor type selection. Verify the PTC/KTY/ThermoClick settings in the parameters. If the control unit does not power up, check the 24 V DC supply and fuses.

Product Support and Availability

The 6SL3244-0BB00-1PA1 is available from AutoDCSTech. Contact our team for current pricing and lead times. We are ready to assist with your industrial automation needs.
