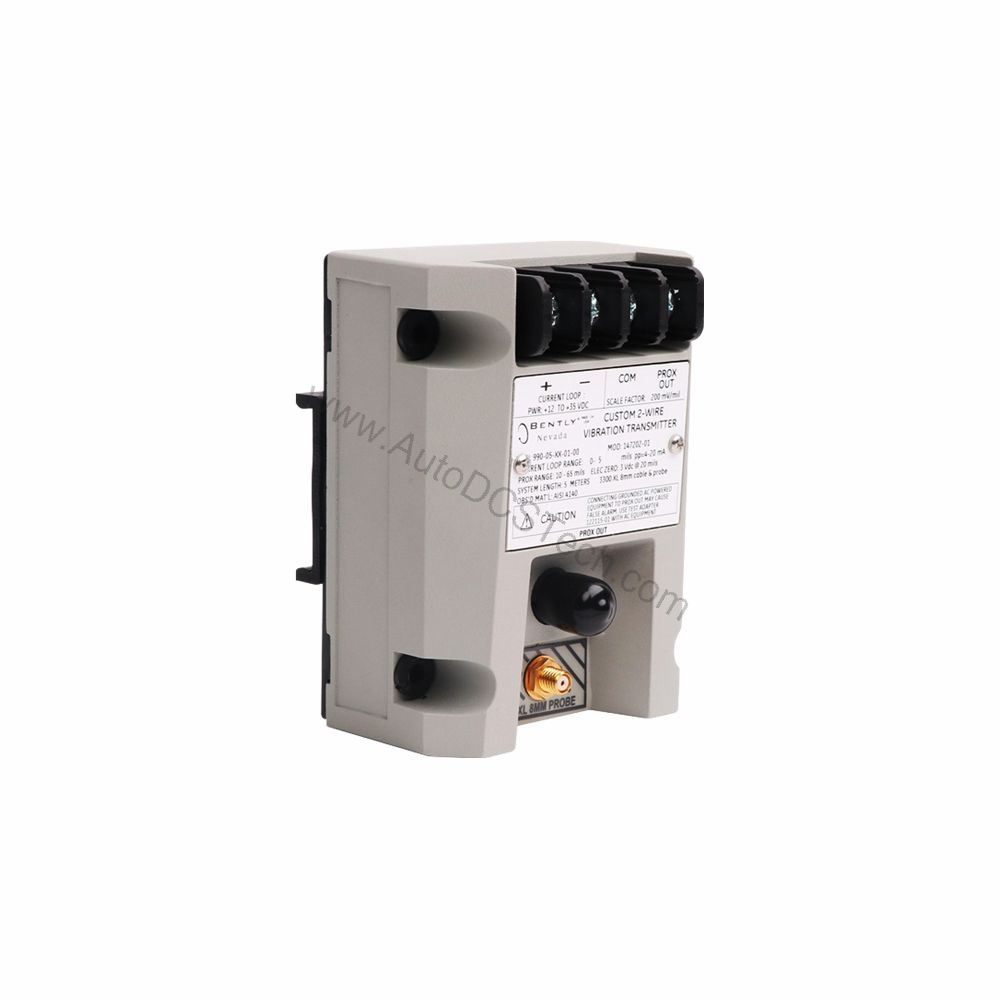

Introduction to the 990-04-70-02-05
When machine vibration threatens uptime, the 990-04-70-02-05 from Bently Nevada provides a reliable monitoring solution. This 990 Vibration Transmitter converts proximity probe signals into a standard 4-20 mA loop, enabling continuous oversight of rotating equipment.
Engineered for industrial environments, the transmitter accepts one non-contacting 3300 NSv Proximity Probe and extension cable. It operates on a +12 to +35 Vdc supply, making it versatile across different control systems. With a full-scale option of 0-4 mils pp (0-100 μm pp), it delivers precise vibration data for predictive maintenance.
Key Features and Technical Specifications
The 990-04-70-02-05 is built for accuracy and reliability. Its 4-20 mA signal output provides a direct interface to PLCs, DCS, and SCADA systems. The loop accuracy is within ±1.5% over the specified full-scale range, ensuring trustworthy readings.
- Input: Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
- Power: Requires +12 to +35 Vdc input at the transmitter terminal.
- Output: 4 to 20 mAdc over specified full-scale range in 2-wire configuration.
- Loop Accuracy: Within ±1.5% over specified full-scale range.
- Maximum Loop Resistance: 1,000 Ω including cable at 35 Vdc.
- Current Limiting: 23 mA typical.
- Frequency Response: 5 Hz to 6,000 Hz +0, 3 dB.
- Minimum Target Size: 9.5 mm (0.375 in) diameter.
One distinctive feature is the NOT OK/signal defeat function. If a fault occurs, the signal output drops to less than 3.6 mA within 100 µs, alerting operators immediately. This rapid response minimizes the risk of undetected failures.
Applications and Use Cases
This vibration transmitter suits a wide range of rotating machinery, including pumps, motors, fans, and compressors. In petrochemical plants, it helps monitor critical assets where unplanned downtime is costly. For example, a refinery can use the 990-04-70-02-05 to track bearing wear and detect misalignment early.
Because it accepts a 3300 NSv probe, it integrates easily into existing Bently Nevada monitoring systems. The 7.0-meter system length option provides flexibility for installations where the probe is distant from the transmitter. This reduces the need for additional junction boxes and simplifies wiring.
Installation and Setup
Proper installation is crucial for accurate vibration measurement. The probe must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from the target to ensure full-scale range. Use the bulkhead screw mounting option for secure attachment in industrial panels.
When wiring, maintain the maximum loop resistance of 1,000 Ω including cable at 35 Vdc. This ensures the 4-20 mA signal remains within specification. For non-hazardous, Zone 2, or Div 2 areas, the power supply should be 28 V. Always follow the manufacturer's manual for detailed wiring diagrams.
Maintenance and Reliability
Regular inspection of the probe and cable is essential to maintain measurement integrity. Check for physical damage, loose connections, and contamination on the probe tip. Since the transmitter is solid-state, it requires minimal routine maintenance.
The NOT OK/signal defeat feature enhances reliability by providing a clear fault indication. If the signal drops below 3.6 mA, it triggers an alarm, allowing maintenance teams to respond quickly. This proactive approach reduces the likelihood of catastrophic failures.
Compatibility and Integration
The 990-04-70-02-05 is designed to work with Bently Nevada's 3300 NSv proximity probe system. It outputs a standard 4-20 mA signal, compatible with most industrial control systems. The two-wire configuration simplifies integration into existing loops.
For hazardous area installations, the Agency Approval Option 05 includes CSA Division 2, ATEX Zone 0, ATEX Zone 2, and ABS maritime approval. This makes the transmitter suitable for offshore and onshore applications where safety certifications are mandatory.
Troubleshooting Common Issues
If the output signal is unstable, first verify the probe gap. An incorrect gap can cause erratic readings. Check the loop resistance; exceeding 1,000 Ω may reduce signal strength. Also, confirm the power supply is within +12 to +35 Vdc.
When the signal goes below 3.6 mA, the transmitter is in NOT OK condition. This could indicate a probe fault, cable break, or internal failure. After resolving the issue, the signal restores within 2-3 seconds. If problems persist, consult the official Bently Nevada documentation or contact AutoDCSTech for support.
Support and Availability
The 990-04-70-02-05 is available through AutoDCSTech. Contact our team to verify current lifecycle status and availability before ordering. We are ready to assist with your vibration monitoring needs.
