Why Choose the 990-05-50-02-CN for Vibration Monitoring?

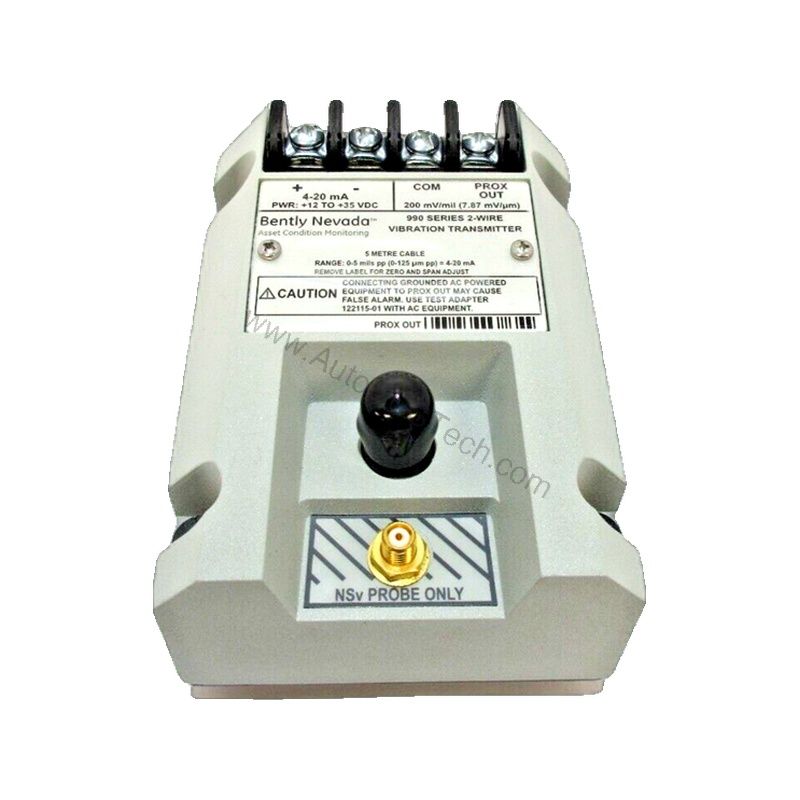

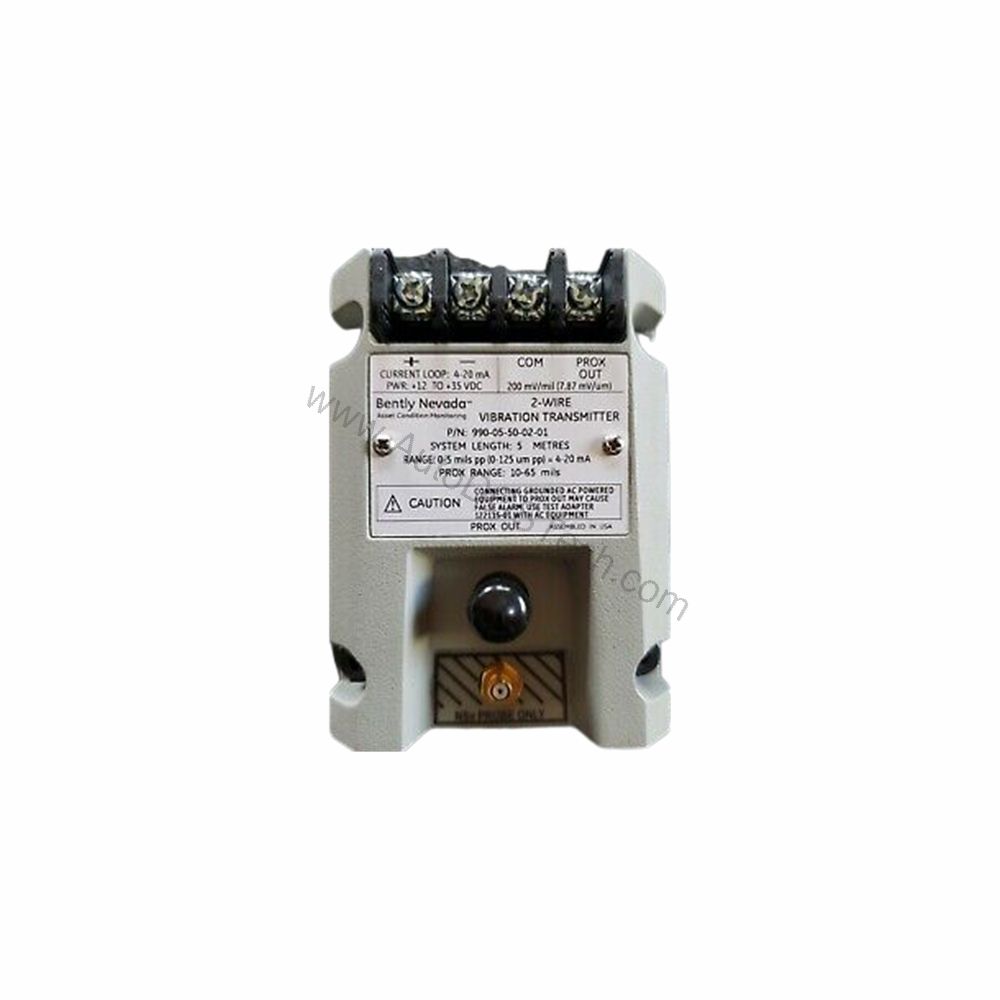

When machinery vibration threatens uptime, how do you get accurate, real-time data to your control system? The 990-05-50-02-CN from Bently Nevada answers that need. This 990 Vibration Transmitter converts the signal from a non-contacting 3300 NSv Proximity Probe into a standard 4-20 mA loop. It is designed for continuous monitoring in industrial environments, providing a straightforward path to integrate vibration data into your existing PLC, DCS, or SCADA system.
With a full-scale range of 0-5 mils pp (0-125 μm pp), this transmitter is suited for applications requiring precise displacement measurement. The unit accepts one probe and extension cable, simplifying installation. Its robust design and country-specific approval option (CN) make it a dependable choice for global operations.
Key Features and Technical Specifications
The 990-05-50-02-CN offers several features that enhance its performance and usability:
- Input: Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
- Power: Requires +12 to +35 Vdc input at the transmitter terminal.
- Output: 4 to 20 mAdc over specified full-scale range in 2-wire configuration.
- Accuracy: Within ±1.5% over specified full-scale range (from TEST signal to voltage across 250 Ω loop resistance).
- Maximum Loop Resistance: 1,000 Ω including cable at 35 Vdc.
- Current Limiting: 23 mA typical.
- Frequency Response: 5 Hz to 6,000 Hz +0, 3 dB.
- Probe Gap: Must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from target.
- NOT OK/Signal Defeat: Output goes to less than 3.6 mA within 100 µs after a Not OK condition; restores within 2-3 seconds after removal.
- Minimum Target Size: 9.5 mm (0.375 in) diameter.
- Leadwire Length: Maximum 3 meters (10 feet) for Proximitor Sensor Output (BNC connector).
- Mounting: Bulkhead screws (option 02).
- System Length: 0-5.0 metres (16.4 feet) cable.
- Weight: 0.43 kg (0.9 lbm).
These specifications ensure accurate and reliable vibration monitoring, even in challenging industrial settings.
Real-World Applications
The 990-05-50-02-CN is ideal for monitoring rotating machinery such as pumps, motors, fans, and compressors. In these applications, excessive vibration can indicate misalignment, bearing wear, or imbalance. By providing a continuous 4-20 mA signal, this transmitter enables predictive maintenance strategies. For example, a sudden increase in vibration amplitude can trigger an alarm, allowing maintenance teams to address issues before catastrophic failure occurs. This proactive approach reduces downtime and extends equipment life.
Furthermore, the transmitter's compatibility with the 3300 NSv probe makes it a drop-in solution for existing Bently Nevada monitoring systems. Its compact design and bulkhead mounting simplify retrofits into existing panels or junction boxes.
Installation and Setup
Proper installation is critical for accurate vibration measurement. The probe must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from the target to ensure full-scale range. The transmitter requires a +12 to +35 Vdc power supply at its terminal. The 4-20 mA loop connects in a 2-wire configuration, with maximum loop resistance of 1,000 Ω at 35 Vdc. Ensure the leadwire length does not exceed 3 meters (10 feet) for the Proximitor Sensor Output. Mount the transmitter using the provided bulkhead screws, and verify that the system length is within the 0-5.0 metres (16.4 feet) option. Always follow the manufacturer's manual for detailed wiring and commissioning procedures.
Maintenance and Reliability
Regular inspection of the probe and cable is recommended to ensure reliable operation. Check for physical damage, loose connections, and proper gap. The transmitter itself is solid-state and requires minimal maintenance. However, periodic verification of the 4-20 mA output against a known vibration source can confirm accuracy. Since the unit is designed for hazardous area locations (NonHazardous, Zone 2 or Div 2), ensure that all maintenance follows site safety protocols. The power supply should be 28 V as specified for hazardous area installations.
Compatibility and Integration
The 990-05-50-02-CN is designed to work with the 3300 NSv Proximity Probe and extension cable. Its 4-20 mA output is universally compatible with most control systems, including PLCs, DCS, and SCADA. The loop-powered design simplifies wiring and reduces the need for additional signal conditioning. For hazardous area installations, the power supply must be 28 V, as specified. This transmitter is a reliable interface between mechanical vibration and your control system.
Troubleshooting Common Issues
If the output signal is not within the expected range, first verify the probe gap. An incorrect gap can cause the signal to be out of range. Check the loop resistance; if it exceeds 1,000 Ω, the signal may be attenuated. Ensure the power supply voltage is within +12 to +35 Vdc. If the output goes below 3.6 mA, it indicates a Not OK condition—check the probe and cable for faults. The signal should restore within 2-3 seconds after the condition is cleared. If problems persist, consult the official Bently Nevada documentation or contact AutoDCSTech for support.
Product Support and Availability
The 990-05-50-02-CN is available from AutoDCSTech. As an industrial automation parts supplier, AutoDCSTech offers genuine Bently Nevada products. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Contact our team for pricing and lead times.
