When Safety and Performance Converge: The ABB PM857K01 MPC866 Controller

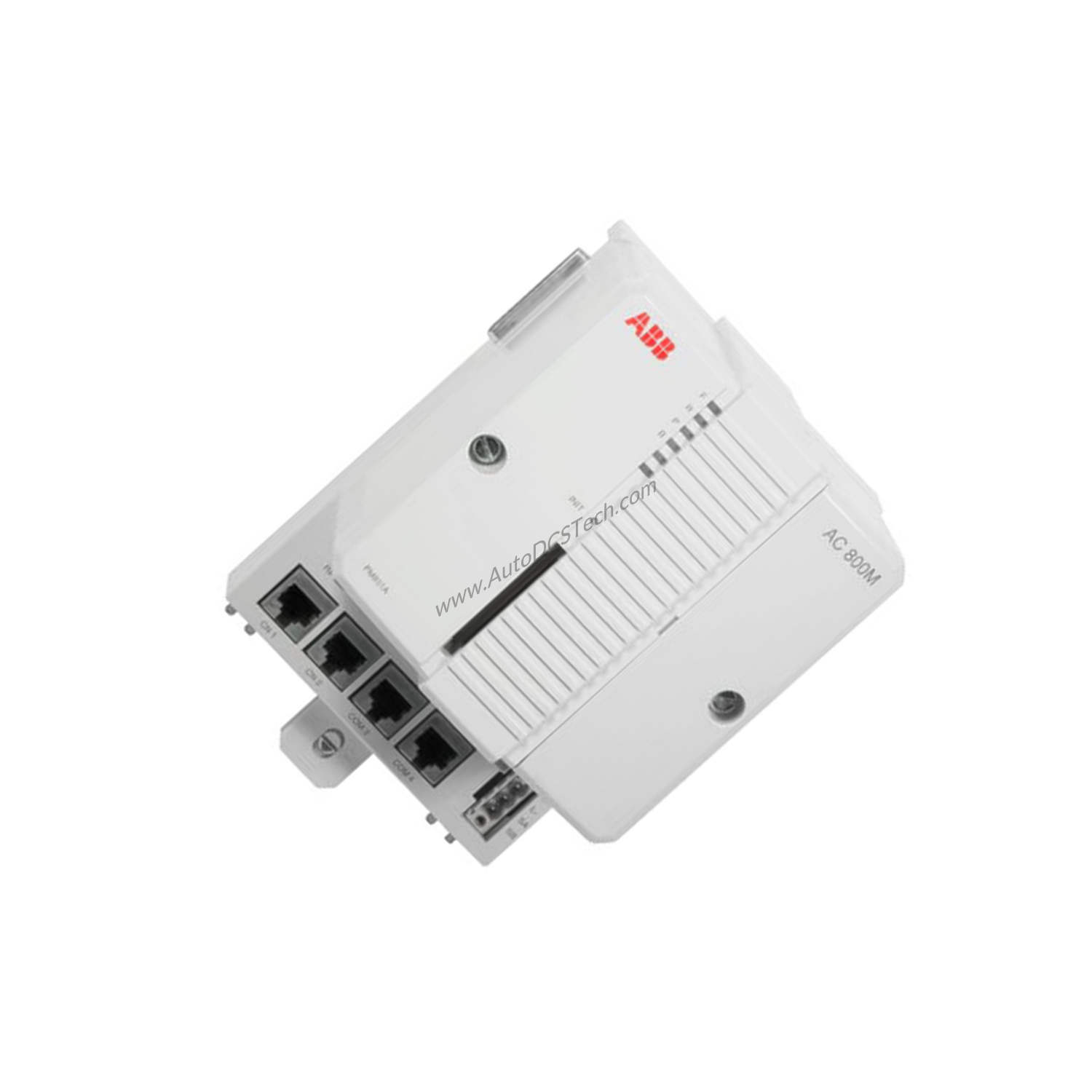

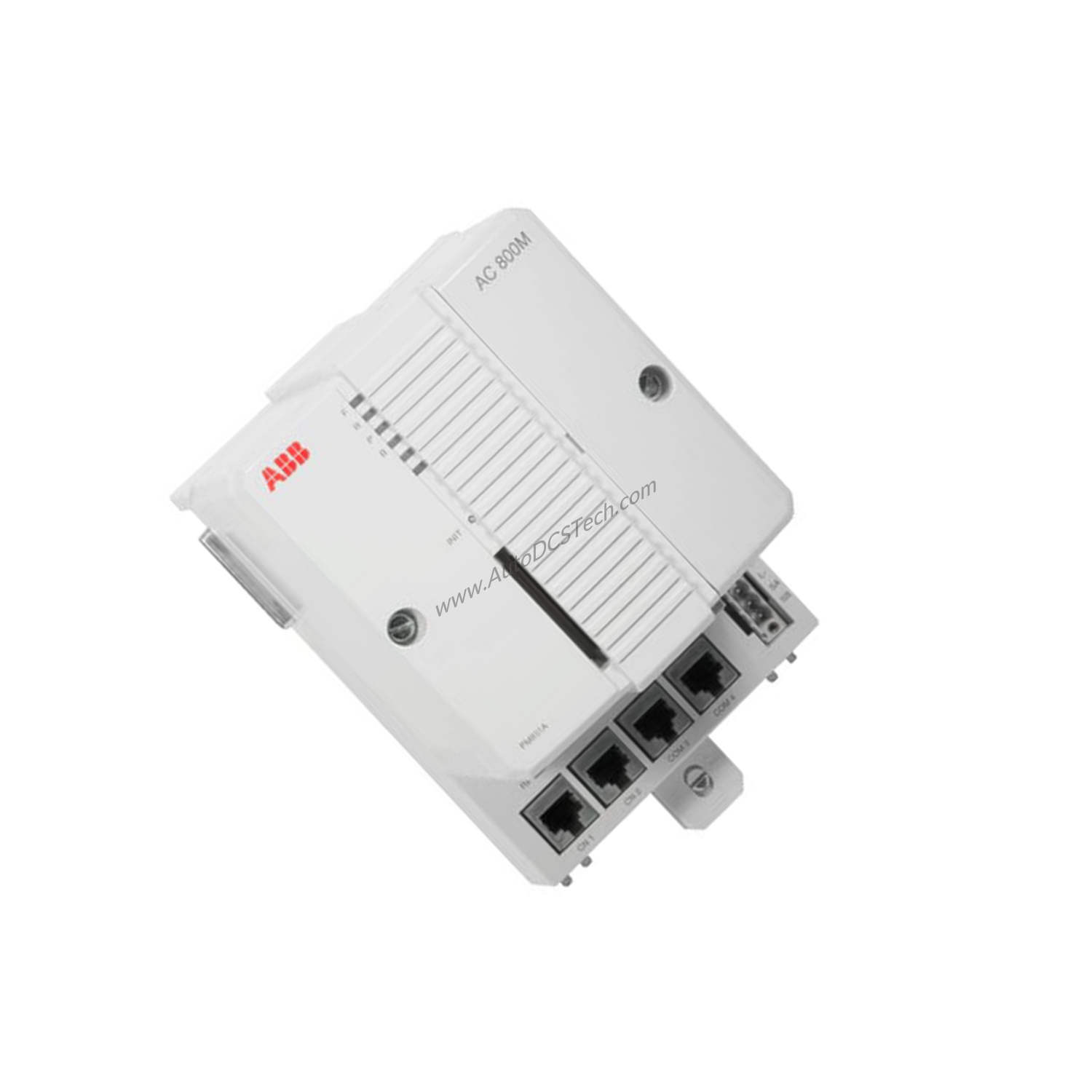

In high-stakes industrial environments, a single control failure can lead to costly downtime or safety incidents. The ABB PM857K01 MPC866 controller addresses this challenge by combining robust processing power with certified high-integrity functionality. Designed for the AC 800M family, this CPU board integrates a microprocessor, RAM memory, real-time clock, LED indicators, INIT push button, and a CompactFlash interface—all within a compact 119 mm x 186 mm x 135 mm enclosure.
Technical Specifications Breakdown
The PM857K01 operates with a clock frequency of 96 MHz and delivers a performance of 0.17 ms for 1000 boolean operations. It includes 32 MB of memory, with 22.184 MB available for applications. The controller supports up to 32 applications per controller, 64 programs per application, and 128 diagrams per application. Power supply is 24 V DC (19.2-30 V DC), with typical power consumption of 210 mA and maximum of 360 mA. Power dissipation is 5.1 W typical and 8.6 W max. The built-in backup battery is a lithium 3.6 V cell.
Industry Applications
In a chemical processing plant, operators needed to upgrade a non-critical control scheme to SIL 3 without replacing the entire controller. By adding an SM812 module and selecting the appropriate software, the PM857K01 enabled the transition to a certified high-integrity environment. This controller also supports CPU redundancy for higher availability, making it suitable for critical processes in oil and gas, power generation, and pharmaceutical manufacturing. With a maximum of 128 I/O signals and support for S800 I/O High Integrity, it integrates seamlessly into existing architectures.
Installation & Setup Guidance
Mount the PM857K01 on a standard DIN rail within an IP20 enclosure. Connect the two RJ45 Ethernet ports (CN1, CN2) to the Control Network using 10 Mbit/s Ethernet (IEEE 802.3). Use COM3 (RS-232C, 75-19200 baud) for general serial communication and COM4 (RS-232C, 9600 baud, opto-isolated) for configuration tool connection. Ensure the power supply provides 24 V DC within the 19.2-30 V DC range. Configure the controller using 800xA control builder. For high-integrity setups, install the SM812 module and follow the Safety Manual.
Maintenance & Reliability
To maintain reliable operation, keep the controller within its operating temperature range of +5 to +55 °C and relative humidity of 5 to 95% non-condensing. The controller is G3 compliant for corrosion protection and meets IP20 protection class. Periodically inspect the lithium backup battery and replace it as needed. The real-time clock stability is 100 ppm (approx. 1 h/year). Regular inspection according to the manufacturer's safety manual is recommended for high-integrity configurations.
Compatibility & Integration
The PM857K01 integrates with the AC 800M platform and supports S800 I/O modules. It communicates via Control Network protocol MMS and IAC over 100 Mbit/s switched Ethernet. The controller supports up to 12 communication modules on the CEX bus and up to 96 I/O modules on the Modulebus (single CPU) or 84 (redundant CPU). It is certified for SIL 3 with TÜV approval and complies with IEC 61508. The controller also holds ISA Secure certification and marine certificates from ABS, BV, and DNV-GL.
Selection Guide & Purchasing Advice
Before purchasing the PM857K01 (article number 3BSE088385R1), verify your system requirements: ensure your application needs high-integrity functionality and SIL 3 certification. The controller does not include redundant power supply by default, but it has a redundant power supply status input. Confirm compatibility with your existing S800 I/O modules and CEX-bus devices. For current lifecycle status and availability, contact SpareTechPLC. We stock genuine ABB parts and can help you select the right configuration for your process.
