Product Overview

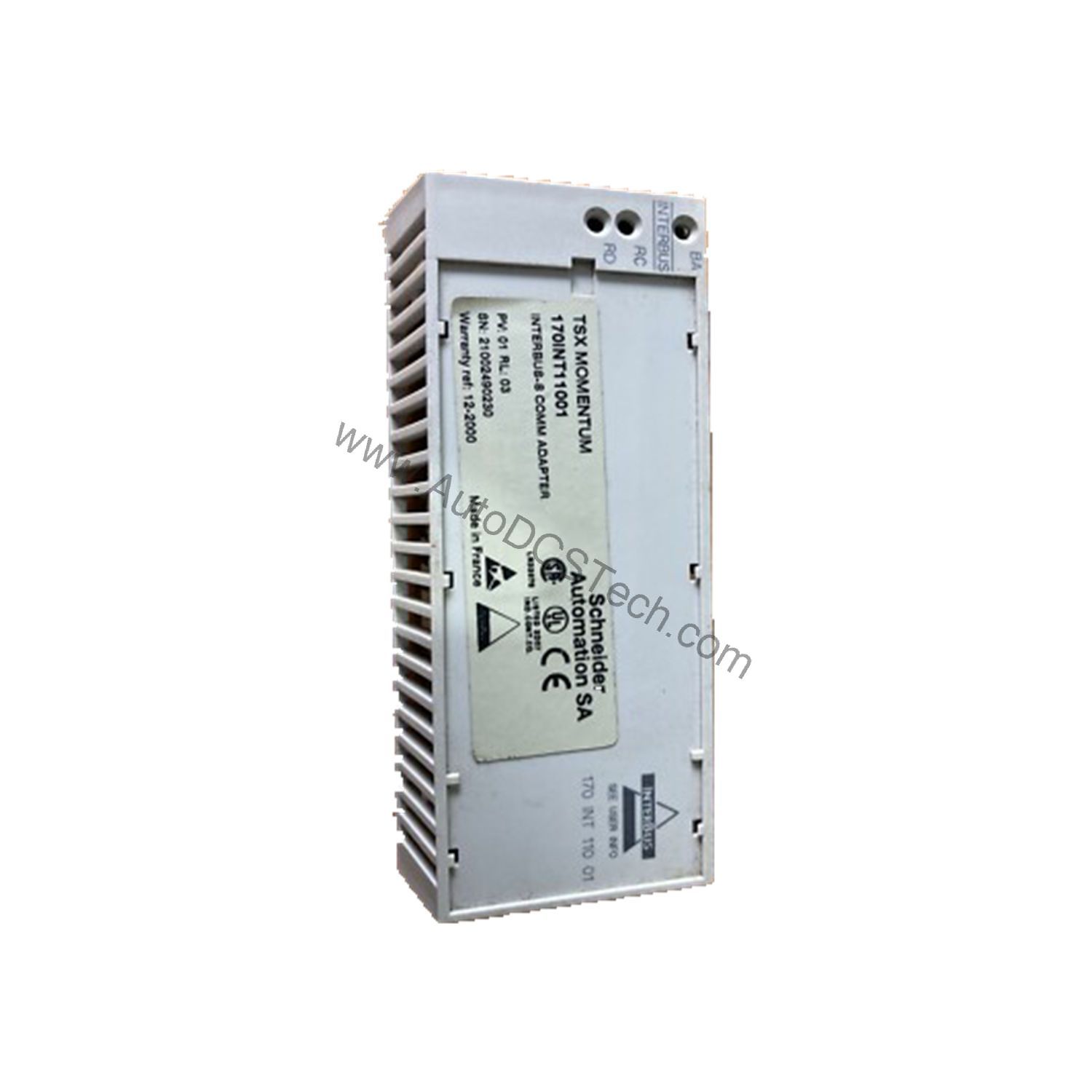

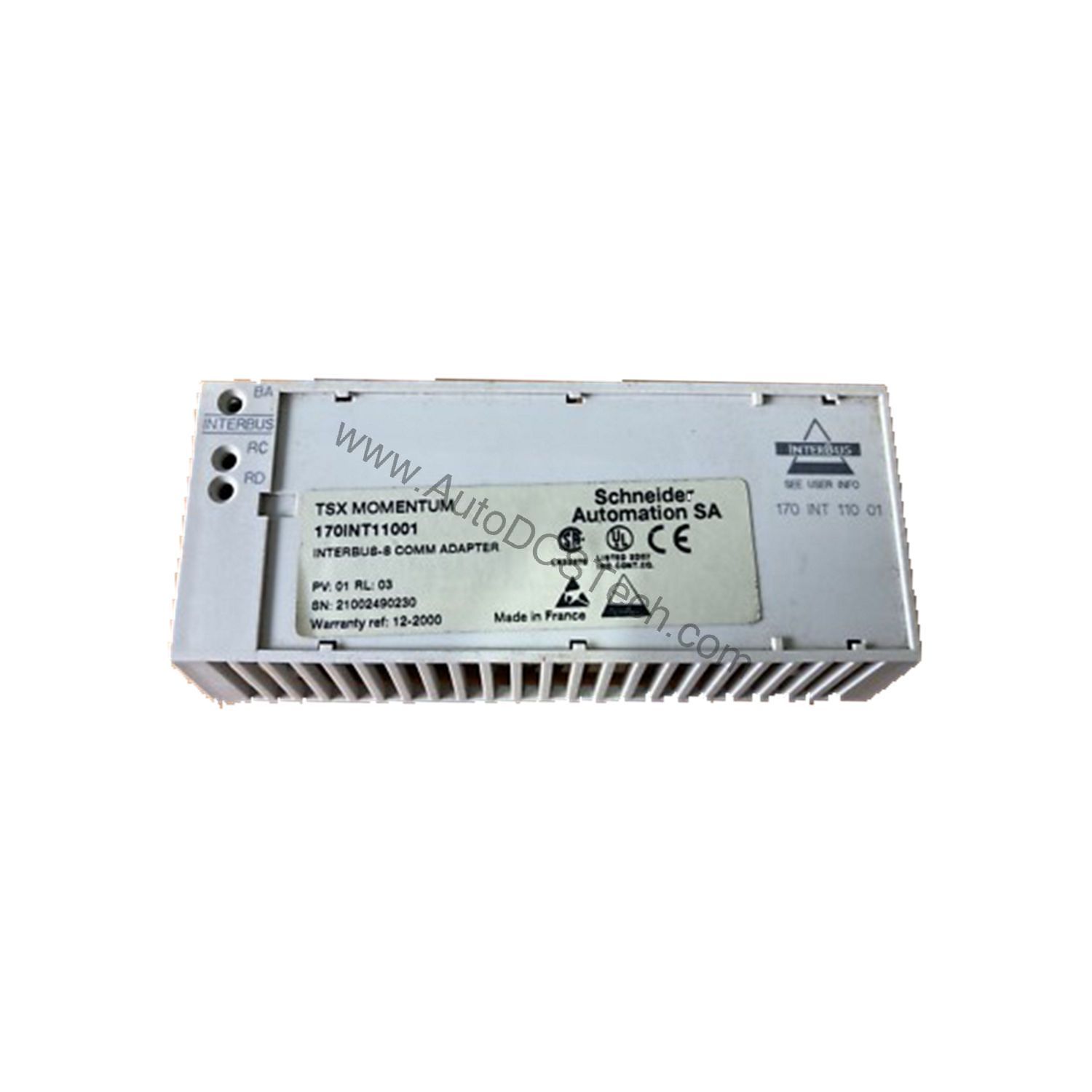

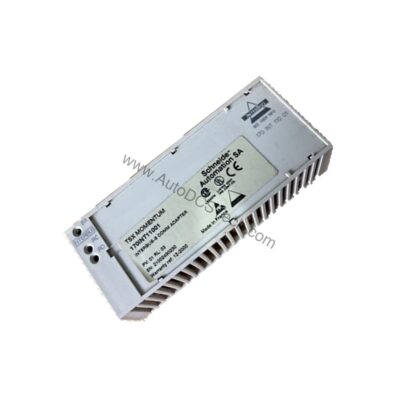

The Schneider Electric 170INT11001 is a communication adapter from the Modicon Momentum series. It is engineered to provide reliable connectivity in industrial automation networks using the INTERBUS-S protocol. This module is specifically designed for use with Momentum I/O bases, making it a critical component for system integration. Its support for ring topology enhances network reliability and simplifies cabling.
Technical Specifications Breakdown
Key parameters for the 170INT11001 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Line | Modicon Momentum |
| Part Number | 170INT11001 |
| Product Type | Communication Adapter |
| Communication Protocol | INTERBUS-S |
| Compatible Modules | Momentum I/O bases |
| Topology Support | Ring topology |
| Transmission Medium | Twisted pair cable |
| Data Transmission Rate | 500 kbps |
| Min. Operating Temperature | 0°C |
| Max. Operating Temperature | 55°C |
| Min. Storage Temperature | -20°C |
| Max. Storage Temperature | 60°C |
| Altitude | 2000 meters |
| Environment | No corrosive gases |
Industry Applications
The INTERBUS-S protocol and ring topology make it suitable for applications such as conveyor systems, packaging machinery, and material handling. Engineers can rely on the 500 kbps data rate for consistent communication in medium-speed automation cells.
Installation & Setup Guidance
Mount the 170INT11001 securely to a DIN rail or panel in a clean, dry enclosure. Use twisted pair cables for the INTERBUS-S network, ensuring proper termination and grounding per Schneider guidelines. Connect the adapter to Momentum I/O bases following the ring topology to maximize fault tolerance. Verify that the operating environment remains within 0°C to 55°C and free from corrosive gases.
Maintenance & Reliability
Periodically inspect cable connections and the adapter for signs of wear or contamination. Keep the enclosure clean and ensure airflow is not obstructed. The storage temperature range of -20°C to 60°C allows for flexible spare parts management. Regular checks help maintain reliable communication in industrial settings.
Compatibility & Integration
The 170INT11001 is designed exclusively for the Modicon Momentum series and is fully compatible with Momentum I/O bases. It supports the INTERBUS-S protocol, enabling integration into existing Schneider Electric networks. The ring topology allows for redundant communication paths, reducing downtime.
Selection Guide & Purchasing Advice
When selecting a communication adapter for your Momentum system, confirm that your network requires INTERBUS-S protocol and ring topology. The 170INT11001 is a proven choice for these applications. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
Availability & Condition at AutoDCSTech
| Part Number | 170INT11001 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
