Honeywell S7800A1001 Keyboard Display Module for 7800 Series Burner Controls

Product Overview

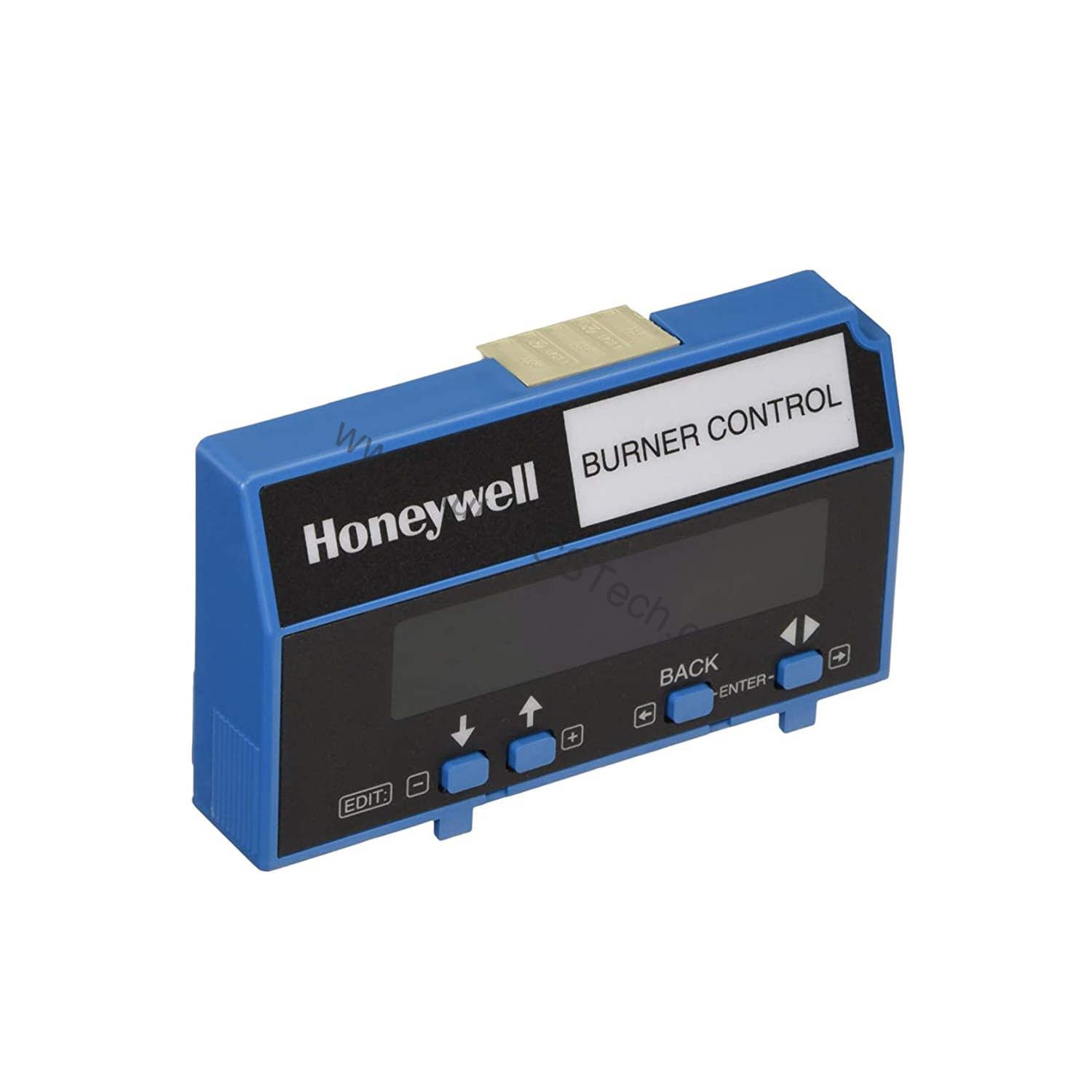

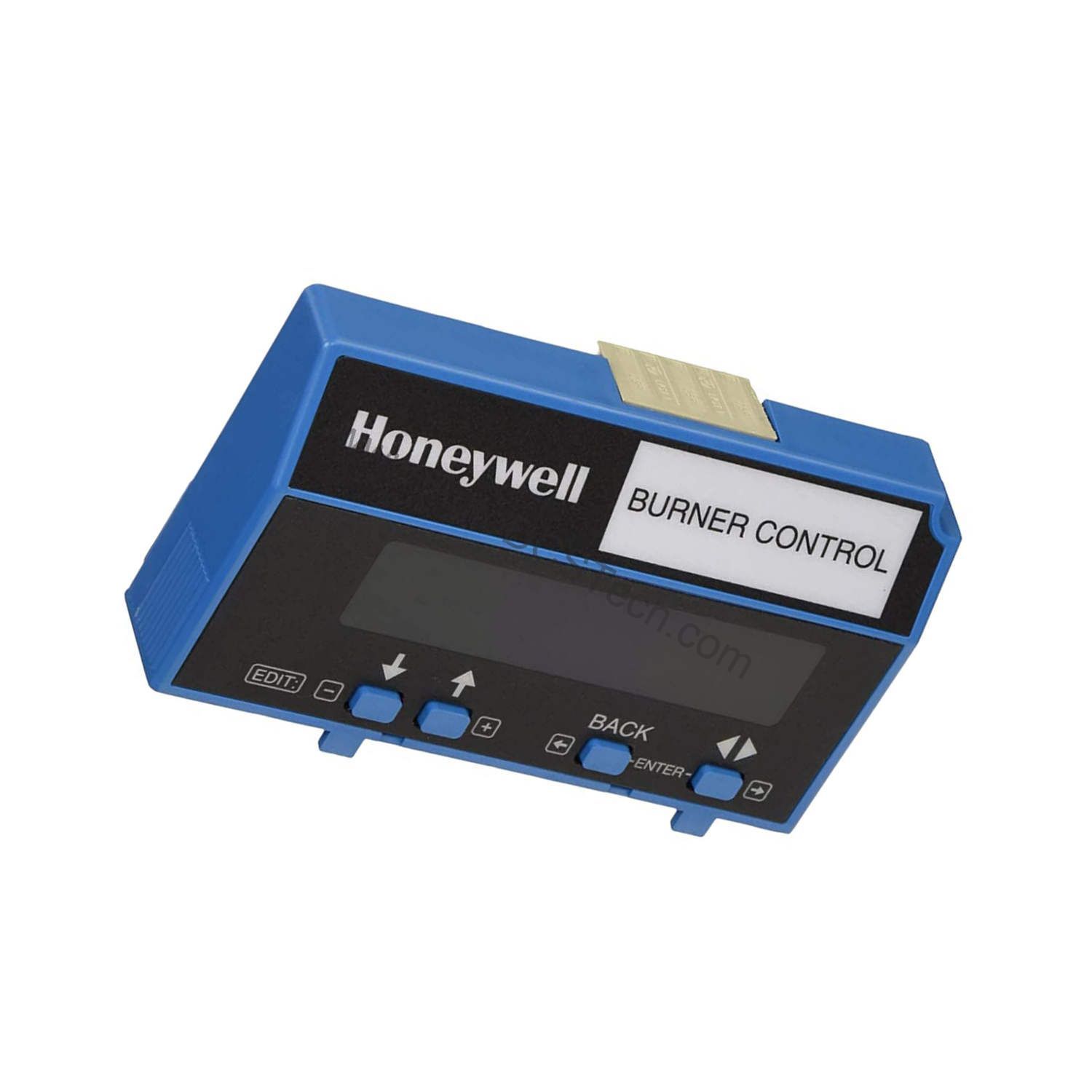

The Honeywell S7800A1001 Keyboard Display Module (KDM) is an operator interface designed for the 7800 SERIES of microprocessor-based burner controls. It provides first-out annunciation and system diagnosis through a two-row by twenty-column readout, enabling operators to quickly identify fault conditions and monitor burner performance. This module supports gas, oil, coal, or combination fuel single burner applications, making it a versatile choice for industrial combustion systems.

With local or remote annunciation of operation and fault information, the S7800A1001 enhances situational awareness and reduces downtime. Its remote reset capability allows operators to clear faults from a distance, improving safety and convenience. The module also generates reports and provides detailed burner controller data, including sequence status, sequence time, hold status, lockout/alarm status, flame signal strength, expanded annunciator status, total cycles of operation, total hours of operation, and fault history of the six most recent faults. Each fault record includes cycles of operation at time of fault, expanded annunciator data, fault message and code, hours of operation, sequence status, and sequence time.

Technical Specifications Breakdown

Key parameters for the S7800A1001 are listed below for quick reference:

Industry Applications

Its first-out annunciation helps operators quickly identify the root cause of a burner trip, reducing troubleshooting time and improving plant availability. The remote reset feature is particularly valuable in large facilities where burners may be located in hazardous or hard-to-reach areas, allowing operators to reset faults without physical access.

In combination fuel applications, the module's ability to display flame signal strength and sequence status enables precise monitoring of fuel switching and combustion stability. This data supports proactive maintenance and helps prevent unplanned shutdowns, directly contributing to operational efficiency and cost savings.

Installation & Setup Guidance

When installing the S7800A1001, ensure the environment meets the specified humidity and vibration limits. The module is designed for a maximum 85% relative humidity continuous, noncondensing, and should not be subjected to vibration in excess of 0.5G continuous maximum. The S7800A is not weather tight; if installed outdoors, it must be protected by an approved weather-tight enclosure such as the 204718A or 204718C NEMA 4 Enclosure, which also provides an UL Class 4 rating.

Mount the display module in a location that is easily accessible for operator interaction and viewing. Verify that the power supply provides 13 Vdc peak full wave rectified voltage within the specified tolerance of +20/-15%. Ensure proper earth grounding as indicated in the terminal ratings. For remote annunciation, follow the wiring guidelines provided in the 7800 SERIES documentation to connect the module to the burner control system.

Maintenance & Reliability

Regular inspection of the display module is recommended to ensure reliable operation. Check that the enclosure (if used) remains sealed and free of moisture. Periodically verify that the ambient temperature and humidity remain within the specified operating ranges. Clean the display face gently with a soft, dry cloth to maintain readability. Avoid using solvents or abrasive materials that could damage the display.

Because the module uses microcomputer technology, it offers dependable, long-term operation. However, it is prudent to periodically test the annunciation and diagnostic functions to confirm they are working correctly. If the module is part of a safety system, follow your facility's maintenance procedures and do not attempt internal repairs; contact qualified personnel for service.

Compatibility & Integration

The S7800A1001 is part of the 7800 SERIES of microprocessor-based burner controls. It provides communication interface capability, allowing integration with the burner control system for data exchange and remote monitoring. The module supports English language display; other language versions are available (S7800A1035 for French, S7800A1043 for German). When integrating, ensure that the module is compatible with the specific 7800 SERIES controller model in use. Refer to the system documentation for detailed wiring and configuration instructions.

Selection Guide & Purchasing Advice

When selecting a replacement or new Keyboard Display Module, verify that the part number matches your system requirements. The S7800A1001 is designed for English language displays; if you need French or German, consider the S7800A1035 or S7800A1043 respectively. Also, confirm that your system uses the 7800 SERIES controller. For availability and lifecycle status, contact AutoDCSTech, a trusted supplier of industrial automation parts. They can provide current information and assist with your order.

Troubleshooting & Common Issues

If the display is blank, check the power supply voltage (13 Vdc peak full wave rectified) and connections. If the module does not respond to keypad inputs, verify that the communication link to the burner control is intact. For fault annunciation issues, review the fault history data to identify recurring problems. Ensure that the module is not exposed to excessive vibration or humidity, as these can affect performance. If problems persist, consult the 7800 SERIES manual or contact AutoDCSTech for technical support.
