Product Overview

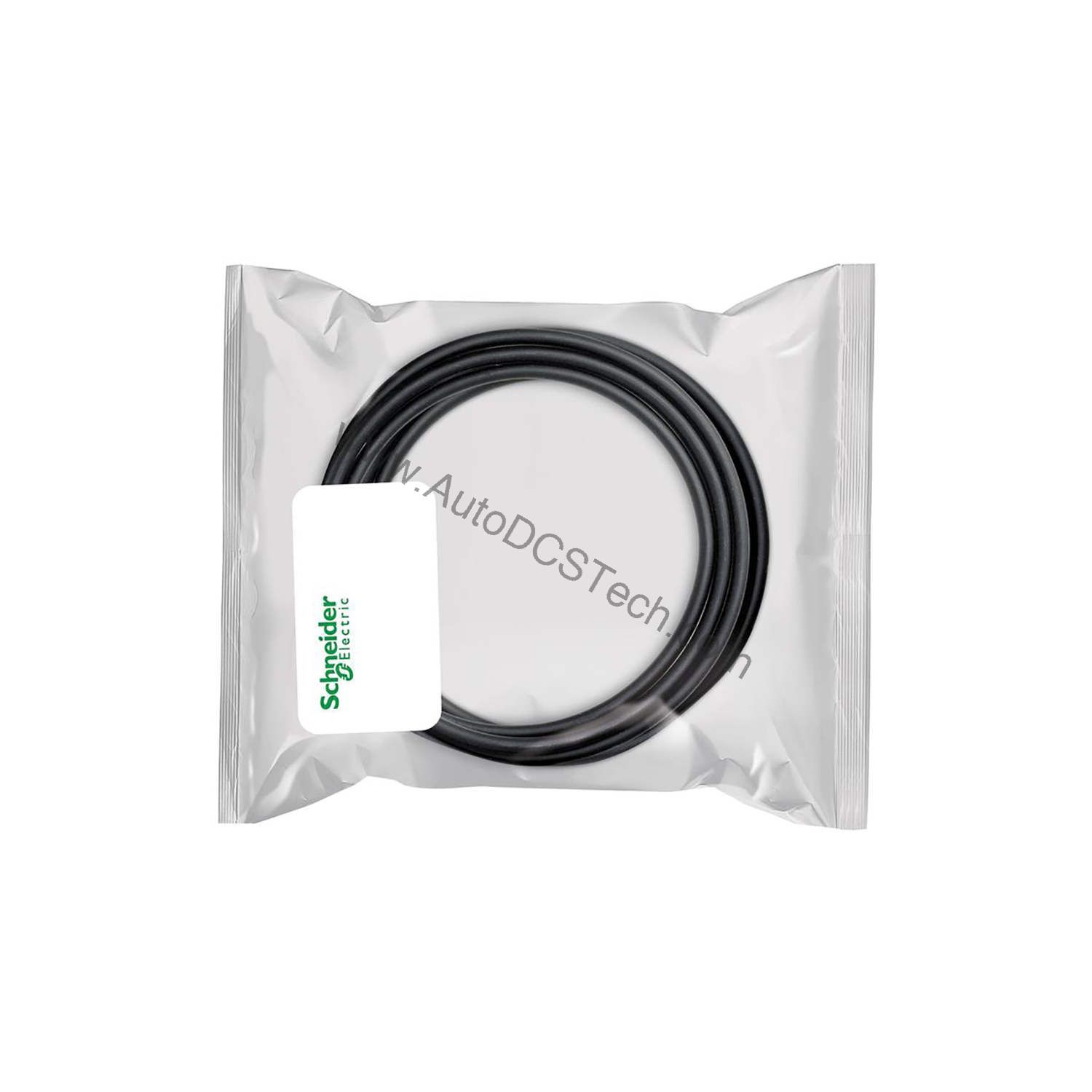

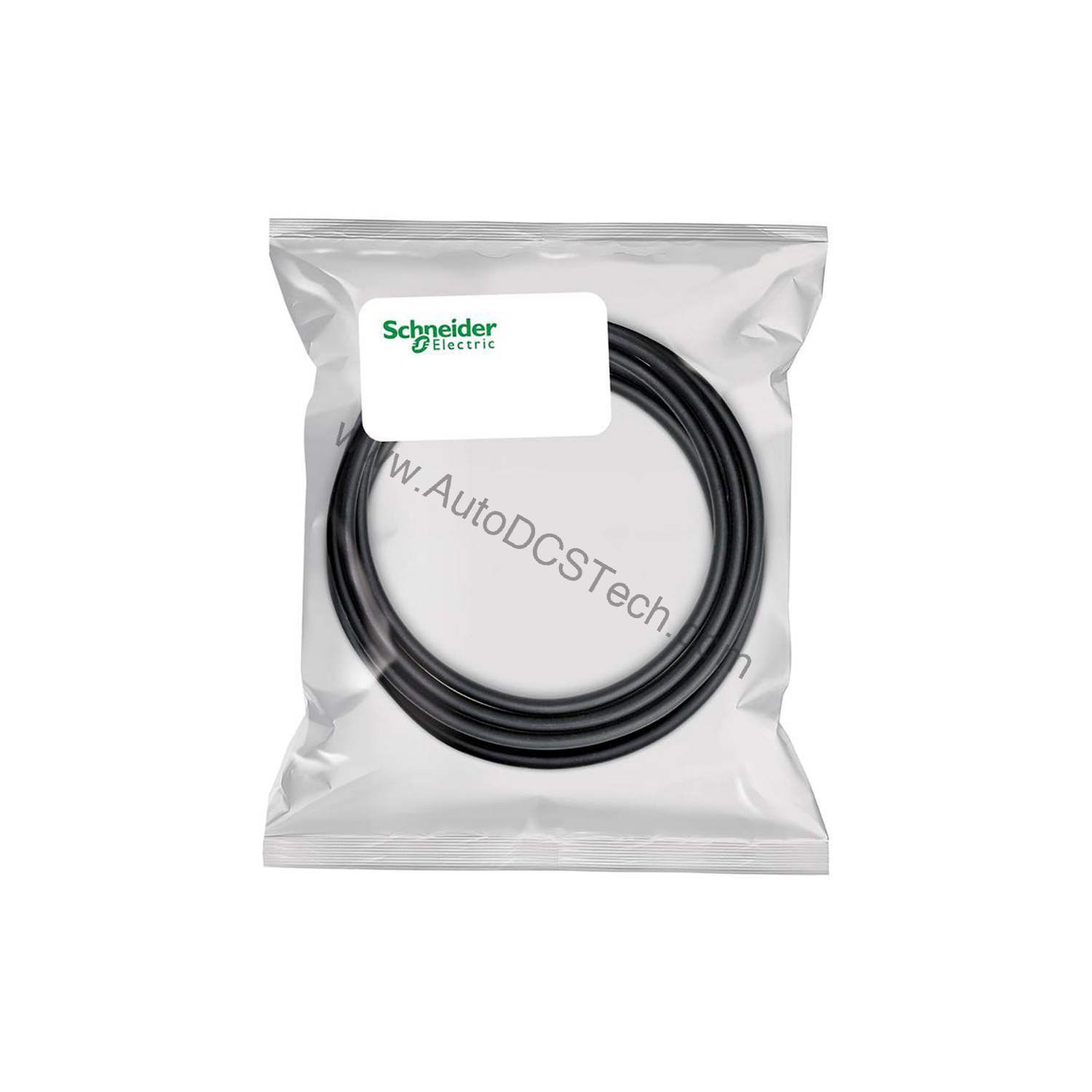

The Schneider 170MCI10001 is a dedicated cable within the Modicon Quantum series, engineered to support the Interbus communication protocol. This cable facilitates reliable data exchange in industrial automation systems, ensuring seamless integration between components. With a length of 1 meter, it offers a cost-effective solution for short-distance connections, reducing unnecessary cable slack and installation costs.
Technical Specifications Breakdown
Key parameters for the 170MCI10001 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Cable |
| Product Line | Modicon Quantum |
| Part Number | 170MCI10001 |
| EAN | 3595860027139 |
| Weight | 0.19 lbs (0.09 kg) |
| Protocol | Interbus |
| Length | 1 m |
| Color | Black |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | 0 to 50 degrees Celsius |
| Maximum Operating Humidity | 80% RH without condensation |
| Maximum Storage Humidity | 80% RH without condensation |
| Maximum Operating Altitude | 1000 meters above sea level without derating |
| Environment | Indoor environment with no corrosive chemicals |
Industry Applications
The Interbus protocol enables deterministic communication, reducing network latency and improving production throughput. By using the 170MCI10001, facilities can avoid costly downtime associated with protocol mismatches or substandard cabling.
Installation & Setup Guidance
When installing the 170MCI10001, ensure the cable is routed away from high-voltage power lines to minimize electromagnetic interference. Secure the connectors firmly to prevent accidental disconnection during operation. The 1-meter length is best suited for cabinet or panel installations where devices are in close proximity, reducing excess cable costs.
Maintenance & Reliability
Inspect the cable periodically for physical damage, especially at connector strain relief points. Operate within the specified temperature range of 0 to 40 degrees Celsius to maintain signal integrity. The 80% RH maximum humidity rating (non-condensing) allows use in moderately humid indoor environments without corrosion risk.
Compatibility & Integration
The 170MCI10001 is designed exclusively for the Modicon Quantum series using Interbus protocol. Verify that your system's communication modules support Interbus before integration. This cable ensures backward compatibility with existing Quantum installations, protecting your automation investment.
Selection Guide & Purchasing Advice
For reliable Interbus connectivity in your Modicon Quantum system, choose the 170MCI10001. Please verify current lifecycle status and availability with AutoDCSTech before ordering. Consider purchasing spare cables to minimize potential downtime from cable failure.
Availability & Condition at AutoDCSTech
| Part Number | 170MCI10001 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | France |
