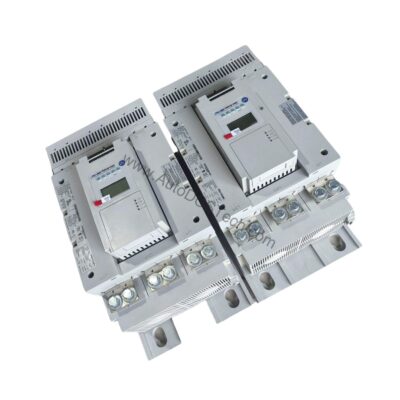

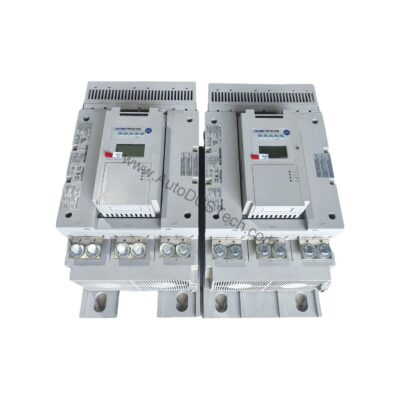

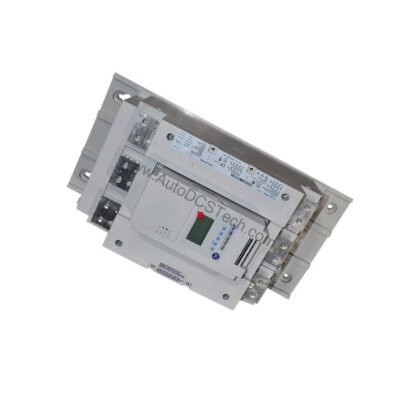

Allen-Bradley 150-F317NBD SMC Flex Smart Motor Controller 317A

Technical Specifications Breakdown

Key parameters for the 150-F317NBD are listed below for quick reference:

Smart Motor Control for Demanding Industrial Applications

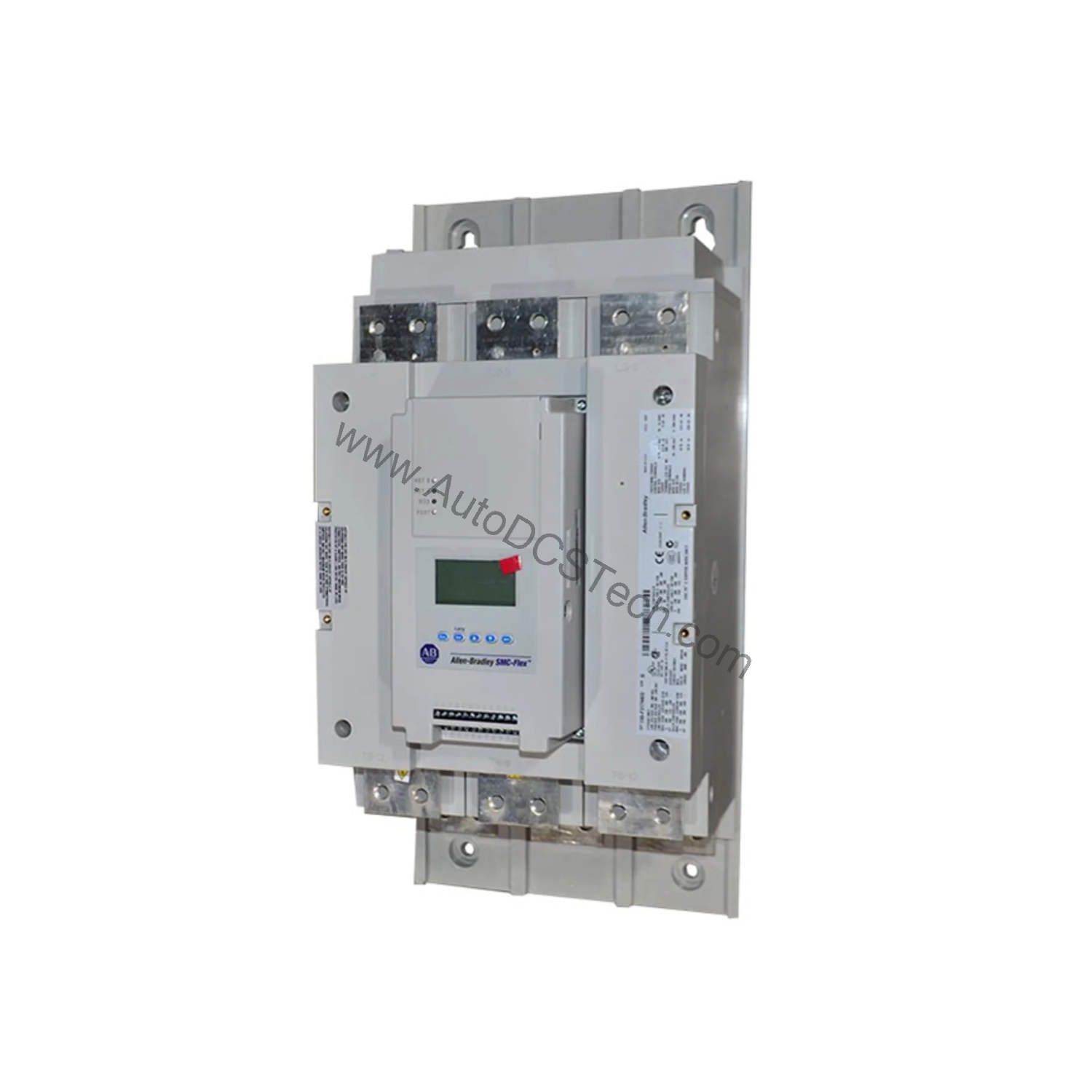

The Allen-Bradley 150-F317NBD is a SMC Flex Smart Motor Controller designed for reliable three-phase motor management. This solid-state device, commonly called a soft-starter, reduces mechanical stress and energy consumption during motor startup and shutdown. With a maximum continuous output current of 317 Amperes and output power of 250 HP at 460VAC rated voltage, the 150-F317NBD handles heavy loads in compressors, chillers, pumps, conveyors, and crushers.

Industry Applications

In pump systems, the soft start and soft stop modes reduce water hammer and mechanical wear. For conveyors, the current limit start prevents belt slippage and reduces stress on gearboxes. In crushers, the kickstart option provides initial torque to break loose material before ramping to full speed. These capabilities directly improve equipment lifespan and lower maintenance costs.

Installation and Setup Guidance

Mount the controller in a clean, dry location with adequate ventilation. Verify that the line voltage matches the 200-460V AC, 3-phase, 50/60 Hz requirement. Connect control power within 100-240V AC. Use the integral LCD display and programmable keyboard to configure parameters such as initial torque (0-90% of fixed rotor torque) and acceleration ramp time (0-30 seconds). For remote programming, an optional Bulletin 20-HMI LCD module is available.

Maintenance and Reliability

Periodically inspect the open-type enclosure for dust accumulation and ensure airflow is unobstructed. Check all power and control wiring connections for tightness. Monitor the LCD for fault codes indicating conditions like overvoltage or controller overtemperature. The controller logs metering data including amps, volts, kW, kWh, power factor, and motor thermal capacity usage, which aids in predictive maintenance.

Operating Modes and Protection

The controller supports multiple operating modes: Soft Start, Full Voltage Start, Smart Motor Braking, Current Limit Start, Dual Ramp Start, Accu-Stop, Selectable Kickstart, Pump Start, Slow Speed with Braking, Coast-to-rest, Preset Slow Speed, Linear Speed Acceleration (Tachometer required), Soft Stop, and Pump Stop. Protection features include power loss, line fault, voltage unbalance, excessive starts/hour, phase reversal, undervoltage, overvoltage, controller temp, stall, jam, open gate, overload, underload, and communication fault.

Compatibility and Integration

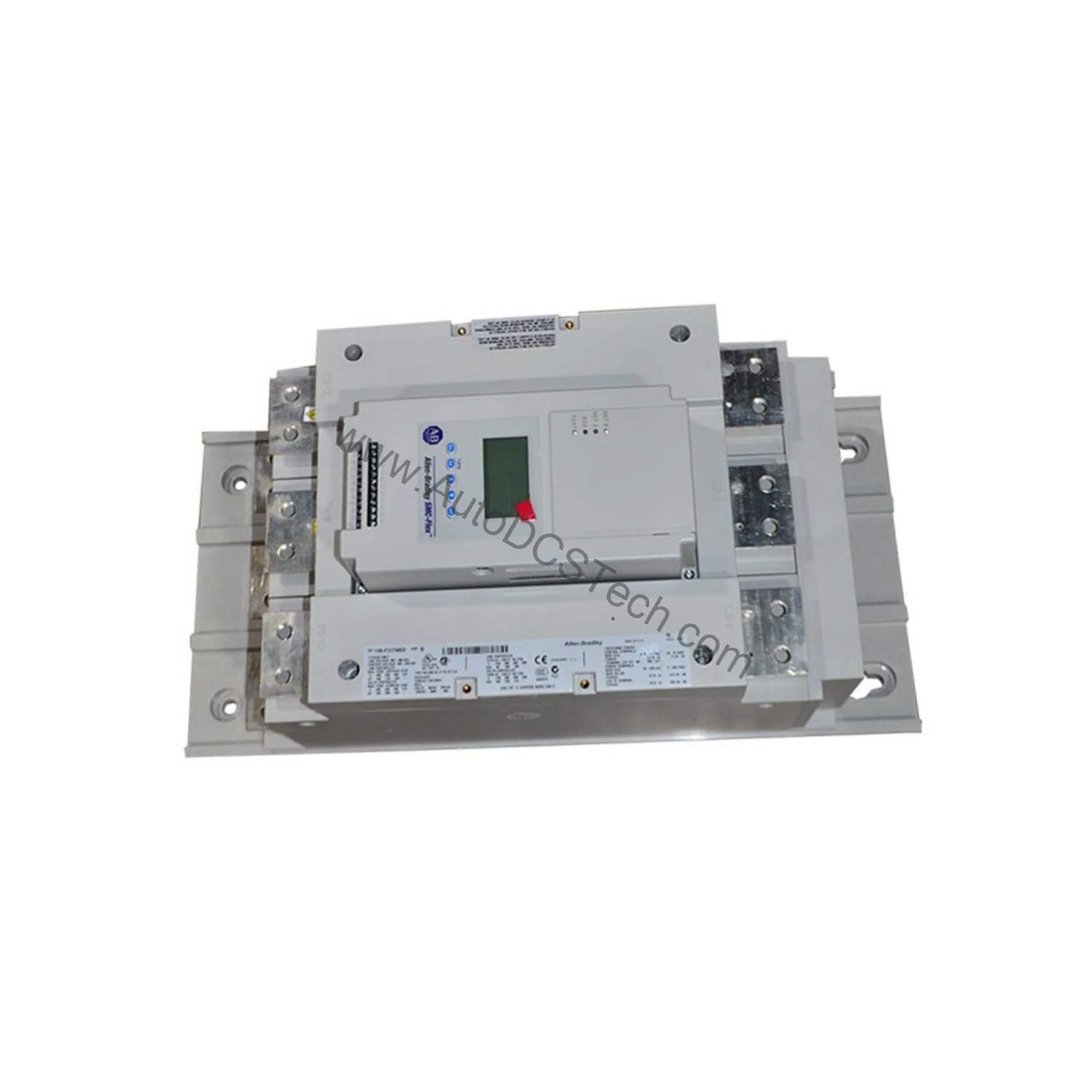

The 150-F317NBD features one DPI port for connection to an optional human interface and one DPI port for communication modules. Four fully programmable auxiliary contacts can be configured for normal/up-to-speed/fault/alarm/network (N.O./N.C.) or external bypass (N.O. only). This allows seamless integration with PLCs and SCADA systems.

Selection Guide and Purchasing Advice

When selecting a motor controller, match the continuous current rating to your motor full-load amps. For 250 HP motors at 460VAC, the 150-F317NBD is a direct fit. Verify lifecycle status and availability with AutoDCSTech before ordering. AutoDCSTech offers genuine Allen-Bradley products with fast shipping and expert support.
