Product Introduction

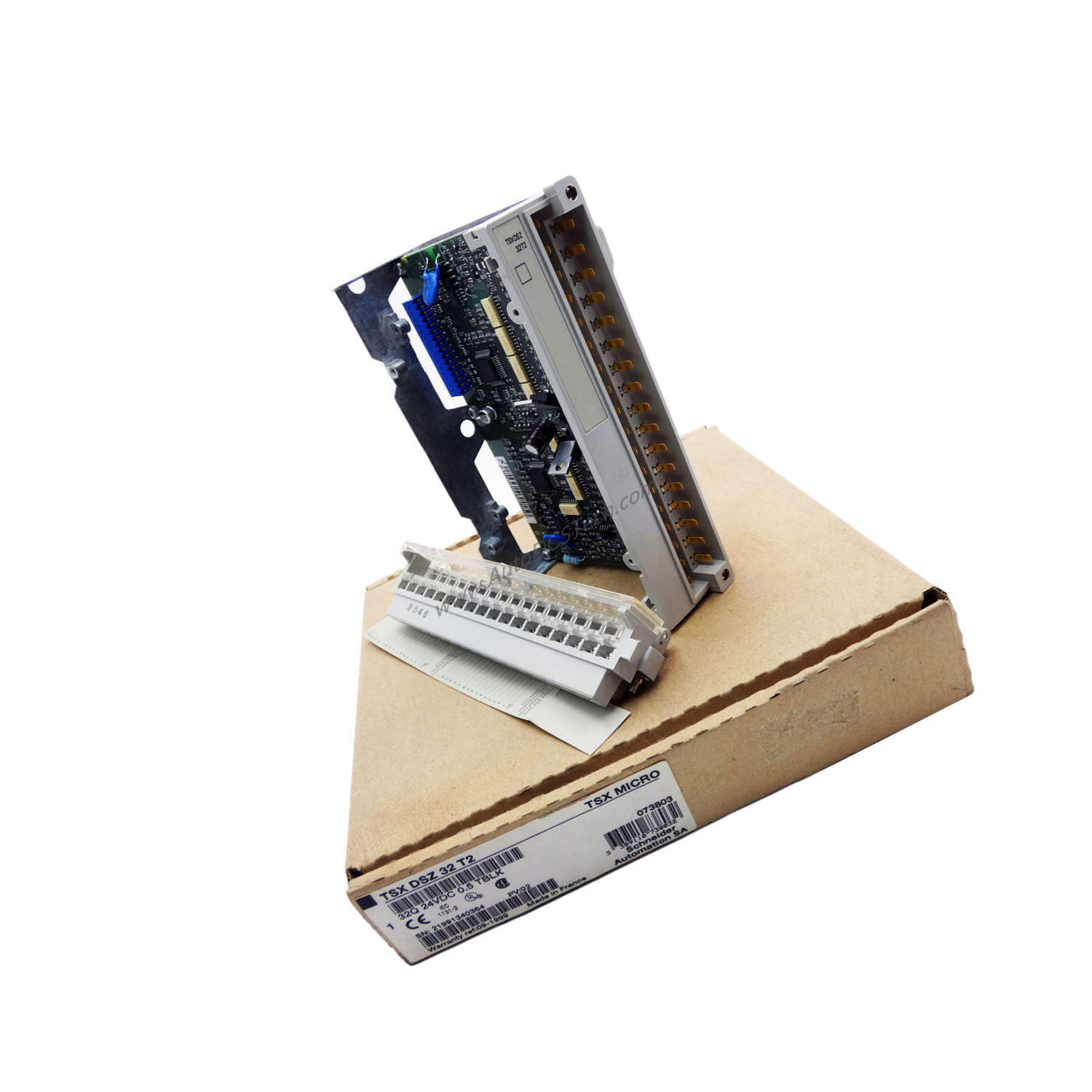

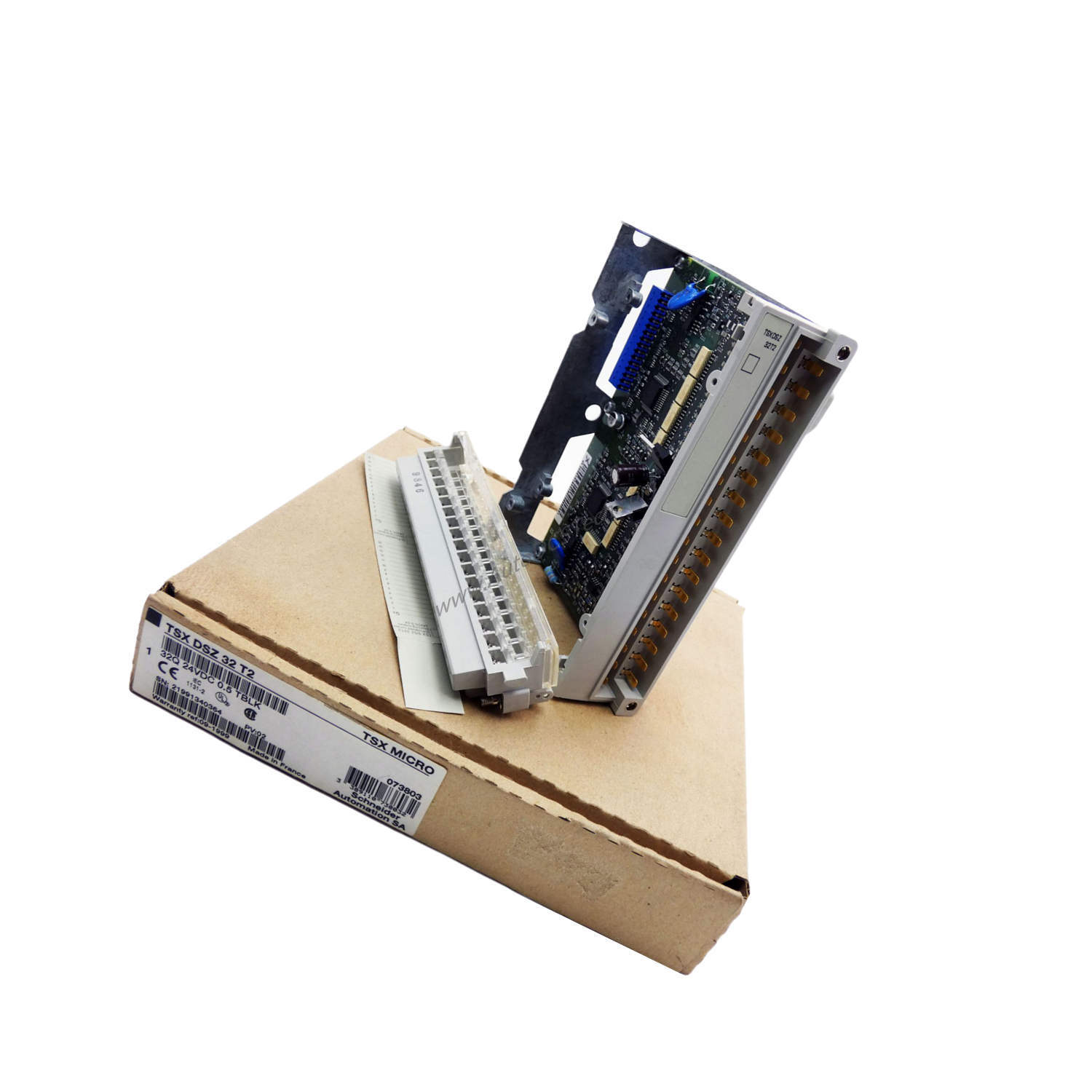

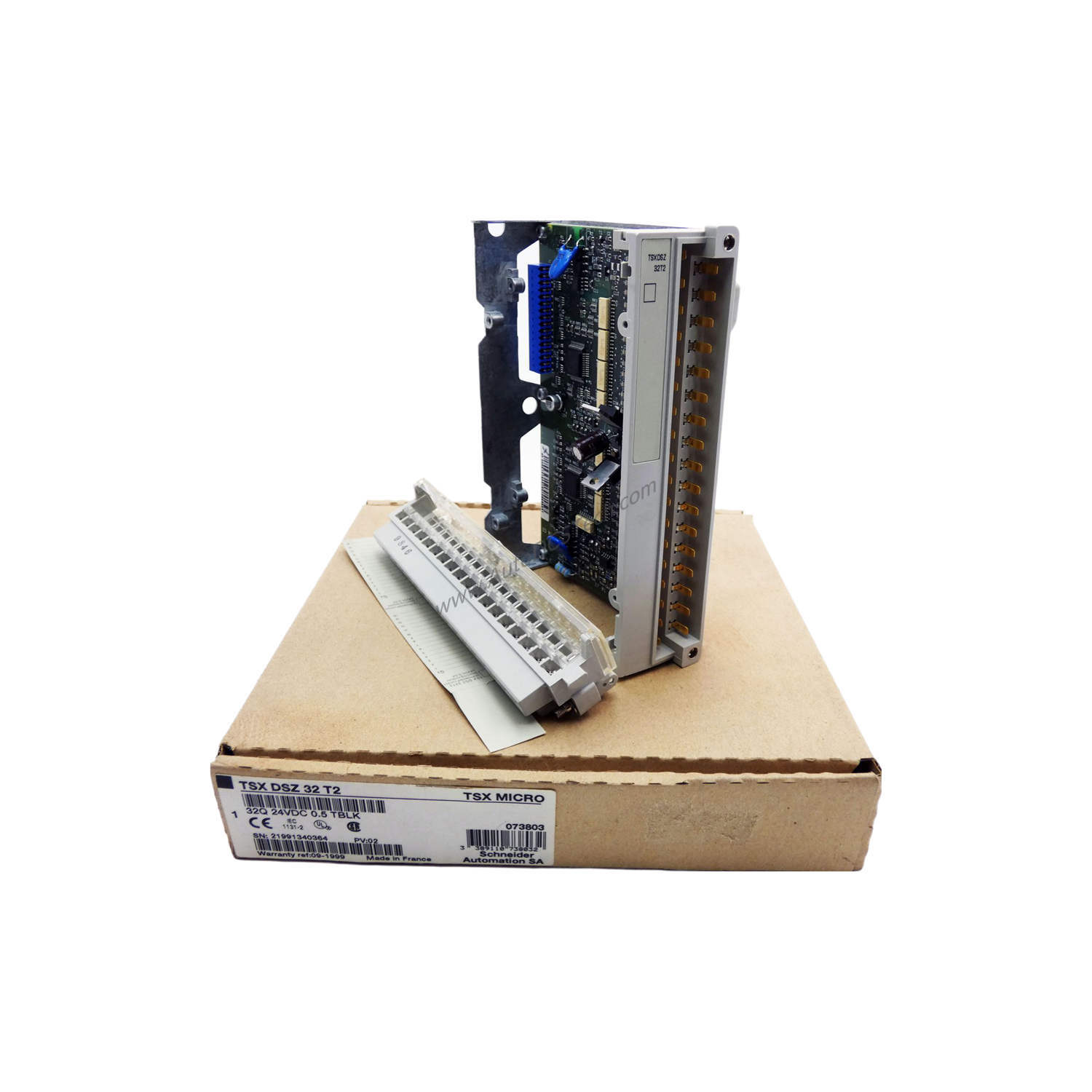

When your automation system demands reliable discrete output control, the Schneider TSXDSZ32T2 delivers robust performance. As part of the Modicon TSX Micro automation platform, this discrete output module manages up to 32 relay-based outputs at 24 VDC. Each channel provides a defined output current of 0.5 mA, ensuring consistent signal handling in demanding industrial environments.
Technical Specifications Breakdown
Key parameters of the TSXDSZ32T2 support dependable operation:
- Output Voltage and Limits: Rated at 24 VDC with an operating range of 19 to 30 VDC, accommodating supply variations.
- Output Current and Limits: Each output delivers 0.5 mA, with a maximum limit of 0.625 mA to prevent overload.
- Protection Features: Over-voltage protection via Zener diode and short-circuit protection through a thermal circuit breaker and current limiter safeguard the module.
- Leakage Current: Maximum leakage current at state 0 is only 0.5 mA, preserving signal integrity.
- Power Efficiency: Power dissipation is 0.15 W per channel and 3.2 W per module, minimizing heat buildup.
- Response Time: Switching occurs in less than 0.5 ms for both state 1 and state 0, enabling fast control loops.
Industry Applications
From a maintenance engineer's perspective, the TSXDSZ32T2 excels in applications where reliability and ease of service matter. For example, in packaging lines, the module controls solenoid valves and actuators. The screw terminal block connections simplify wiring and troubleshooting, reducing downtime during maintenance. In material handling systems, the relay outputs handle moderate loads, and the paralleling capability (up to 2 outputs) offers flexibility for higher current demands.
Installation & Setup Guidance
Installation is straightforward with the screw terminal block. Ensure the supply voltage stays within 19 to 30 VDC to avoid triggering the over-voltage protection. Use proper torque for terminal screws to maintain reliable connections. The module fits into any TSX Micro PLC rack; verify slot compatibility before mounting. For paralleling outputs, connect no more than two outputs together to stay within design limits.
Maintenance & Reliability
Routine inspection focuses on the relay contacts and terminal connections. Check for signs of arcing or wear on relay outputs, especially in high-cycle applications. The thermal circuit breaker resets automatically after a fault condition clears, but verify the cause of any short circuit to prevent recurrence. Keep the module free of dust and moisture to maintain isolation voltage of 1500 V for 1 second. Following these practices extends service life and reduces unplanned downtime.
Compatibility & Integration
The TSXDSZ32T2 integrates seamlessly with the Modicon TSX Micro automation platform. It works with any TSX Micro PLC CPU and compatible I/O bases. The discrete output logic is positive, ensuring straightforward integration with standard 24 VDC sensors and actuators. No special communication modules are required for basic operation.
Selection Guide & Purchasing Advice
Before ordering, verify that your system requires a 32-point relay output module with 24 VDC operation. The TSXDSZ32T2 is ideal for applications needing isolated, moderate-speed switching. Contact SpareTechPLC to confirm current lifecycle status and availability, as this module may be subject to phase-out. We stock genuine Schneider parts to support your maintenance needs.
Frequently Asked Questions
Q1: Can the TSXDSZ32T2 outputs be paralleled for higher current?
Yes, up to two outputs can be paralleled to increase current capacity, but do not exceed the maximum output current limit of 0.625 mA per channel.
Q2: What type of short-circuit protection does the module have?
It uses a thermal circuit breaker and current limiter to protect against output short circuits.
Q3: What is the response time of the relay outputs?
The response time is less than 0.5 ms for both turning on and off.
Q4: How do I verify the output voltage range?
The module accepts 19 to 30 VDC; measure the supply voltage at the terminal block to ensure it stays within limits.
Q5: Is the TSXDSZ32T2 still in production?
Please verify current lifecycle status with SpareTechPLC before ordering, as this product may be discontinued.
