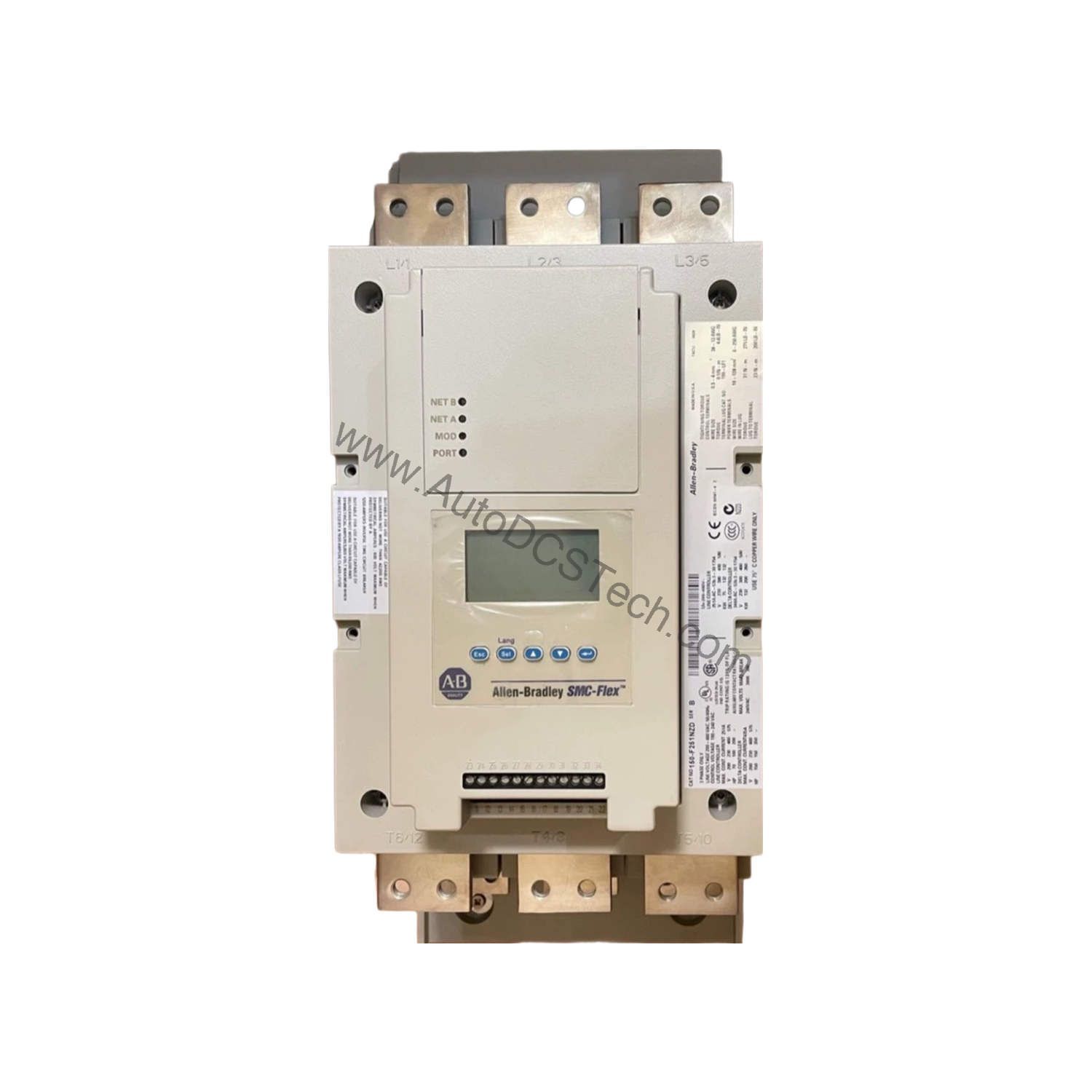

Allen-Bradley 150-F361NBRB SMC Flex Low Voltage Soft Starter 361A

Technical Specifications Breakdown

Key parameters for the 150-F361NBRB are listed below for quick reference:

Industrial Applications with Pump Control Advantage

Its solid-state design ensures smooth torque control, extending pump and motor life.

Installation and Setup Guidance

Mount the open-enclosure controller in a clean, dry cabinet with adequate ventilation. Connect input line voltage of 200..480V AC, 3-phase, 50/60 Hz to the main terminals. Provide a separate 120V or 240V single-phase supply for fan operation as noted in the product details. Wire the 24V AC/DC control voltage to the control terminals. Use Connected Components Workbench software for programming and monitoring.

Maintenance and Reliability

Periodically inspect the controller for dust accumulation and loose connections. Ensure the fan power supply remains active to prevent overheating. The built-in electronic motor overload protection reduces the need for external relays. Verify that ambient conditions stay within the controller's design limits.

Compatibility and Integration

The 150-F361NBRB supports optional communication modules for multiple networks, enabling integration with PLCs and SCADA systems. It also accepts optional Parameter Configuration Module or Human Interface Module for local programming. This flexibility simplifies system expansion and remote monitoring.

Selection Guide and Purchasing Advice

When selecting a soft starter, match the controller rating (361 A) to your motor full-load current. Confirm input voltage (200..480V AC) and control voltage (24V AC/DC) compatibility. The Pump Control Option is essential for fluid handling applications. AutoDCSTech stocks this unit and can advise on lifecycle status and availability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
