Allen-Bradley 22C-D022F103 PowerFlex 400 AC Drive 15 HP

Product Overview

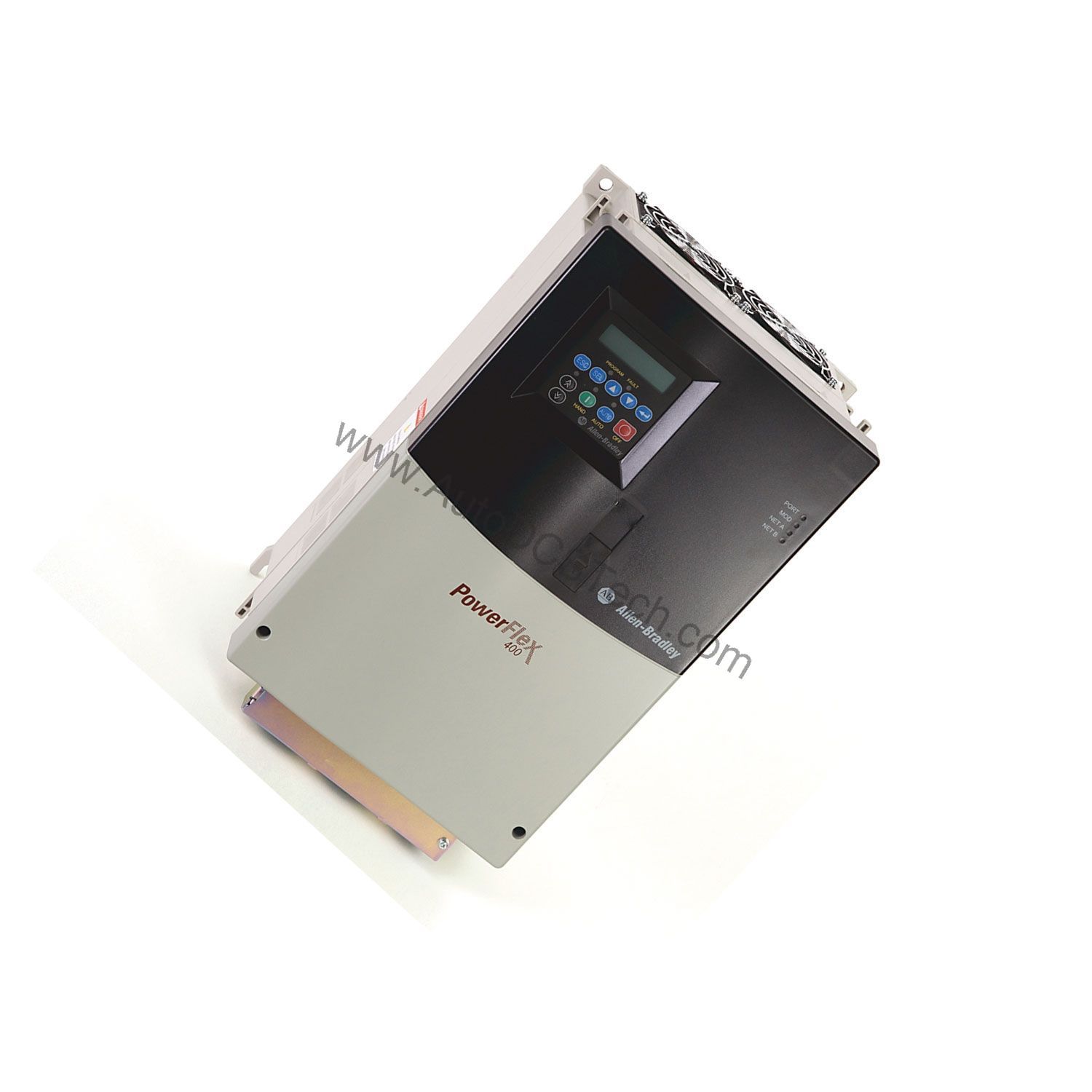

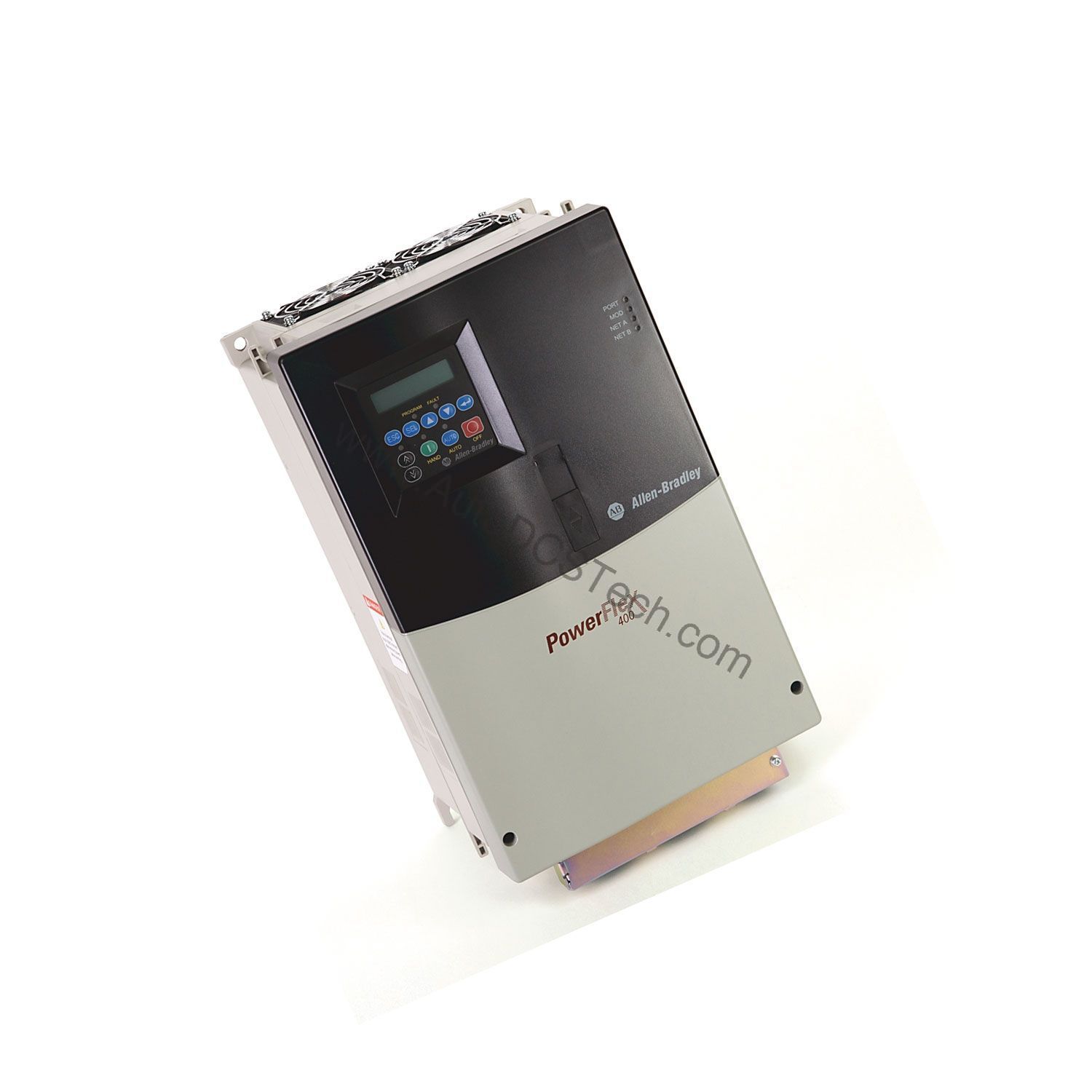

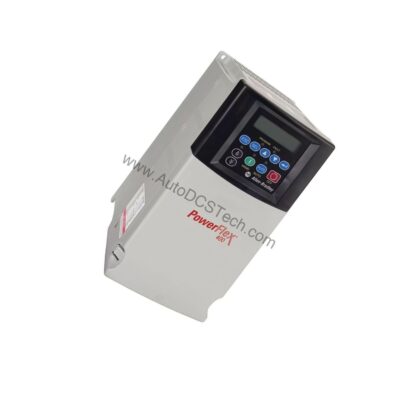

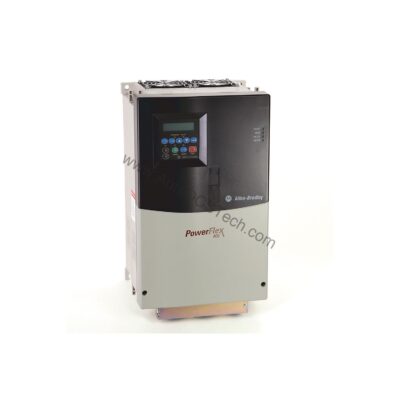

The Allen-Bradley 22C-D022F103 is a 3-phase AC-powered adjustable frequency drive from the PowerFlex 400 series. It is designed to control the speed of AC motors in fan and pump applications, where load varies with speed. This drive delivers a rated output of 15 Horsepower with an output current of 22 Amps at 480 Volts AC. Its flange-mount enclosure with IP20 rating and NEMA/UL Type Open construction allows for flexible mounting options in control panels. The drive includes a fixed keypad with a 2-line by 16-character LCD display and an integral RS-485 serial communication port for easy programming and multi-drop networking.

Technical Specifications Breakdown

Key parameters for the 22C-D022F103 are listed below for quick reference:

Industry Applications

The 22C-D022F103 is tailored for variable torque applications. Typical uses include:

• HVAC Fans: Adjusting airflow in ventilation systems to match demand, reducing energy consumption.
• Centrifugal Pumps: Controlling flow in water supply and circulation systems, maintaining pressure.
• Cooling Towers: Regulating fan speed to optimize cooling efficiency.

Its 0.98 power factor across the entire speed range and 97.5% rated drive efficiency contribute to significant energy savings. The drive's programmable acceleration and deceleration times allow smooth starts and stops, reducing mechanical stress on pumps and fans. The built-in PID control (implied by the fan & pump type) helps maintain process variables like pressure or flow.

Installation & Setup Guidance

Proper installation is critical for reliable operation. The 22C-D022F103 requires an external DC series bus inductor to operate. Ensure that the inductor is correctly sized and connected as per the manual. The flange-mount design allows the heat sink to be mounted through the panel, improving heat dissipation and saving space. The drive accepts 3-phase input voltage between 380 and 480 Volts AC, with an acceptable input range of 340 to 528 Volts AC. Use appropriate branch circuit protection (fuses or circuit breakers) as specified in the manual. The integral RS-485 port allows connection to a PC for programming using software, or to a network for multi-drop configurations.

Maintenance & Reliability

The 22C-D022F103 is designed for long service life. Its microprocessor-controlled heatsink temperature management ensures optimal thermal performance. The drive provides protection against ground faults and phase-to-phase faults at the output, and it can ride through 100 milliseconds of power loss. Regular inspection of the cooling fans and air filters (if used) is recommended. Keep the enclosure clean and ensure the ambient temperature stays within the operating range of –10 to 50 degrees Celsius (14 to 122 degrees Fahrenheit) with 0 to 95% non-condensing relative humidity. The drive's class 10 electronic motor overload protection and 110% overload capability for up to 1 minute safeguard the motor and drive.

The Evolution of Variable Speed Control

Industrial motor control has come a long way from fixed-speed starters to intelligent adjustable frequency drives. Today, facilities demand precise speed regulation, energy savings, and reliable operation under demanding conditions. The Allen-Bradley 22C-D022F103 PowerFlex 400 AC Drive represents this evolution, offering a cost-effective solution specifically engineered for variable torque fan and pump applications. Whether you are retrofitting an aging system or designing a new installation, this drive provides the control and protection you need.

Compatibility & Integration

The 22C-D022F103 includes an integral RS-485 serial communication port. This port supports keypad programming and PC-based programming, and it can be used in a multi-drop network configuration. This allows for easy integration into existing control systems. The drive also features programmable analog and digital I/Os for additional control functions, enabling connection to external sensors and switches.

Selection Guide & Purchasing Advice

When selecting a replacement or new drive, verify your motor's full-load current and voltage. The 22C-D022F103 is rated for 22 Amps output at 480 Volts AC, suitable for 15 HP motors. Ensure your power supply matches the input voltage range. At AutoDCSTech, we stock genuine Allen-Bradley drives and parts. Contact us to confirm availability and current lifecycle status. Our team can help you find the right drive for your application. Please verify the current lifecycle status and availability with AutoDCSTech before ordering.
