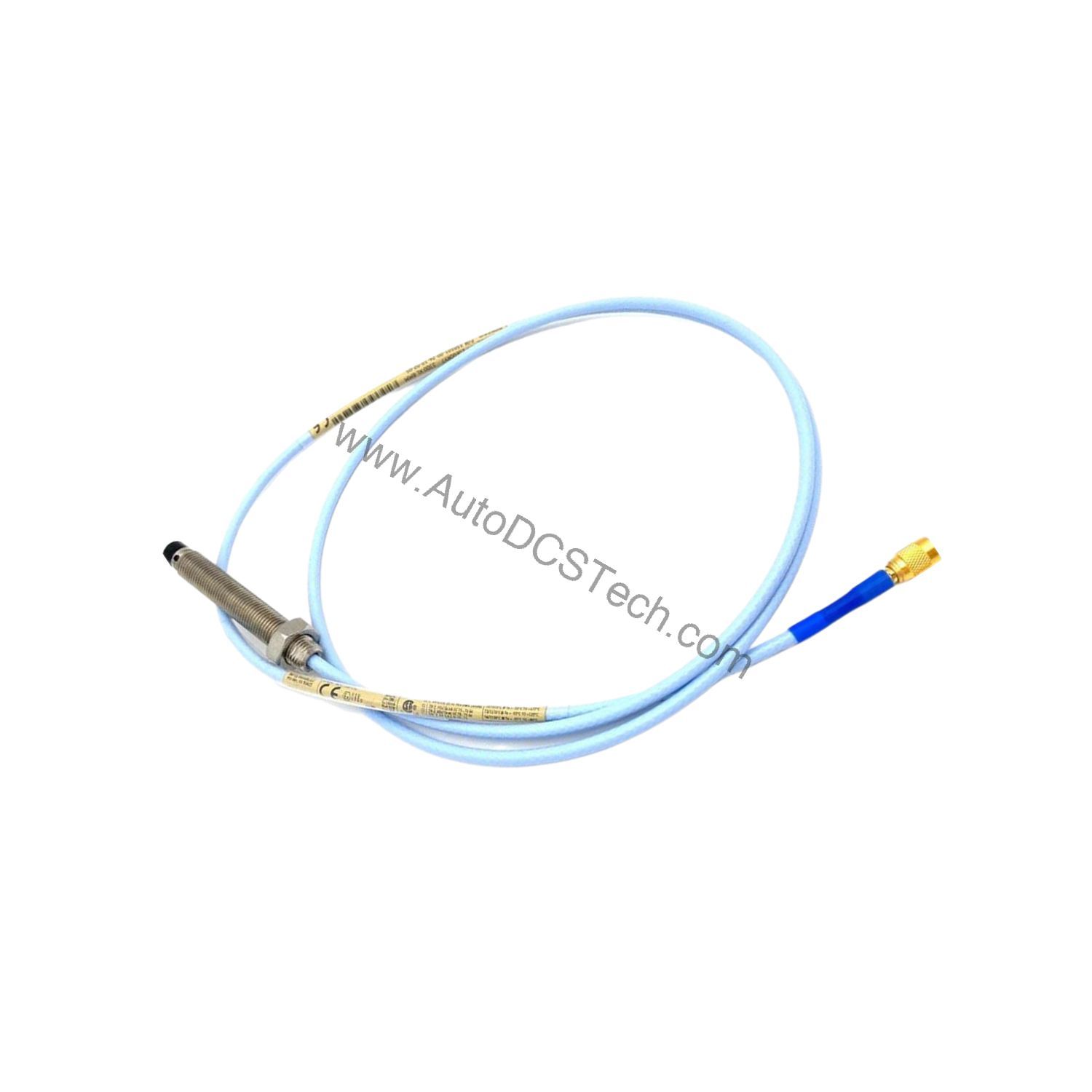

Bently Nevada 330101-20-10-10-02-05 3300 XL 8 mm Probe, 3/8-24 UNF Thread

Technical Specifications Breakdown

Key parameters for the 330101-20-10-10-02-05 are listed below for quick reference:

Industrial Applications for the 3300 XL Probe

Turbine Shaft Vibration Monitoring

In steam and gas turbines, the 330101-20-10-10-02-05 probe mounts directly into bearing housings using its 3/8-24 UNF thread. Its 2 mm linear range captures radial vibration amplitudes with high accuracy, enabling early detection of imbalance or misalignment.

Compressor Protection

Centrifugal compressors operating at high speeds demand reliable shaft displacement measurement. The probe's robust PPS tip and stainless steel case withstand oil mist and temperature extremes, reducing false trips and maintenance interventions.

Pump Health Assessment

For critical process pumps, continuous monitoring with this probe helps schedule maintenance based on actual condition rather than fixed intervals, optimizing operational ROI.

Installation & Setup Guidance

Proper thread engagement is critical for accurate readings. For standard forward-mounted probes, the maximum thread engagement length is 0.563 in. Recommended torque for the probe case is 11.2 N•m (100 in•lbf) for general mounting, and 7.5 N•m (66 in•lbf) for the first three threads. Always use a torque wrench to avoid overtightening, which can damage the thread or affect calibration.

Field wiring between the 3300 XL Proximitor Sensor and the monitor should use 0.2 to 1.5 mm² (16 to 24 AWG) three-conductor shielded triad cable, with a maximum length of 305 meters (1,000 feet). For optimal signal integrity, keep cable runs as short as possible.

Maintenance & Reliability

The probe is designed for long-term reliability with no moving parts. Inspect the connector and cable periodically for signs of wear or damage. Avoid exposing the probe to temperatures below –34°C (–30°F), as this may cause premature failure of the pressure seal. The Viton® O-ring seal prevents differential pressure leakage between the probe tip and case.

Robust Vibration Monitoring with the Bently Nevada 3300 XL 8 mm Probe

In rotating machinery, undetected shaft vibration leads to costly unplanned downtime and catastrophic failures. The Bently Nevada 330101-20-10-10-02-05 3300 XL 8 mm Probe provides the precise, reliable measurements you need to protect critical assets. This non-contact eddy current probe is engineered for harsh industrial environments, offering a patented TipLoc molding method that creates a more robust bond between the probe tip and body, and a CableLoc design that delivers 330 N (75 lbf) pull strength for secure cable attachment.

Compatibility & Integration

This probe is part of the Bently Nevada 3300 XL system, designed to work with 3300 XL extension cables and Proximitor sensors. The miniature coaxial ClickLoc connector ensures a secure, quick connection without special tools.

Selection Guide & Purchasing Advice

When selecting a replacement or new probe, verify the required thread size, cable length, and connector type. The 330101-20-10-10-02-05 is a 1.0 meter probe with a miniature coaxial ClickLoc connector. For applications needing longer cable runs, consider the 9 meter system options. Contact AutoDCSTech for availability and lifecycle status before ordering.

Troubleshooting & Common Issues

If vibration readings are erratic, first check the connector for corrosion or loose fit. Verify that the probe tip is clean and free of debris. Confirm the gap setting is approximately -9 Vdc (1.27 mm / 50 mils) for radial vibration measurements. If the signal is noisy, inspect field wiring for proper shielding and grounding. The probe's incremental scale factor is 7.87 V/mm (200 mV/mil) ± 5% for standard 1 or 5 meter systems; any significant deviation may indicate a damaged probe or cable.
