Product Overview

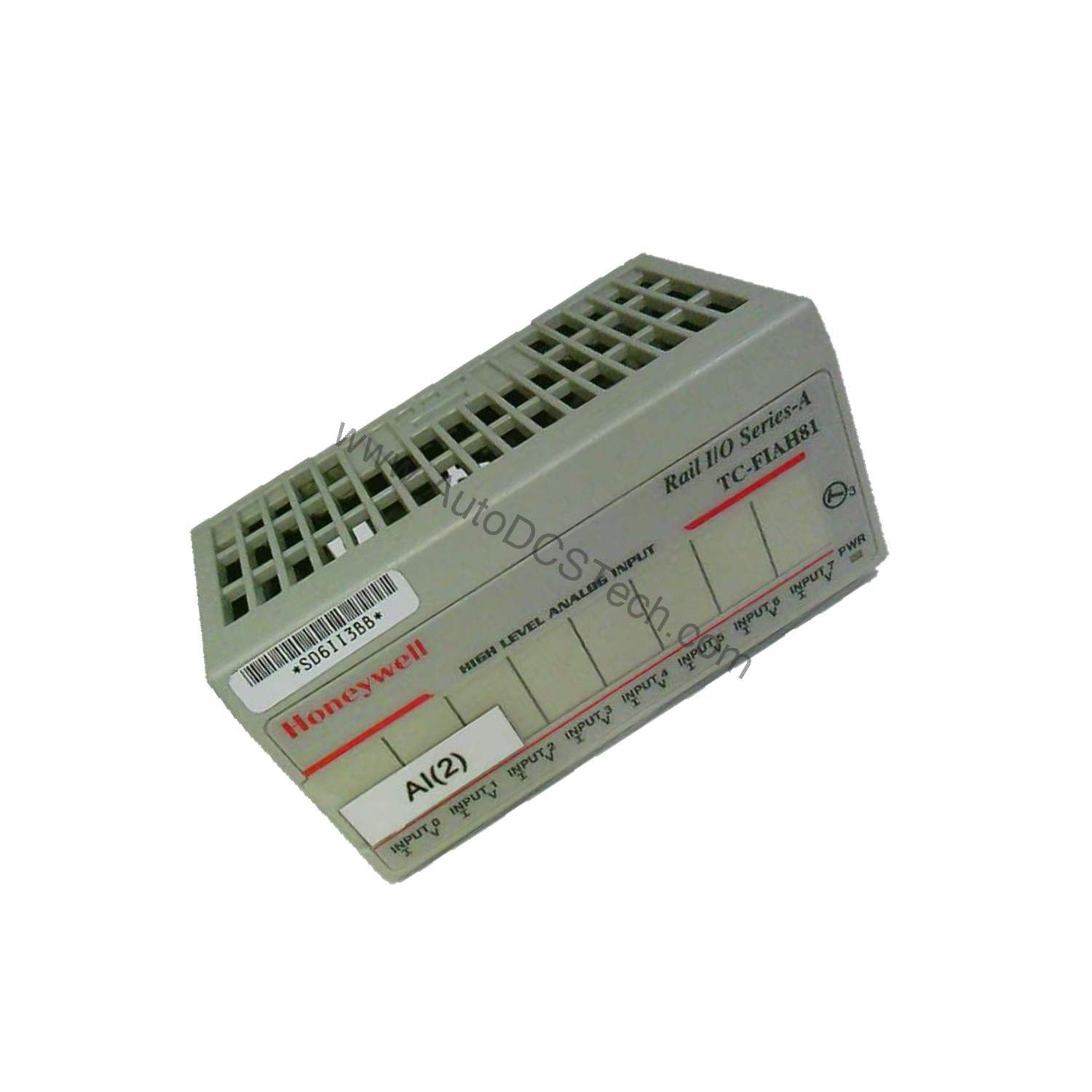

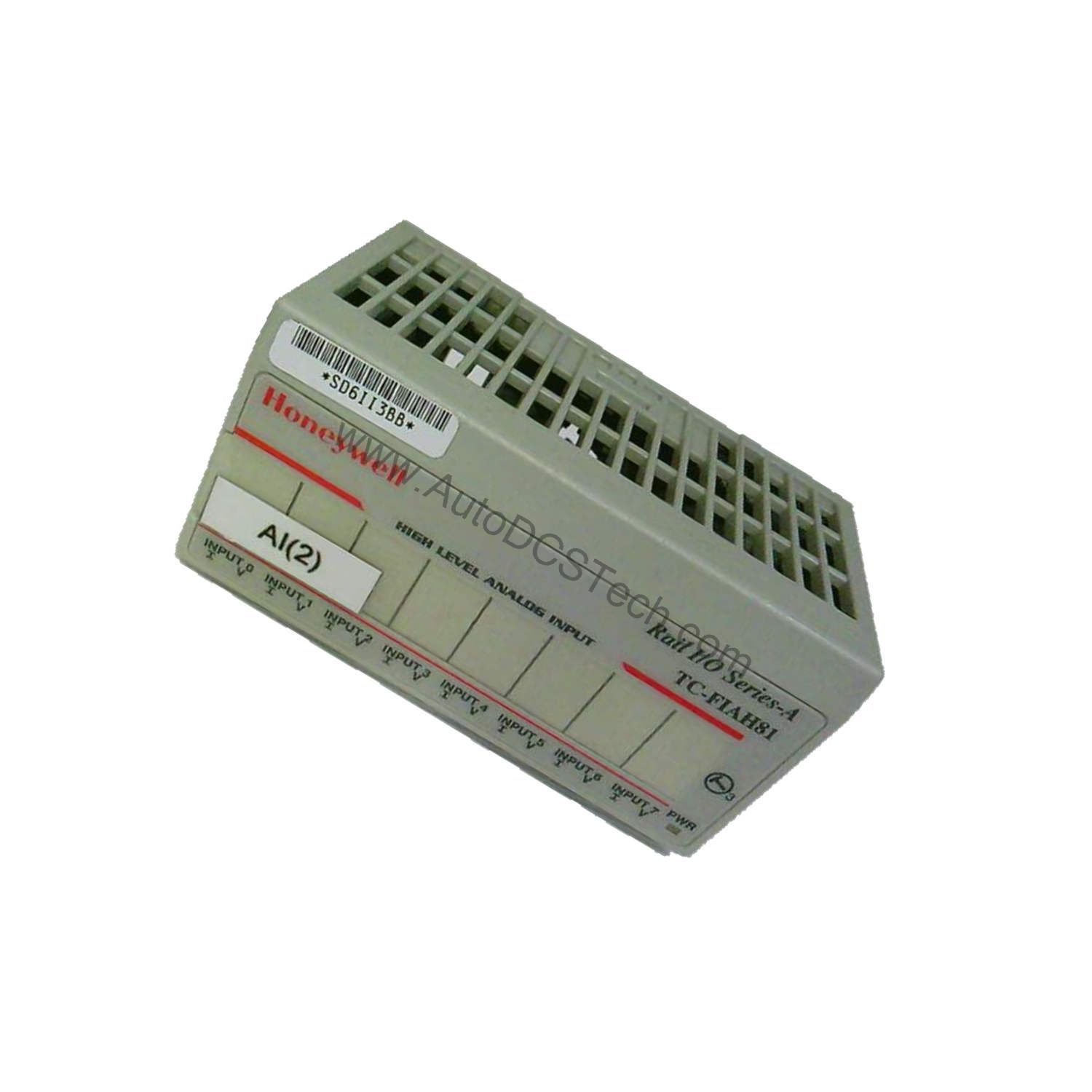

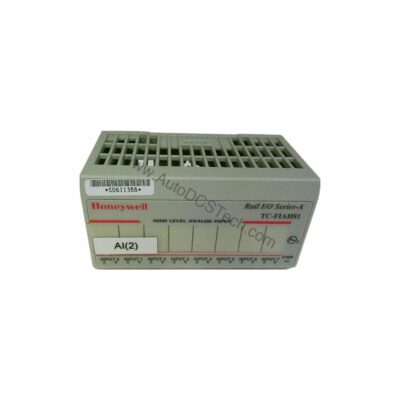

The Honeywell TC-FIAH81 is a high-level analog input module engineered for precision data acquisition in demanding industrial environments. With 8 single-ended, non-isolated channels, this module accepts both current and voltage signals, making it a versatile choice for process control systems. Its user-configurable input ranges—4-20mA or 0-20mA for current, and ±10V or 0-10V for voltage—allow seamless integration with a wide variety of transmitters and sensors. Whether you are monitoring temperature, pressure, or flow, the TC-FIAH81 delivers reliable performance with a resolution of 12 bits unipolar and 11 bits plus sign bipolar, ensuring accurate signal representation.
Technical Specifications Breakdown
Key parameters for the TC-FIAH81 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Number of Inputs | 8 single-ended, non-isolated |
| Input Current Terminal | 4-20mA (user configurable); 0-20mA (user configurable) |
| Input Voltage Terminal | ±10V (user configurable); 0-10V (user configurable) |
| Resolution (Voltage) | 12 bits - unipolar; 11 bits plus sign - bipolar |
| Resolution (Current) | 5.13µA/cnt |
| Input Impedance (Voltage) | 100k |
| Input Impedance (Current) | 238 |
| Isolation Voltage | 850V dc for 1s between user and system |
| Power Dissipation | 3W maximum @ 31.2V dc |
| Thermal Dissipation | 10.2 BTU/hr @ 31.2V dc |
| Conversion Rate | 256µs all channels |
| Absolute Accuracy | 0.20% Full Scale @ 25°C (voltage and current) |
| Maximum Overload | 30V or 32mA continuous, 1 channel at a time |
| Dimensions (HxWxD) | 46mm x 94mm x 53mm (1.8in x 3.7in x 2.1in) |
| Operational Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative Humidity | 5 to 95% non-condensing (operating); 5 to 80% non-condensing (non-operating) |
| Shock (Operating) | 30g peak acceleration, 11(±1)ms pulse width |
| Shock (Non-operating) | 50g peak acceleration, 11(±1)ms pulse width |
| Vibration | 5g @ 10-500Hz per IEC 68-2-6 |
| Agency Certification | Groups A, B, C, D certified; Class I Division 2 certified; Class I Zone 2 Group IIC certified |
Industry Applications
In oil and gas facilities, its Class I Division 2 and Zone 2 certifications make it suitable for hazardous areas, allowing safe monitoring of pressure and level transmitters. In manufacturing plants, the module can interface with 4-20mA loop-powered sensors to track motor currents or temperature readings, providing real-time data for process optimization. Its fast conversion rate of 256µs ensures that dynamic signals are captured without lag, supporting high-speed control loops.
Installation & Setup Guidance
When installing the TC-FIAH81, ensure that the module is properly seated in the backplane and that the keyswitch is set to position 3 to prevent misinsertion. Wire the input terminals using 12 gauge (4mm²) stranded wire with a maximum insulation thickness of 3/64 inch (1.2mm). For voltage inputs, use the 100k impedance path; for current inputs, the 238 impedance path. Configure the input range via software to match your sensor output—select 4-20mA for loop-powered transmitters or ±10V for high-level voltage signals. Always verify that the isolation voltage of 850V dc is not exceeded between user and system grounds.
Maintenance & Reliability
The TC-FIAH81 is designed for long-term reliability with no calibration required, as stated in the specifications. However, periodic inspection of the module's connections and environmental conditions is recommended. Operate within the specified temperature range of 0 to 55°C and relative humidity of 5 to 95% non-condensing to ensure optimal performance. The module's robust shock and vibration ratings—30g operating shock and 5g vibration at 10-500Hz—make it resilient in harsh industrial settings. Regularly check for any signs of corrosion or loose wiring to maintain signal integrity.
Compatibility & Integration
The TC-FIAH81 is part of the Honeywell family of control system components, designed to integrate with Honeywell's distributed control systems (DCS). Its data format is left-justified 16-bit 2's complement, ensuring compatibility with standard control logic. The module communicates over the Flexbus with a current draw of 20mA @ 5V dc, allowing straightforward integration into existing backplane configurations. Always consult the system documentation to confirm compatibility with your specific controller.
Selection Guide & Purchasing Advice
When selecting the TC-FIAH81 for your application, consider the number of input channels and the required input types. Verify that your system supports the module's power dissipation of 3W maximum and thermal dissipation of 10.2 BTU/hr to avoid overheating. For purchasing, AutoDCSTech offers genuine Honeywell TC-FIAH81 modules with expert support. Contact AutoDCSTech to confirm availability and lifecycle status before ordering, ensuring you receive the correct revision for your system.
Troubleshooting & Common Issues
If the TC-FIAH81 is not providing accurate readings, first check the input wiring and ensure that the configured range matches the sensor output. Verify that the input signal is within the maximum overload limit of 30V or 32mA continuous per channel. If the module fails to communicate, check the Flexbus connection and ensure that the keyswitch is in the correct position. For persistent issues, consult the system diagnostics and verify that the module is within its operational temperature range. If problems persist, contact AutoDCSTech for technical assistance.
Availability & Condition at AutoDCSTech
| Part Number | TC-FIAH81 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
