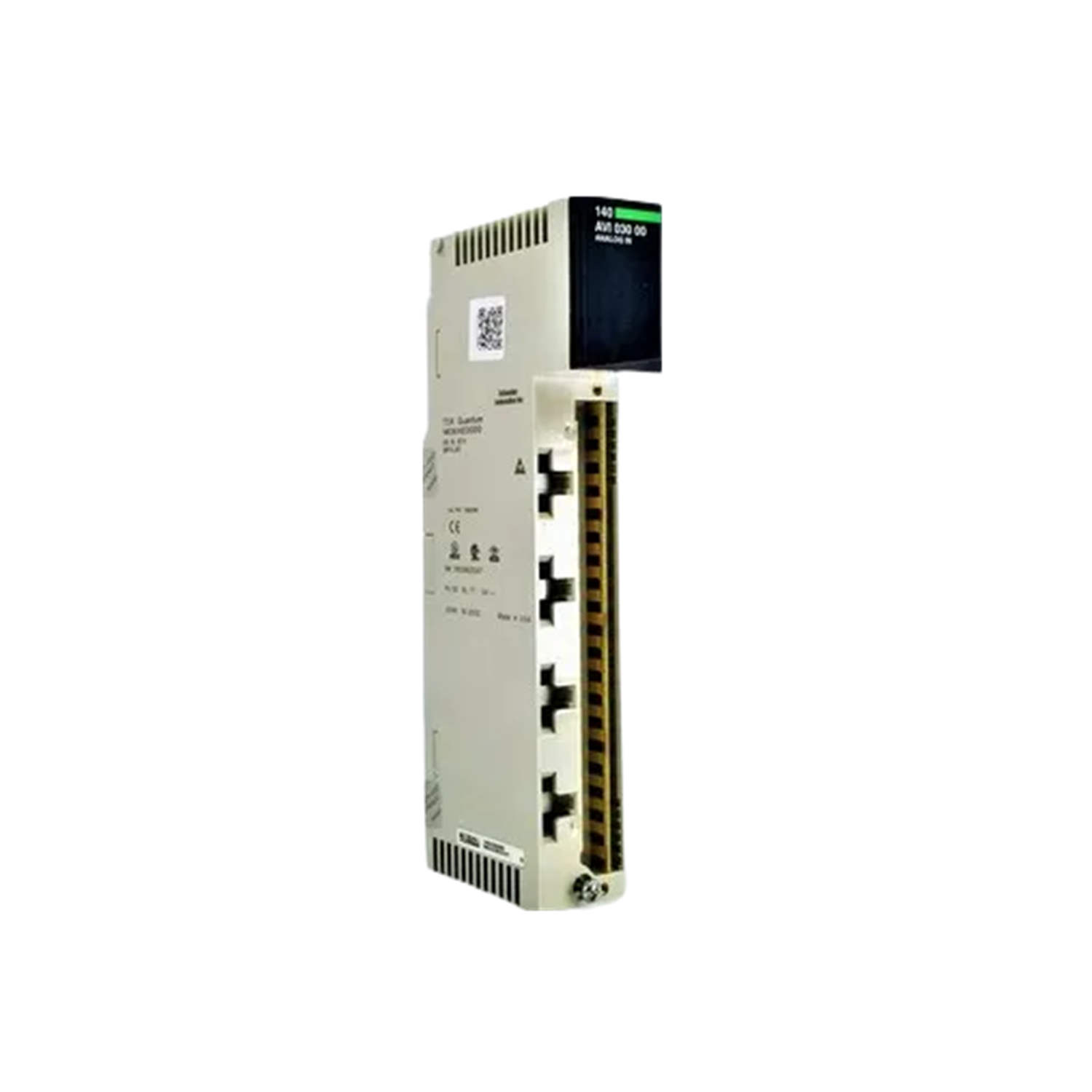

Product Overview
In process automation, accurate analog signal acquisition is critical for maintaining quality and efficiency. The Schneider Electric 140AVI03000C analog input module, part of the Modicon Quantum series, delivers reliable performance for demanding industrial environments. With eight differential inputs, this module ensures precise voltage and current measurements while minimizing noise interference, making it a solid choice for applications requiring high signal integrity.
Technical Specifications Breakdown
Key parameters for the 140AVI03000C are listed below for quick reference:
| Feature | Specification |
|---|---|
| Product Type | Analog Input Module |
| Analog Input Number | 8 |
| Input Type | Differential |
| Addressing Requirement | 9 Input Words |
| Absolute Max. Input | 50 V DC |
| Input Impedance | 250 Ohm |
| Isolation between Channels and Bus | 500 Vrms |
| Update Time | 10 ms |
| Bus Current Requirement | 280 mA |
| Power Dissipation | 2.2 W |
| Resistance to Electrostatic Discharge | 4 kV / 8 kV |
| Resistance to Electromagnetic Fields | 10 V/m |
Industry Applications
This module excels in applications where noise rejection and accuracy are paramount. For example, in chemical processing plants, the differential inputs help measure temperature or pressure transmitters with minimal signal degradation. In water treatment facilities, the 10 ms update time supports real-time monitoring of flow and level sensors. The module's 500 Vrms isolation between channels and bus also makes it suitable for environments with electrical noise, such as motor control centers.

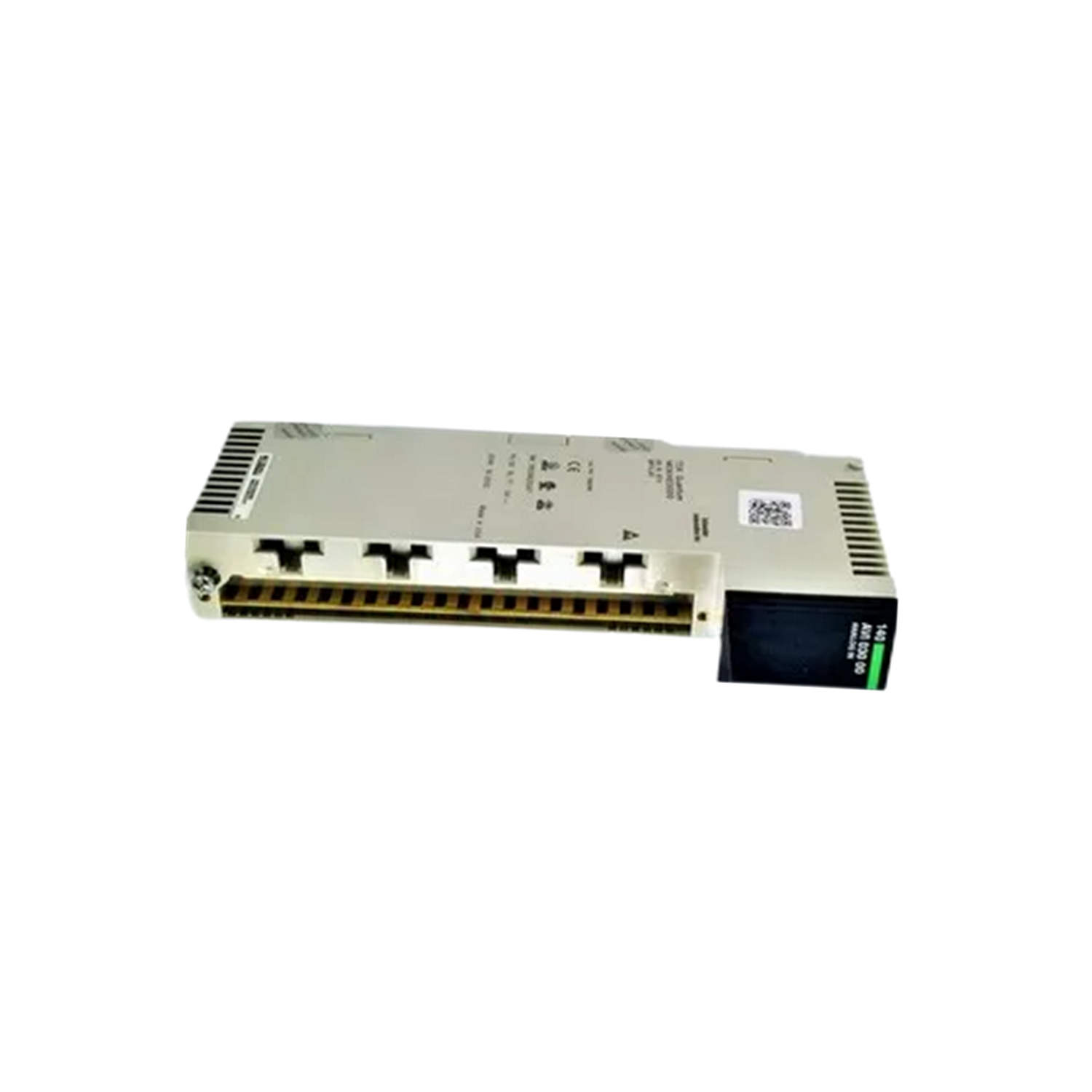

Installation & Setup Guidance
When installing this module, ensure the Modicon Quantum backplane is properly grounded. The module requires 9 input words for addressing, so plan your I/O mapping accordingly. Use shielded twisted-pair cables for analog signals to maintain signal integrity. The local LED indicators provide quick status checks: a green LED for bus communication, a red LED for external faults, and eight green/red LEDs per channel for on/off and fault status.
Maintenance & Reliability
To ensure long-term reliability, operate the module within the ambient temperature range of 0 to 60 °C and store it between -40 to 85 °C. The conformal coating (Humiseal 1A33) protects against moisture and contaminants. Periodically inspect the module for dust accumulation and verify that the bus current (280 mA) remains within specifications. The module's resistance to electrostatic discharge (4 kV contact, 8 kV air) and electromagnetic fields (10 V/m) enhances its durability in harsh industrial settings.
Compatibility & Integration
The 140AVI03000C integrates seamlessly with the Modicon Quantum automation platform. It supports multiple analog input types, including bipolar voltage (±10 V, ±5 V), bipolar current (20 mA), and unipolar ranges (0–10 V, 0–5 V, 0–20 mA). The 16-bit resolution provides fine granularity for precise measurements. The module is certified to UL 508 and CSA C22.2 No 142 standards, ensuring compliance with North American safety requirements.
Selection Guide & Purchasing Advice
When selecting this module, consider your specific input signal types and required resolution. The 140AVI03000C is ideal for applications needing differential inputs with high common-mode rejection (> -80 dB at 60 Hz). For availability and lifecycle status, please contact SpareTechPLC, your trusted source for industrial automation parts. We recommend verifying current stock and lead times before ordering.
Troubleshooting & Common Issues
If a channel indicates a fault via the red LED, check for broken wires (especially in 4–20 mA loops) or overrange conditions (e.g., signals exceeding 1–5 V). Verify that the input voltage does not exceed 50 V DC. If communication issues arise, confirm that the module is properly seated in the backplane and that the bus current (280 mA) is not exceeded. For persistent problems, consult the Modicon Quantum user manual.
