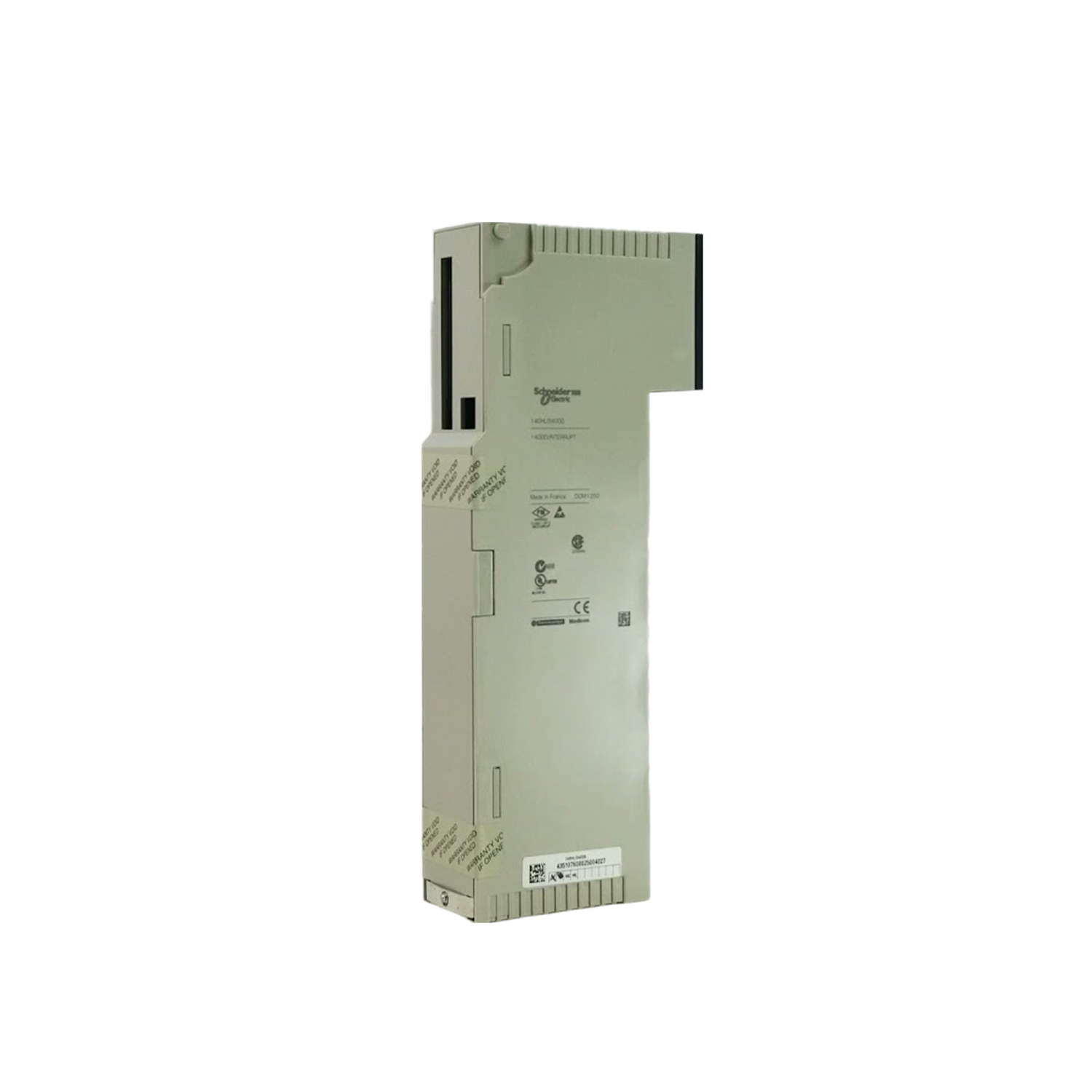

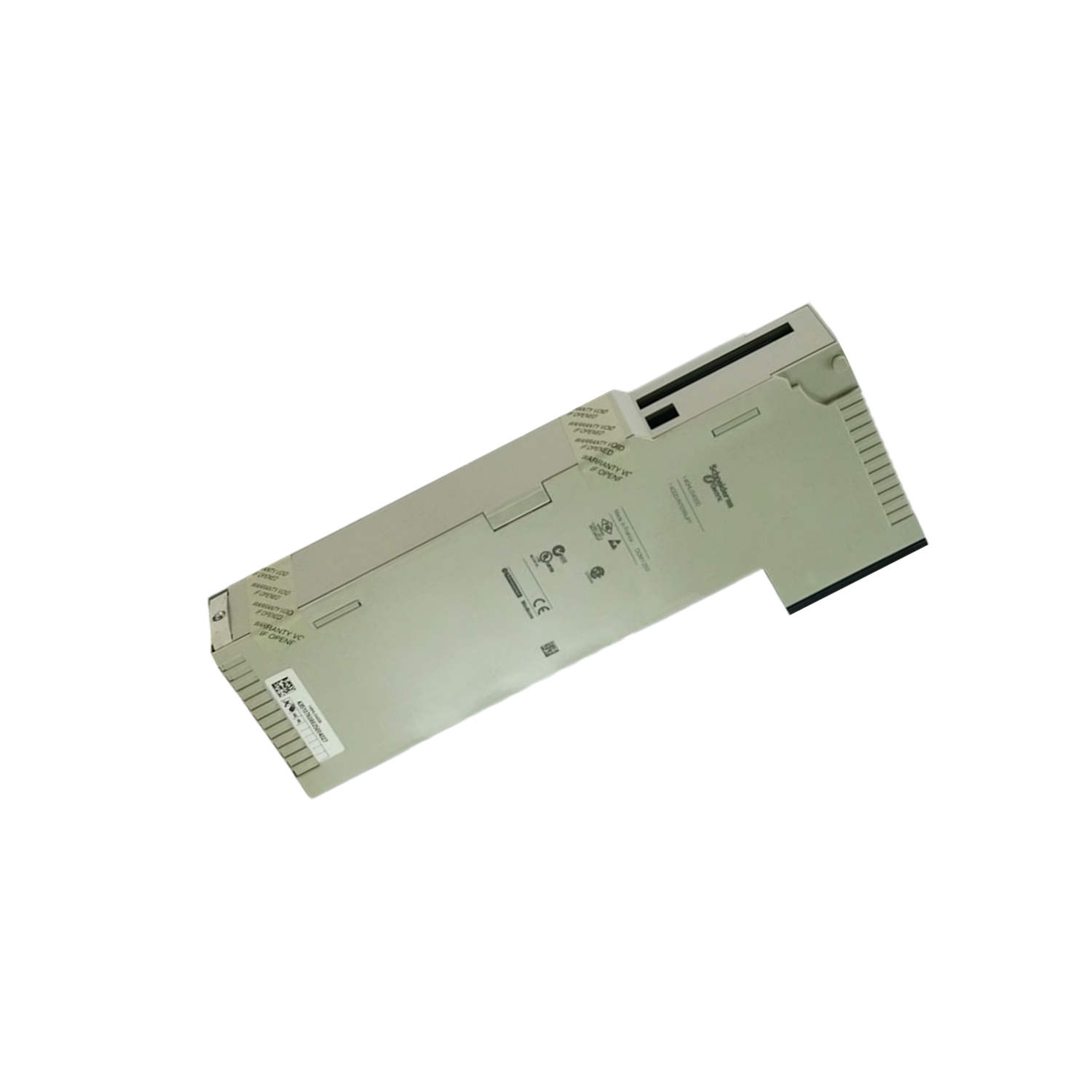

Product Overview
The Schneider Electric 140MMB10200 is a multi-axis motion controller designed for the Modicon Quantum series. This controller supports a wide supply voltage range from 100 to 240 Volts AC or 24 Volts DC, catering to various power configurations. It is built for complex motion control applications requiring precise coordination across multiple axes.
Technical Specifications Breakdown
Key parameters for the 140MMB10200 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Multi-Axis Motion Controller |
| Product Line | Modicon Quantum |
| Rated Supply Voltage | 100 to 240 Volts AC or 24 Volts DC |
| Permissible Supply Voltage Range | 96 to 264 Volts AC |
| Supply Frequency | 50 to 60 Hertz |
| Built-in Communication Networks | Serial link, SERCOS III, Modbus TCP, EtherNet/IP, and USB Mini-B programming port |
| Optional Communication Networks | CANopen and EtherNet |
| Protection Rating | IP20 |
| Ambient Operating Temperature | 0 to 60°C (in a non-condensing environment) |
| Storage Temperature | -25 to 70°C (in a non-condensing environment) |
| Humidity Tolerance | 10% to 95% relative humidity (without condensation) |
| Operating Altitude | 6,561.68 feet (2,000 meters) above sea level |
| External Connection Type | Screw-type terminal block |
Industry Applications
This controller excels in packaging, material handling, and assembly lines where multi-axis synchronization is critical. With built-in SERCOS III and Modbus TCP, it integrates seamlessly with servo drives and PLCs. The wide supply voltage range makes it suitable for global installations with varying electrical standards.
Installation & Setup Guidance
Mount the controller in a clean, dry enclosure with adequate airflow. Use the screw-type terminal block for secure wiring of power and I/O connections. Connect the USB Mini-B port for initial programming. Ensure the ambient temperature stays within 0 to 60°C and avoid condensation.
Maintenance & Reliability
Inspect the controller periodically for dust accumulation, as the IP20 rating does not prevent dust ingress. Verify that humidity remains between 10% and 95% non-condensing. Check all communication cables for wear and secure connections.
Compatibility & Integration
The 140MMB10200 supports Serial link, SERCOS III, Modbus TCP, EtherNet/IP, and USB Mini-B as built-in networks. Optional CANopen and EtherNet expand connectivity. This ensures compatibility with a wide range of automation systems.
Selection Guide & Purchasing Advice
When selecting this controller, verify your power supply matches the rated voltage of 100 to 240 Volts AC or 24 Volts DC. Confirm the operating altitude does not exceed 2,000 meters. For availability and lifecycle status, contact SpareTechPLC before ordering.
Troubleshooting & Common Issues
If the controller fails to power on, check the supply voltage is within the permissible range of 96 to 264 Volts AC. Verify the supply frequency is 50 or 60 Hertz. For communication issues, inspect the network cables and ensure proper termination on SERCOS III or Modbus TCP links.
