Precision Motion Control for Advanced Automation

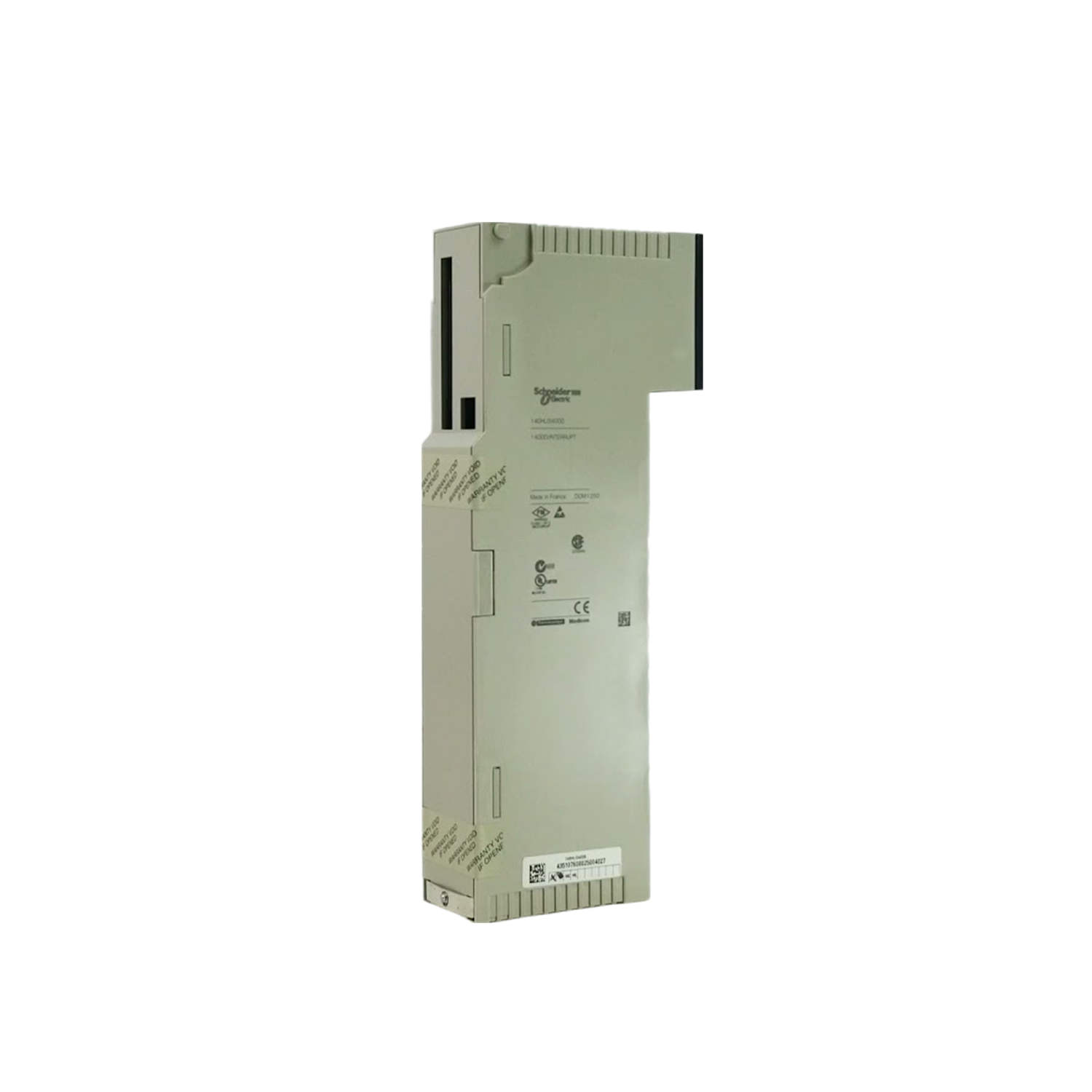

Modern industrial automation demands precise, reliable motion control for complex machinery. The Schneider Electric 140MMS53502 motion control module, part of the Modicon Quantum series, delivers the performance needed for sophisticated tasks. Equipped with a 133 MHz processor and SERCOS control output, this module ensures seamless integration with Lexium servo drives and motors, enabling coordinated multi-axis motion.
Technical Specifications Breakdown
Key parameters for the 140MMS53502 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Motion control module |
| Product Line | Modicon Quantum |
| Part Number | 140MMS53502 |
| Processor | 133 MHz |
| Control Output | SERCOS |
| Compatibility | Lexium |
| Number of Axes | 8 real axes, 4 imaginary axes, 4 remote axes, 4 coordinate sets |
| Functions | Count probe, length measurement, point synchronization |
| Mounting | Vertical |
| Housing | Plastic |
| Display | Yes |
| Operating Temperature | 0 to 40 degrees Celsius |
| Storage Temperature | 0 to 50 degrees Celsius |
| Maximum Operating Humidity | 80% RH, non-condensing |
| Maximum Storage Humidity | 80% RH, non-condensing |
Industry Applications
This motion control module excels in packaging, material handling, and assembly lines where precise synchronization of multiple axes is critical. The 8 real axes handle primary motion, while imaginary and remote axes support virtual coordination and distributed control. Functions like count probe and length measurement enable accurate registration and cut-to-length operations, reducing waste and improving throughput.
Installation & Setup Guidance
Mount the module vertically in a Modicon Quantum rack. Ensure ambient temperature stays between 0 and 40 degrees Celsius. Use SERCOS fiber-optic cables to connect to Lexium drives. Configure axis parameters and coordinate sets using Schneider Electric's programming software. Verify all connections before powering up.
Maintenance & Reliability
The plastic housing provides durability in industrial environments. Operate within the specified humidity range (80% RH, non-condensing) to prevent condensation damage. Periodically inspect the display for error codes and ensure the module's firmware is up to date. Store the module between 0 and 50 degrees Celsius when not in use.
Compatibility & Integration
Designed for seamless integration with Lexium servo systems via SERCOS, this module supports count probe, length measurement, and point synchronization functions. It works within the Modicon Quantum automation platform, allowing straightforward coordination with other I/O and control modules.
Selection Guide & Purchasing Advice
When selecting a motion control module, consider the number of axes and required functions. The 140MMS53502 supports up to 8 real axes plus virtual axes, making it suitable for medium-complexity applications. Contact SpareTechPLC for current pricing and availability. Verify lifecycle status before ordering.
Troubleshooting & Common Issues
If the module fails to communicate, check the SERCOS fiber-optic connections and ensure the Lexium drives are powered. If axes do not move, verify configuration parameters and coordinate set assignments. The onboard display provides diagnostic codes for quick troubleshooting. For persistent issues, consult the Schneider Electric documentation.
Frequently Asked Questions
Q: What is the processor speed of the 140MMS53502?
A: The processor operates at 133 MHz.
Q: How many real axes does this module support?
A: It supports 8 real axes, plus 4 imaginary axes, 4 remote axes, and 4 coordinate sets.
Q: What control output protocol does it use?
A: It uses SERCOS control output.
Q: What is the operating temperature range?
A: The operating temperature is 0 to 40 degrees Celsius.
Q: Is the module compatible with Lexium systems?
A: Yes, it is specifically designed for compatibility with Lexium devices.
Please verify current lifecycle status and availability with SpareTechPLC before ordering.
