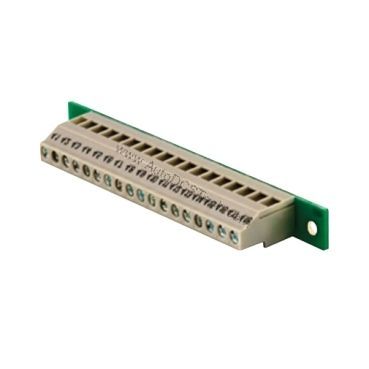

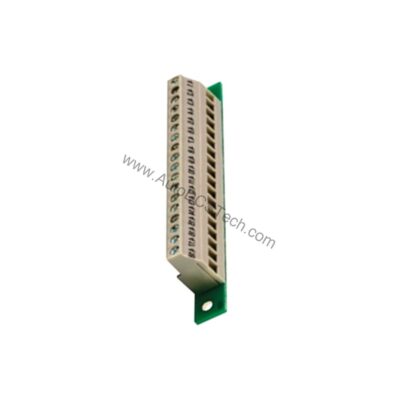

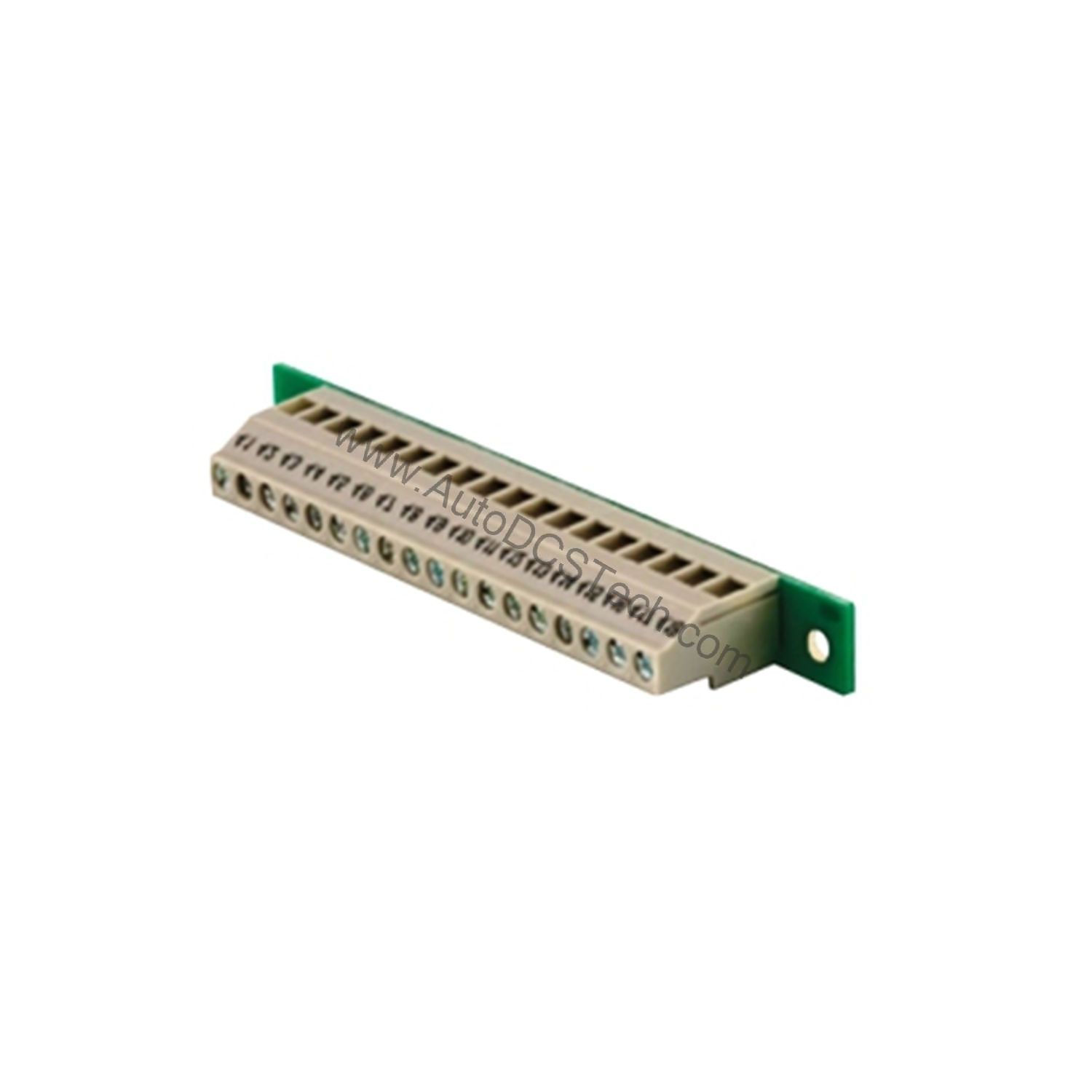

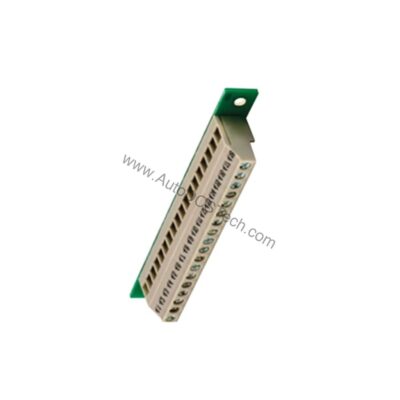

Schneider 170XTS00701 Modicon Momentum Busbar Connector

Technical Specifications Breakdown

Key parameters for the 170XTS00701 are listed below for quick reference:

Industrial Applications and Integration

Streamlining Panel Wiring

In manufacturing environments, panel builders often struggle with managing multiple I/O modules. This busbar connector simplifies the backplane by creating a single conductive path. It reduces wiring errors and speeds up commissioning. The spring-type terminals allow tool-less insertion, saving labor time.

Vibration-Resistant Performance

Machinery with constant motion, such as conveyors or robotic cells, can loosen traditional screw terminals. The 170XTS00701 is designed to withstand vibration, maintaining electrical continuity. This reduces intermittent faults and unplanned downtime.

Installation Guidance

Simple Plug-In Assembly

The plug-in design enables quick mounting onto compatible Momentum I/O bases. Ensure the connector aligns with the busbar slot before pressing firmly. No special tools are required. The single horizontal row layout saves space in crowded cabinets.

Environmental Considerations

Operate within the -25°C to +70°C range for reliable performance. Avoid exposure to corrosive gases or excessive moisture. The high-conductivity metal construction resists oxidation, but periodic inspection of contact surfaces is recommended.

Maintenance and Reliability

Periodic Inspection

Check the connector annually for signs of mechanical wear or debris. Verify that the spring terminals maintain proper tension. Clean contacts with a dry cloth if needed. The vibration-resistant design reduces the need for frequent retightening.

Long-Term Durability

With proper installation, this component provides years of service. The low-resistance connections minimize heat generation, extending the life of adjacent electronics. Replace only if physical damage is visible.

Reliable Busbar Connectivity for Modicon Momentum Systems

Industrial control panels demand robust electrical connections to maintain system uptime. The Schneider 170XTS00701 busbar connector addresses this need by providing a dedicated single-row link for discrete and analog I/O bases within the Modicon Momentum platform. This component eliminates wiring complexity and ensures consistent low-resistance paths for signal integrity.

Compatibility and Integration

This busbar connector is engineered exclusively for the Modicon Momentum system. It works with both discrete and analog I/O bases, ensuring seamless electrical integration. The 170XTS00701 is not intended for use with other platforms.

Selection Guide and Purchasing Advice

When ordering, verify that your Momentum I/O bases require a single-row busbar. AutoDCSTech stocks genuine Schneider components to ensure system reliability. Please verify current lifecycle status and availability with AutoDCSTech before ordering.
