Product Introduction
When system uptime is critical in process control applications, the Schneider BMEH582040 redundant processor module delivers the reliability you need. Part of the Modicon M580 family, this module is designed for high-availability automation architectures that demand seamless failover and robust cybersecurity.
Technical Specifications Breakdown
The BMEH582040 provides 8 MB of integrated RAM for program storage and 768 kB for data, ensuring ample capacity for complex control logic. It supports up to 61 Ethernet devices and manages 8 local racks plus 8 remote I/O racks, offering extensive scalability for large installations. Cybersecurity features include Achilles certification, IPSec, SNMP logging, and an embedded firewall, making it suitable for secure industrial networks. The module consumes 270 mA at 24 V DC and operates in ambient temperatures from 32 to 140 °F (0 to 60 °C). With an MTBF of 650,000 hours, it ensures long-term dependability.
Industry Applications
In water treatment facilities, the BMEH582040 manages critical processes with redundant control to prevent downtime. For oil and gas pipelines, its hot standby capability (HSBY port) enables seamless switchover between processors, maintaining operations during maintenance. The module's support for 64 distributed devices and 8 remote I/O stations makes it ideal for large-scale manufacturing lines requiring distributed control.
Installation & Setup Guidance

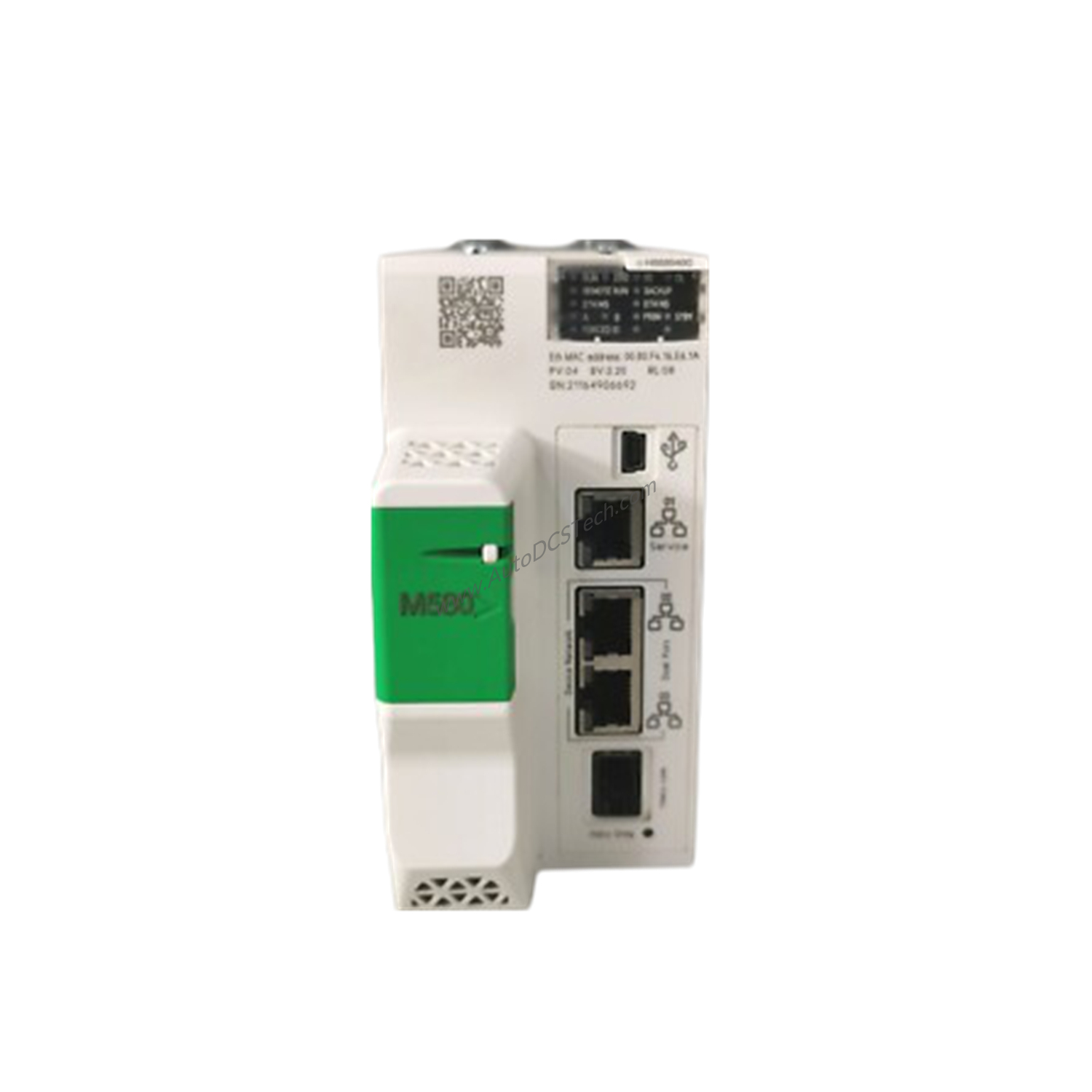

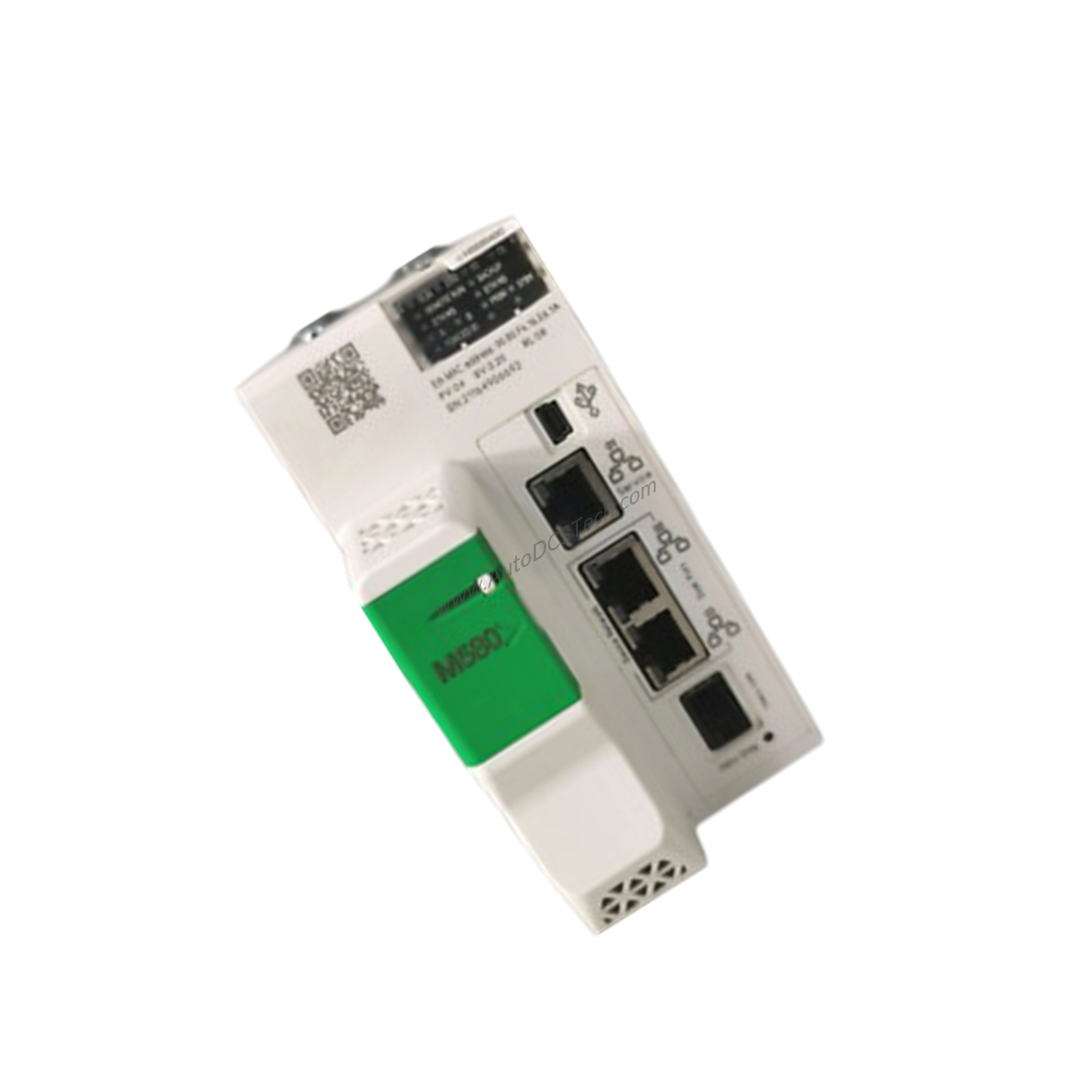

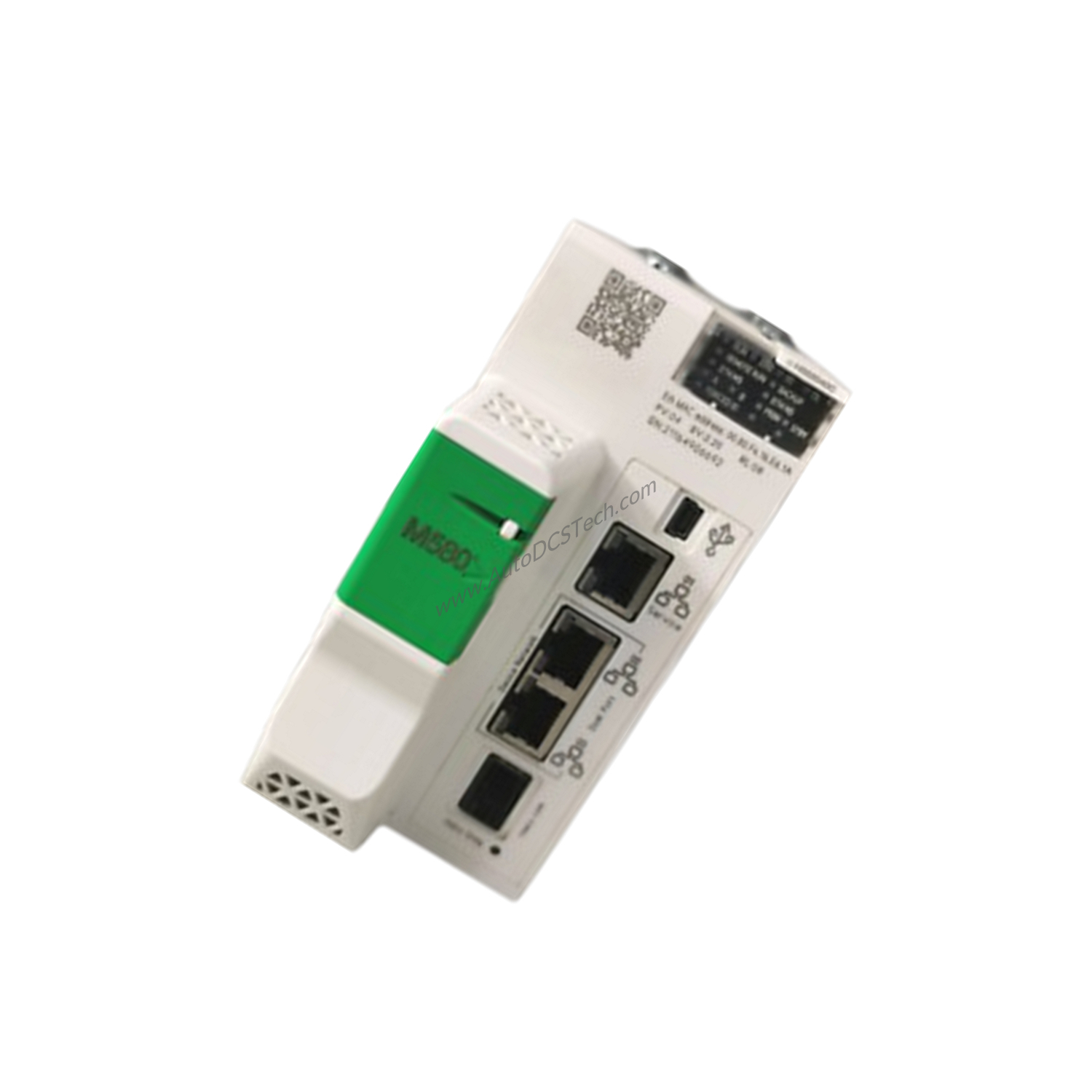

Mount the BMEH582040 on a Modicon M580 rack using the internal power supply via rack connection. Connect the Ethernet TCP/IP service port and device network ports for communication. Use the USB mini B port for local programming access. The HSBY port links two processors for redundancy. Verify proper rack power and configure the processor ID (A or B) via DIP switches before startup.
Maintenance & Reliability
Periodically inspect the status LEDs (RUN, ERR, I/O, DL, BACKUP) to monitor processor health. The module's IP20 protection requires installation in a clean, dry cabinet. With 650,000 hours MTBF, routine maintenance focuses on environmental checks and firmware updates. Follow manufacturer guidelines for cybersecurity audits and log reviews.
Compatibility & Integration
The BMEH582040 integrates with Modicon M580 racks, X80 remote drops, and up to 2 Ethernet communication modules. It supports DIO scanner and RIO scanner services for distributed I/O. The module works with AS-Interface modules and HART devices for analog signals. For motion control, it interfaces with SSI encoders. The embedded firewall and secure communication (HTTPS) ensure safe integration into enterprise networks.
Selection Guide & Purchasing Advice
Before ordering the BMEH582040, verify your rack compatibility and power supply requirements. Confirm the number of remote I/O stations (up to 8) and distributed devices (up to 64) match your system design. SpareTechPLC stocks this TAA-compliant module with fast shipping. Contact our team to confirm lifecycle status and availability.
Frequently Asked Questions
What is the program memory size of the BMEH582040?
The module has 8 MB of integrated RAM for program storage and 768 kB for data, plus 10 kB system memory.
How many Ethernet devices does the BMEH582040 support?
It supports up to 61 Ethernet devices across its device network ports.
What cybersecurity features are included?
The module includes Achilles certification, IPSec, SNMP logging, embedded firewall, firmware signature, and secure communication (HTTPS).
Can the BMEH582040 operate in high-temperature environments?
Yes, it operates in ambient temperatures from 32 to 140 °F (0 to 60 °C).
What is the MTBF of this redundant processor?
The mean time between failures (MTBF) is 650,000 hours.
