Product Overview

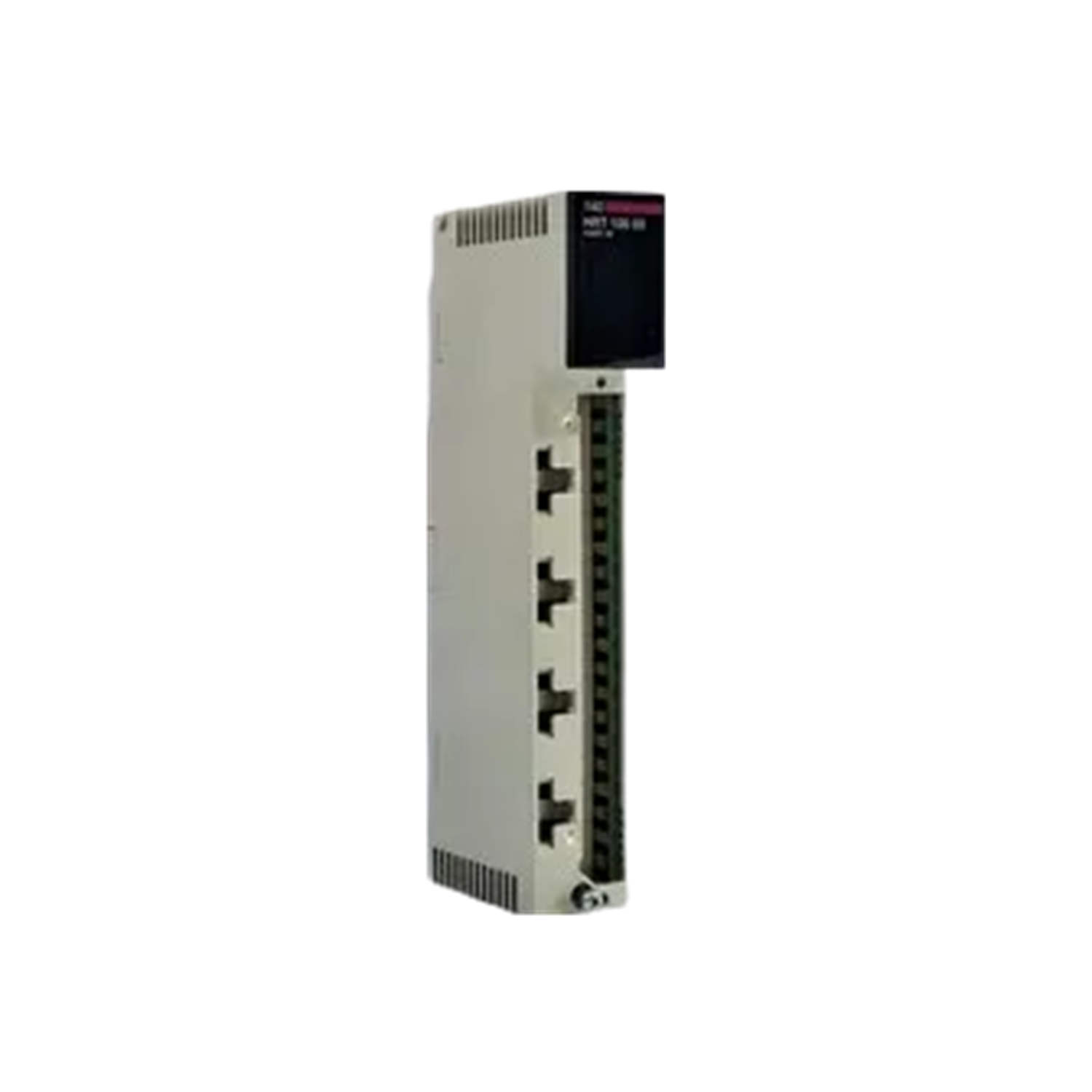

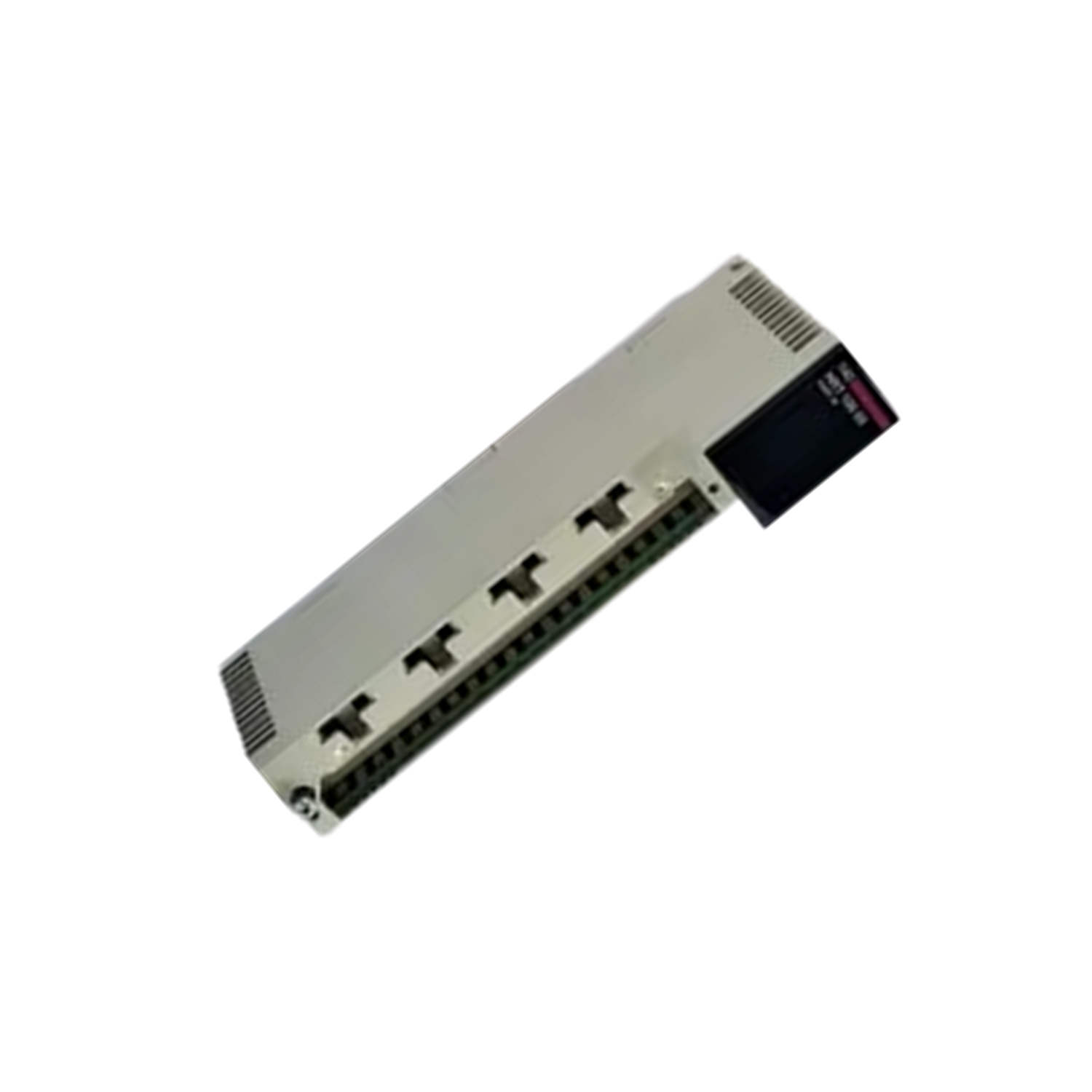

The Schneider Electric 140HRT10000 is a robust interface module from the Modicon Quantum series, designed for effective communication and data integration in industrial automation systems. This component enables reliable data exchange between control systems and field devices, reducing integration costs and minimizing downtime. By leveraging natural cooling and a durable metal housing, it offers a cost-effective solution for demanding environments without the need for additional cooling infrastructure.
Technical Specifications Breakdown
Key parameters for the 140HRT10000 are listed below for quick reference:
| Feature | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Line | Modicon Quantum |
| Part Number | 140HRT10000 |
| Product Type | Interface Module |
| Use | Communication and Data Integration |
| Cooling | Natural Cooling |
| Material | Metal |
| Mounting | Through Screw and Holes |
| Maximum Ambient Temperature | 60 degrees Celsius |
| Minimum Ambient Temperature | 0 degrees Celsius |
| Operating Humidity Rating | 80% max. (non-condensing) |
| Storage Humidity Rating | 80% max. (non-condensing) |
| Maximum Altitude for Operation Without Derating | 1000 meters above sea level |
| Standards | CE |
| Protection Class | IP20 |
Industry Applications
This interface module is ideal for communication and data integration in manufacturing plants, process control systems, and building automation. For example, in a production line, it can link PLCs to remote I/O racks, reducing wiring costs and improving data accuracy. In a water treatment facility, it integrates sensor data into a central control system, enhancing operational efficiency and lowering maintenance expenses. The module's wide temperature range (0 to 60 degrees Celsius) ensures reliable performance in unconditioned environments, avoiding costly climate control upgrades.
Installation & Setup Guidance
Mount the module securely using through screw and holes to a metal panel or DIN rail. Ensure the installation area is dry and clean, as the IP20 protection class indicates limited dust and tool ingress protection. Use natural cooling only; do not block ventilation paths. Verify that the ambient temperature stays within 0 to 60 degrees Celsius and humidity below 80% non-condensing to avoid performance degradation. For altitudes above 1000 meters, contact SpareTechPLC for derating guidance.
Maintenance & Reliability
Inspect the module periodically for dust accumulation and ensure mounting screws remain tight. The metal housing provides durability, but avoid exposure to condensation or corrosive gases. The natural cooling design reduces moving parts, lowering long-term maintenance costs. Store the module in environments with humidity below 80% non-condensing to preserve reliability.
Compatibility & Integration
The 140HRT10000 is designed for Schneider Electric Modicon Quantum systems, ensuring seamless integration with existing architectures. It supports communication and data integration tasks without requiring additional adapters, reducing total cost of ownership. For specific system compatibility, consult the Modicon Quantum documentation or contact SpareTechPLC.
Selection Guide & Purchasing Advice
When selecting this interface module, verify that your application requires communication and data integration within a Modicon Quantum environment. The 140HRT10000 offers a cost-effective solution with natural cooling and a wide temperature range, minimizing auxiliary equipment expenses. Purchase from SpareTechPLC to ensure genuine Schneider Electric parts and expert support. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
Troubleshooting & Common Issues
If the module fails to communicate, check that the ambient temperature is between 0 and 60 degrees Celsius and humidity is below 80% non-condensing. Ensure mounting is secure and connections are tight. For persistent issues, verify CE compliance and inspect for physical damage. Do not attempt internal repairs; contact SpareTechPLC for replacement options.
