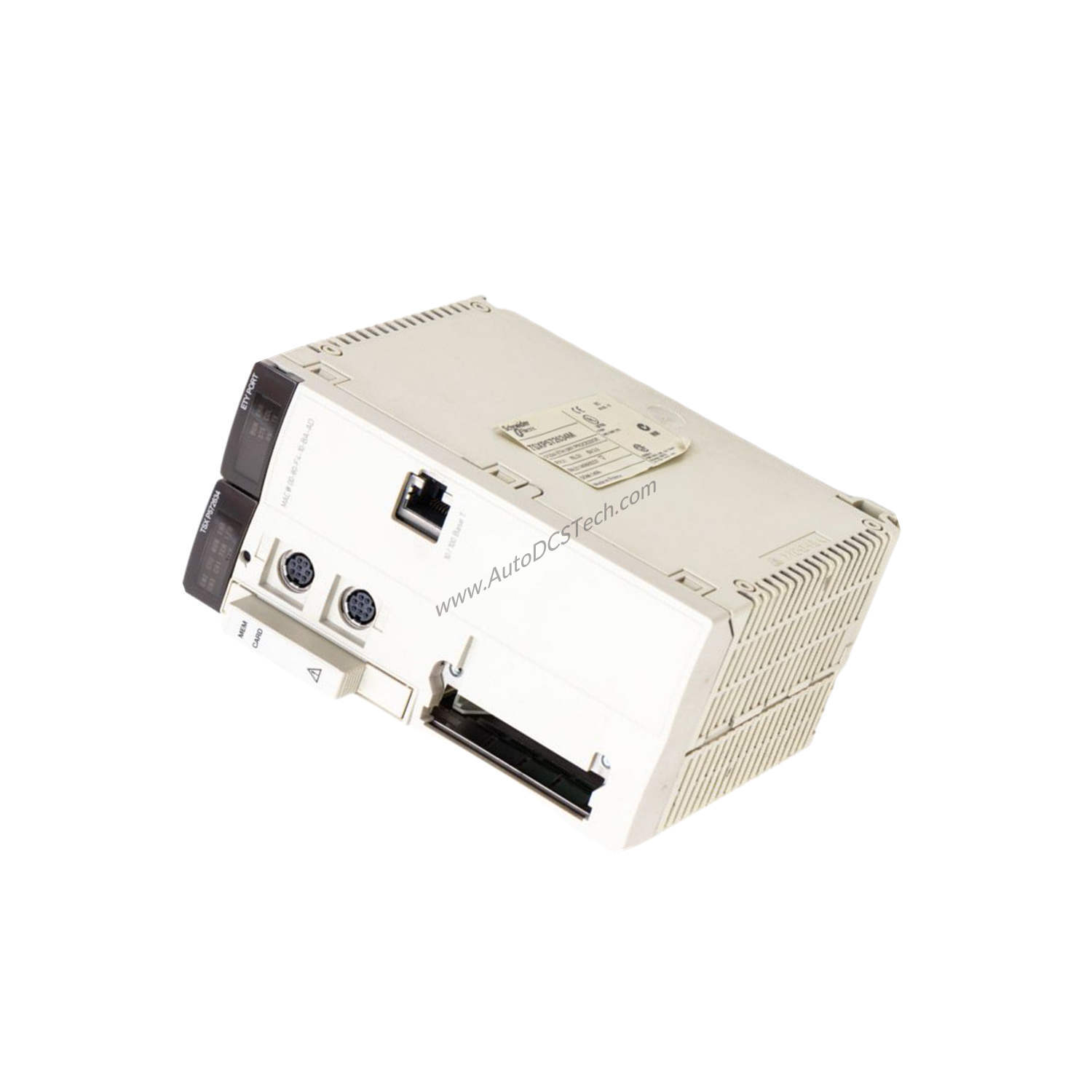

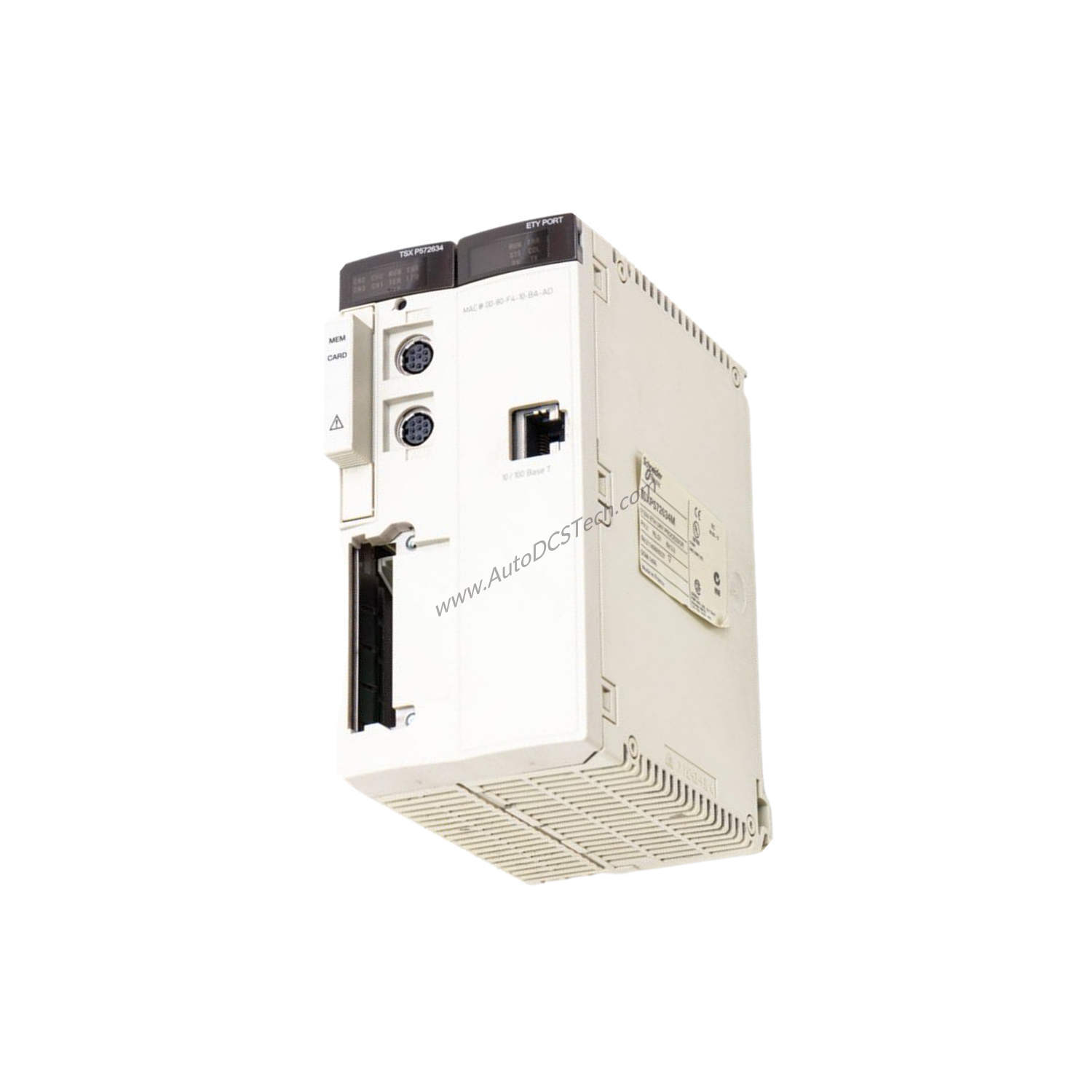

What Is the TSXP572634M?
When automation projects demand both flexibility and cost control, the Schneider TSXP572634M from the TSX Micro PLCs series delivers. This processor handles up to 80 analog I/O and 1024 discrete I/O points, reducing the need for multiple controllers and lowering overall system expenditure. Its integrated non-isolated serial link (2 female mini DIN, 19.2 kbit/s) and Ethernet TCP/IP (RJ45, 10/100 Mbit/s) simplify network integration, cutting installation time and wiring costs.
Technical Specifications Breakdown
- Analog I/O Capacity (80 I/O): Manages up to 80 analog channels, minimizing the need for additional analog modules and reducing per-point cost.
- Discrete I/O Capacity (1024 I/O): Supports large-scale discrete control in a single processor, lowering hardware and maintenance expenses.
- Execution Time: 0.19 µs for Boolean operations without a PCMCIA card and 0.21 µs with one ensures fast program cycles, improving machine throughput and reducing energy waste.
- Application Structure: 1 master task, 1 fast task, and 64 event tasks allow precise task prioritization, optimizing CPU usage and reducing power consumption.
- Memory Options: Internal RAM (48 Kwords for program and data) plus PCMCIA slots for expansion (up to 160 Kwords program, 2688 Kwords data) enable cost-effective scaling without replacing hardware.
Industry Applications
- Manufacturing Assembly Lines: The TSXP572634M's 1024 discrete I/O capacity controls numerous sensors and actuators in a single chassis, reducing controller count and associated procurement costs.
- Process Control (e.g., water treatment): With up to 30 simple process control loops and 80 analog I/O, it manages temperature, flow, and pressure loops efficiently, lowering energy usage and operational expenses.
- Material Handling Systems: The Ethernet TCP/IP link enables real-time data exchange with SCADA systems, reducing downtime through faster diagnostics and lowering maintenance costs.
Installation & Setup Guidance
Mount the TSXP572634M in a suitable enclosure (IP20 rated) with proper ventilation. Use the two female mini DIN connectors for serial communication and the RJ45 port for Ethernet TCP/IP. Connect the 5 V DC power supply (1650 mA required). Configure the application structure (1 master task, 1 fast task, 64 event tasks) in Unity Pro software. The RESET button triggers a cold start; use it during initial commissioning to clear memory. Ensure PCMCIA cards (memory extension or communication) are inserted before power-up to avoid configuration errors.
Maintenance & Reliability
Regularly inspect the five front-panel LEDs (RUN, ERR, I/O, TER, TX, RX, STS, COL) for abnormal patterns to catch faults early. Keep the ambient temperature between 32…140 °F (0…60 °C) and relative humidity 10…95% (non-condensing) to extend component life. Periodic cleaning of the RJ45 and mini DIN connectors with compressed air prevents communication failures, reducing unplanned downtime and repair costs. The TSXP572634M's robust design (pollution degree 2) minimizes maintenance frequency, contributing to lower total cost of ownership.
Compatibility & Integration
The TSXP572634M integrates seamlessly with Schneider's Modicon Premium platform and supports Unity Pro and Concept software. It communicates via non-isolated serial link (RS485, 19.2 kbit/s) and Ethernet TCP/IP (10/100 Mbit/s), enabling connection to HMIs, drives, and SCADA systems. It accommodates up to 16 racks and 128 slots, allowing cost-effective system expansion. Communication modules include 1 fieldbus module, 4 AS-Interface bus modules, and 1 CANopen interface, ensuring compatibility with diverse field devices.
Buying Guide & Purchasing Advice
Before ordering the TSXP572634M, verify your system's power supply (5 V DC, 1650 mA) and rack configuration (up to 16 racks). Confirm the required PCMCIA cards (memory extension or communication) are available. Contact SpareTechPLC for current lifecycle status and stock availability. Our team ensures genuine Schneider parts at competitive prices, helping you control automation costs.
