6FX8002-2DC10-1BF0 15m Drive-Cliq RJ45 Motor Encoder Cable

Introduction to the 6FX8002-2DC10-1BF0

When signal integrity is critical, the 6FX8002-2DC10-1BF0 delivers a pre-assembled, robust solution for motor encoder feedback. This Siemens cable, part of the 6FX series, is engineered to maintain accurate communication between the motor and drive system, reducing the risk of data corruption and downtime.

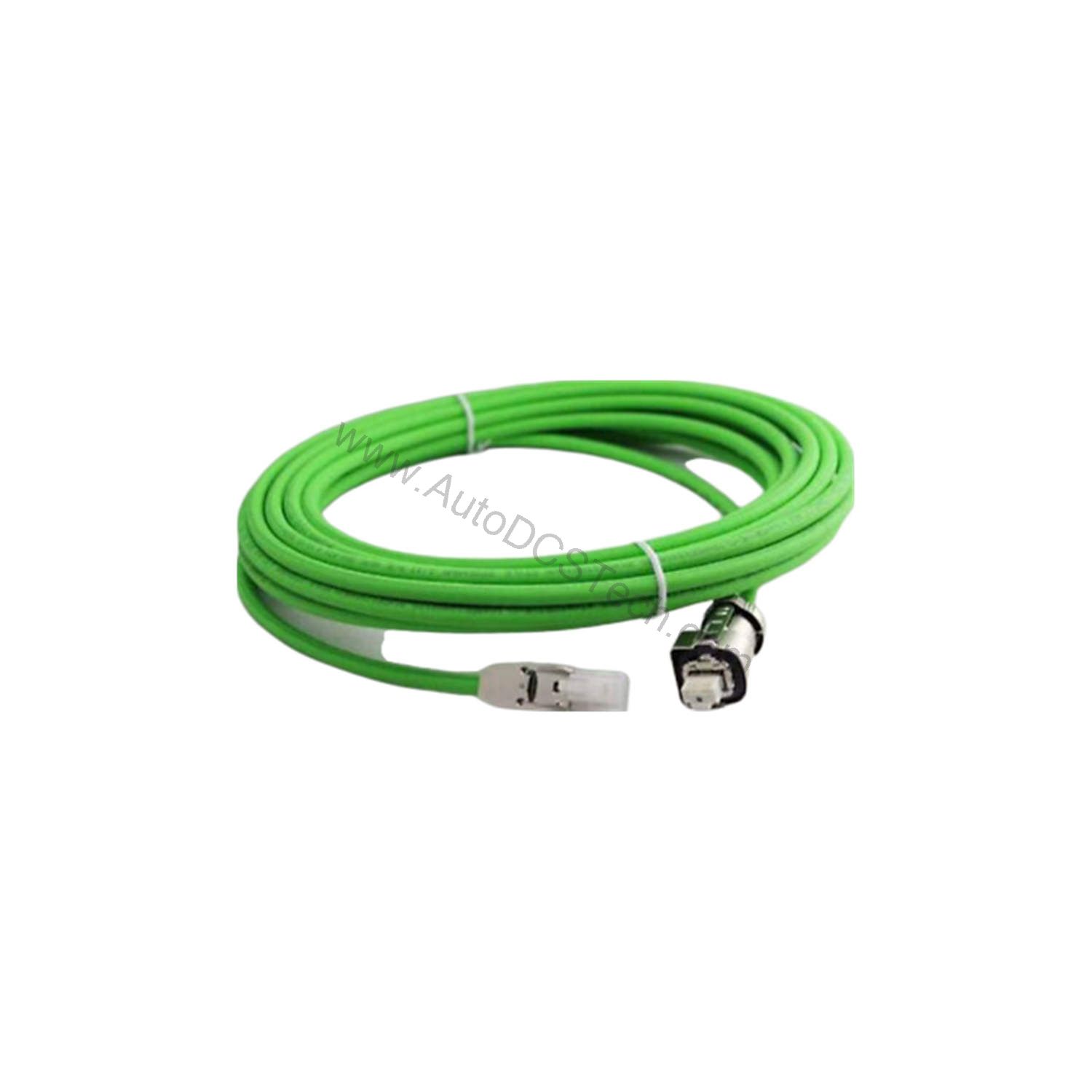

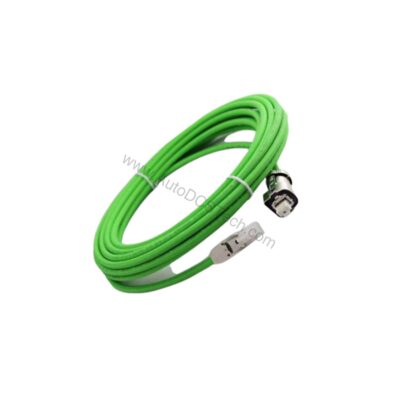

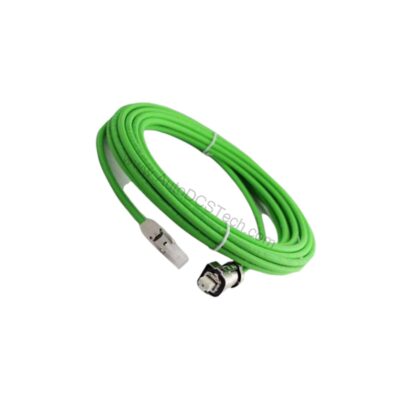

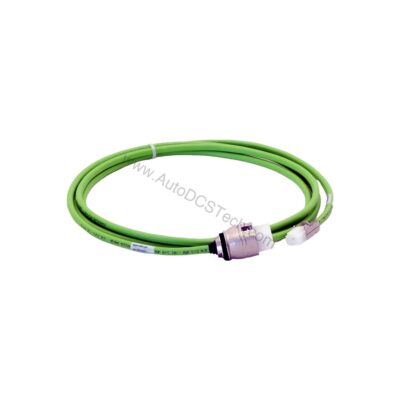

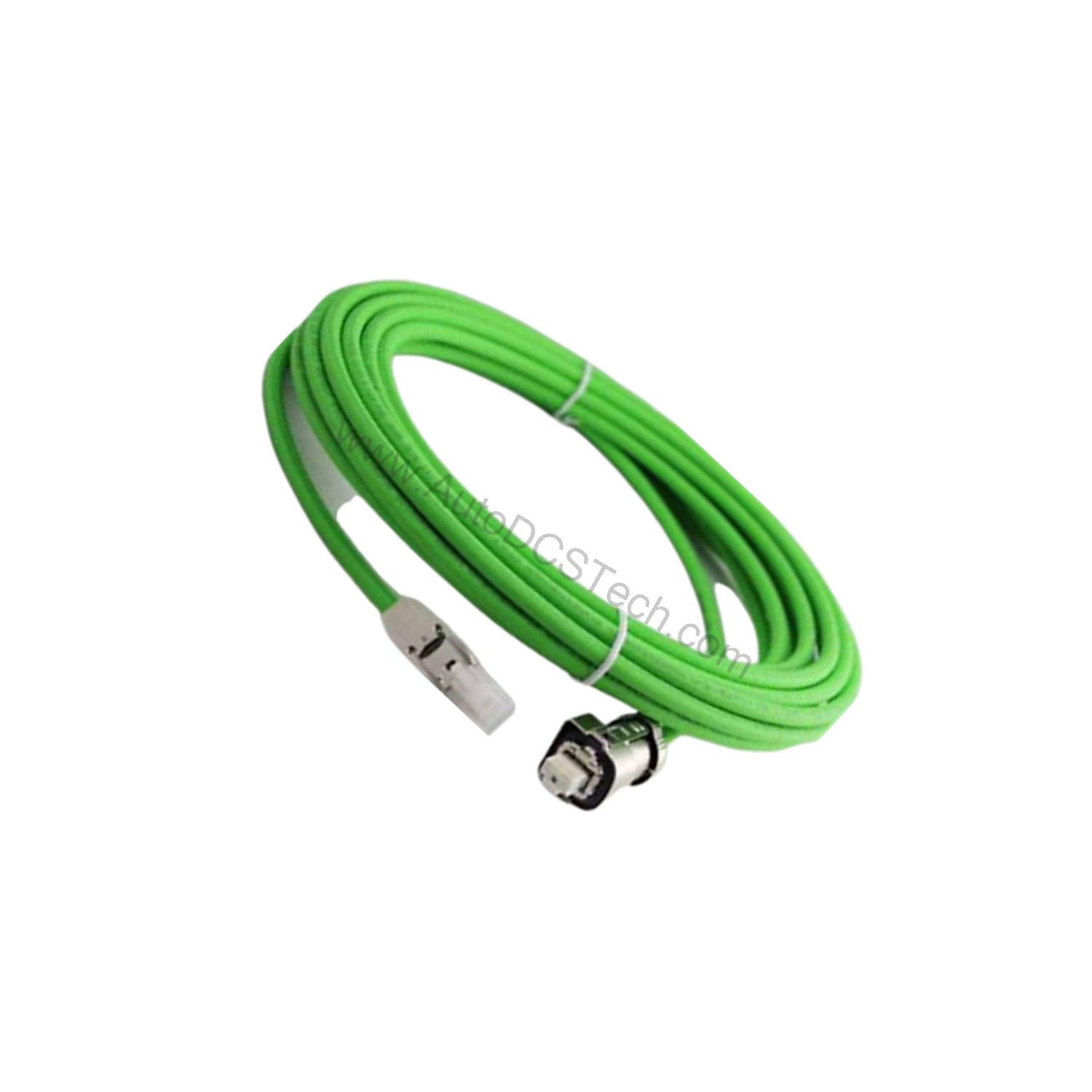

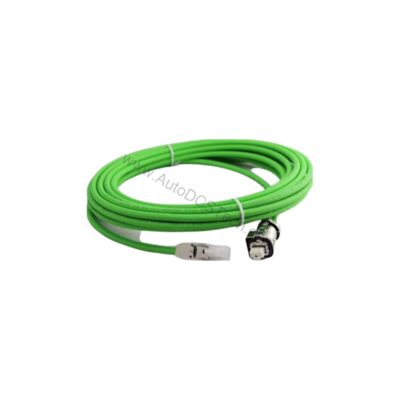

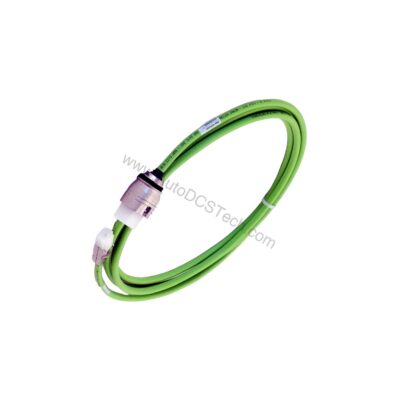

With a 15.0-meter length and green polyurethane (PUR) jacket, this cable withstands harsh industrial environments while providing reliable performance. The straight RJ45 connectors on both ends ensure a secure, standardized connection.

Key Features and Technical Specifications

• Cable Type: Motor encoder cable, pre-assembled for immediate installation.
• Connector Type: RJ45 on both cable ends, compatible with Drive-Cliq interfaces.
• Connector Angle: Straight on both ends, simplifying routing in tight spaces.
• Jacket Material: Polyurethane (PUR) provides abrasion and chemical resistance.
• Jacket Color: Green for easy identification.
• Protection Rating: IP20 on module side and IP67 on motor side, guarding against dust and water ingress.
• Signal Type: Drive-Cliq with 24 V supply, ensuring clean power for encoder electronics.

These features combine to minimize signal loss and electromagnetic interference, which is crucial for precise motor control in automation systems.

Applications and Use Cases

It is commonly used in CNC machinery, robotics, and packaging equipment where positioning accuracy is paramount.

For example, in a high-speed pick-and-place system, the 6FX8002-2DC10-1BF0 ensures that encoder signals remain intact, preventing misalignment and improving throughput. Its robust PUR jacket also makes it suitable for environments with oil, coolant, or mechanical wear.

Installation and Setup

Installing the 6FX8002-2DC10-1BF0 is straightforward due to its pre-assembled connectors. Simply plug the RJ45 connectors into the drive and motor, ensuring a firm click to lock the connection.

Because both ends are straight, plan cable routing to avoid sharp bends that could stress the cable. Use cable carriers or clamps to secure the cable and prevent movement that might cause connector strain. Always verify the cable length (15.0 m) is sufficient for your machine layout to avoid tension.

Maintenance and Reliability

Regular inspection of the cable and connectors is essential to maintain signal integrity. Check for cuts, abrasions, or kinks in the PUR jacket, especially in high-flex areas.

Ensure connectors remain clean and free from debris; a dry cloth can be used to wipe them if needed. The IP67 rating on the motor side provides protection against water and dust, reducing maintenance frequency. For long-term reliability, follow the manufacturer's guidelines for cable bending radius and strain relief.

Troubleshooting Common Issues

If communication errors occur, first verify that both RJ45 connectors are fully seated and locked. Loose connections are a common cause of intermittent signals.

Check for damage to the cable jacket, particularly near moving parts. If the cable is exposed to excessive flexing, consider a cable carrier or a different routing path. Also, confirm that the 24 V supply is within specification, as low voltage can cause encoder malfunctions.

If problems persist, consult the Siemens documentation for the specific drive and motor combination to ensure compatibility and proper pinout.

Product Support and Availability

The 6FX8002-2DC10-1BF0 is available through AutoDCSTech, a trusted supplier of industrial automation parts. Contact AutoDCSTech for current pricing and lead times.
