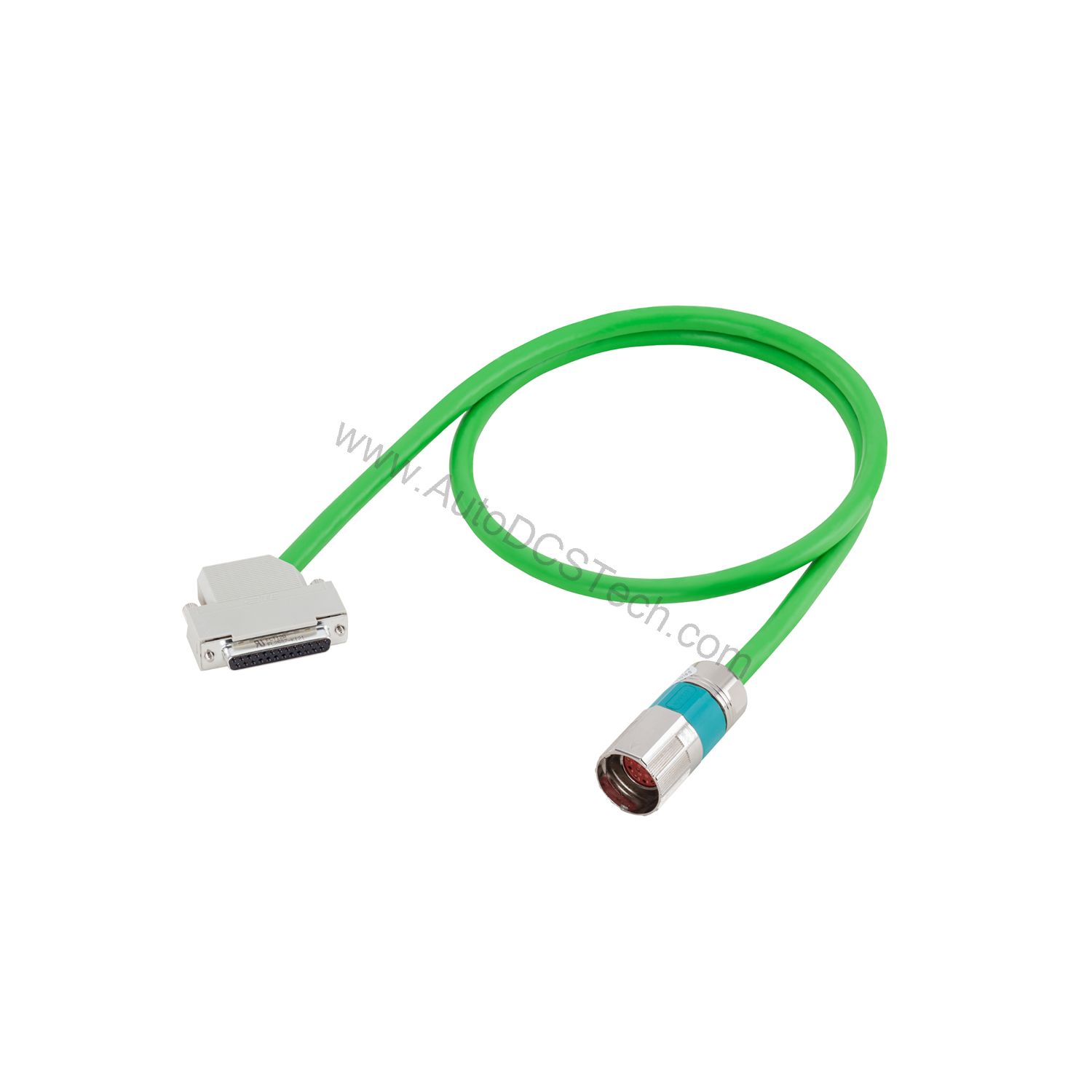

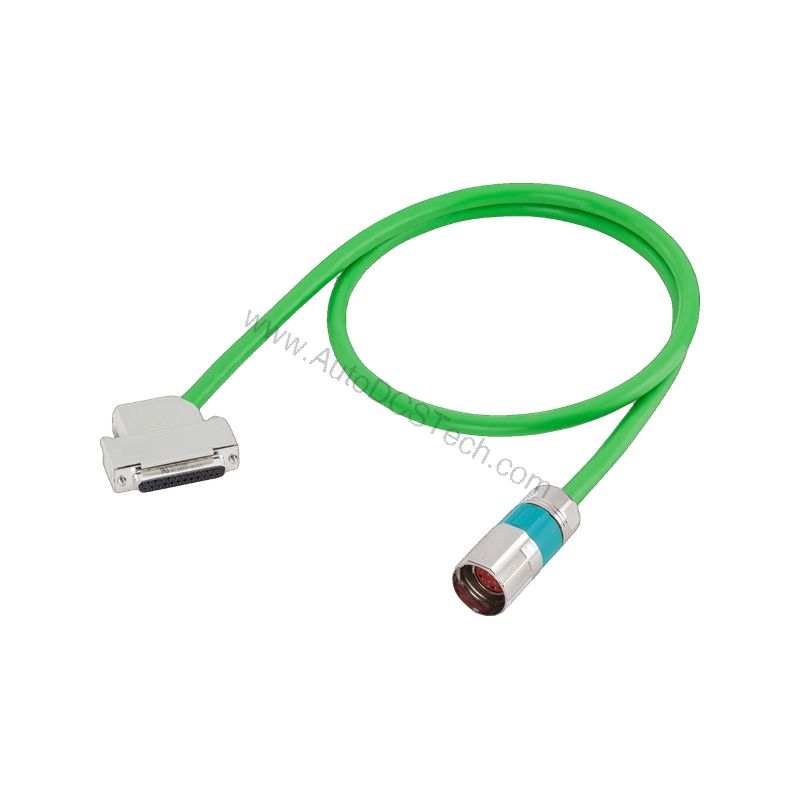

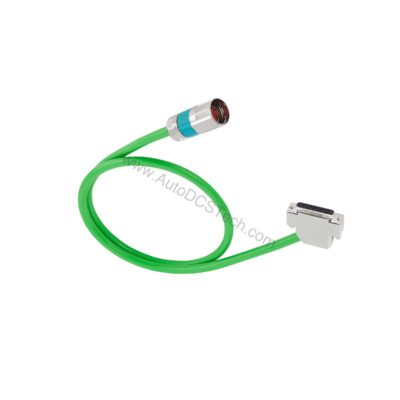

Key Features and Technical Specifications
- 30.0 m length – ready for long-span installations without splicing.
- 2-pole resolver design – precise feedback for servo motors.
- M23 full-thread motor connector – secure and robust.
- SUB-D converter connector – standard interface for drives.
- PUR sheath, green RAL 6018 – oil-resistant and durable.
- Flame resistance per EN 60332-1-1 to 1-3 – meets fire safety standards.
- Oil resistance per EN 60811-2-1 – suitable for machine tools.
- UL758 and CSA-C22.2-N.210.2-M90 approvals – certified for North America.
The cable's smallest bending radius for flexible installation is 70 mm, allowing tight routing in cable carriers. It withstands up to 10,000,000 bending cycles, ensuring long service life in dynamic applications. The maximum traversing velocity is 300 m/min, and it handles acceleration up to 50 m/s² horizontally.
Applications and Use Cases
In high-speed packaging machinery, the 6FX8002-2CF02-1DA0 maintains signal integrity despite continuous flexing. For robotic handling systems, its torsional stress rating of 30°/m accommodates twisting movements. Its UL and CSA approvals make it suitable for export equipment destined for North America.
Installation and Setup
When installing, observe the smallest bending radius for fixed installation: 4 x Dmax (where Dmax is the cable outer diameter of 9.2 mm). For flexible routing, maintain a bending radius of at least 70 mm. Secure the cable with appropriate strain relief to avoid exceeding the tensile stress limits (50 N/mm² fixed, 20 N/mm² flexible). Ensure the ambient temperature stays within -50 to 80 °C for fixed installation, or -20 to 60 °C for moving cable applications.
Maintenance and Reliability
The PUR sheath resists oils and chemicals, reducing wear. However, periodic inspection is recommended to check for cuts or abrasions, especially in high-flex areas. The cable's flame resistance per EN 60332-1-1 to 1-3 adds a safety margin in case of fire. With proper installation, the cable can deliver years of trouble-free operation, minimizing downtime and replacement costs.
Compatibility and Integration
This cable is designed for Siemens servo systems that use resolver feedback. It connects directly to compatible motors and converters via M23 and SUB-D connectors. For other systems, verify connector compatibility before ordering. The cable's electrical ratings – test voltage 500 V (signal conductors) and rated voltage 30 V (power conductors) – ensure safe operation within specified limits.
Product Support and Availability
The 6FX8002-2CF02-1DA0 is available from AutoDCSTech, a trusted supplier of industrial automation parts. Contact our team for current pricing and lead times. We ensure genuine Siemens products with fast worldwide shipping.
Availability & Condition at AutoDCSTech
| Part Number | 6FX8002-2CF02-1DA0 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
