Product Overview

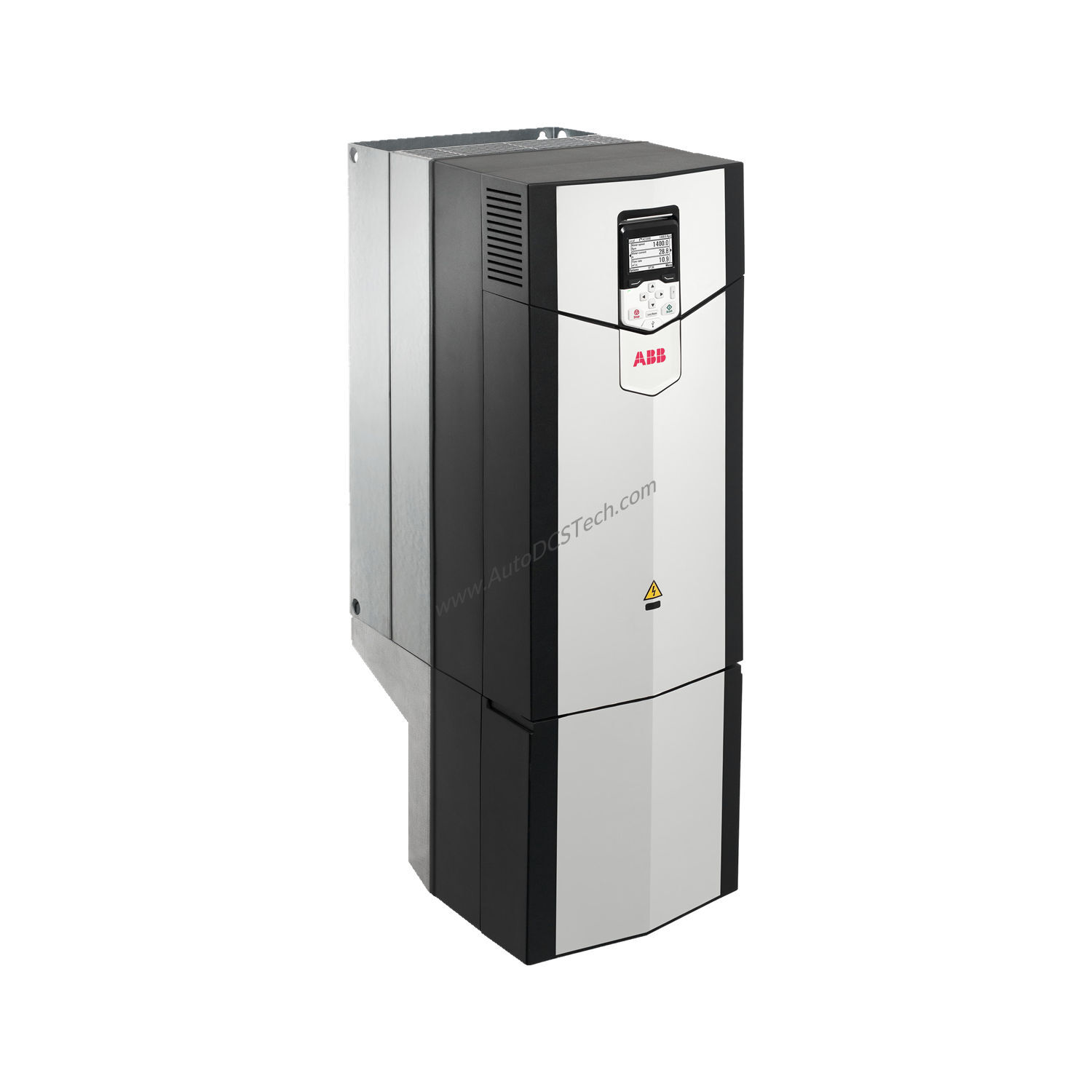

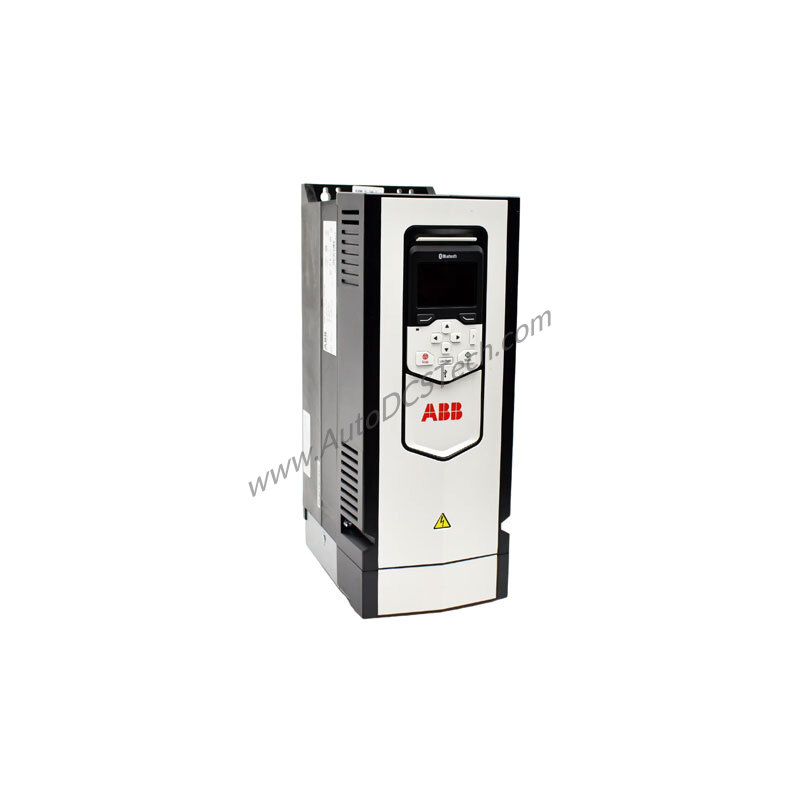

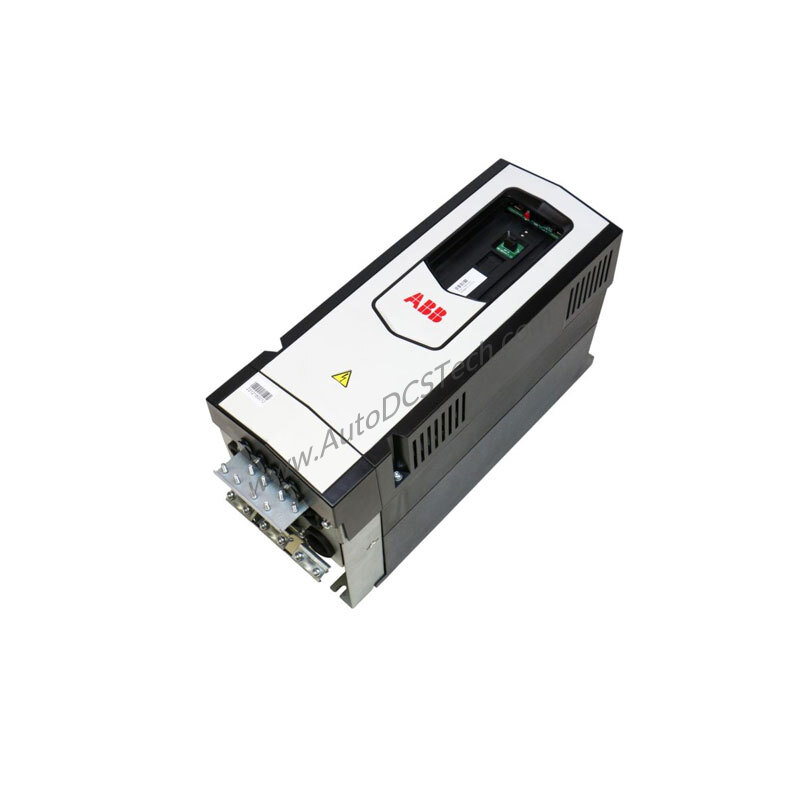

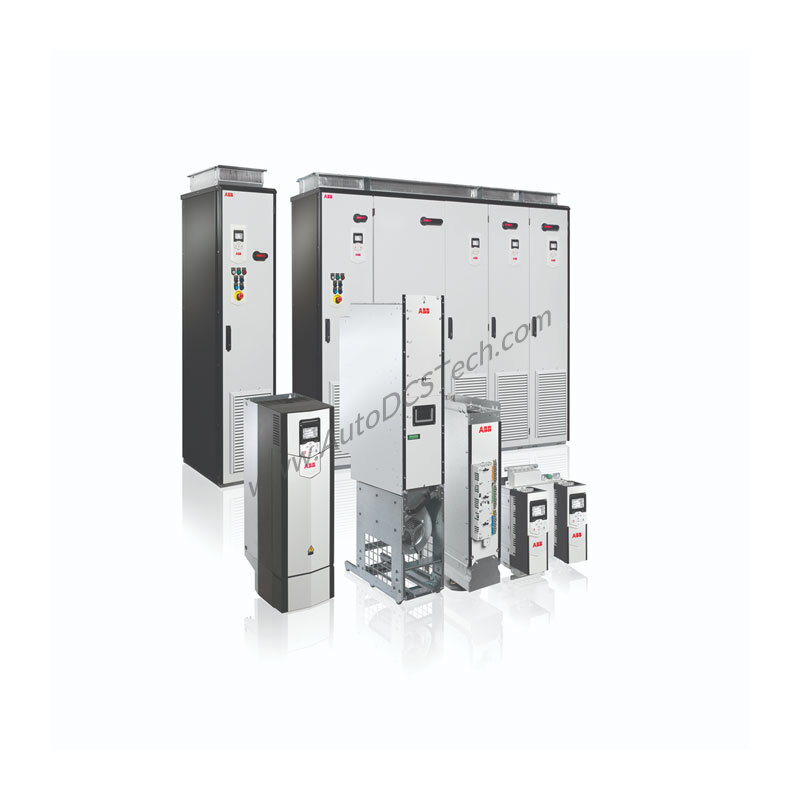

When industrial processes demand precise motor control and energy efficiency, the ABB ACS880-01-430A-3 frequency converter provides a robust solution. Part of the ACS880 series, this drive handles heavy-duty applications with a normal use output current of 430 A and a power rating of 250 kW. Its compact, wall-mounted design with IP21 protection suits a wide range of environments.
Technical Specifications Breakdown
The ACS880-01-430A-3 offers key specifications that define its performance. It operates on a three-phase input voltage of 380 to 415 V with a frequency range of 47.5 to 63 Hz. The normal use output current (I n) is 430 A, while heavy-duty use (I HD) delivers 363 A. Output power reaches 250 kW under normal use, with an apparent power output of 298 kV·A. The drive achieves IE2 efficiency and has a standby loss of only 83 W. Its frame size is R9, and it weighs 95.0 kg, with dimensions of 413 mm depth, 955 mm height, and 380 mm width.
Industry Applications
This frequency converter is customized for industries like oil and gas, mining, metals, and chemicals. It controls applications such as cranes, conveyors, compressors, pumps, and fans. For example, in a mining conveyor system, the ACS880-01-430A-3 manages heavy loads with its 363 A heavy-duty output, ensuring reliable operation under demanding conditions. Its built-in choke for harmonic filtering reduces electrical noise, improving system stability.
Installation & Setup Guidance
Mount the ACS880-01-430A-3 on a wall as standard, or install it in a cabinet as an option. The unit comes with enclosure class IP21 and NEMA Type 1, making it suitable for most indoor environments. Ensure adequate ventilation around the drive, as it operates at altitudes up to 4000 m. Connect the three-phase input within the 380 to 415 V range, and verify that the output current does not exceed 430 A for normal use. The drive includes a control unit with a PC connection for easy commissioning.
Maintenance & Reliability
Regular inspection of the ACS880-01-430A-3 ensures long-term reliability. Check the cooling fans and air filters periodically to maintain proper airflow. The drive's standby loss of 83 W indicates low energy consumption when idle, contributing to cost savings. With a sound level of 70 dB(A), it operates quietly in industrial settings. Always follow manufacturer guidelines for maintenance intervals to maximize uptime.
Compatibility & Integration
The ACS880-01-430A-3 supports multiple communication protocols, including CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, and PROFINET IO. It features one RS-485 interface and one USB port for connectivity. The drive also includes 2 analog inputs, 2 analog outputs, and 6 digital inputs with 2 digital outputs, allowing seamless integration with PLCs and other control systems.
Selection Guide & Purchasing Advice
Before purchasing the ACS880-01-430A-3, verify your application's voltage and current requirements. This model suits three-phase systems with 380 to 415 V input. Consider the heavy-duty output current of 363 A for demanding loads. AutoDCSTech offers this ABB frequency converter with detailed specifications to help you select the right drive. Contact their team for availability and support.
Frequently Asked Questions
What is the normal use output current of the ACS880-01-430A-3?
The normal use output current (I n) is 430 A.
What input voltage range does this drive support?
It supports a three-phase input voltage of 380 to 415 V.
Can the ACS880-01-430A-3 be mounted in a cabinet?
Yes, it can be wall-mounted as standard or installed in a cabinet as an option.
What communication protocols are available?
It supports CAN, DeviceNet, EtherNet/IP, MODBUS, PROFIsafe, PROFIBUS, and PROFINET IO.
What is the weight of the ACS880-01-430A-3?
The product net weight is 95.0 kg.
Availability & Condition at AutoDCSTech
| Part Number | ACS880-01-430A-3 |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Switzerland |
