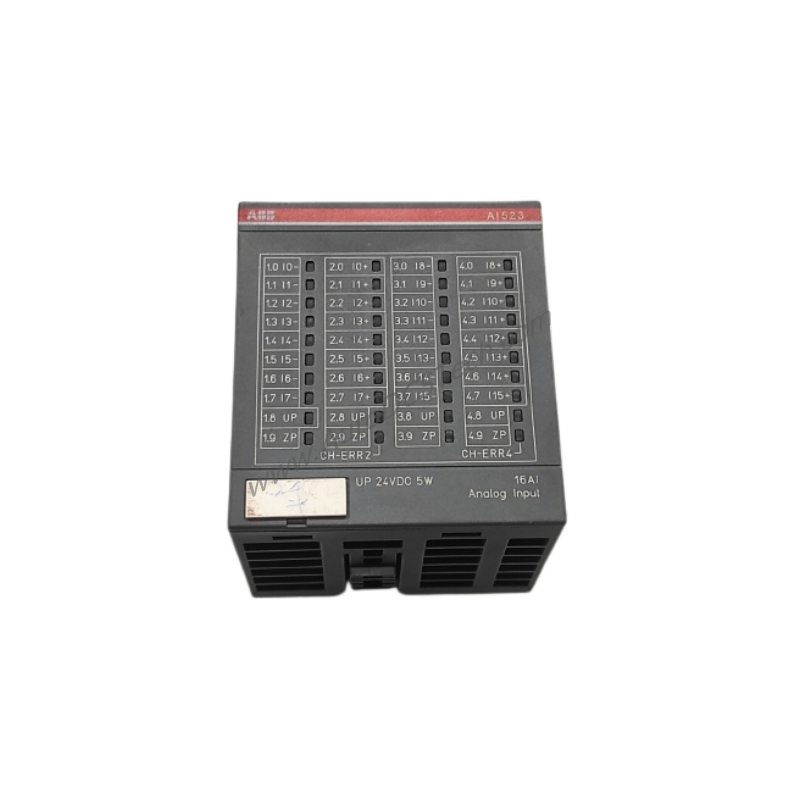

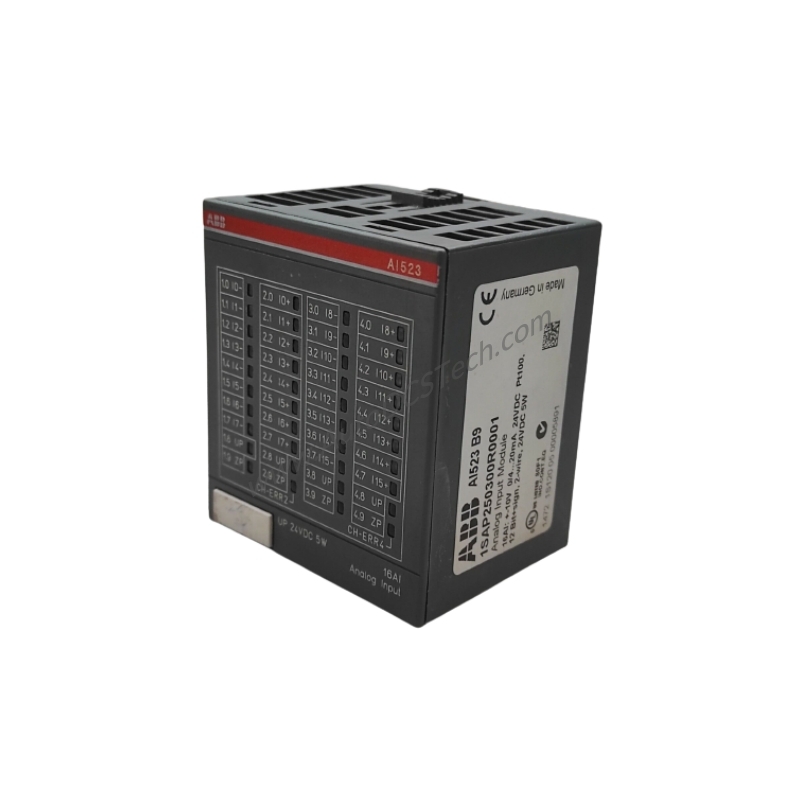

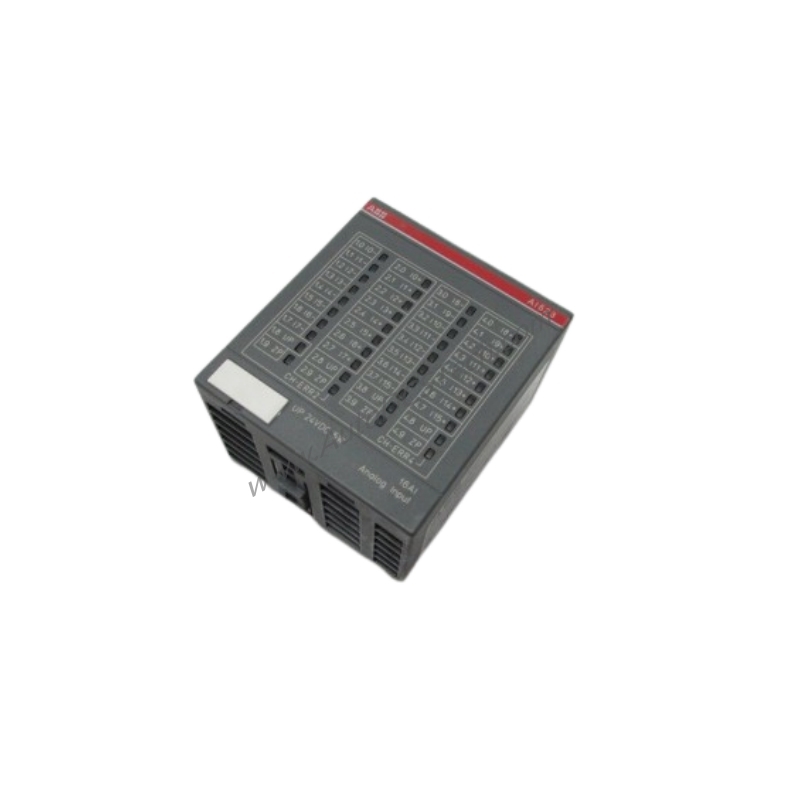

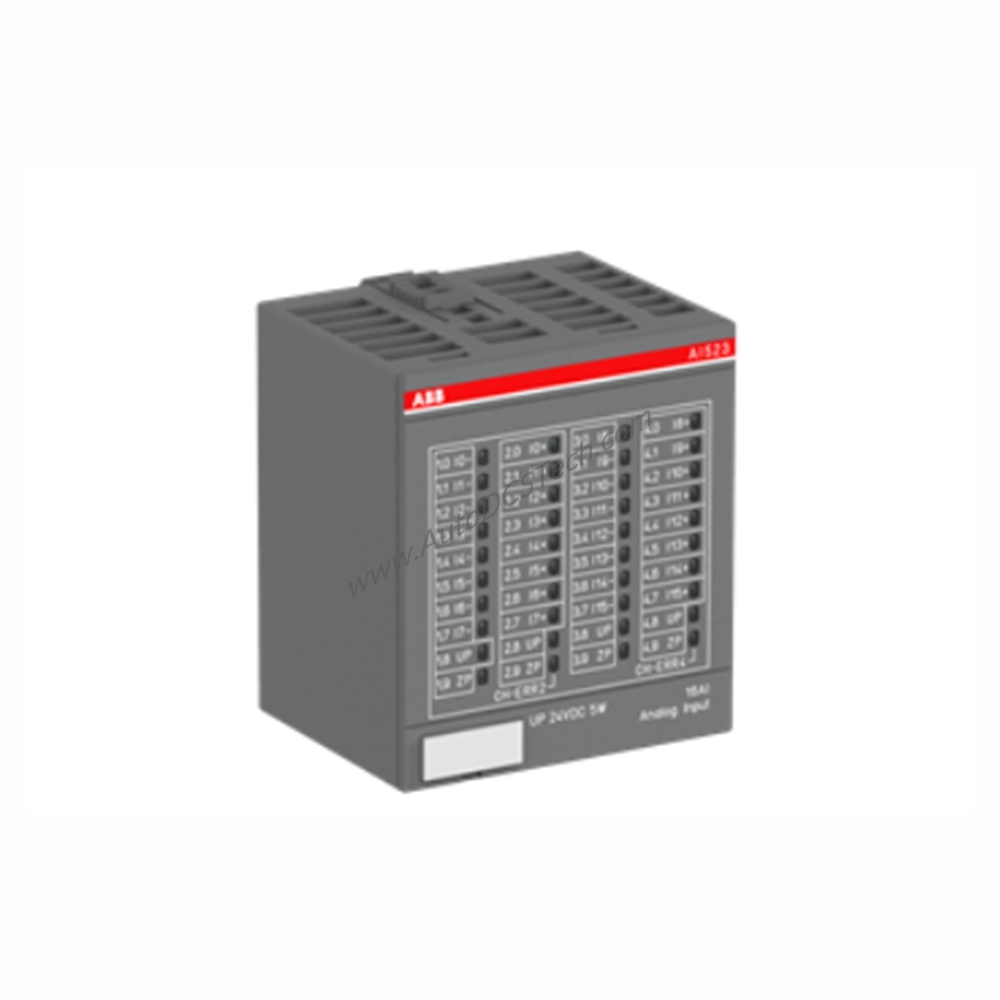

What Is the ABB AI523?
Struggling with flexible signal acquisition in your industrial control system? The ABB AI523 analog input module (part number 1SAP250300R0001) offers a versatile solution for the S500 I/O platform. This module provides 16 analog inputs supporting voltage (U), current (I), RTD, and digital input (DI) signals in a single-wire configuration. Its compact design saves valuable cabinet space while delivering reliable performance for diverse automation tasks.
Technical Specifications Breakdown
The AI523 features a net weight of just 0.125 kg, making it easy to handle during installation. Its dimensions are compact: 62 mm depth, 76 mm height, and 67.5 mm width. The module carries an IP20 degree of protection, suitable for use in clean, dry control cabinets. It is part of the ABB PLC-AC500 product family, ensuring seamless integration with ABB controllers.
Industry Applications
In process industries such as chemical or water treatment plants, the AI523 can monitor multiple analog signals — from temperature via RTDs to pressure transmitters with 4-20 mA outputs. Its ability to handle digital inputs as well reduces the need for separate modules, simplifying wiring and lowering costs. For example, a single AI523 can replace two dedicated modules in a mixing tank control system, saving space and reducing inventory.
Installation & Setup Guidance
Mount the AI523 onto a standard DIN rail within an IP20-rated enclosure. Ensure proper grounding and shielding for analog signal cables to minimize noise. The module supports 1-wire connection for each channel, simplifying field wiring. Always verify power supply requirements against your system specifications before connecting.
Maintenance & Reliability
Periodically inspect the module for dust accumulation or loose connections. The IP20 rating means it should be kept in a clean, dry environment. No internal user-serviceable parts are present; if issues arise, replace the module rather than attempting repairs. Regular checks of signal integrity help prevent unexpected downtime.
Compatibility & Integration
The AI523 is designed for the ABB S500 I/O system and integrates natively with ABB AC500 PLCs. It communicates over the S500 backplane bus, requiring no additional configuration for basic operation. For advanced setups, use ABB Automation Builder software to assign channel parameters.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system supports the S500 I/O series and that the AI523's 16-channel analog input capacity matches your application needs. SpareTechPLC stocks the AI523 (1SAP250300R0001) and can confirm availability and lifecycle status. Contact us for current pricing and delivery options.
Frequently Asked Questions
Q: What types of sensors can I connect to the AI523?
A: The AI523 supports voltage (U), current (I), RTD, and digital input (DI) signals, all via 1-wire connection.
Q: Is the AI523 compatible with older ABB PLCs?
A: It is part of the S500 I/O system for AC500 PLCs. Check compatibility with your specific controller model.
Q: What is the weight of the AI523 module?
A: The net weight is 0.125 kg, and the gross weight including packaging is 0.149 kg.
Q: Does the AI523 require external power?
A: Power is supplied through the S500 backplane; no separate power connection is needed.
Q: Can I use the AI523 in a hazardous area?
A: The module has an IP20 rating, suitable for safe areas only. No hazardous location certifications are provided.
