Product Introduction

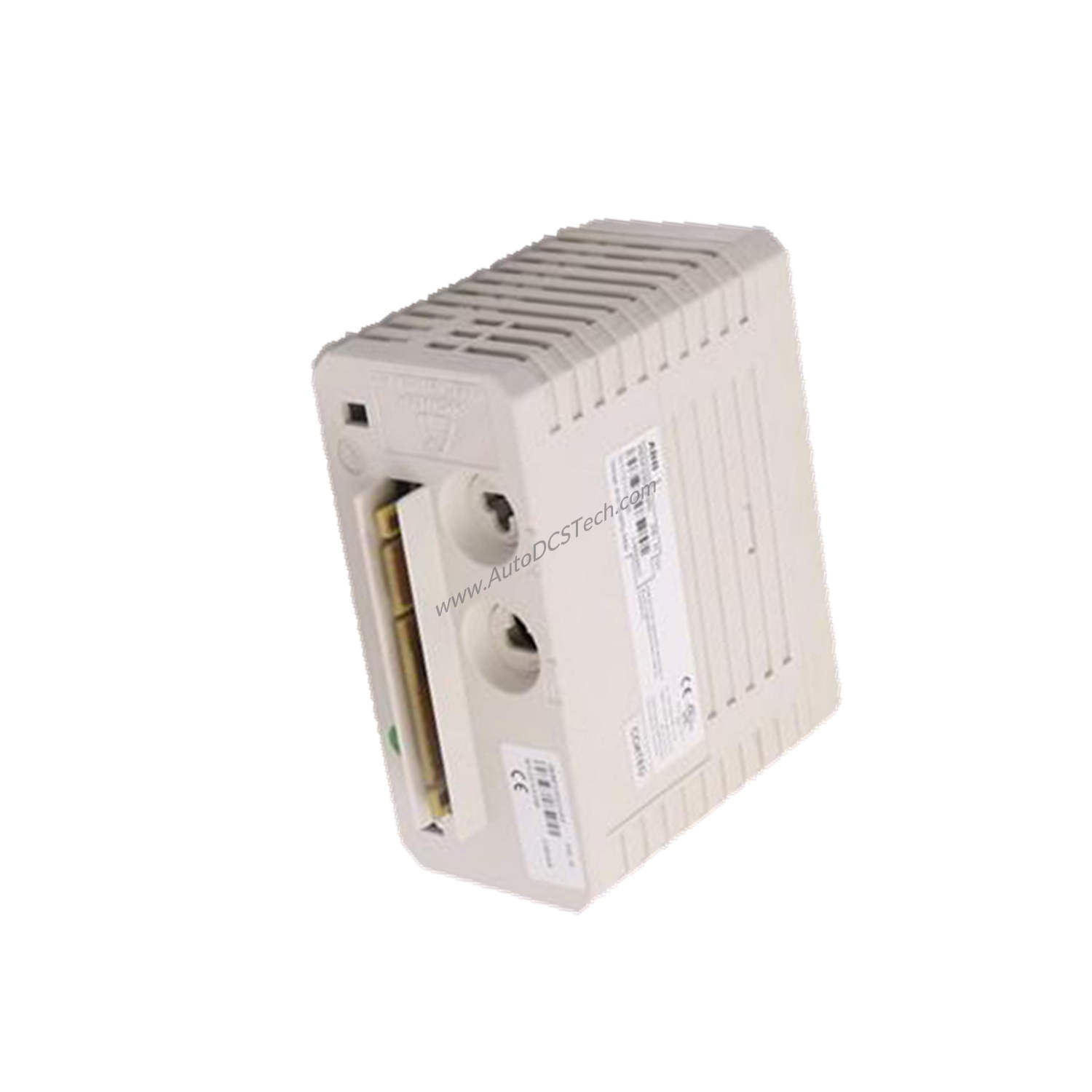

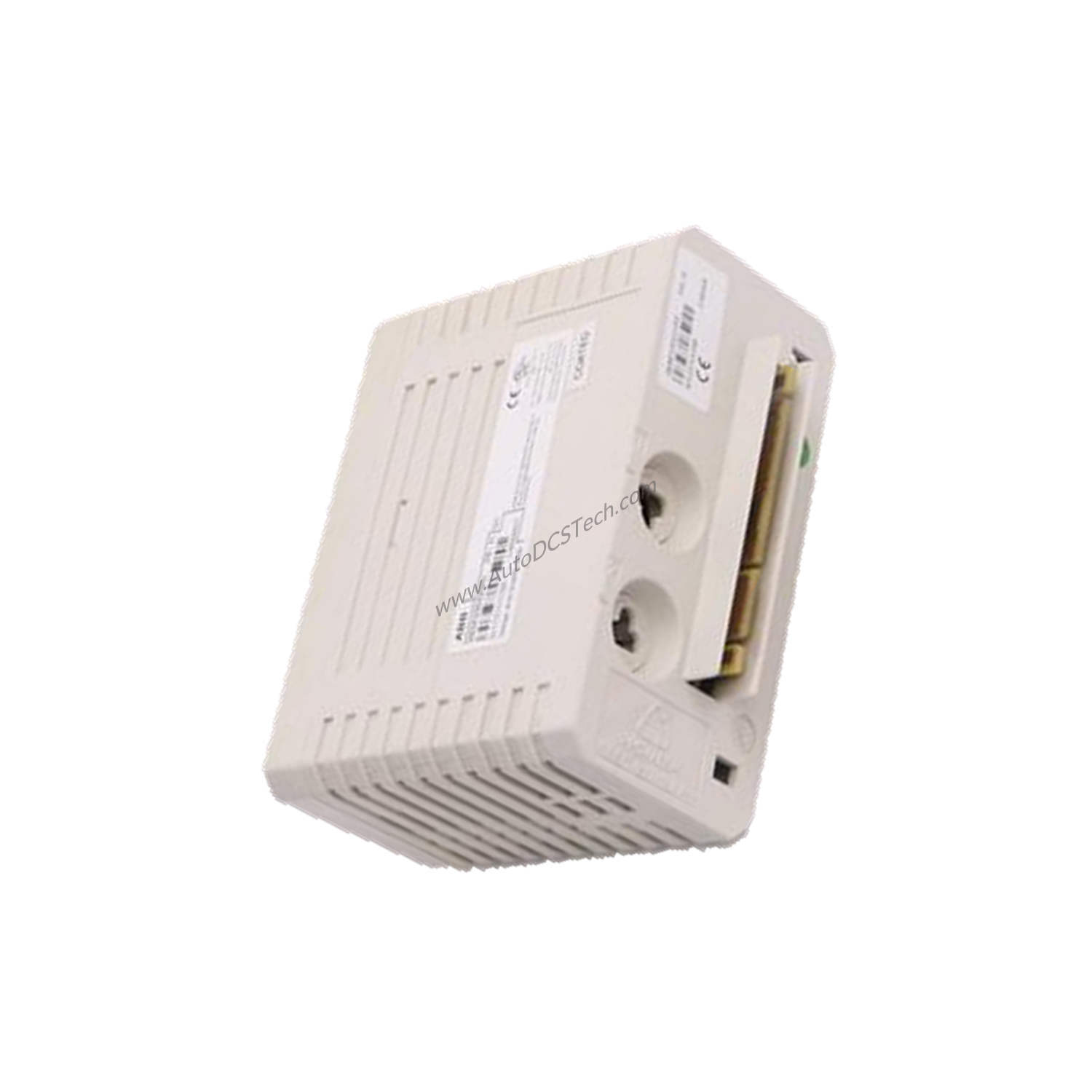

When industrial networks demand reliable communication between controllers and field devices, the ABB CI854A PROFIBUS-DP/V1 Interface Module delivers high-speed connectivity. This module uses the PROFIBUS DP protocol, a multipurpose bus standard operating at up to 12 Mbit/s, to interconnect remote I/O, drives, low-voltage electrical equipment, and controllers. Designed for the AC 800M controller, the CI854A includes two PROFIBUS ports for line redundancy and supports master redundancy for enhanced system reliability.
Technical Specifications Breakdown
The CI854A operates as a PROFIBUS DP-V1 master with two channels, ensuring robust data exchange. Its transmission speed ranges from 9.6 to 12,000 kbit/s, accommodating various application needs. The module supports both line and module redundancy, and it allows hot swapping for minimal downtime. Typical 24V consumption is 190 mA, and it connects via a DB female (9-pin) connector. The operating temperature range is +5 to +55 °C, with storage from -40 to +70 °C, and relative humidity tolerance of 5 to 95% non-condensing. It carries an IP20 protection class per EN60529 and IEC 529, along with CE marking and marine certificates from BV, DNV-GL, LR, RS, and CCS.
Industry Applications
In manufacturing plants, the CI854A connects remote I/O stations to a central AC 800M controller via PROFIBUS DP, enabling real-time data collection and control. For process industries, it integrates with PROFIBUS PA instruments through the LD 800P linking device, allowing seamless communication with field devices. The module’s redundancy features make it suitable for critical applications where network uptime is paramount.
Installation & Setup Guidance
Mount the CI854A on a DIN rail and interface it directly with the S800 I/O system or other PROFIBUS DP/DP-V1 and FOUNDATION Fieldbus systems. Ensure PROFIBUS DP termination at the two outermost nodes using connectors with built-in termination. The connector must be plugged and powered for correct termination. The module supports hot swap, allowing replacement without system shutdown.
Maintenance & Reliability
Regular inspection of the module’s environmental conditions—operating temperature and humidity—helps maintain reliability. The CI854A’s IP20 protection requires installation in a clean, dry cabinet. Verify that the 24V supply stays within the typical 190 mA consumption to avoid power issues. Periodic checks of DB connector integrity and termination resistors ensure consistent network performance.
Compatibility & Integration
The CI854A works with the ABB AC 800M controller and supports up to 12 units on the CEX bus. It integrates with S800 I/O and other PROFIBUS DP/DP-V1 systems. For PROFIBUS PA, use the LD 800P linking device. The module also supports master redundancy when paired with a second CI854A, combined with CPU and CEXbus redundancy via BC810.
Selection Guide & Purchasing Advice
Before purchasing the CI854A, verify your system’s compatibility with PROFIBUS DP-V1 and the AC 800M controller. Consider if line or master redundancy is needed for your application. The CI854A is a classic product; for new installations, the CI854B may be preferred. SpareTechPLC offers the CI854A with the article number 3BSE030220R1 (CI854AK01) and can provide availability details.
Frequently Asked Questions
Q1: What is the maximum transmission speed of the CI854A?
A1: The CI854A supports transmission speeds from 9.6 to 12,000 kbit/s.
Q2: Can the CI854A be used with PROFIBUS PA devices?
A2: Yes, connect PROFIBUS PA to the CI854A via the PROFIBUS linking device LD 800P.
Q3: Does the CI854A support hot swapping?
A3: Yes, the CI854A supports hot swap, allowing module replacement without powering down the system.
Q4: What is the typical power consumption of the CI854A?
A4: The typical 24V consumption is 190 mA.
Q5: What certifications does the CI854A hold?
A5: It has CE marking and marine certificates from BV, DNV-GL, LR, RS, and CCS.
