Product Overview

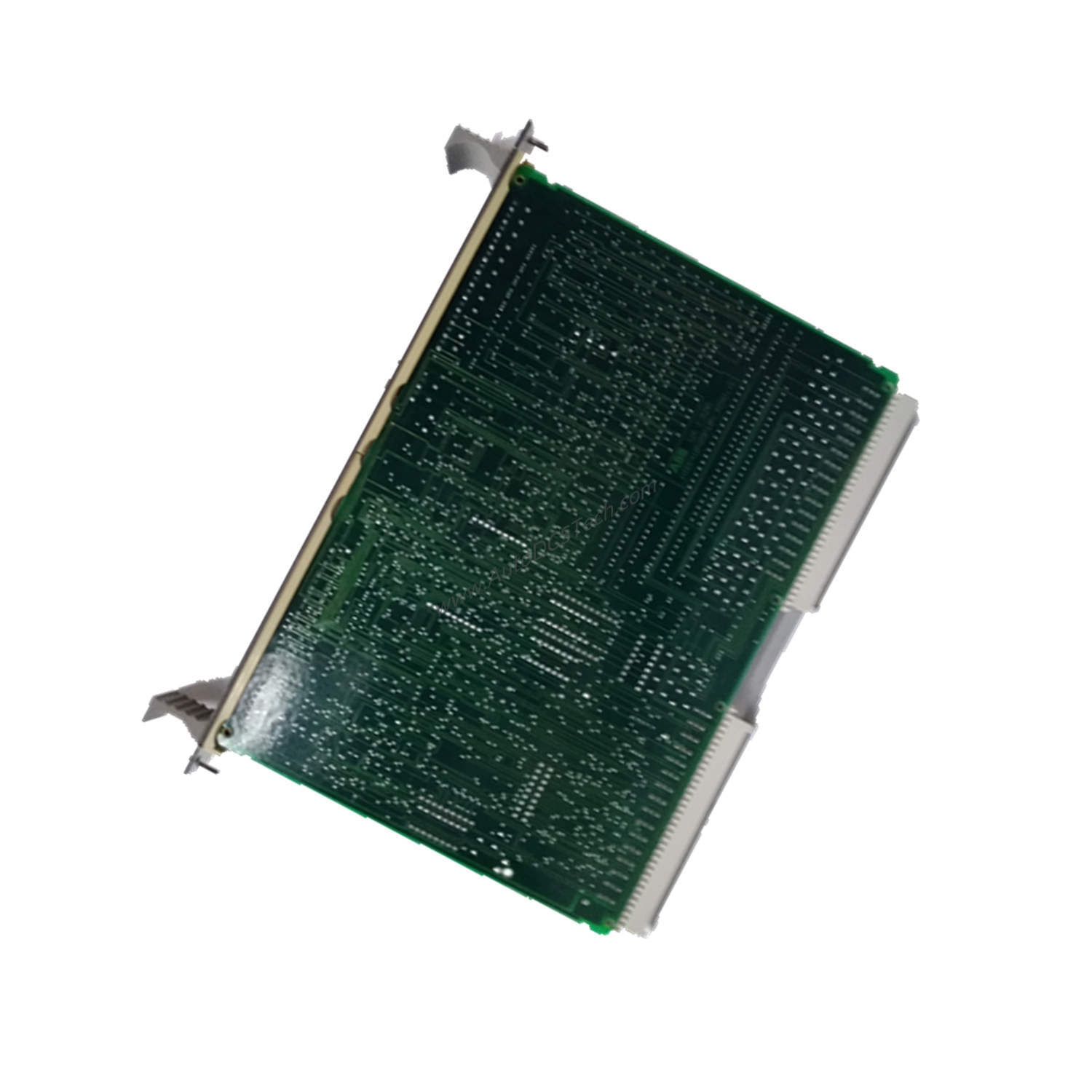

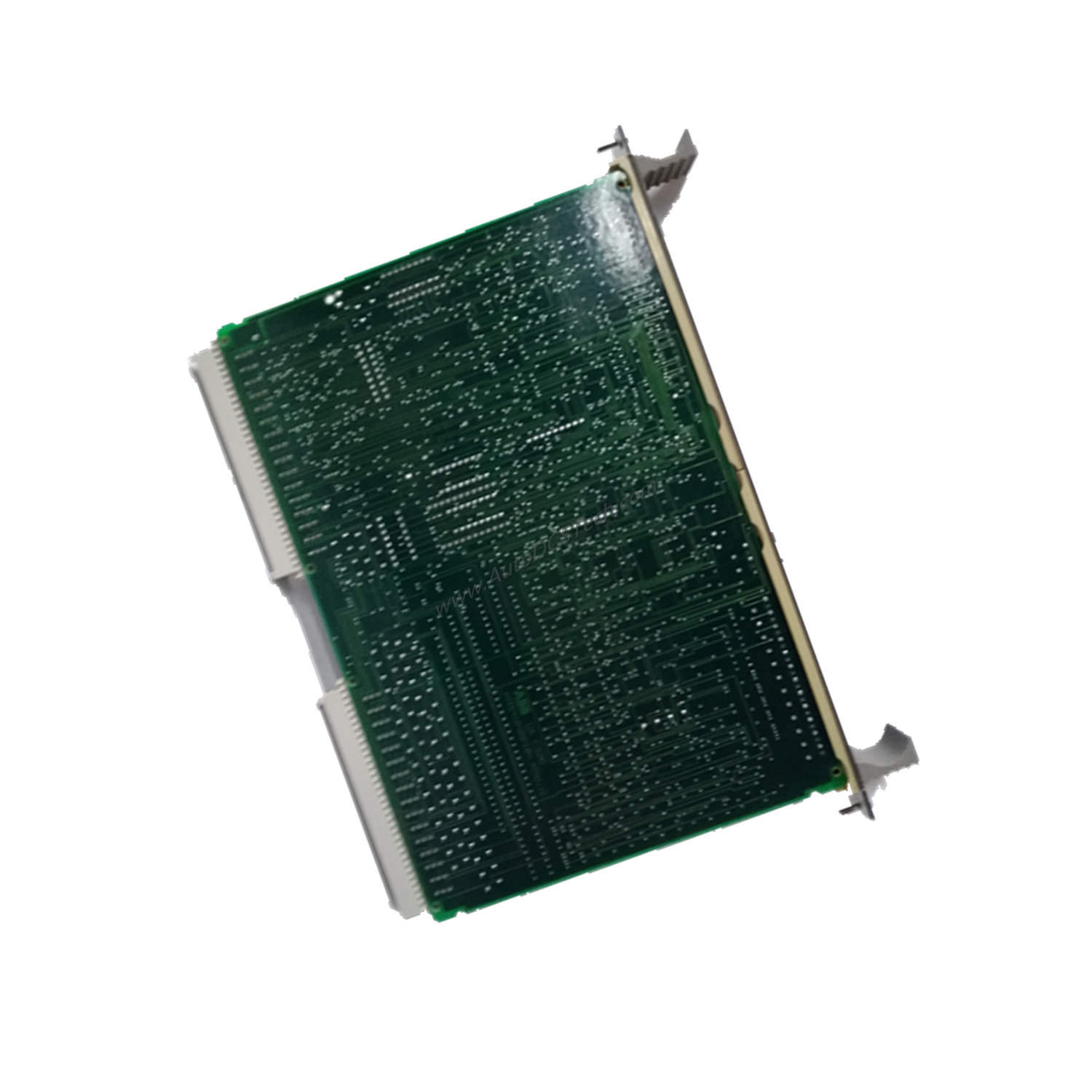

When expanding I/O capacity in an ABB Advant Master Process Control System becomes necessary, the CI540 Communication Module delivers a reliable solution. This S100 I/O Bus Extension module allows seamless integration of additional I/O points without compromising system performance. Designed specifically for industrial process control environments, the CI540 ensures stable communication between the main controller and remote I/O racks.
Technical Specifications Breakdown
The CI540 offers a compact footprint that simplifies installation in crowded cabinets. With a product net depth of 234 mm, a height of 31.5 mm, and a width of 108 mm, this module fits easily into standard DIN rail or panel mount configurations. Weighing only 0.115 kg, it adds minimal load to mounting structures. The module operates as a dedicated S100 I/O Bus Extension, enabling reliable data transfer over extended distances. Note that this part is exempt from the scope of 2011/65/EU (RoHS) as per Article 2(4)(c), (e), (f) and (j), so it is not RoHS compliant. The product ID is 3BSE001077R1, and it belongs to the ABB Type Designation CI540.
Industry Applications
In chemical processing plants, the CI540 extends the I/O bus to remote field devices, reducing cable runs and improving signal integrity. For oil and gas facilities, it supports distributed control architectures by connecting I/O modules located near hazardous areas. The module's compact size makes it ideal for retrofitting existing Advant Master systems where space is limited. Its reliable bus extension capability minimizes downtime during expansion projects.
Installation & Setup Guidance
Mount the CI540 on a DIN rail or panel using the provided slots. Ensure proper grounding according to ABB guidelines for the Advant Master system. Connect the S100 I/O bus cable to the designated port, verifying correct polarity and termination. The module does not require external power beyond what the bus provides. After installation, verify communication by checking the status indicators on the front panel. Always follow the system manual for specific configuration steps.
Maintenance & Reliability
The CI540 requires minimal maintenance due to its solid-state design. Periodically inspect connections for tightness and cleanliness. Check environmental conditions to ensure they remain within the Advant Master system's specified range. The module's low weight reduces mechanical stress on mounting hardware. Regular system diagnostics will confirm the bus extension is functioning correctly. For long-term reliability, keep spare modules on hand to minimize downtime during unexpected failures.
Compatibility & Integration
The CI540 is designed for the ABB Advant Master Process Control System. It integrates directly with S100 I/O bus architectures, supporting remote I/O racks and modules. This module is compatible with Advant Master controllers that utilize the S100 bus protocol. For specific controller compatibility, consult the ABB system documentation or contact SpareTechPLC. The module's HS code is 853890, and the customs tariff number is 85389091.
Selection Guide & Purchasing Advice
Before purchasing the CI540, verify that your Advant Master system supports S100 I/O Bus Extension. Check the available slot space and ensure the module's dimensions (234 mm depth, 108 mm width, 31.5 mm height) fit your enclosure. Confirm that your system does not require RoHS compliance, as this module is not RoHS compliant. SpareTechPLC offers this genuine ABB module with fast shipping. Please verify current lifecycle status and availability with SpareTechPLC before ordering.
