Introduction

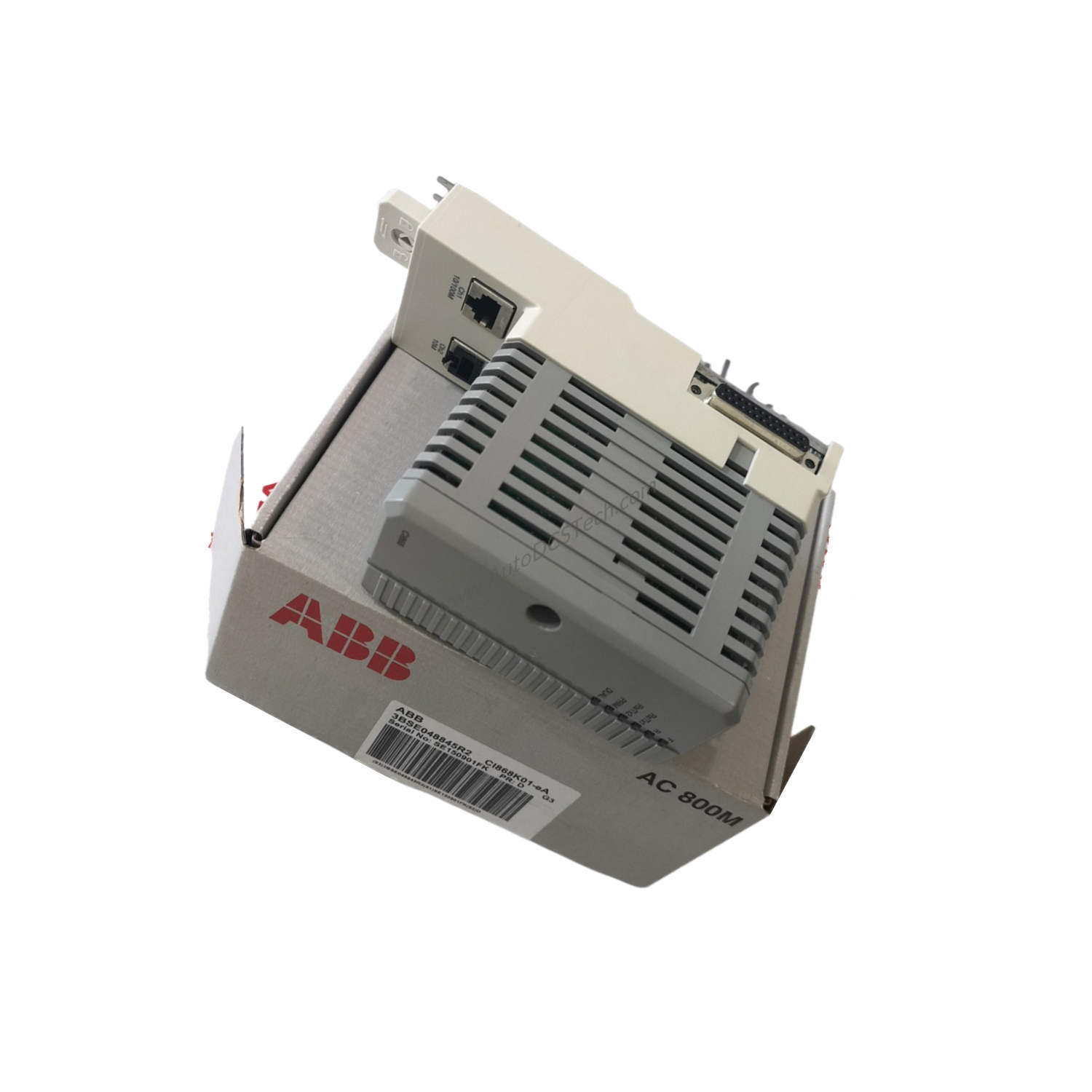

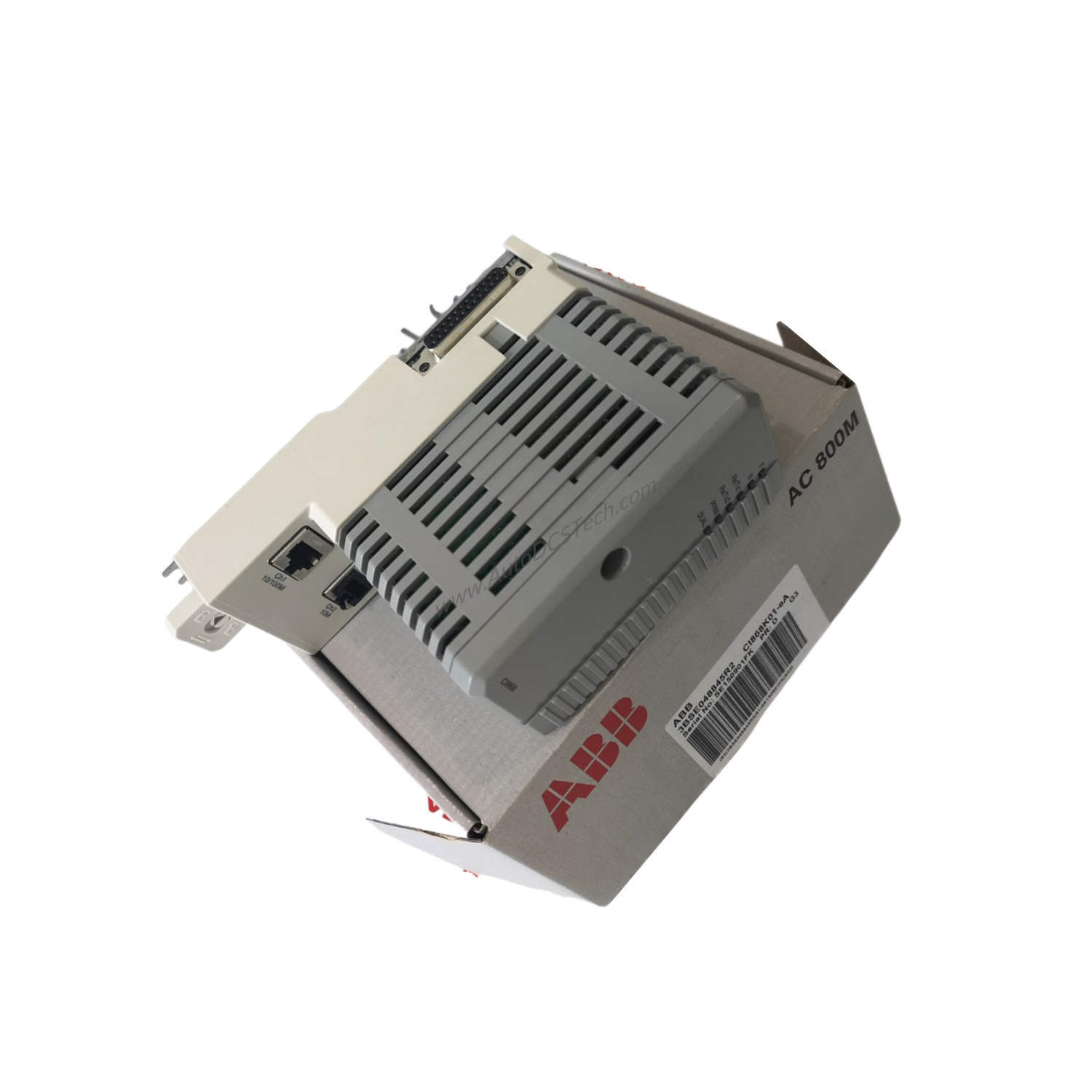

When modern substations require seamless integration of protection, control, and monitoring systems, the ABB CI868K01 Communication Module delivers a robust IEC 61850 interface. This module, part number 3BSE048845R1, comes as a complete package including the CI868 Communication Interface and the TP867 Baseplate. Designed for demanding industrial environments, it ensures reliable data exchange within substation automation networks.
Technical Specifications
The ABB CI868K01 Communication Module offers precise dimensions and weight for easy installation in standard cabinets. Its product net depth is 127.5 mm, height is 186 mm, and width is 59 mm. The module weighs only 0.7 kg, making it lightweight yet durable. These compact dimensions allow for efficient space utilization in crowded control panels.
Industry Applications
In electrical substations, the CI868K01 serves as a critical link between intelligent electronic devices (IEDs) and the station bus. It enables real-time communication for protection relays, circuit breakers, and transformers. For example, a utility upgrading to IEC 61850-based automation can deploy this module to replace legacy serial protocols, reducing wiring complexity and improving data throughput.
Installation & Setup Guidance
Mount the CI868K01 onto a standard DIN rail using the included TP867 baseplate. Ensure proper grounding per manufacturer guidelines. Connect the module to the IEC 61850 station bus via the designated Ethernet port. Verify that the module's power supply meets the required specifications before energizing. Always follow the user manual for detailed wiring and configuration steps.
Maintenance & Reliability
Periodically inspect the CI868K01 for dust accumulation or loose connections. The module's compact design and RoHS compliance (EU Directive 2011/65/EU) ensure long-term environmental responsibility. Regular firmware updates from ABB help maintain compatibility with evolving IEC 61850 standards. By investing in this module, operators reduce downtime risks and extend the life of their substation automation systems.
Compatibility & Integration
The CI868K01 is specifically designed for IEC 61850-based substation automation systems. It integrates seamlessly with ABB's 800xA control platform and other IEC 61850-compliant devices. The module supports standard Ethernet communication for station bus and process bus applications. For mixed-protocol environments, it can work alongside gateways that convert between IEC 61850 and legacy protocols.
Selection Guide & Purchasing Advice
Before purchasing the ABB CI868K01, verify that your system requires an IEC 61850 interface and that the TP867 baseplate fits your mounting setup. Check the available space in your cabinet against the module's dimensions (127.5 mm x 186 mm x 59 mm). SpareTechPLC stocks this module and can confirm current lifecycle status and availability. Contact our team for assistance with compatibility and ordering.
Frequently Asked Questions
Q1: What is included in the ABB CI868K01 package?
A: The package includes the CI868 Communication Interface and the TP867 Baseplate.
Q2: What are the dimensions of the CI868K01 module?
A: The module has a net depth of 127.5 mm, height of 186 mm, and width of 59 mm.
Q3: Is the CI868K01 RoHS compliant?
A: Yes, it complies with EU Directive 2011/65/EU.
Q4: What is the weight of the CI868K01?
A: The product net weight is 0.7 kg.
Q5: Can the CI868K01 be used with non-ABB IEC 61850 devices?
A: Yes, it is designed for IEC 61850-based systems and can integrate with compliant devices from other manufacturers.
