Allen-Bradley 1792D-4BVT4D ArmorBlock MaXum I/O Module for DeviceNet

Product Overview

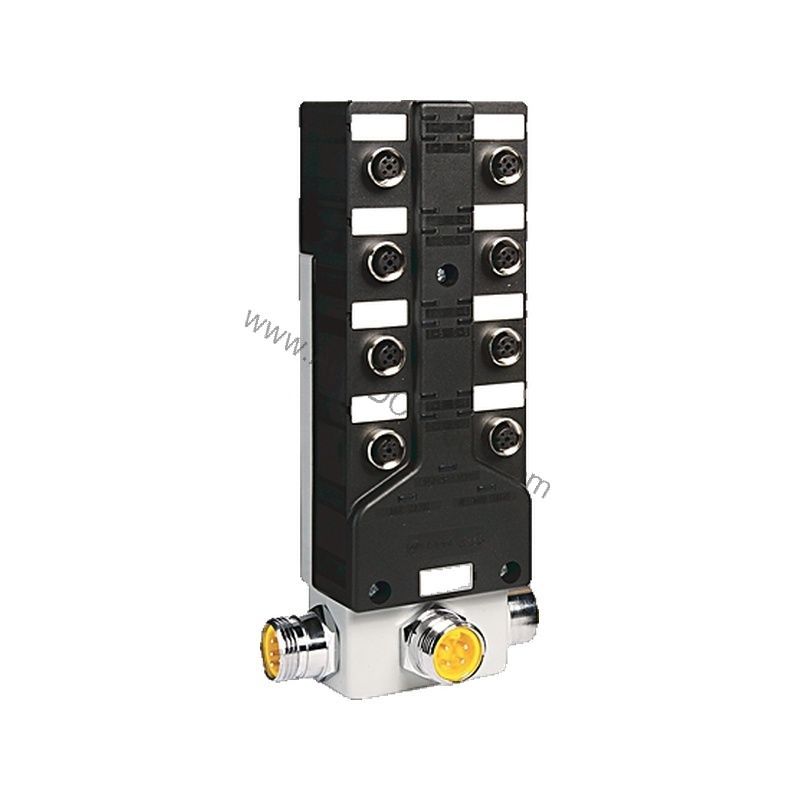

The Allen-Bradley 1792D-4BVT4D is a standalone I/O module from the 1792D ArmorBlock MaXum series. It combines 4 inputs and 4 outputs in a sealed housing that requires no additional enclosure, making it suitable for washdown or dusty environments. Communication is handled via the DeviceNet network, enabling seamless integration into Rockwell Automation architectures. This module is designed for applications where space is limited and environmental protection is paramount.

Technical Specifications Breakdown

Key parameters for the 1792D-4BVT4D are listed below for quick reference:

Industry Applications

The sealed housing eliminates the need for a control cabinet, reducing installation costs. With a maximum data rate of 500 kbps at 330 feet, it supports real-time control of conveyors and sortation systems. The 24 Volts DC operation aligns with common industrial sensor and actuator voltages, simplifying power distribution.

Installation & Setup Guidance

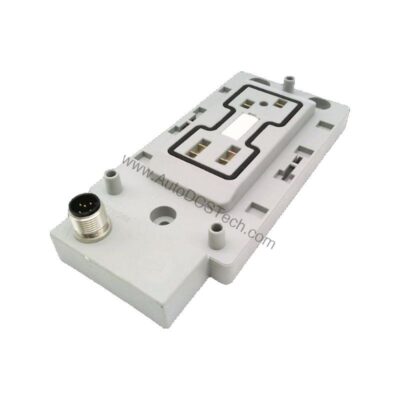

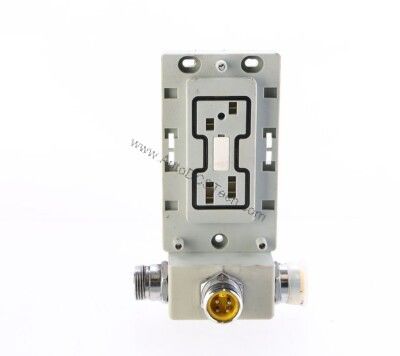

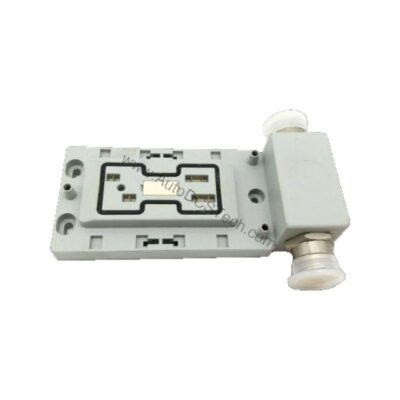

Setting up the 1792D-4BVT4D involves four steps: assigning the node address, mounting the module to the cable base, connecting the cord sets, and establishing DeviceNet communication. Inputs and outputs are accessed via a Y splitter cable (ordered separately). The module supports both PNP sourcing and NPN sinking input types, providing flexibility for different sensor families. Ensure the DeviceNet network is properly terminated and that the node address does not conflict with other devices.

Maintenance & Reliability

The sealed housing protects against moisture and dust, reducing the need for frequent inspections. Periodically check cable connections for wear and verify that the DeviceNet network is free from electrical noise. The module includes diagnostic features such as open wire, short circuit, and no load detection, which can be monitored via the network to preempt failures.

The Evolution of Distributed I/O in Industrial Automation

In the early days of factory automation, input and output modules were typically housed in large, centrally located cabinets, requiring extensive wiring runs and significant floor space. As manufacturing lines grew more complex, the need for rugged, decentralized I/O solutions became critical. The Allen-Bradley 1792D-4BVT4D ArmorBlock MaXum I/O module represents a direct response to this challenge, bringing intelligence and durability directly to the machine or process.

Compatibility & Integration

This module communicates exclusively over DeviceNet, a widely used open network protocol. It is compatible with Rockwell Automation controllers such as ControlLogix and CompactLogix when paired with a DeviceNet scanner. The module package includes installation instructions; cables must be ordered separately.

Selection Guide & Purchasing Advice

When selecting the 1792D-4BVT4D, consider the number of I/O points required and the environmental conditions. For applications needing more than 4 inputs or outputs, multiple modules can be networked. AutoDCSTech stocks this module and can provide lifecycle and availability information. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the module does not communicate, check the DeviceNet node address and ensure the network is properly terminated. For output faults, verify that the load does not exceed the maximum output current of 1 Amp per channel. Input issues may stem from incorrect wiring or sensor type mismatch. Use the diagnostic features to identify open wire or short circuit conditions.
