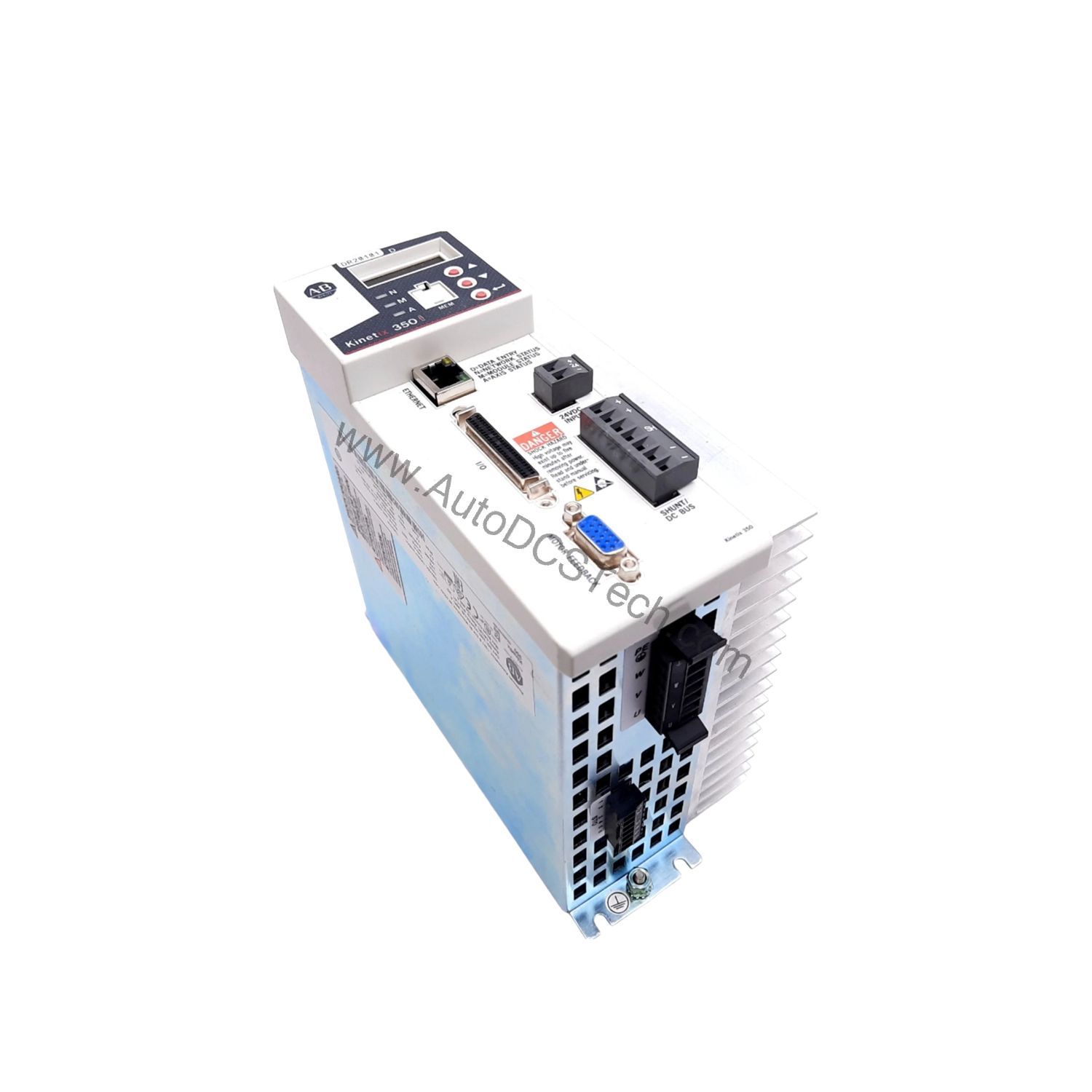

Allen-Bradley 2097-V34PR5-LM Kinetix 350 Servo Drive 2.0 kW

Technical Specifications Breakdown

Key parameters for the 2097-V34PR5-LM are listed below for quick reference:

Industry Applications: Optimizing Machine Performance

With a continuous output current of 4.0 A rms and peak capability of 12.0 A rms, it handles dynamic loads common in indexing, cutting, and labeling applications. The integrated Safe Torque-Off function enhances operator safety during maintenance without removing power, reducing downtime.

Installation and Setup Guidance

Mount the drive in a clean, dry cabinet with adequate airflow. Connect 320-528V AC three-phase power to the input terminals, ensuring proper fusing per UL or IEC guidelines. For UL applications, use a KTK-R-10 (10 A) fuse or equivalent. The control power backup input accepts 20-26V DC at 500 mA nominal. When using Allen-Bradley MP-Series or TL-Series motors, automatic identification simplifies setup. Configure the drive via the integrated web interface or Studio 5000 software. Verify the Safe Torque-Off circuit is wired correctly before operation.

Maintenance and Reliability

Periodically inspect the drive for dust accumulation and ensure ambient temperature remains within the specified range. The unit dissipates 58 Watts; verify cabinet ventilation to prevent overheating. Check all power connections for tightness annually. The drive's robust design supports long service life in continuous operation environments.

The Evolution of Motion Control: Precision Meets Integration

Industrial automation has evolved from simple on/off controls to sophisticated, networked motion systems that demand both precision and reliability. The Allen-Bradley 2097-V34PR5-LM, part of the Kinetix 350 family, represents this advancement by combining servo control with EtherNet/IP connectivity in a compact form factor. Designed for single-axis applications, this drive delivers consistent torque and speed regulation while simplifying integration into modern architectures.

Compatibility and Integration

It supports regenerative applications with external shunt resistors. Status indicators for network, axis, and module provide at-a-glance diagnostics. Certifications include c-UL-us, CE, C-Tick, and KC, ensuring global compliance.

Selection Guide and Purchasing Advice

When selecting a servo drive, match the continuous power output (2.0 kW) and current ratings to your motor. Contact AutoDCSTech for availability and lifecycle status. Our team can assist with cross-references and ensure you receive the correct part for your system.
