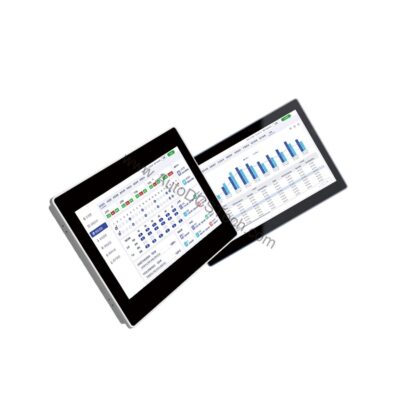

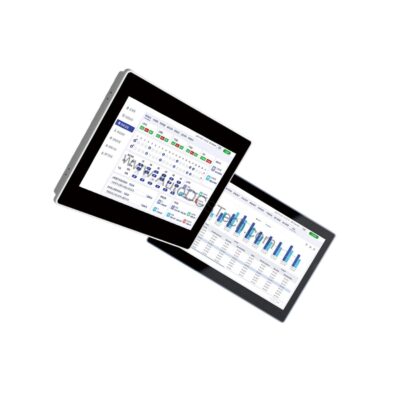

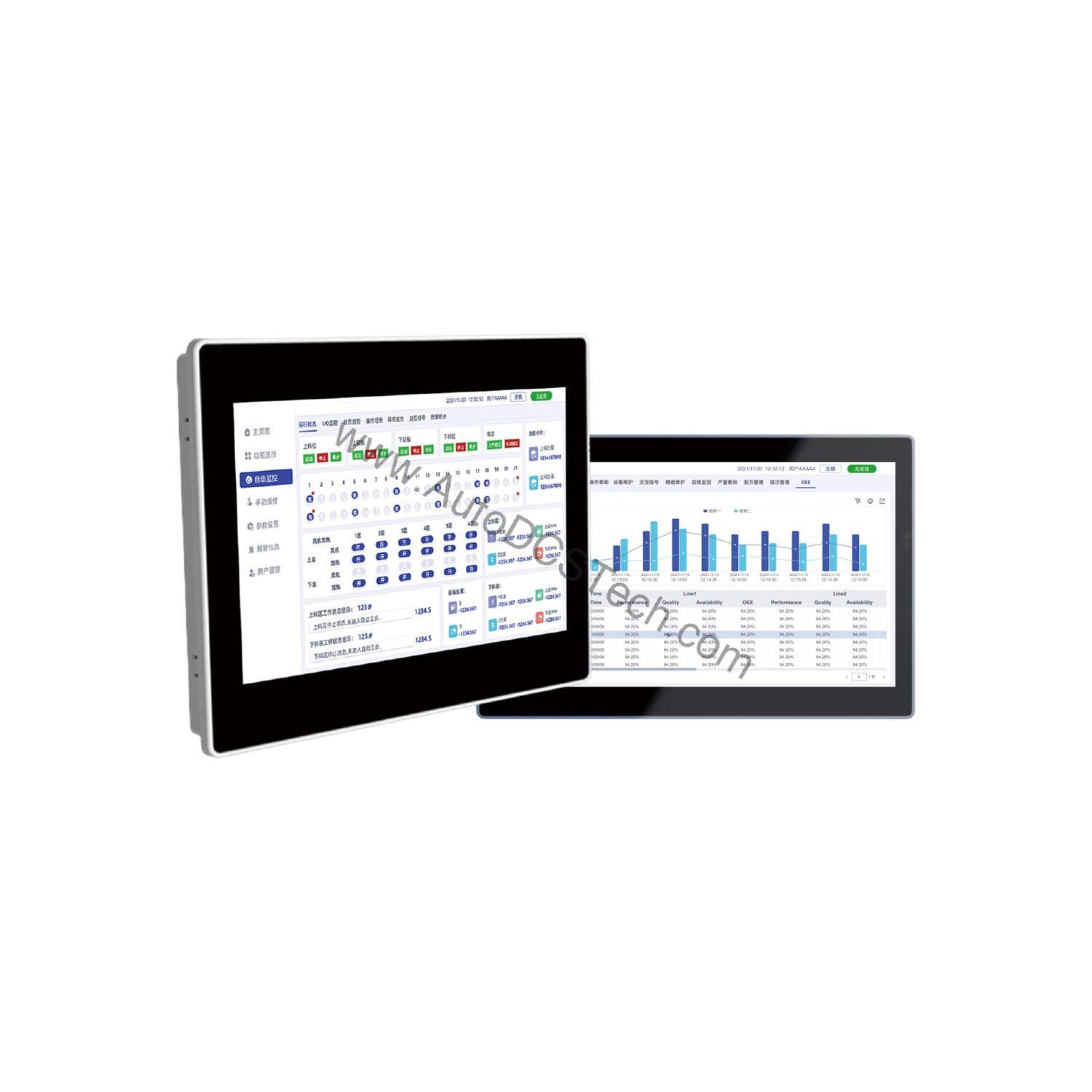

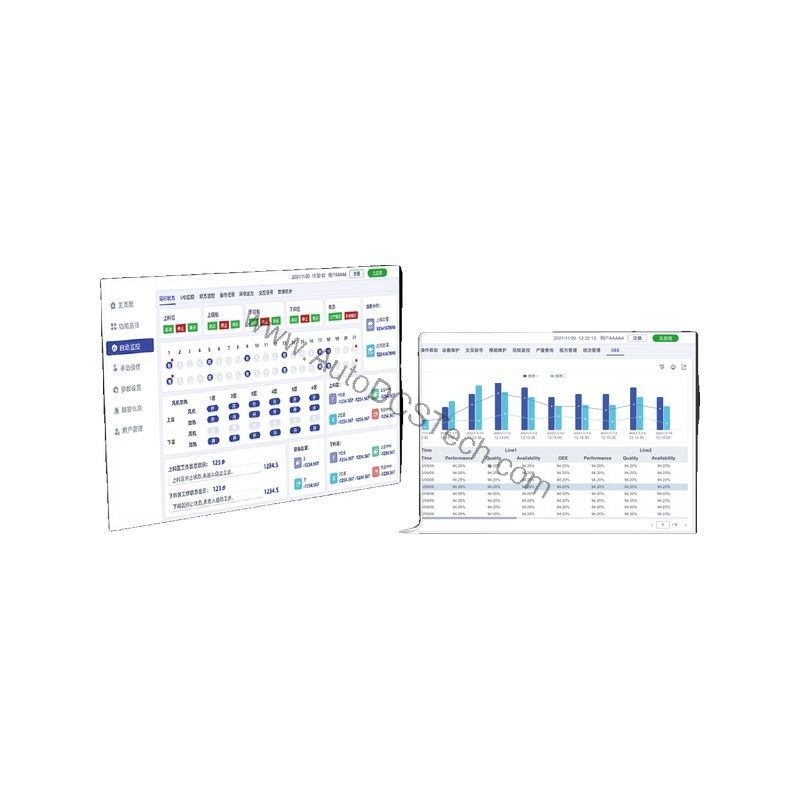

Flexem FPad916R001 15.6" IoT HMI with Intel Celeron J3455

Technical Specifications Breakdown

Key parameters for the FPad916R001 are listed below for quick reference:

Industry Applications: From Machine Building to Process Control

1. Machine Builder OEM Solutions

For OEMs producing packaging, food processing, or material handling equipment, the FPad916R001 offers a flexible platform. The 15.6-inch display with 1920x1080 resolution provides crisp visuals for detailed machine diagnostics. The dual Gigabit Ethernet ports allow for seamless integration with PLCs and remote I/O, while the multiple serial ports (RS232/RS485/RS422) ensure compatibility with legacy devices.

2. Data-Intensive Process Monitoring

In industries like water treatment or energy management, HMIs must handle large datasets from sensors and SCADA systems. The powerful CPU and ample memory of this Flexem HMI enable real-time trend charts, alarm logging, and data analytics directly on the screen. The built-in RTC ensures accurate time stamping for critical events.

3. Flexible IoT Gateway Applications

With its Linux operating system and optional WiFi, the FPad916R001 can act as an IoT gateway. It can aggregate data from field devices and forward it to cloud platforms or MES systems. The HDMI ports (up to 3840x2160@30Hz) allow for connecting secondary displays for expanded visualization in control rooms.

Installation & Setup Guidance

The FPad916R001 is designed for flush-mounted installation. Cutout dimensions are 380×245mm, and the overall dimensions are 394×256x53.3mm. Ensure the panel cutout is precise to maintain the front IP65 rating (with NEMA panel). The back of the unit is IP20, so it should be installed in an enclosure that protects against dust and moisture. Use the provided mounting clamps to secure the unit firmly.

For initial setup, connect a power supply that meets the DC12V (<5A) requirement. The unit has an isolated power adapter with lightning surge protection, adding robustness in industrial environments. Connect peripherals via the rear I/O: two RJ45 Ethernet ports, four USB 3.0 ports (Type-A), two HDMI ports, and the three serial ports. Note that an RS485 communication port can be realized using an USB to RS485 converter (not included).

Maintenance & Reliability

The FPad916R001 is designed for long-term reliability. The LED backlight has a rated lifetime of 50000 hours, ensuring years of consistent brightness. The 4-wire resistive touch screen is durable and can be operated with gloves, making it suitable for harsh environments. To maintain optimal performance, keep the front bezel clean and avoid exposing the unit to high UV environments, as specified. Operating temperature range is -0~50˚C, and storage temperature is -20~60˚C. Ambient humidity should be 10~90%RH (non-condensing).

Regularly inspect the power connections and communication cables for wear. The unit uses natural cooling, so ensure adequate ventilation around the enclosure. Vibration endurance is 10~25Hz (X, Y, Z direction 2G/30 minutes), so mounting should be secure to avoid excessive movement.

The Flexem FPad916R001: A Next-Generation IoT HMI for Data-Intensive Operations

Industrial processes generate more data than ever. Traditional HMIs often struggle to keep up, leading to slow response times and limited visualization. The Flexem FPad916R001 is engineered to address these challenges. It is a next-generation IoT HMI that combines an open-ended programming experience with the processing power needed for large data volumes. For engineers seeking a reliable and future-proof operator interface, this device offers a compelling solution.

When evaluating HMIs, engineers must consider not only the display but also the computing backbone. The FPad916R001 is built around an Intel Celeron J3455 processor with four cores running at 1.50GHz (up to 2.30GHz). This provides ample headroom for running complex visualization screens, logging data, and handling communication protocols simultaneously. The 8GB DDR3L memory ensures smooth multitasking, while the 128GB SATA SSD offers fast and reliable local storage for historical data and application files.

Compatibility & Integration

The FPad916R001 is programmed using FStudio Unified software, which provides an open-ended programming experience. The Linux operating system offers flexibility for running custom scripts or third-party applications. Communication options include dual Gigabit Ethernet for high-speed data exchange, and serial ports for RS232/RS485/RS422 devices. The optional WiFi module enables wireless connectivity for remote monitoring or data acquisition.

Selection Guide & Purchasing Advice

When selecting an HMI for your next project, consider the total cost of ownership. The FPad916R001 offers a powerful computing platform that can handle future application demands, reducing the need for frequent upgrades. Its robust construction and long LCD lifetime contribute to lower maintenance costs. AutoDCSTech is your trusted partner for industrial automation parts. We supply genuine Flexem products and can advise on the best configuration for your specific needs. Contact us to check availability and lifecycle status before ordering.

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
