Lenze MLD530-RT3M Multiple Light Beam Safety Device | Type 4, SIL 3

The MLD530-RT3M Multiple Light Beam Safety Device: A Maintenance Engineer's Perspective

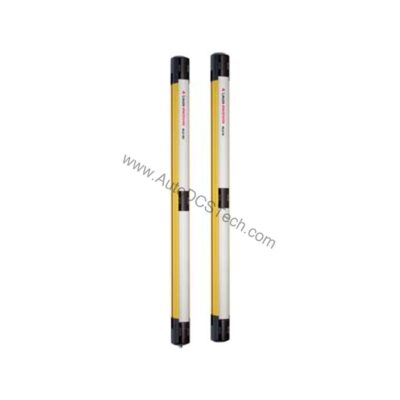

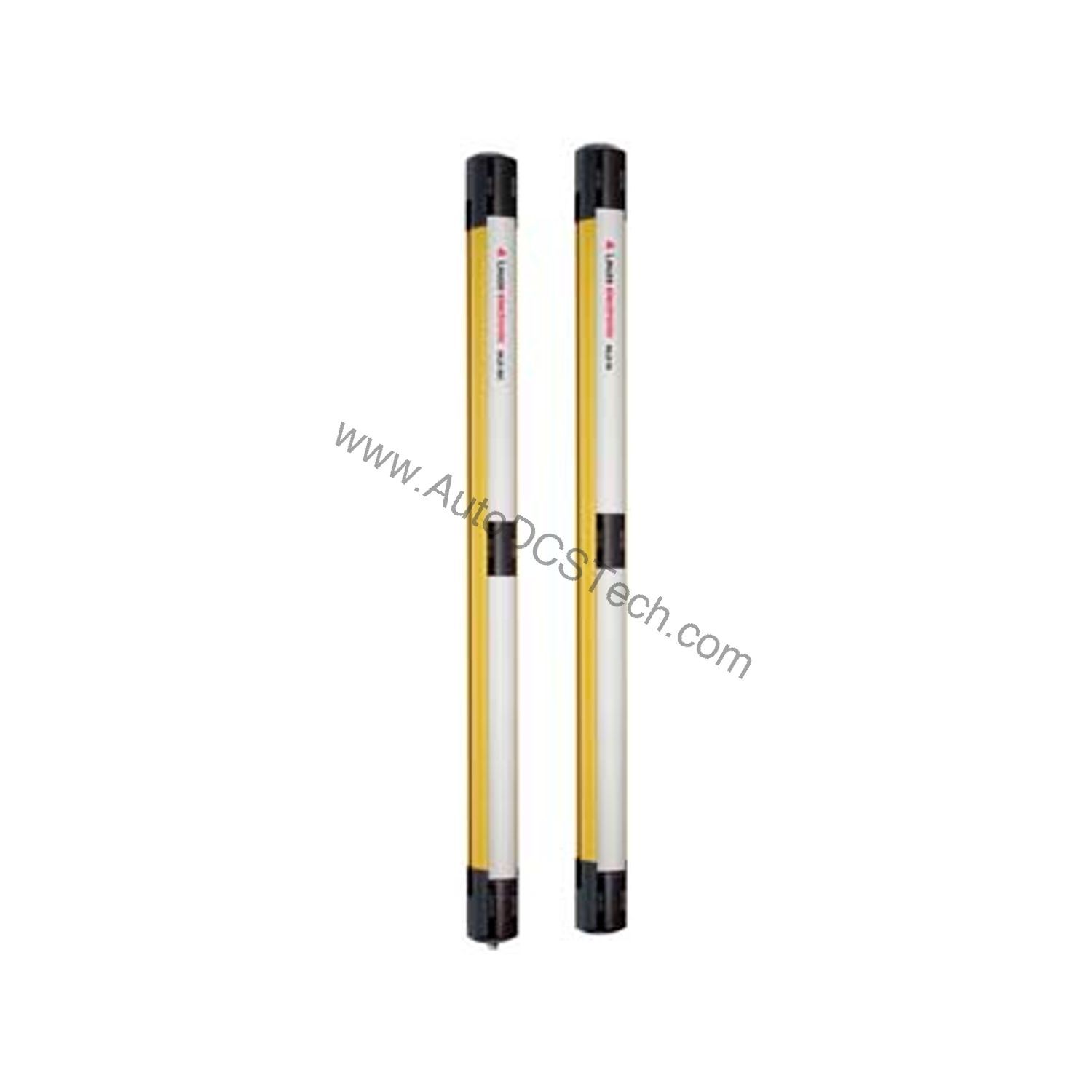

When guarding a machine, reliability is not a luxury—it is a necessity. The Lenze MLD530-RT3M (manufacturer Leuze Electronic) is a multiple light beam safety device from the MLD 500 series, designed as a transceiver. It combines Type 4 (IEC/EN 61496) and SIL 3 (IEC 61508) integrity with practical features that simplify installation and maintenance. For engineers who value uptime and serviceability, this device offers a robust solution for perimeter and hazard point protection.

Technical Specifications Breakdown

Key parameters for the MLD530-RT3M are listed below for quick reference:

These specifications are directly from the manufacturer's datasheet, ensuring accuracy for your safety system design.

Industry Applications and Reliability

The integrated muting indicator and status indicator (both standard) provide immediate visual feedback, reducing diagnostic time during production changes. The device supports sequence-controlled and timing-controlled 2-sensor muting, along with partial muting and muting-timeout extension. This flexibility allows the safety device to be adapted to various material flow patterns without compromising safety.

From a reliability standpoint, the MLD530-RT3M offers a MTTFd of 204 years (EN ISO 13849-1) and a PFHD of 6.6E-09 per hour. These figures reflect a low probability of dangerous failure, which is critical for maintaining high OEE (Overall Equipment Effectiveness). The mission time TM of 20 years aligns with typical machine lifecycles, reducing the need for mid-life replacements.

Installation and Setup Guidance

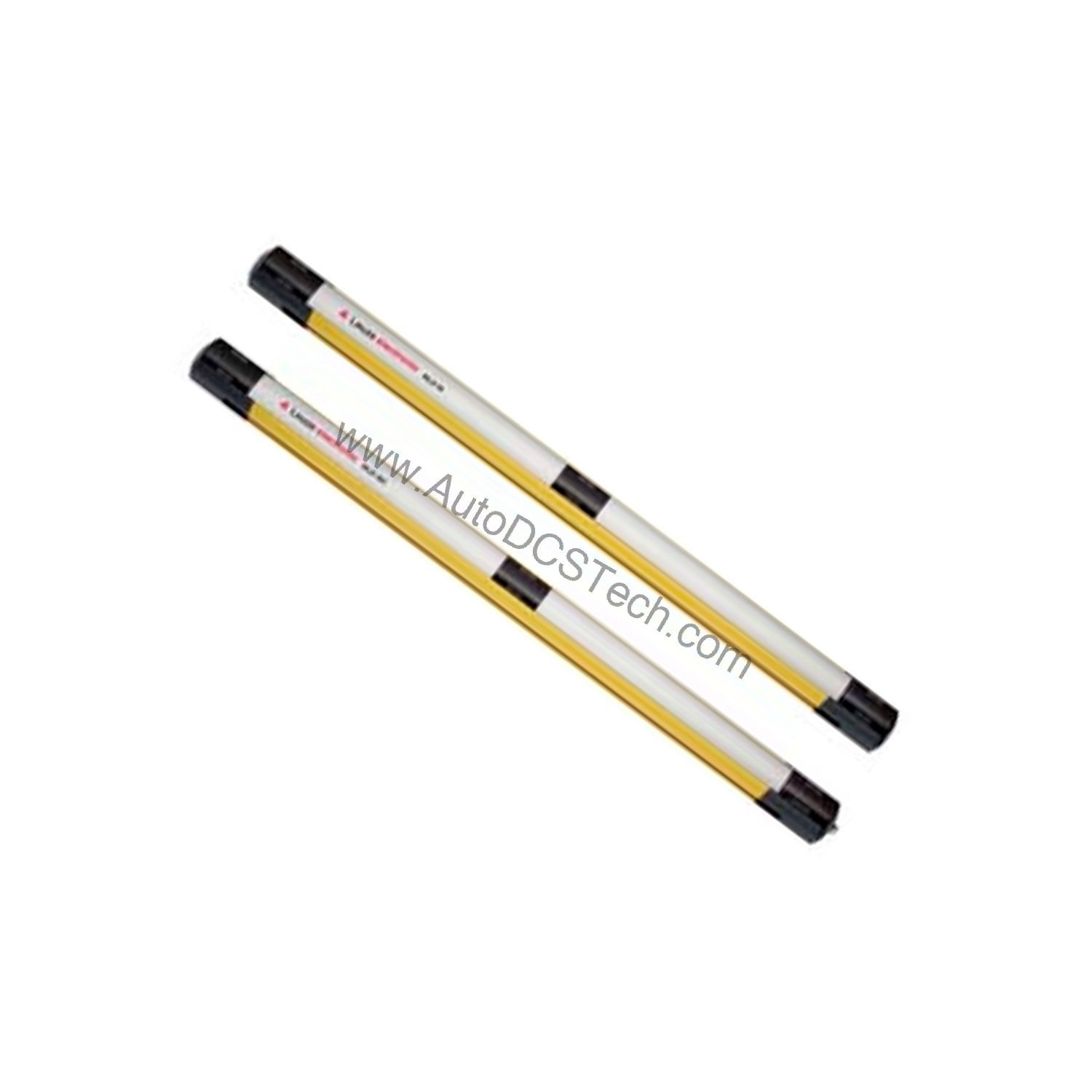

Proper installation is key to achieving the stated safety integrity. The device uses two M12 connectors: an 8-pin machine interface and a 5-pin local interface. Both are metal, ensuring durability in industrial environments. The housing is aluminum with a yellow RAL 1021 finish, and the lens cover is PMMA. For mounting, you can use groove mounting or swivel mount, which provides flexibility in aligning the light beams.

When wiring, pay attention to the selection of operating mode via Connection 1, pin 2: +24 V for operating modes 1, 2, 4 and 0 V for modes 3, 5, 6. Also, Connection 1, pin 7: 0 V for operating modes 1, 2, 4. The device has 4 digital switching inputs (pins 1, 3, 4, 8) for RES, EDM, second muting signal, and muting enable/timeout. Ensure that the supply voltage is 24 V DC with a tolerance of -20 ... 20 %, and use an external fuse rated at max. 3 A.

The permissible cable length is up to 100 m, with a max. conductor cross-section of 0.25 mm² and a max. cable resistance to load of 200 Ω. This allows for flexible placement of the safety device relative to the control cabinet.

Maintenance and Reliability

For maintenance, the MLD530-RT3M is designed for minimal intervention. The integrated status indicator and 7-segment display (as per the type of display) help in quick diagnostics. I recommend periodic inspection of the lens cover for dirt or damage, as this can affect the effective operating range. The device is rated IP 67, so it is protected against dust and temporary immersion in water, but regular cleaning of the optical surfaces is still advisable.

Given the safety-related nature, do not attempt to disassemble the unit. Instead, verify the OSSD switching behavior and the muting functions during scheduled safety system checks. The device has overvoltage and short-circuit protection, which adds a layer of robustness.

Compatibility and Integration

The MLD530-RT3M is part of the MLD 500 series and can be used with the MLD-XM03 accessory to extend the operating range to 0.5 ... 8 m. This is useful when longer distances are required. The device provides two OSSD outputs (PNP, max. 380 mA) and one digital switching output that signals the state of the OSSDs. This output can be used for diagnostic purposes in the PLC.

The device supports contactor monitoring (EDM), which is selectable, and a start/restart interlock (RES). These functions are essential for meeting Category 4 requirements. The muting enable function and muting-timeout extension allow for controlled interruption of the protective field during material transport.

Selection Guide and Purchasing Advice

When selecting a safety light curtain, consider the required protective field height, resolution, and muting needs. The MLD530-RT3M with 3 beams and 400 mm spacing is suitable for access guarding where large objects need to be detected. The operating range of 0.5 ... 6 m covers most machine guarding applications.

Please verify current lifecycle status and availability with AutoDCSTech before ordering. Our team can assist with technical questions and ensure you get the right safety device for your application.

For a reliable, serviceable safety solution, the Lenze MLD530-RT3M is a solid choice. Its robust construction, high safety integrity, and integrated diagnostics make it a favorite among maintenance engineers.
