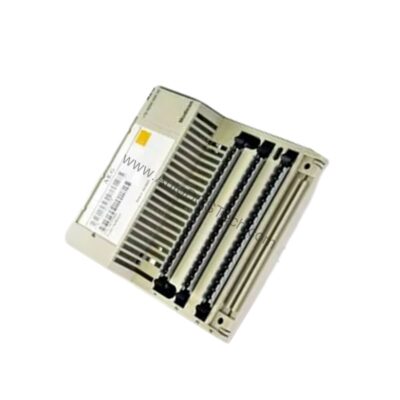

Schneider 170BDM09000 Modicon Momentum Discrete I/O Module

Product Overview

The Schneider Electric 170BDM09000 is a discrete I/O module within the Modicon Momentum product line. It combines 4 input channels and 2 digital output channels in a single unit, supporting prewiring for faster installation. Designed for clean indoor environments without corrosive chemicals, this module ensures dependable operation in controlled industrial settings.

Technical Specifications Breakdown

Key parameters for the 170BDM09000 are listed below for quick reference:

Industry Applications

Machine Control in Assembly Lines

This discrete I/O module suits simple machine control tasks, such as monitoring limit switches and activating small actuators. The 4 inputs can detect part presence while the 2 digital outputs trigger pneumatic valves or indicator lights. Operating within 0 to 40 degrees Celsius, it fits typical factory floor conditions.

Building Automation for HVAC

In building management systems, the module can interface with sensors and relays for heating, ventilation, and air conditioning. Its clean indoor environment rating ensures compatibility with control cabinets. The prewiring support reduces installation time for panel builders.

Material Handling Systems

For conveyor systems requiring limited I/O points, the 170BDM09000 provides a cost-effective solution. The 2 digital outputs can control motor contactors or solenoid valves, while inputs verify belt position or bin levels. The 1000m altitude limit covers most lowland facilities.

Installation & Setup Guidance

Mount the module in a clean, dry enclosure free from corrosive chemicals. Ensure ambient temperature stays between 0 and 40 degrees Celsius and humidity below 80% RH non-condensing. Use the prewiring feature to simplify field wiring — connect input devices and output loads according to the Momentum system wiring diagram. Do not exceed the altitude rating of 1000m above sea level. Verify that the backplane or bus coupler is compatible with Modicon Momentum series modules.

Maintenance & Reliability

Periodically inspect the module for dust accumulation or signs of moisture. Keep the operating environment within the specified temperature and humidity ranges to maximize service life. Since the module is intended for clean indoor use, avoid exposure to chemical vapors or excessive vibration. No user-serviceable parts are inside; replace the unit if faults occur.

The Evolution of Discrete Control: Schneider 170BDM09000

Industrial automation has evolved from sprawling relay panels to compact, modular systems that simplify wiring and reduce downtime. The Schneider Electric 170BDM09000 discrete I/O module from the Modicon Momentum series exemplifies this shift, offering a focused solution for applications requiring a small number of reliable digital signals.

Selection Guide & Purchasing Advice

When selecting a discrete I/O module, match the I/O count to your application needs. For larger systems, consider higher-density Momentum modules. AutoDCSTech stocks this module and can advise on availability and lifecycle status. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If the module does not respond, check that the backplane connection is secure and power is supplied to the bus. Verify input wiring polarity and output load compatibility. If an input fails to change state, test the sensor separately. For output failures, confirm the load is within the module's rating. If problems persist, replace the module with a known-good unit to isolate the issue.
