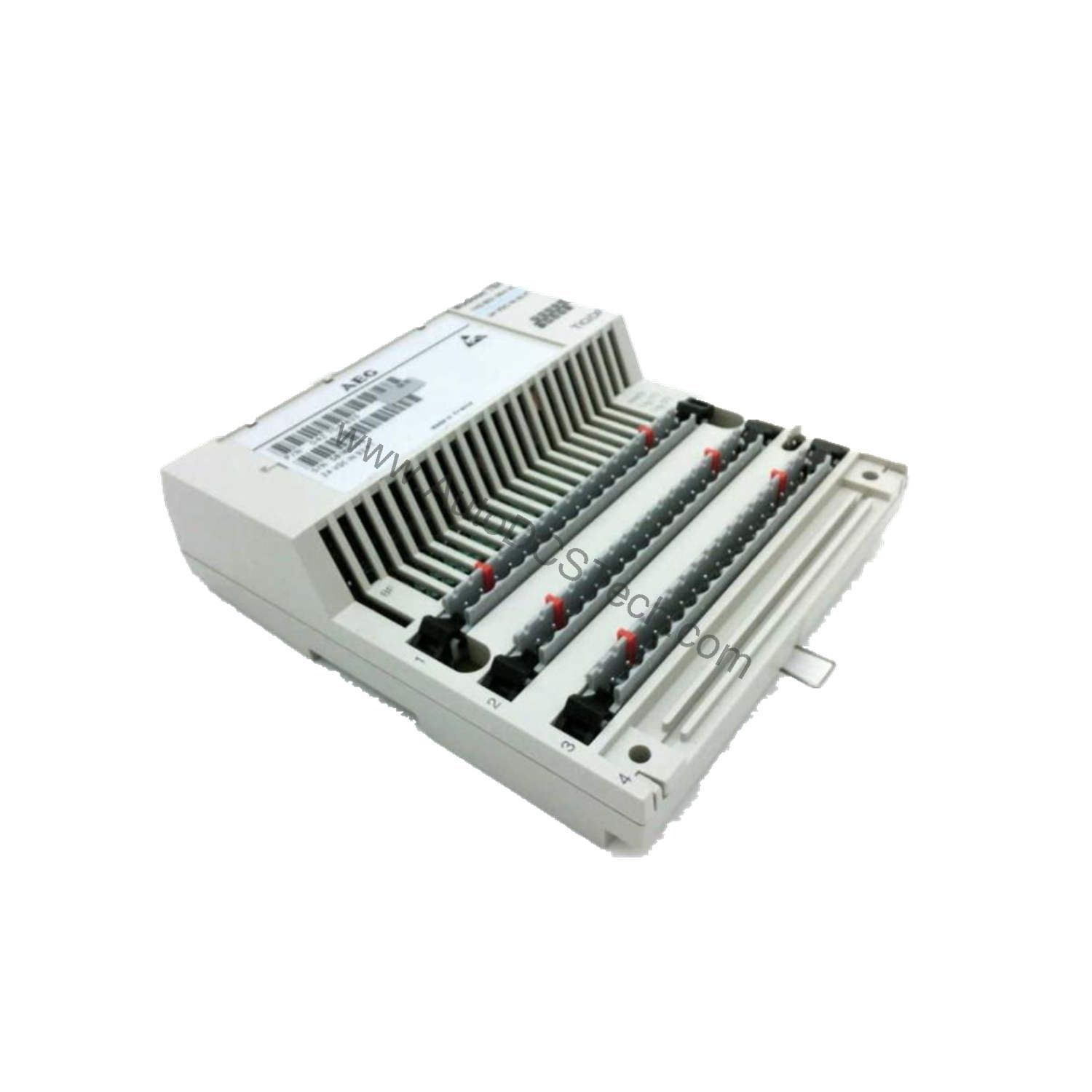

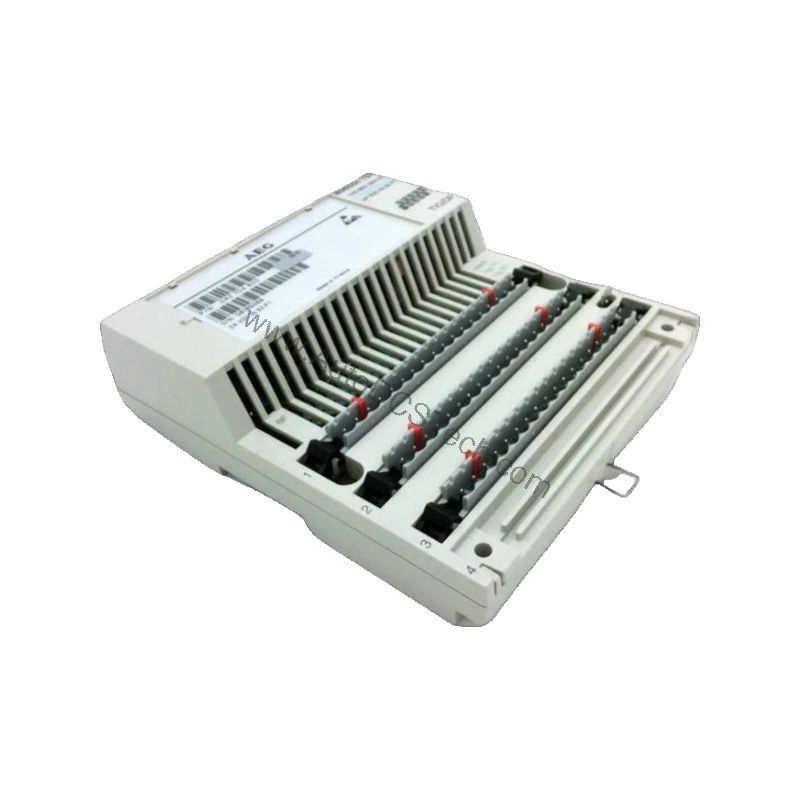

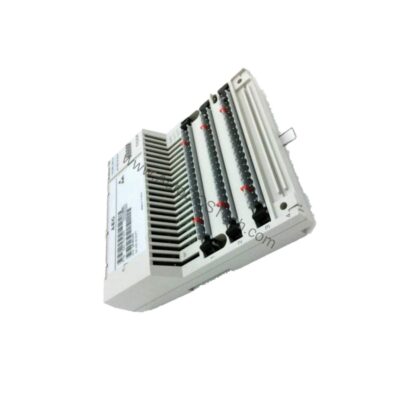

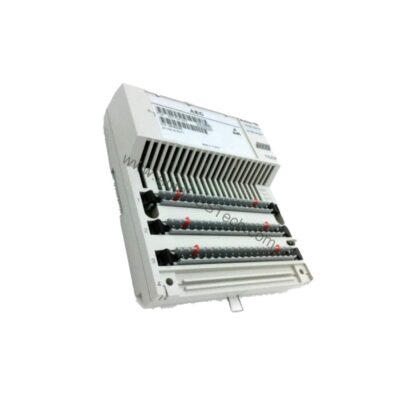

Schneider Modicon 170BDI35400 Input Module 24VDC 32 Points

Product Overview

The Schneider Electric Modicon 170BDI35400 is a discrete input module engineered for reliable signal acquisition in industrial automation systems. With a 24VDC voltage supply and 32 input points, this module efficiently interfaces field devices such as sensors and switches to a programmable logic controller (PLC). Its positive discrete input logic ensures consistent signal interpretation, making it a dependable choice for manufacturing and process control environments.

Technical Specifications Breakdown

Key parameters for the 170BDI35400 are listed below for quick reference:

Industry Applications

This 24VDC input module is well-suited for discrete manufacturing lines where 32 input points monitor limit switches, proximity sensors, or push buttons. In packaging machinery, the positive logic ensures that signals from photo-eyes are accurately captured, reducing false triggers. For material handling systems, the 4 kOhm input resistance provides stable current draw, minimizing noise interference in electrically noisy environments.

Installation & Setup Guidance

Mount the 170BDI35400 securely on a DIN rail within an enclosure that meets the 0°C to 60°C operating range. Connect the 24VDC supply to the designated terminals, observing polarity. Wire each input point to a field device using twisted-pair cable to reduce electromagnetic interference. Ensure the module's positive logic configuration matches the sink/source requirements of your PLC backplane. After wiring, power up and verify that the input LEDs illuminate correctly when each channel is activated.

Maintenance & Reliability

Periodically inspect the module for dust accumulation or loose connections. Clean the enclosure vents to maintain airflow within the 0°C to 60°C temperature range. Check that the 24VDC supply remains stable and does not exceed 250 mA current consumption. Verify that the CSA and UL certifications are still valid for your installation region. Replace the module if any input channel fails to respond consistently.

Compatibility & Integration

The 170BDI35400 is part of the Schneider Modicon product line, designed to integrate with Modicon PLC racks. Its 32 input points and positive logic interface with most Modicon controllers. The module adheres to CE standards and holds CSA and UL certifications, ensuring compatibility with North American and European industrial systems.

Selection Guide & Purchasing Advice

When selecting an input module for your automation project, consider the number of input points, voltage supply, and environmental ratings. The 170BDI35400 offers 32 points at 24VDC, making it a versatile choice for mid-size applications. For reliable sourcing, AutoDCSTech stocks this module with verified authenticity. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If an input channel fails to register, first check the field device wiring and the 24VDC supply voltage. Verify that the input resistance (4 kOhm) matches the sensor's output requirements. If the module does not power up, measure the current consumption; if it exceeds 250 mA, there may be a short circuit. Ensure the operating temperature stays within 0°C to 60°C to prevent thermal shutdown. For persistent issues, consult the Modicon system manual.
