Introduction

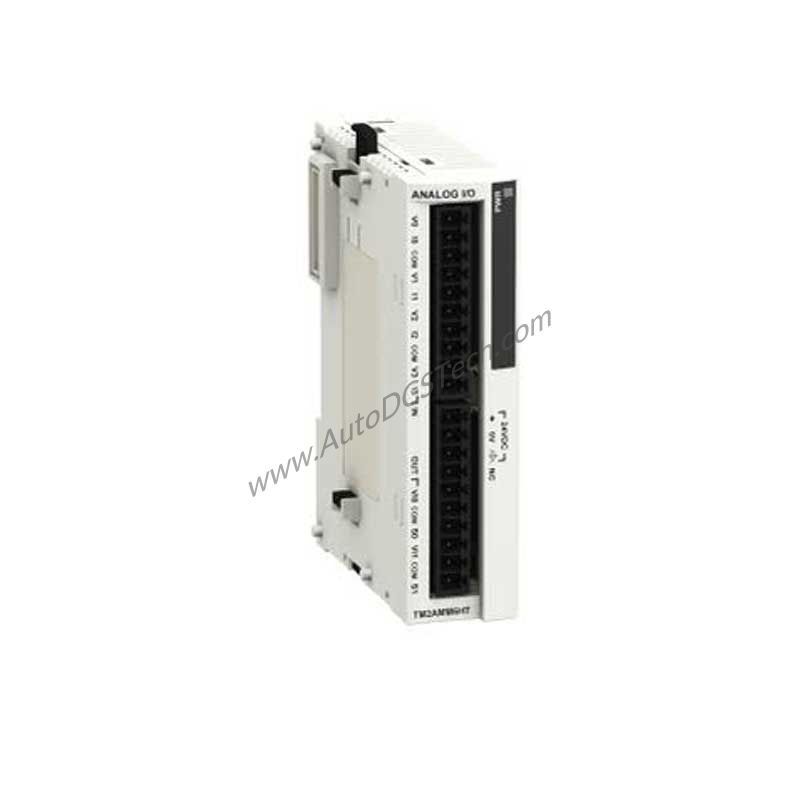

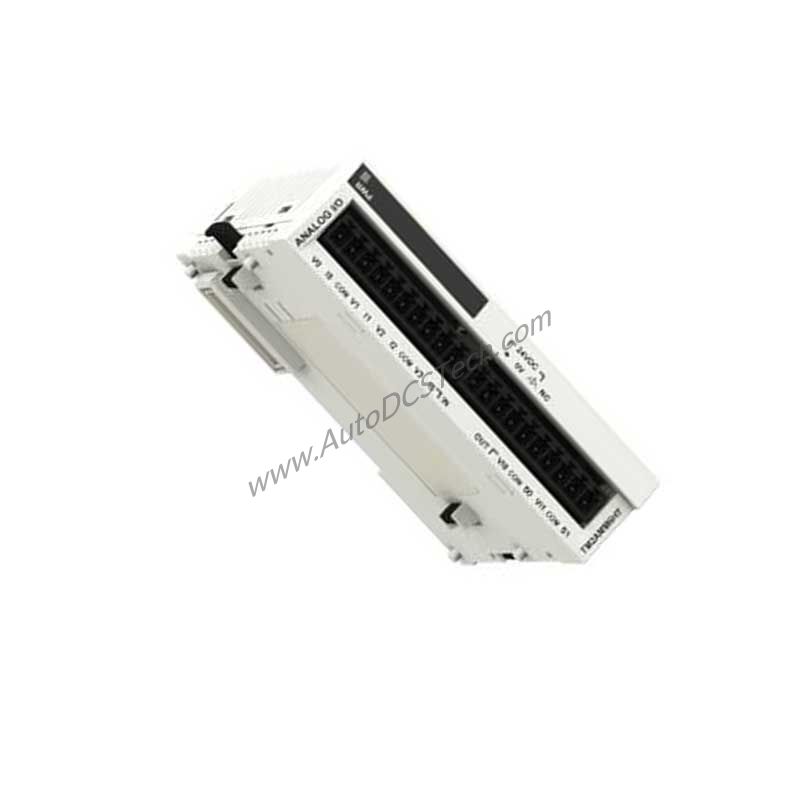

When your automation system demands precise analog signal handling, the TM2AMM6HT from Schneider Electric delivers reliable performance. This input/output analog module integrates seamlessly with Modicon M238 logic controllers, providing 4 high-level analog inputs and 2 analog outputs. Designed for industrial environments, it supports both current (4...20 mA) and voltage (0...10 V) signals, ensuring flexibility across diverse applications.
Technical Specifications Breakdown
The TM2AMM6HT offers 12-bit resolution on both its analog inputs and outputs, delivering fine granularity for accurate measurements. Its LSB value is 2.5 mV for voltage and 4 µA for current, enabling precise signal interpretation. The module handles permissible continuous overloads up to 13 V for voltage and 40 mA for current, protecting against transient spikes. Input impedance is ≤ 250 MOhm for current and ≥ 1 Ohm for voltage, ensuring minimal signal loading. Stabilization time is just 20 ms, with a conversion time of 20 ms plus one controller cycle time, allowing rapid response in control loops. The module achieves a repeat accuracy of ±1% FS for outputs and ±0.5% FS for inputs, maintaining consistency over time.
Industry Applications
In process control, the TM2AMM6HT excels at monitoring and regulating variables like temperature, pressure, and flow. For example, in a water treatment plant, its 4 analog inputs can read flow meter signals (4...20 mA) while its 2 analog outputs drive control valves (0...10 V). The module's high-level input type simplifies wiring and reduces noise susceptibility, making it suitable for harsh industrial settings. Its compact dimensions (0.93 in width, 2.76 in depth, 3.54 in height) allow installation in tight cabinets, saving valuable panel space.
Installation & Setup Guidance
Mount the TM2AMM6HT onto a DIN rail within the Modicon M238 system. Use shielded cable for all analog connections to minimize electromagnetic interference. Connect the external 24 V DC supply (19.2...30 V limits) to power the module. The removable screw terminal block simplifies wiring and maintenance. Ensure the load impedance for current outputs does not exceed 300 Ohm (resistive), and for voltage outputs is at least 2000 Ohm. After wiring, configure the input/output types via the controller software to match your sensor or actuator requirements.
Maintenance & Reliability
Regularly inspect the terminal block connections for tightness and check the shielded cable integrity to prevent signal degradation. The module's photocoupler insulation between channels and internal logic provides 800 V dielectric strength, enhancing reliability in noisy environments. With a temperature coefficient of ±0.02 %FS/°C for both voltage and current ranges, the TM2AMM6HT maintains accuracy across varying thermal conditions. These features reduce unplanned downtime and extend service life.
Compatibility & Integration
The TM2AMM6HT is designed for the Modicon M238 logic controller family and is also compatible with Advantys OTB and Twido systems. It requires an external 24 V DC supply (19.2...30 V) and consumes 60 mA at 5 V DC internally plus 80 mA at 24 V DC externally. The module supports both current and voltage analog outputs, allowing integration with a wide range of actuators and sensors. For seamless setup, use Schneider's programming software to map channels and define signal types.
Selection Guide & Purchasing Advice
Before purchasing the TM2AMM6HT, verify that your controller supports this expansion module and that your power supply meets the 19.2...30 V DC input range. Consider the total number of analog points needed: this module provides 4 inputs and 2 outputs. If you require more channels, multiple modules can be stacked. At SpareTechPLC, we stock the TM2AMM6HT and offer fast shipping to keep your projects on schedule. Contact our team for current availability and compatibility assistance.
Frequently Asked Questions
Q1: Can the TM2AMM6HT handle both current and voltage signals simultaneously?
Yes, each analog input and output can be independently configured for either 4...20 mA current or 0...10 V voltage, as specified in the module's data.
Q2: What is the maximum cable length for the analog inputs?
While not explicitly stated, using shielded cable as recommended helps maintain signal integrity over typical industrial distances. Always follow best practices for analog signal wiring.
Q3: Does the TM2AMM6HT require an external power supply?
Yes, it requires an external 24 V DC supply within 19.2...30 V limits, consuming 80 mA at 24 V DC externally.
Q4: What is the resolution of the analog outputs?
The analog outputs have 12-bit resolution, providing 4096 discrete steps for precise control.
Q5: Is the TM2AMM6HT compatible with older Twido controllers?
Yes, the module's range compatibility includes Twido systems, as indicated in the specifications.
