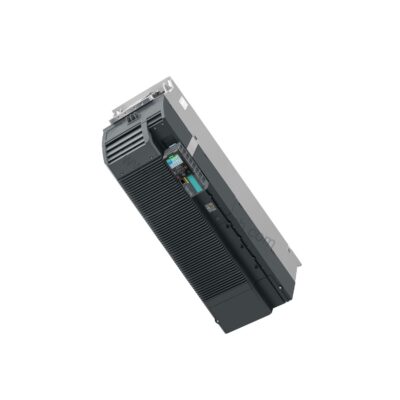

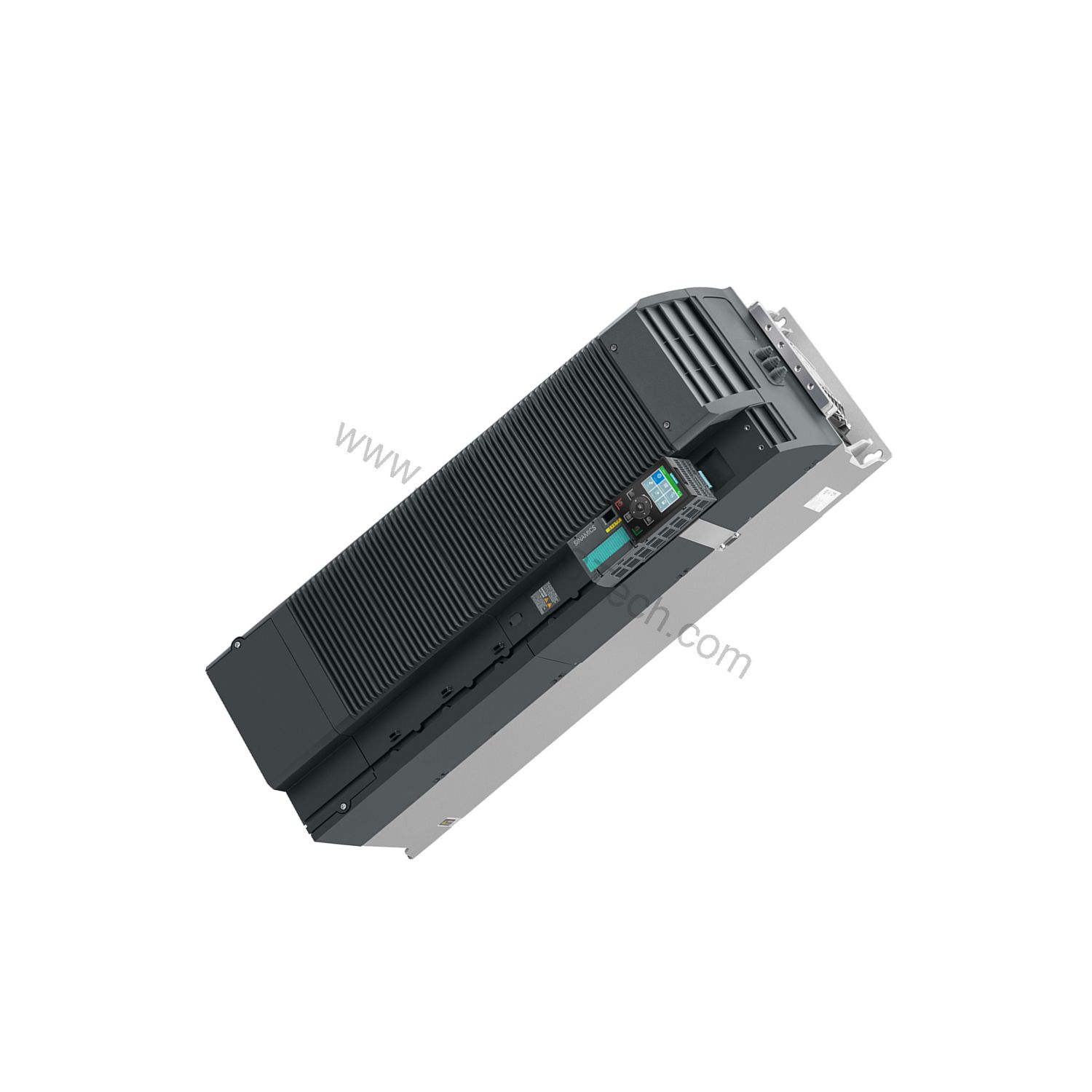

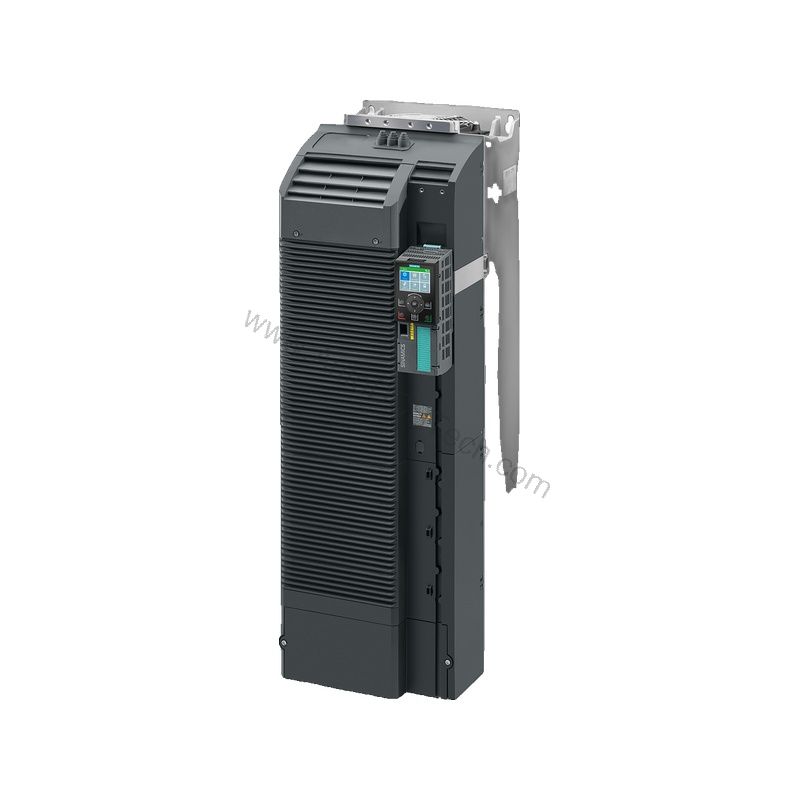

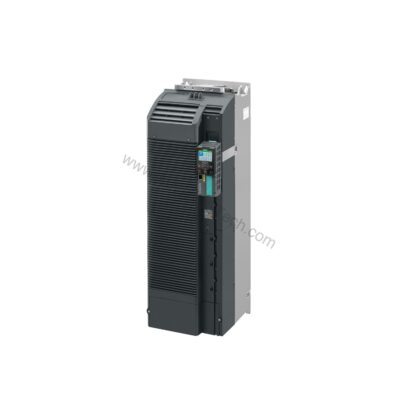

6SL3210-1PE33-0AL0 160kW SINAMICS Power Module

Introduction to the 6SL3210-1PE33-0AL0 Power Module

When high-power motor control demands reliability and precision, the 6SL3210-1PE33-0AL0 from Siemens stands ready. This SINAMICS PM240-2 power module is engineered for demanding industrial applications where uptime is critical. As a maintenance engineer, you need components that simplify service and withstand harsh conditions. This module delivers on both fronts.

Part of the SINAMICS G120/S120 family, the PM240-2 FSG integrates an EMC Class C2 filter and a built-in braking chopper. This reduces external component count and simplifies panel layout. With a robust IP20 protection rating, it suits standard industrial enclosures.

Key Features and Technical Specifications

The 6SL3210-1PE33-0AL0 offers flexible overload capabilities to match your application's duty cycle. Choose between high overload (HO) for short peak demands or low overload (LO) for continuous operation.

• Input voltage: 3AC 380-480V ±10%
• Line frequency: 47-63 Hz
• Rated current (LO): 300 A input / 302 A output
• Rated current (HO): 275 A input / 250 A output
• Max output current: 500 A
• Output frequency: 0-550 Hz (V/f control), 0-200 Hz (vector control)
• Pulse frequency: 2 kHz
• Efficiency: 0.98
• Power loss: 3.66 kW
• Ambient temperature: -20 to +50 °C (HO), -20 to +40 °C (LO)
• Protection rating: IP20
• Dimensions (HxWxD): 1000 x 305 x 357 mm
• Weight: 107 kg

One distinctive spec is the max output current of 500 A. This headroom allows the module to handle momentary overloads without nuisance tripping, a key benefit for applications with shock loads.

Installation and Setup

For maintenance engineers, installation is straightforward. The module uses internal air cooling with a cooling air requirement of 0.210 m³/s. Ensure adequate clearance for airflow and follow Siemens guidelines for mounting orientation. The integrated EMC filter and braking chopper reduce external wiring, saving time and reducing potential fault points.

Before commissioning, verify that the control unit firmware is compatible. This module is approved for CU firmware versions V4.7 SP9 and V5.1. Always consult the official manual for detailed wiring and parameter settings.

Maintenance and Reliability

Regular inspection is key to long service life. Check cooling fans and air filters periodically to prevent overheating. Monitor ambient temperature—operation above the rated range can derate performance. The module's high efficiency (0.98) reduces heat generation, lowering stress on components and improving reliability.

Because the module includes a braking chopper, verify its operation during routine maintenance. The integrated EMC filter also requires periodic inspection for any signs of damage. Following the manufacturer's maintenance schedule ensures consistent performance.

Overload Capability for Real-World Duty

The module's overload curves are designed for practical use. In low overload mode, it provides 110% overload for 57 seconds within a 300-second cycle, and 150% for 3 seconds. In high overload mode, it delivers 150% for 57 seconds and 200% for 3 seconds. This flexibility lets you match the drive to your actual process demands, avoiding oversizing.

Compatibility and Integration

This power module is designed for use with SINAMICS G120 and S120 control units. It supports both vector and V/f control modes, giving you flexibility for various motor types and applications. The module is approved for specific CU firmware versions, so check compatibility before integration.

The integrated EMC Class C2 filter meets EMC requirements for industrial environments, reducing the need for external filters. The built-in braking chopper allows dynamic braking without additional hardware.

Troubleshooting Common Issues

If the drive trips on overcurrent, verify that the motor and cable are not shorted. Check the overload settings—ensure they match the actual duty cycle. If the module runs hot, inspect the cooling system and ambient temperature. For communication issues, confirm the control unit firmware version and parameter settings.

Always refer to the SINAMICS G120 documentation for detailed fault codes and troubleshooting steps. For persistent issues, contact AutoDCSTech for expert support.

Product Support and Availability

At AutoDCSTech, we stock the 6SL3210-1PE33-0AL0 and can provide technical guidance. Contact us to verify lifecycle status and availability before ordering. We are committed to supporting your automation needs.
