Lenze K-D M12W-4P-10m-PVC M12 Cable, 10m, PVC, Right Angle

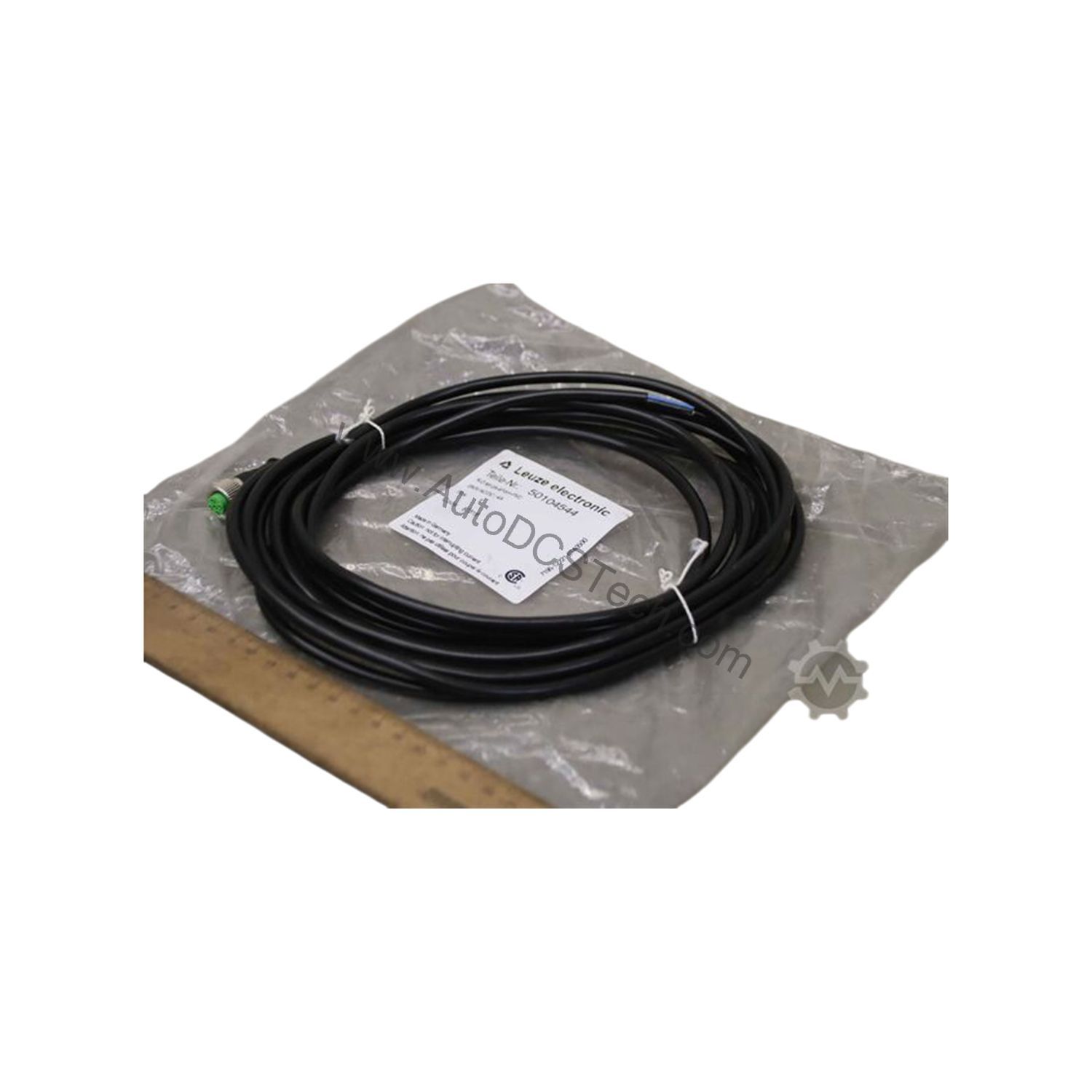

Product Overview

Industrial automation systems rely on robust connections to maintain signal integrity and uptime. The Lenze K-D M12W-4P-10m-PVC is a factory-assembled connection cable designed for reliable power and signal transmission in demanding environments. This M12 right-angle (angular) connector cable features a 4-pin configuration and a 10-meter length, making it suitable for a wide range of sensor, actuator, and field device connections.

Built with a PVC cable jacket and a TPU handle body, this cable balances flexibility with mechanical strength. The diecast zinc, nickel-plated screw fitting ensures a secure connection, while the self-locking design prevents accidental loosening from vibration. For operations that require long cable runs or tight spaces, the right-angle connector helps manage cable routing efficiently.

Technical Specifications Breakdown

Key parameters for the K-D M12W-4P-10m-PVC are listed below for quick reference:

Industry Applications

This cable is engineered for use in automated manufacturing, material handling, and process control systems. Its 10-meter length provides flexibility in machine layouts, reducing the need for extension cables and minimizing connection points—lowering both material costs and potential failure points.

• Sensor/Actuator Wiring: The 4-pin M12 connector is a standard interface for many proximity sensors, photoelectric sensors, and actuators. Using a pre-assembled cable reduces installation time compared to field-wiring connectors, saving labor costs.

• Control Cabinet to Field Device: The right-angle connector allows for compact routing near machine frames or in confined spaces, protecting the cable from sharp bends and reducing stress on the connector. This extends cable life and reduces replacement frequency.

• Flexible Wiring Applications: With a temperature range of -5 °C to +70 °C for flexible wiring, this cable suits applications with moving cable tracks or robotic arms, where continuous flexing occurs. The PVC jacket offers good abrasion resistance, contributing to lower total cost of ownership.

Installation & Setup Guidance

Proper installation ensures optimal performance and safety. Follow these engineer-level guidelines:

1. Torque: Tighten the screw fitting to the recommended torque of 0.6 Nm. The self-locking feature helps maintain the connection under vibration, but avoid over-tightening to prevent thread damage.

1. Bend Radius: When routing the cable, maintain a bend radius of at least 10 times the sheath diameter. For a sheath diameter of 4.7 to 5.7 mm, this translates to a minimum bend radius of 47 to 57 mm. This prevents internal conductor damage and signal degradation.

1. Cable Protection: Avoid exposing the cable to sharp edges, abrasive surfaces, or excessive tensile loads. Use cable carriers or conduits in areas with mechanical stress.

1. Environmental Limits: Ensure the ambient temperature remains within the specified range for fixed wiring (-30 °C to +70 °C) or flexible wiring (-5 °C to +70 °C). Exceeding these limits can cause insulation failure.

Maintenance & Reliability

Regular inspection of connection cables is essential for preventing downtime. We recommend the following practices:

• Visual Checks: Periodically inspect the cable for cuts, abrasions, or discoloration. Pay attention to the connector area where strain is highest.

• Connector Tightness: Verify that the screw fitting remains snug. Vibration can loosen connections over time, leading to intermittent signals.

• Environmental Exposure: In harsh environments (e.g., chemical splashes, UV exposure), inspect the PVC jacket more frequently. Replace the cable if any cracking or hardening is observed.

• Replacement Strategy: For critical applications, keep a spare cable in stock to minimize downtime. The 10-meter length and standard M12 connector make this cable a versatile spare for multiple machines.

Compatibility & Integration

The Lenze K-D M12W-4P-10m-PVC is a standard M12 connection cable, compatible with any device that accepts a 4-pin M12 female or male connector (depending on the variant). It is commonly used with Lenze drives, sensors, and actuators, but also works with other industrial equipment that uses M12 connections.

Selection Guide & Purchasing Advice

When selecting a connection cable, consider the following:

• Voltage and Current: Ensure the cable's ratings (≤250 VAC/DC, ≤4 A per contact) meet or exceed your application requirements. Using a cable with lower ratings can cause overheating and failure.

• Cable Length: The 10-meter length is suitable for most machine installations. If you need a different length, check other options in the Lenze K-D series.

• Environmental Conditions: For applications with constant flexing, verify that the flexible wiring temperature range (-5 °C to +70 °C) matches your environment.

At AutoDCSTech, we stock the Lenze K-D M12W-4P-10m-PVC to support your automation needs. Our team can help verify compatibility and provide guidance on the right cable for your application. Please verify current lifecycle status and availability with AutoDCSTech before ordering.

Troubleshooting & Common Issues

If you encounter signal loss or intermittent operation, follow these steps:

1. Check Connector Tightness: Ensure the M12 connector is fully seated and the screw fitting is tightened to 0.6 Nm. A loose connection can cause intermittent signals.

1. Inspect Cable for Damage: Look for cuts, kinks, or crushed areas. Damage to the PVC jacket can expose conductors and cause short circuits.

1. Verify Bend Radius: If the cable is bent sharply, especially near the connector, it may cause internal wire breakage. Re-route the cable with a larger bend radius.

1. Test with a Multimeter: If possible, check continuity across each pin. A broken wire will show an open circuit.

If the cable is damaged, replace it immediately. Do not attempt to repair a damaged cable, as this can compromise safety and reliability.
