TSXP574823M Guide: Process Control & Memory Expansion

Solving Process Control Challenges with the TSXP574823M

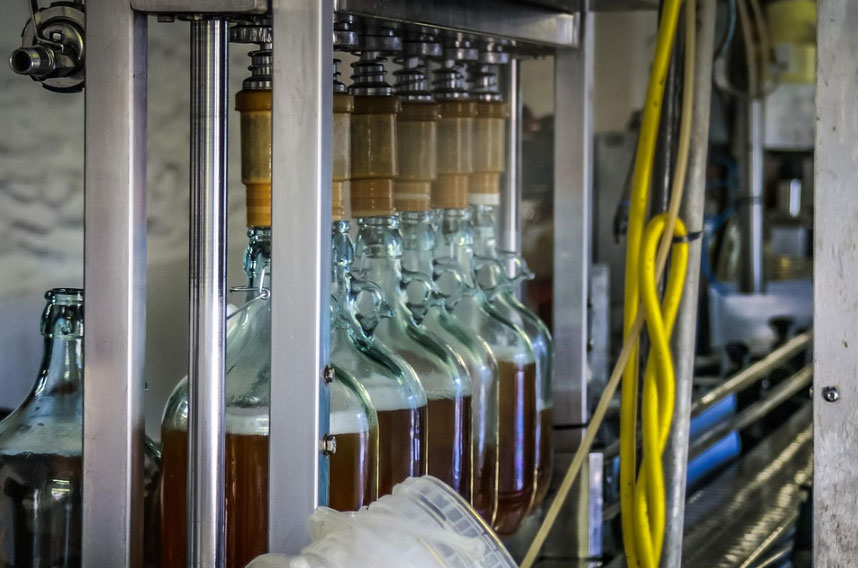

Imagine a bottling plant where a sudden change in product viscosity causes the filling process to drift. The control system must respond quickly, adjusting multiple loops without a full restart. The Schneider Electric TSXP574823M, part of the TSX Micro PLCs series, is designed for such scenarios. It handles 10 to 30 simple loops, giving engineers the flexibility to manage moderate process control tasks efficiently.

This guide explains the TSXP574823M's key features, memory architecture, and communication options. We will also cover practical applications and answer common questions. By the end, you will know if this PLC fits your next project.

Key Technical Specifications of the TSXP574823M

The TSXP574823M offers a balanced set of specifications for small to medium process control applications. Its processing power is sufficient for tasks like temperature control, flow regulation, and simple batch sequencing.

Memory is a critical aspect of any PLC. The TSXP574823M includes 48 Kwords of internal RAM for both program and data. If you need more space, a PCMCIA card can expand program memory to 160 Kwords and add up to 2688 Kwords for additional data storage. This flexibility is useful for applications with large recipe tables or historical data logging.

For I/O handling, the PLC supports up to 1024 discrete I/O and 80 analogue I/O. This capacity allows connection to a wide range of sensors and actuators. The unit also supports up to 16 racks, enabling a modular and scalable system layout.

Execution speed is another important factor. The TSXP574823M executes a Boolean instruction in 0.19 µs without a PCMCIA card and 0.21 µs with one. This speed is adequate for most process control loops, ensuring timely responses to changing conditions.

Memory and Expansion Options

Understanding the memory structure helps you plan your application. The internal RAM provides 48 Kwords for program and data. When you insert a PCMCIA card, you can increase program storage to 160 Kwords and add up to 2688 Kwords for extra data. This is particularly beneficial for applications that require extensive data logging or complex recipe management.

The PLC has two PCMCIA slots. One slot is for a memory extension card, and the other can hold a communication card or a 4 Mb SRAM memory extension card. This design lets you tailor the PLC to your specific needs without replacing the entire unit.

Communication and Networking Capabilities

Modern industrial systems rely on robust communication. The TSXP574823M includes a non-isolated serial link with two female mini DIN ports operating at 19.2 kbit/s. It also features Ethernet TCP/IP via an RJ45 connector at 10/100 Mbit/s. This dual connectivity allows integration into existing plant networks or standalone configurations.

For fieldbus connectivity, the PLC can manage one fieldbus module (if CANopen is not used), up to four AS-Interface bus modules, and one CANopen connection. This variety ensures compatibility with many common industrial protocols, simplifying system integration.

Application Scenarios for the TSXP574823M

In a typical water treatment facility, the TSXP574823M can control chemical dosing pumps based on flow and pH readings. Its 10 to 30 loop capability is ideal for managing multiple dosing points simultaneously. The Ethernet TCP/IP connection allows remote monitoring and adjustments from a central control room.

Another example is a food packaging line where temperature and pressure need precise regulation. The PLC's fast execution time and analogue I/O capacity enable tight control, reducing waste and improving product quality. The reset button provides a quick cold start, which is useful after maintenance or a process change.

Real-World Use Case: Batch Reactor Control

Consider a chemical plant that operates a batch reactor. The TSXP574823M can manage the heating, cooling, and agitation loops. With 48 Kwords of RAM, it can store multiple batch recipes. The PCMCIA card can hold historical data for quality audits. The AS-Interface modules can connect to smart sensors, while the Ethernet link sends production reports to the ERP system.

Frequently Asked Questions

What is the maximum number of racks the TSXP574823M supports?

The TSXP574823M supports up to 16 racks. This allows you to expand your I/O count significantly, up to 1024 discrete and 80 analogue I/O points, making it suitable for larger applications.

Can I use a PCMCIA card for additional memory?

Yes, the TSXP574823M has two PCMCIA slots. One slot is for a memory extension card, which can increase program memory to 160 Kwords and add up to 2688 Kwords for data. The other slot can hold a communication card or a 4 Mb SRAM memory extension card.

What communication protocols are supported?

The PLC includes a non-isolated serial link (19.2 kbit/s) and Ethernet TCP/IP (10/100 Mbit/s). It also supports one fieldbus module (if CANopen is not used), up to four AS-Interface bus modules, and one CANopen connection.

How fast is the TSXP574823M?

The execution time for a Boolean instruction is 0.19 µs without a PCMCIA card and 0.21 µs with one. This speed is adequate for most process control applications.

Why Choose AutoDCSTech for Your TSXP574823M?

AutoDCSTech specializes in industrial automation spare parts, including the Schneider TSXP574823M. We understand the importance of reliable supply and fast delivery. Our team can help you verify compatibility and availability before you order.

Please verify current lifecycle status and availability with AutoDCSTech before ordering. We are here to support your automation needs with genuine parts and expert advice.

Conclusion

The Schneider Electric TSXP574823M is a versatile PLC for process control applications. Its combination of loop handling, memory expansion, and communication options makes it a solid choice for many industrial scenarios. Whether you are upgrading an existing system or designing a new one, the TSXP574823M offers a reliable foundation.

For more information or to purchase, contact AutoDCSTech today. Our team is ready to assist you with technical questions and ordering.
