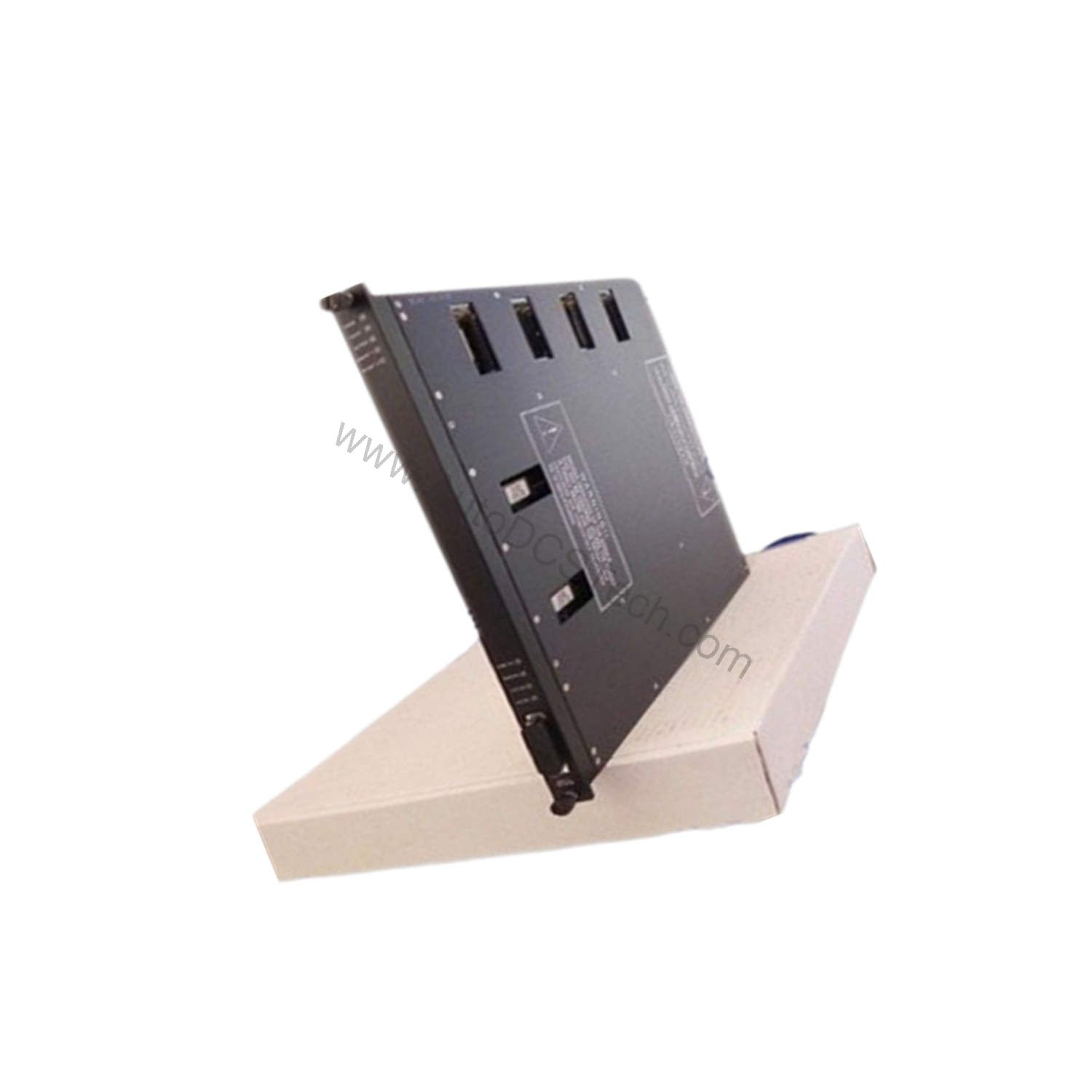

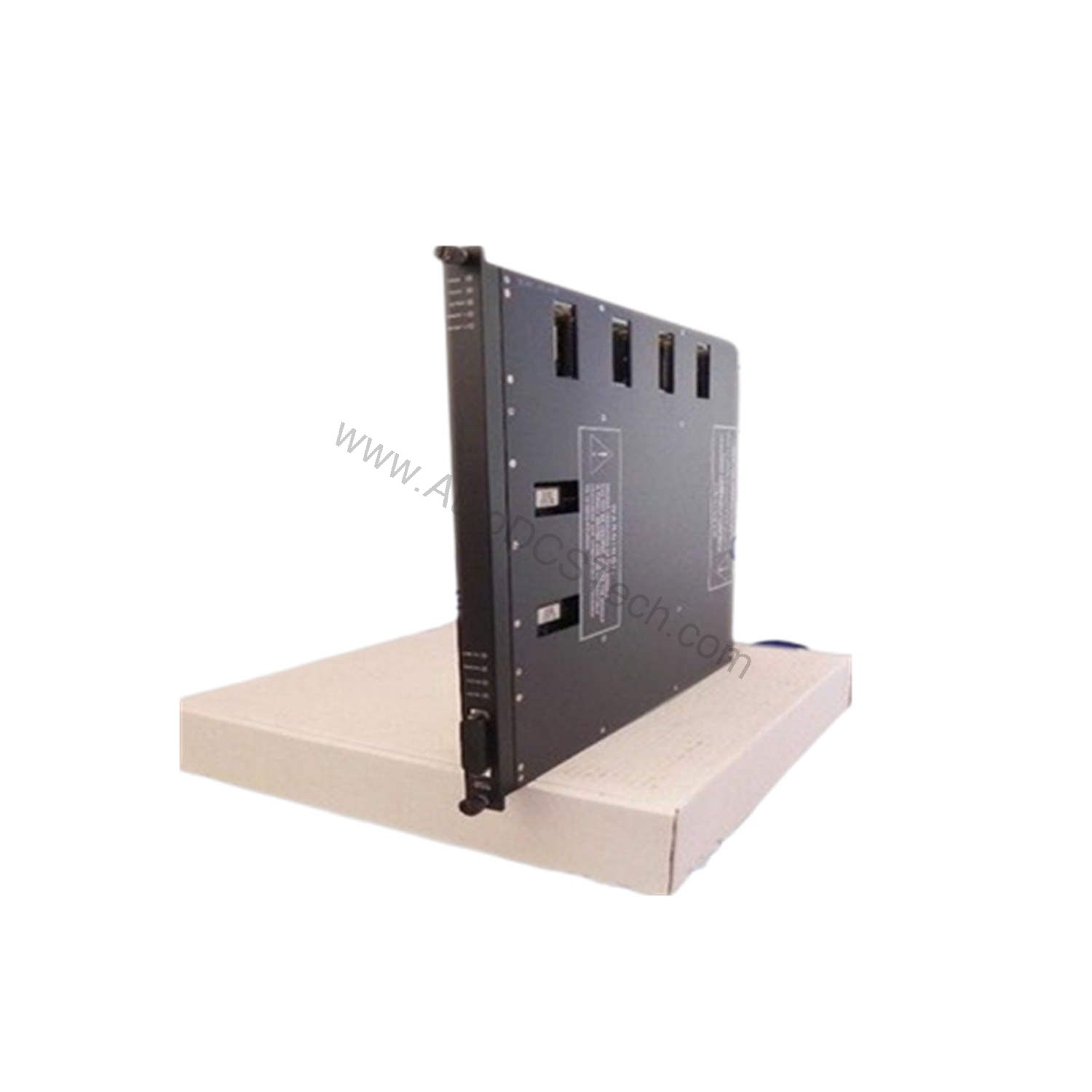

Introduction to the Triconex 9563-810
When a control system must handle numerous discrete signals without compromising safety, the 9563-810 from Triconex offers a dependable solution. This digital input module is designed for 24V systems, featuring a commoned configuration and fuse protection across its 16 points. Engineers working in process industries often face the challenge of monitoring many field contacts while ensuring electrical isolation and fault tolerance. The 9563-810 addresses this by providing a compact, robust interface between field devices and the control system.
As part of the Triconex product line, the 9563-810 is built to meet the rigorous demands of industrial automation. Its 24V rating aligns with standard industrial power supplies, simplifying integration into existing cabinets. The commoned design means that all input points share a common return, reducing wiring complexity and installation time. Additionally, the built-in fuse protection safeguards the module and downstream components from overcurrent conditions, minimizing the risk of damage and downtime.
Key Features and Technical Specifications
The 9563-810 is engineered with specific parameters that define its performance. Below are the critical specifications extracted from the official data:
- Part Number: 9563-810
- Brand: Triconex
- Product Type: Digital Input (DI) Module
- Input Voltage: 24V
- Configuration: Commoned
- Protection: Fuse Protection
- Number of Points: 16 points
These specifications indicate that the module operates at a nominal 24V, which is a common voltage level in industrial control panels. The commoned configuration simplifies wiring by grouping the return paths, while the fuse protection adds a layer of safety against electrical faults. With 16 input points, the module can monitor up to 16 discrete signals, making it suitable for applications such as limit switches, push buttons, and relay contacts.
One distinctive feature is the fuse protection, which is not always standard on digital input modules. This built-in protection helps prevent damage from overcurrent events, reducing the need for external fuses and simplifying maintenance. For engineers, this means enhanced reliability and lower total cost of ownership over the module's lifecycle.
Applications and Use Cases
The 9563-810 finds application in a variety of industrial settings where reliable digital input monitoring is essential. In process control systems, it can be used to read status signals from field devices such as pressure switches, level switches, and flow meters. The 24V rating makes it compatible with many standard sensors and actuators, allowing for straightforward integration into existing systems.
For example, in a chemical plant, the module could monitor the open/closed status of safety valves, providing critical feedback to the control system. The commoned configuration reduces the number of wires needed, which is particularly beneficial in large installations where cable management is a concern. Additionally, the fuse protection ensures that a single fault does not propagate to other parts of the system, enhancing overall system robustness.
Another use case is in manufacturing lines, where the module can track the position of mechanical stops or the presence of parts on a conveyor. By using the 9563-810, engineers can consolidate multiple discrete inputs into a single module, saving space in the control cabinet and simplifying troubleshooting.
Installation and Setup
Proper installation of the 9563-810 is crucial for optimal performance. Begin by verifying that the power supply voltage matches the module's 24V rating. Ensure that the common terminal is correctly connected to the return path of the power supply. Each of the 16 input points should be wired to the corresponding field device, observing polarity and voltage limits.
It is recommended to use appropriately sized wires and fuses as per local electrical codes. The module should be mounted in a suitable enclosure that provides protection from dust, moisture, and mechanical damage. Before energizing the system, double-check all connections to avoid short circuits or reverse polarity, which could damage the module.
For detailed wiring diagrams and mounting instructions, refer to the official Triconex documentation. If you need assistance, AutoDCSTech's technical team is available to provide guidance based on your specific application.
Maintenance and Reliability
Routine maintenance of the 9563-810 is straightforward. Periodically inspect the module for signs of overheating, corrosion, or physical damage. Check the fuse status; if a fuse has blown, replace it with the correct rating as specified in the datasheet. Verify that all terminal connections remain tight and free from oxidation.
The fuse protection not only safeguards the module but also simplifies troubleshooting. When an input channel fails, the fuse can be quickly checked and replaced, reducing downtime. It is advisable to keep spare fuses on hand to ensure rapid replacement when needed.
Environmental factors such as temperature and humidity can affect the module's longevity. Ensure that the operating environment stays within the specified limits, and avoid exposure to excessive vibration or shock. By following these simple maintenance practices, you can extend the service life of the 9563-810 and maintain reliable operation.
Compatibility and Integration
The 9563-810 is designed to work with Triconex control systems, but it can also be integrated into other industrial control architectures if the electrical specifications match. The 24V input voltage is a standard industrial level, making it compatible with many PLCs and DCS systems. However, always verify the input characteristics of the host system to ensure proper signal compatibility.
If you are upgrading an existing system, the 9563-810 can replace older modules with similar specifications. Its commoned configuration and fuse protection offer improved reliability and ease of maintenance. For new installations, the module can be specified in the initial design to ensure seamless integration.
For specific compatibility questions, consult the official Triconex documentation or contact AutoDCSTech. Our team can help you determine if the 9563-810 is suitable for your application.
Troubleshooting Common Issues
While the 9563-810 is reliable, occasional issues may arise. If an input point does not respond, first check the field device and wiring. Verify that the input voltage is present and within the 24V rating. If the input is still inactive, inspect the fuse; a blown fuse will interrupt the signal.
Another common issue is intermittent signals, which can be caused by loose connections or electromagnetic interference. Ensure that all wiring is properly shielded and that the module is grounded according to the manufacturer's recommendations. If problems persist, consult the troubleshooting section of the official manual or contact AutoDCSTech for technical support.
Support and Availability
The 9563-810 is available through AutoDCSTech, a trusted supplier of industrial automation parts. We maintain a ready inventory to ensure prompt delivery. For pricing, availability, or technical inquiries, please contact our sales team. We are committed to providing high-quality products and exceptional customer service.
