Introduction

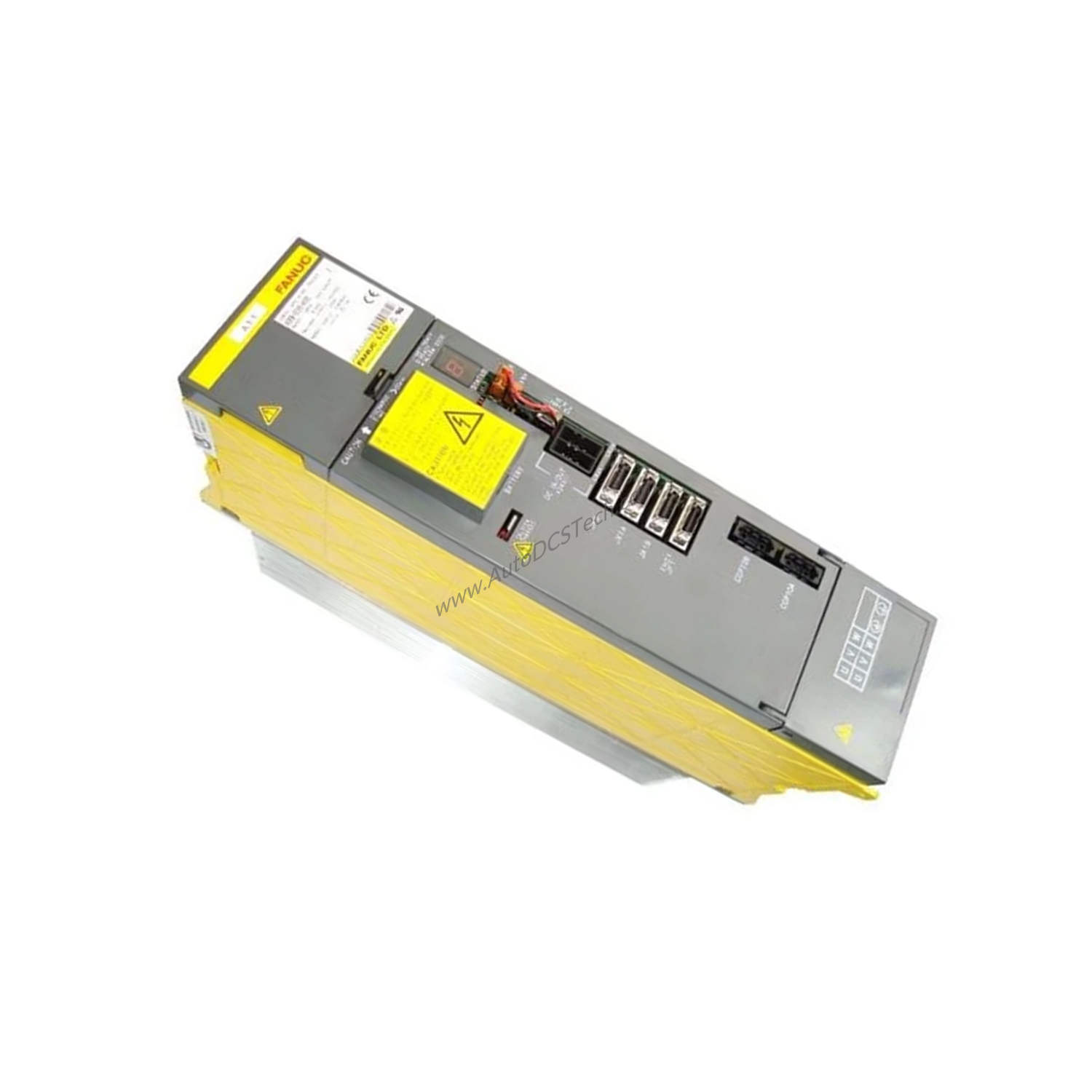

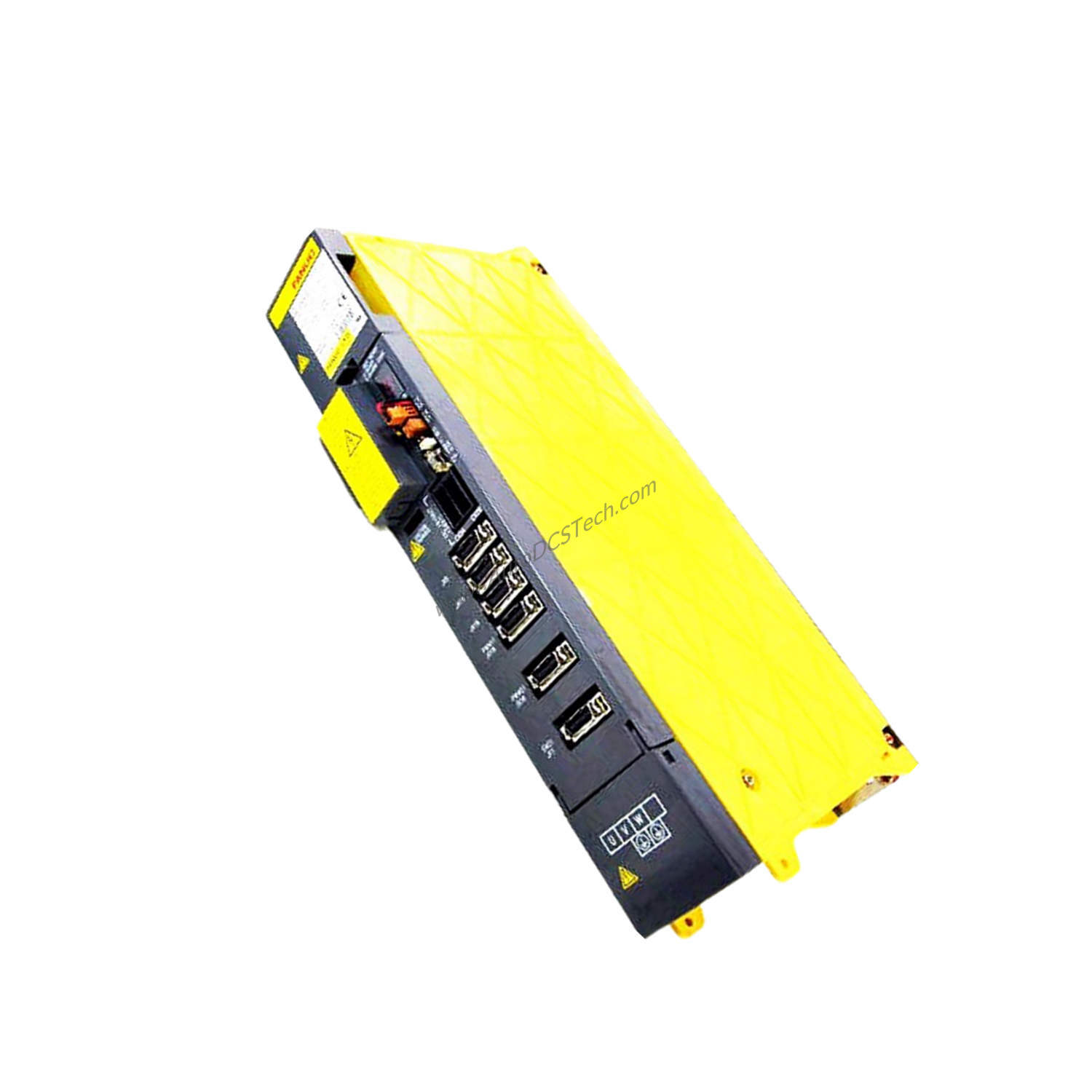

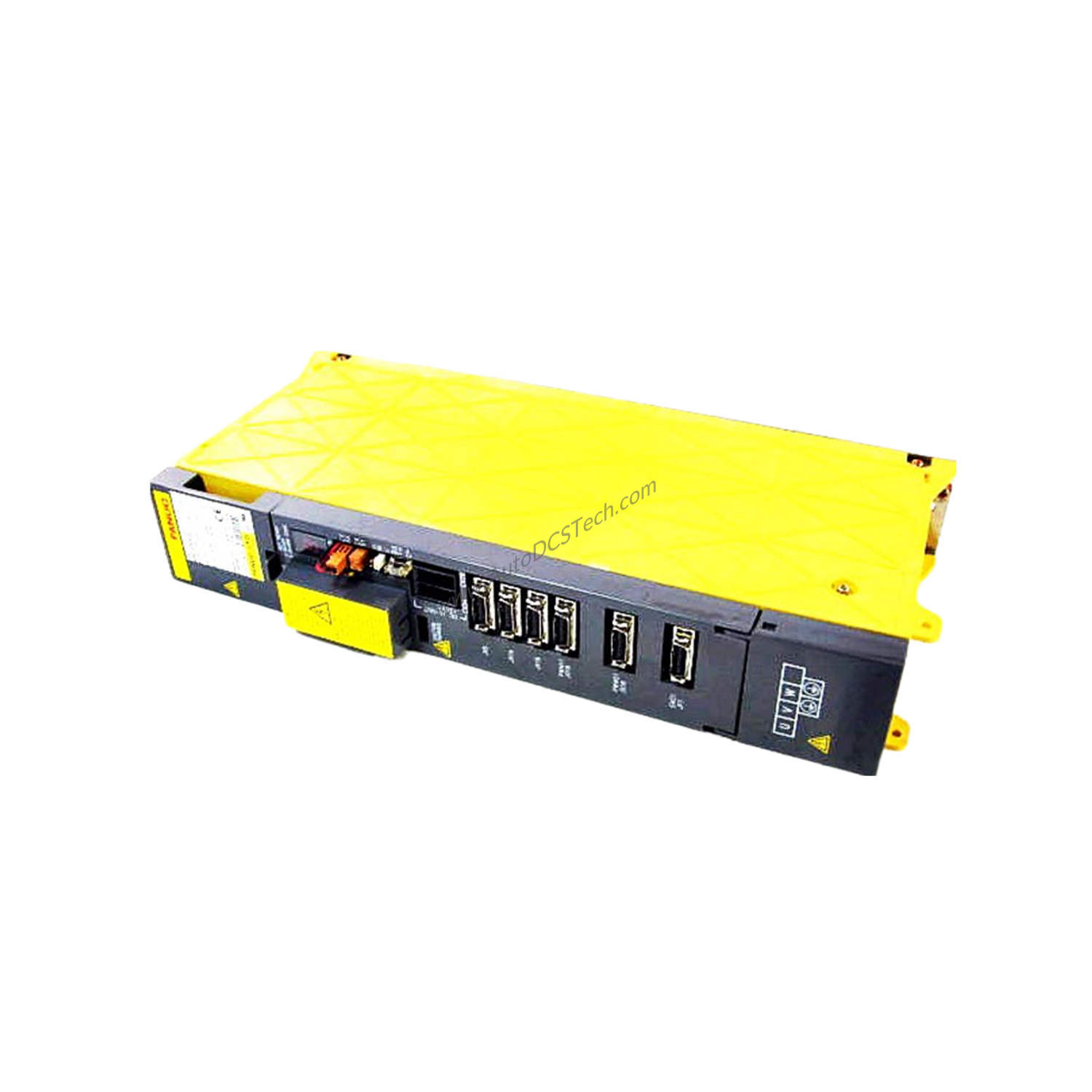

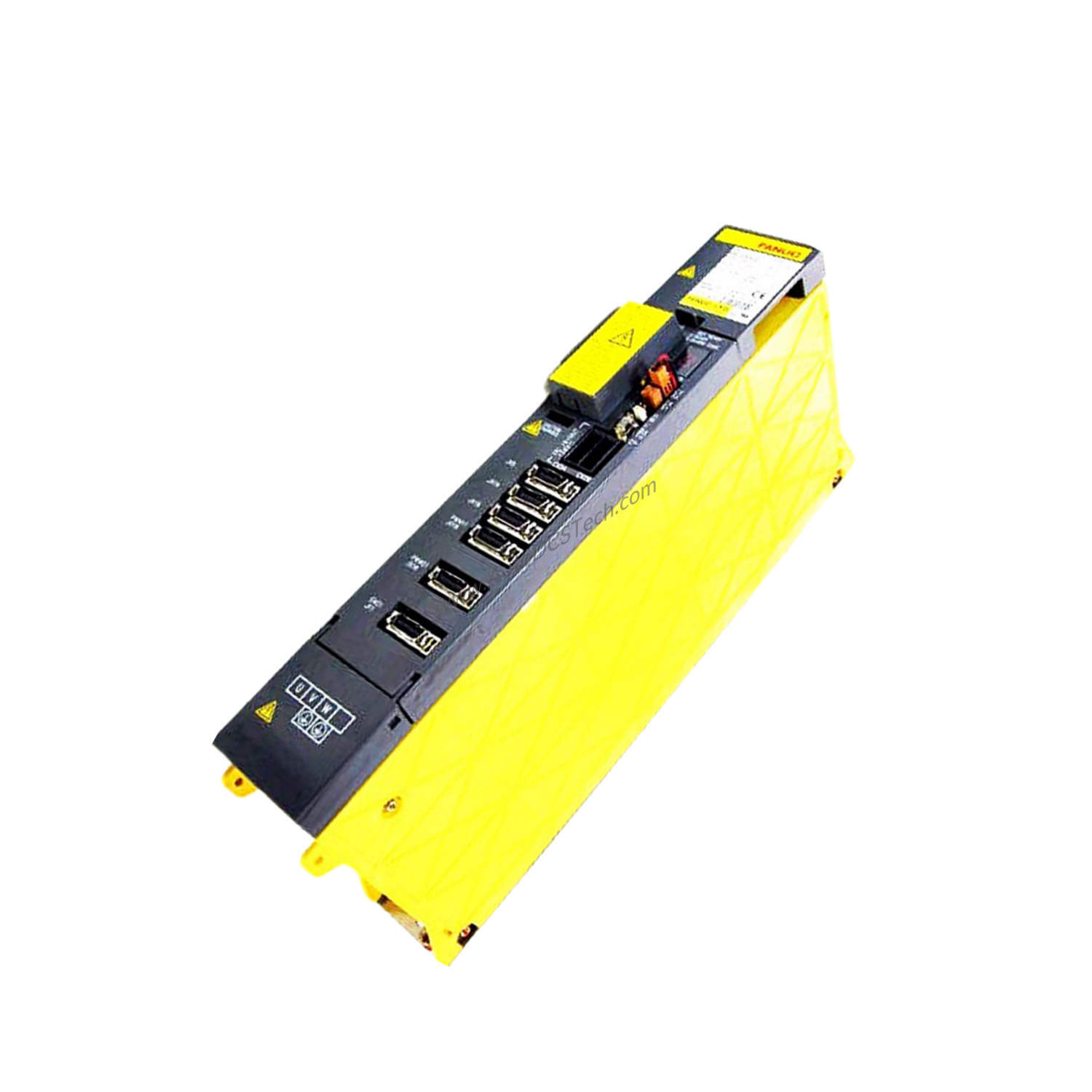

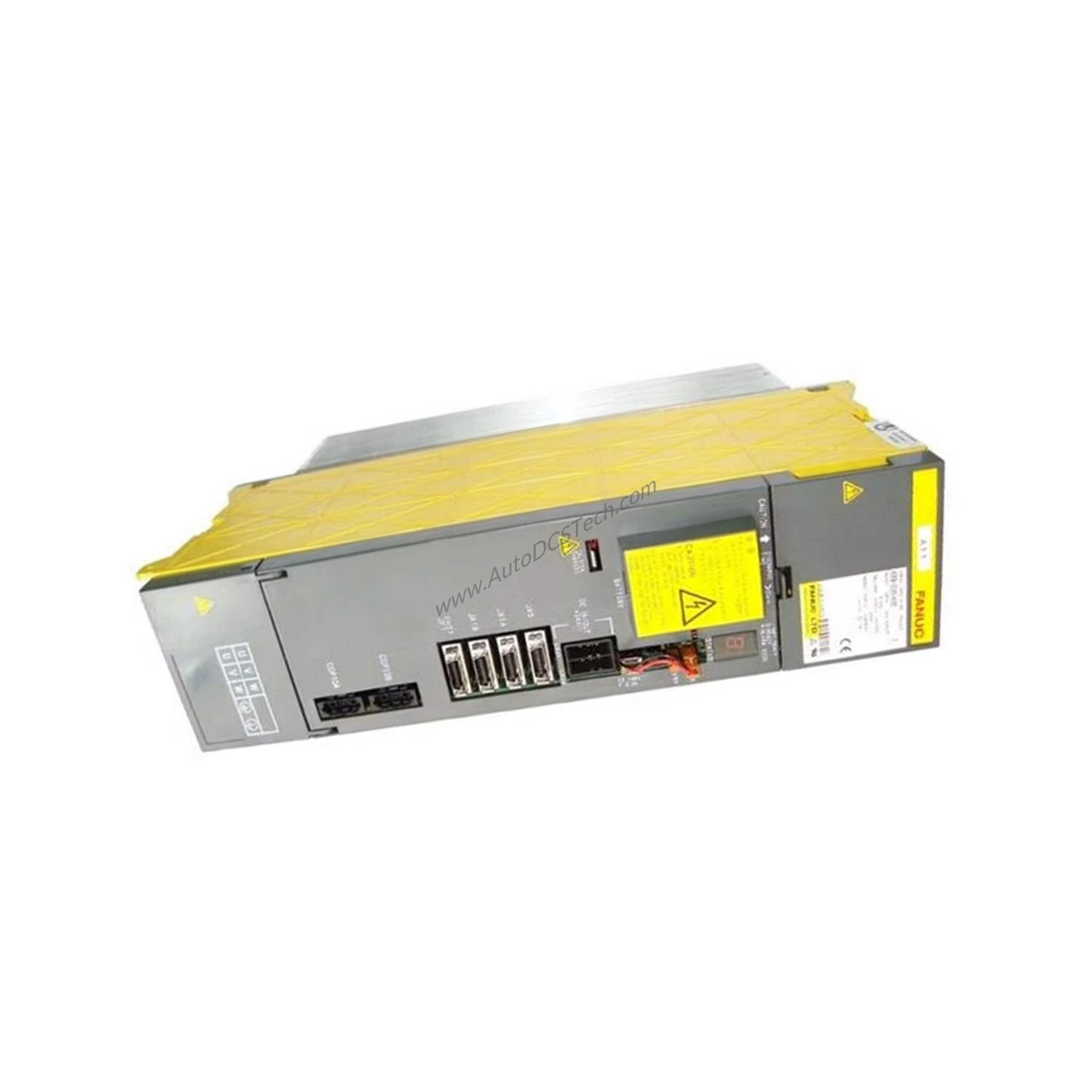

When your CNC machinery demands precise multi-axis control under heavy loads, the FANUC A06B-6096-H302 servo amplifier steps up to deliver consistent performance. This robust unit supports three axes of operation and provides a power rating of 2.4 kW, making it a reliable choice for industrial environments.
Technical Specifications Breakdown
The A06B-6096-H302 operates with an input voltage range of 283-325V and a maximum output voltage of 230V. Its power rating of 2.4 kW ensures it can handle substantial loads during machining. Each axis has a dedicated output current: the L-axis delivers 3 Amps, while both the M-axis and N-axis provide 5.9 Amps each. This configuration allows tailored power delivery for different tool paths and workpiece requirements.
Designed for challenging conditions, the amplifier tolerates maximum vibration of 5G and operates in temperatures from 0 to 40 degrees Celsius. It can function at altitudes up to 1000 meters above sea level without derating. Weighing 22.00 lbs (9.98 kg), the unit is built to withstand industrial use.
Industry Applications
This servo amplifier excels in CNC milling, turning, and routing applications where three-axis coordination is critical. For example, in a multi-axis machining center, the A06B-6096-H302 drives the L, M, and N axes simultaneously, maintaining precise positioning and smooth motion even during heavy cuts. Its ability to handle 5G vibration makes it suitable for high-speed machining operations where stability is paramount.
Installation & Setup Guidance
Mount the amplifier in a clean, dry cabinet with adequate airflow to maintain the 0 to 40 degrees Celsius operating range. Ensure the input voltage source matches the 283-325V requirement. Connect each axis output to the corresponding servo motor, respecting the current ratings: 3 Amps for the L-axis and 5.9 Amps for the M and N axes. Verify all connections are secure before powering up. Follow the manufacturer's manual for detailed wiring diagrams and configuration steps.
Maintenance & Reliability
Regularly inspect the amplifier for dust accumulation and ensure cooling fans (if present) operate freely. Check that ambient temperature stays within the specified range and that vibration levels do not exceed 5G. Periodic verification of input voltage stability helps prevent unexpected shutdowns. By maintaining these conditions, you maximize the service life of the A06B-6096-H302 and reduce unplanned downtime.
Buying Guide
Before purchasing, confirm that your CNC controller is compatible with this servo amplifier. Verify that your facility's power supply can deliver 283-325V and that your servo motors match the current ratings for each axis. SpareTechPLC stocks the FANUC A06B-6096-H302 and can assist with availability and shipping details. Always check the product's lifecycle status with our team to ensure it meets your project timeline.
Frequently Asked Questions
What is the power rating of the FANUC A06B-6096-H302?
The amplifier has a power rating of 2.4 kW.
How many axes does this servo amplifier support?
It supports three axes: L, M, and N.
What are the output current ratings for each axis?
The L-axis is rated at 3 Amps, while the M and N axes are each rated at 5.9 Amps.
What is the input voltage requirement?
The input voltage range is 283-325V.
Can this unit operate in high-vibration environments?
Yes, it withstands maximum vibration of 5G.
