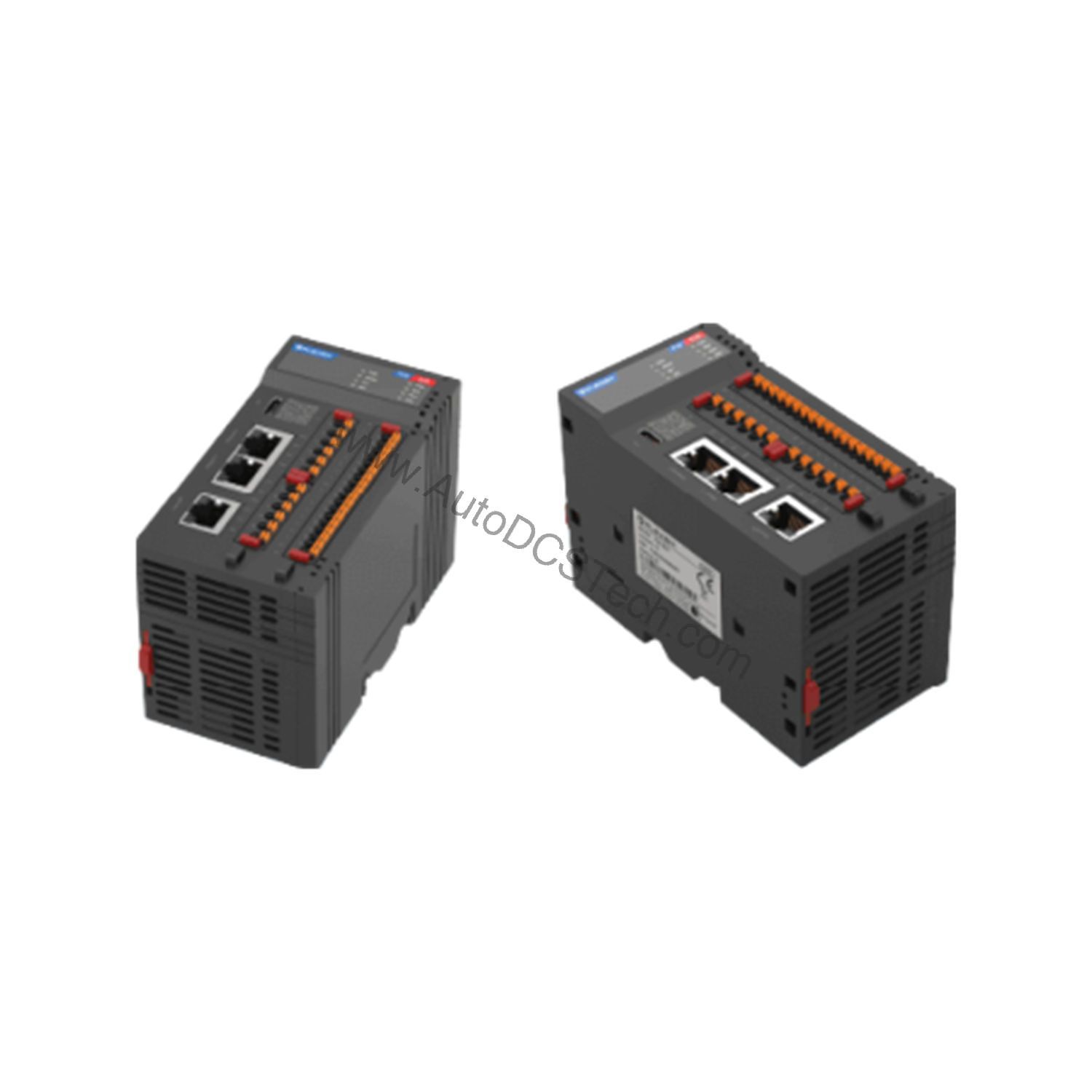

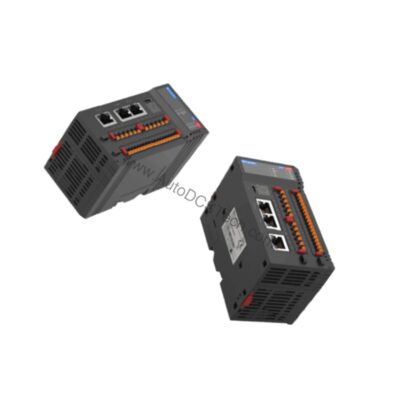

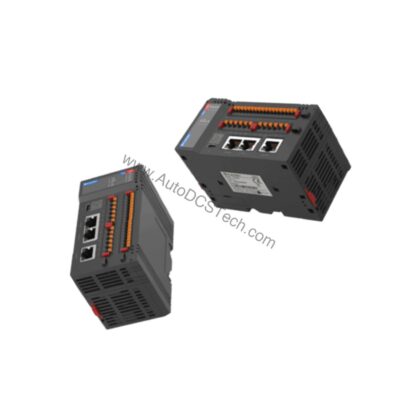

Flexem FL8-E4-D Motion Control PLC with EtherCAT and Digital I/O

Product Overview

The Flexem FL8-E4-D is a motion control PLC designed for demanding automation tasks. It combines a powerful 4-core 1GHz CPU with 1GB internal memory and 4GB hard disk, ensuring smooth execution of complex control algorithms. Its integrated 8-point digital inputs (NPN/PNP compatible) and 8-point NPN digital outputs provide flexible I/O handling, making it a versatile choice for machinery builders and system integrators.

Technical Specifications Breakdown

Key parameters for the FL8-E4-D are listed below for quick reference:

Industry Applications

Packaging Machinery: The FL8-E4-D's 4-axis EtherCAT control and 6*200KHz pulse outputs enable precise synchronization of cutting, sealing, and labeling stations. The integrated digital I/O reduces wiring, while the 1GHz CPU ensures fast response to sensor inputs, minimizing downtime.

CNC and Robotics:The 7*200KHz pulse inputs allow high-speed encoder feedback, and the CANopen protocol facilitates integration with servo drives and remote I/O modules.

Material Handling: In conveyor systems and sortation equipment, the FL8-E4-D's dual Ethernet ports enable seamless connection to upstream PLCs and SCADA systems via Modbus-TCP or OPC UA. The 8 NPN outputs can directly drive small relays or solenoid valves, while the 8 inputs (NPN/PNP compatible) accommodate various sensor types.

Installation & Setup Guidance

When installing the FL8-E4-D, ensure the power supply meets DC24V±20% and is properly filtered to avoid transients. Mount the module on a DIN rail in a well-ventilated enclosure, away from high-voltage wiring. For EtherCAT communication, use shielded cables and terminate the network correctly. Connect the digital inputs according to your sensor type (NPN or PNP) and verify output wiring for NPN loads. Use the Type-C U disk port for initial program download and data storage. After wiring, perform a dry run without load to verify I/O mapping and communication parameters.

Maintenance & Reliability

Regularly inspect the module for dust accumulation and ensure ambient temperature stays within safe limits. Check all connectors for tightness every six months. The built-in RTC maintains accurate time, but if the battery is replaceable, monitor its status. Since the module has no moving parts, reliability is high, but periodic firmware updates are recommended to ensure compatibility with newer EtherCAT slaves. Always power down before cleaning or servicing.

Compatibility & Integration

The FL8-E4-D supports multiple industrial protocols including EtherCAT, Modbus-TCP, Canopen, Modbus-RTU, and OPC UA. This allows easy integration with a wide range of HMIs, SCADA systems, and third-party devices. The left-side expansion supports 4G Cat1 or WiFi wireless modules and serial ports, enabling remote monitoring and diagnostics. The right-side expansion allows up to 31 additional modules, providing scalability for larger applications. Programming is supported in IL, LD, ST, SFC, CFC, and FBD, giving flexibility to programmers of different backgrounds.

Selection Guide & Purchasing Advice

When selecting the FL8-E4-D, consider your axis count, I/O requirements, and communication needs. For applications requiring more than 4 EtherCAT axes, you can combine pulse axis outputs. The 32M program capacity and 128M user data space are ample for complex programs. For reliable supply and technical support, contact AutoDCSTech, a trusted industrial automation parts supplier. They can provide current lifecycle status and availability, ensuring you make an informed purchase. Verify that the module meets your environmental and certification requirements before ordering.

Troubleshooting & Common Issues

If the module fails to communicate over EtherCAT, check the network cable and slave configuration. Ensure the master is set to the correct cycle time. If digital outputs are not activating, verify the NPN wiring and load voltage. For pulse output issues, confirm that the pulse frequency does not exceed 200KHz. If the program does not download via Type-C, check the USB cable and storage format. For persistent issues, consult the Flexem manual or contact AutoDCSTech for technical assistance.
