Flexem FL8-E8-D Motion Control PLC with EtherCAT and Digital I/O

Product Overview

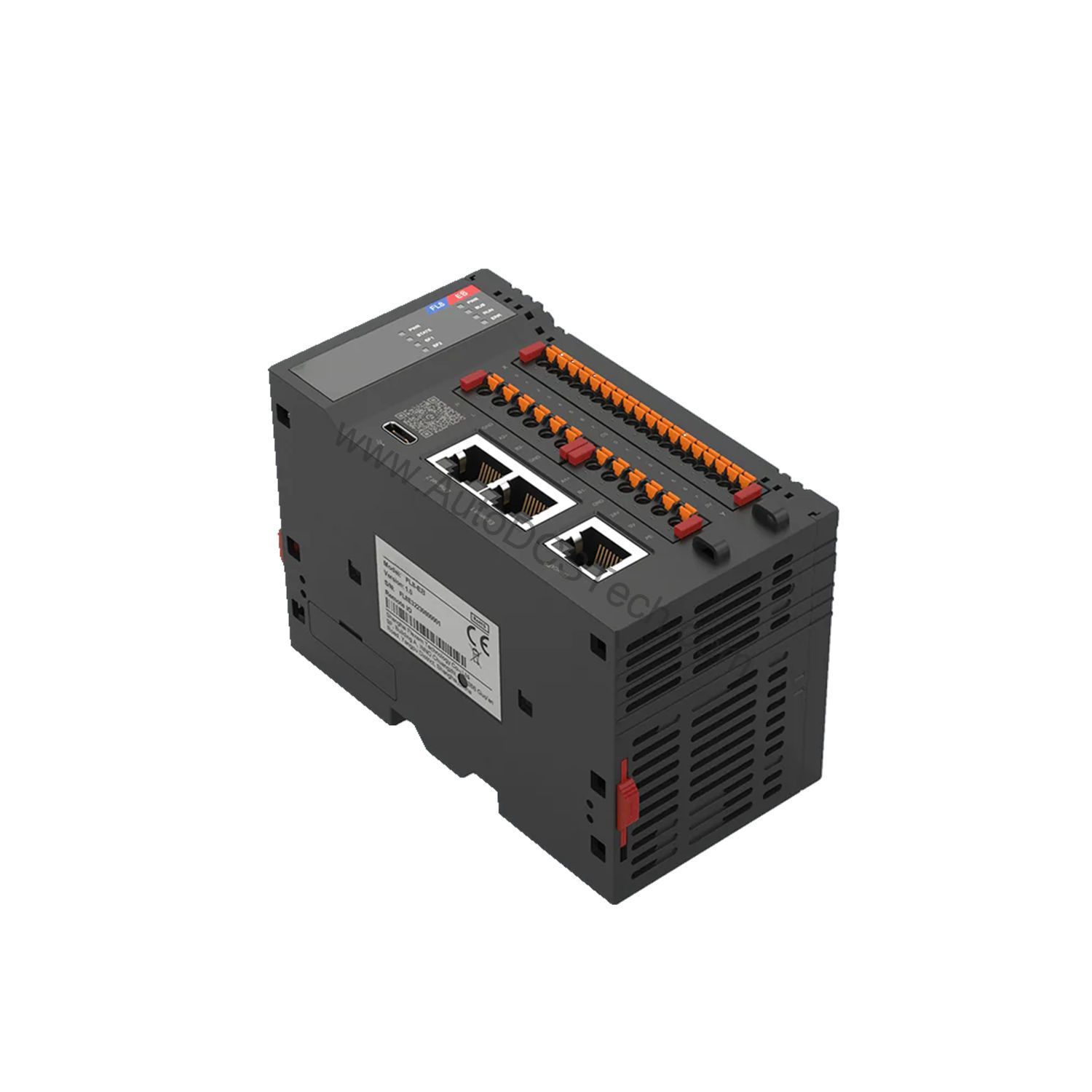

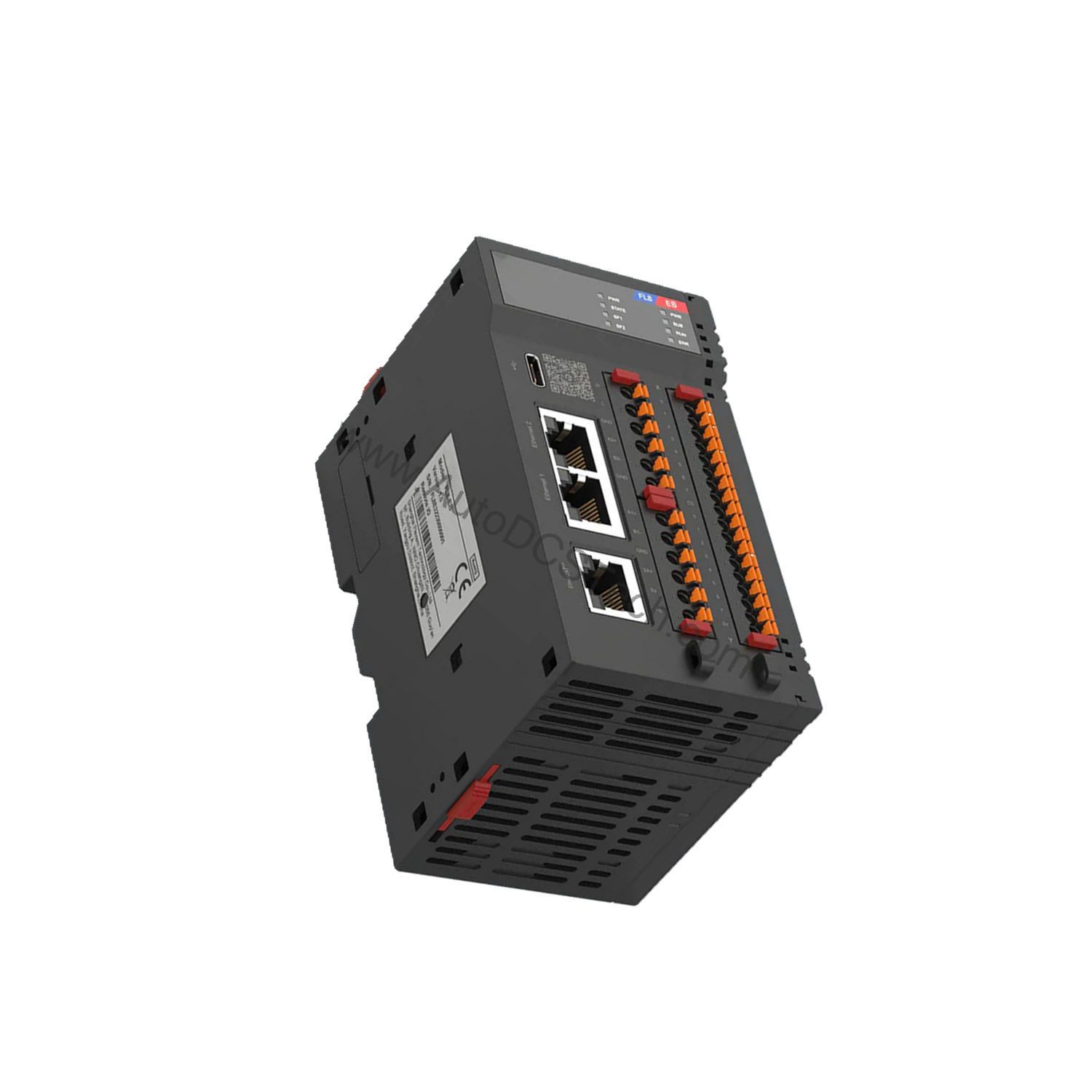

The Flexem FL8-E8-D is a powerful motion control PLC designed for demanding automation tasks. It combines a 4-core 1GHz CPU with 1GB internal memory and 4GB hard disk, ensuring responsive and reliable operation. With built-in EtherCAT and flexible I/O, the FL8-E8-D offers a compact yet scalable solution for modern industrial control.

Technical Specifications Breakdown

Key parameters for the FL8-E8-D are listed below for quick reference:

Industry Applications

For example, in packaging lines, the 8-axis EtherCAT capability allows precise coordination of multiple servo axes for cutting, sealing, and labeling. In textile machinery, the electronic CAM and electronic gear functions enable complex pattern generation and synchronized roller control. Additionally, the built-in digital I/O (8 inputs, 8 outputs) simplifies wiring for peripheral devices like sensors and actuators, reducing overall system cost.

Installation & Setup Guidance

When installing the FL8-E8-D, ensure a clean, dry environment with adequate ventilation. Mount the PLC on a DIN rail or panel using the provided slots. Connect the DC power supply (24V ±20%) to the designated terminals, observing polarity. For EtherCAT communication, use shielded Ethernet cables and connect the main port to the first slave device. Configure the network parameters using the programming software, and download the program via the Type-C U disk interface or Ethernet. Always ground the system properly to minimize electrical noise.

Maintenance & Reliability

Regular maintenance ensures long-term reliability. Periodically inspect the PLC for dust accumulation and clean with a dry, lint-free cloth. Check all cable connections for tightness and signs of wear. Verify that the ambient temperature remains within the specified range (not provided, but typical for industrial controllers). The built-in RTC helps maintain accurate timestamps for diagnostics. If the unit is used in a harsh environment, consider a protective enclosure to prevent contamination.

Compatibility & Integration

The FL8-E8-D supports multiple communication protocols, including EtherCAT, Modbus-TCP, Canopen, Modbus-RTU, and OPC UA. This allows seamless integration with various HMIs, drives, and SCADA systems. The left-side expansion supports 4G Cat1 or WiFi wireless modules and serial ports, enabling remote monitoring and data acquisition. The right-side expansion can accommodate up to 31 modules, providing flexibility for additional I/O or specialized functions.

Selection Guide & Purchasing Advice

When selecting a motion controller, consider the number of axes, I/O requirements, and communication needs. The FL8-E8-D offers a balanced feature set for mid-range applications. For expert advice and competitive pricing, contact AutoDCSTech. They can verify availability and lifecycle status, ensuring you get the right part for your system.

Troubleshooting & Common Issues

If the PLC fails to communicate via EtherCAT, check the network cable and slave device addresses. For power issues, verify the input voltage is within 24V±20% and that the power supply can deliver sufficient current. If the program does not download, ensure the Type-C cable is properly connected and the software settings match the PLC model. For I/O problems, test the input/output points with a multimeter and verify the wiring configuration (NPN/PNP for inputs, NPN for outputs).

Please verify current lifecycle status and availability with AutoDCSTech before ordering.
