Technical Specifications Breakdown
Key parameters for the K-D M8W-3P-2m-PVC are listed below for quick reference:
| Feature | Specification |
|---|---|
| Operating Voltage (3/4-pin) | ≤250 VAC/DC |
| Operating Current | ≤4 A per contact |
| Cable Length | 2 m |
| Connector Type | M8, axial (A-type) |
| Number of Pins | 3 |
| Cable Material | PVC |
| Fixed Wiring Temperature Range | -30°C to +70°C |
| Flexible Wiring Temperature Range | -5°C to +70°C |
Industry Applications
Automated Assembly Lines
In high-speed assembly systems, sensors and actuators rely on consistent power and signal transmission. The K-D M8W-3P-2m-PVC provides a secure 3-pin connection that withstands continuous flexing and vibration. Its 2-meter length offers flexibility in routing, while the PVC jacket protects against oils and mild chemicals.
Packaging Machinery
Packaging equipment often operates in environments with temperature fluctuations and washdowns. This cable’s operating temperature range of -30°C to +70°C for fixed wiring ensures reliable performance even in cold storage or near heat sources. The screw-locking mechanism prevents accidental disconnection, reducing unplanned stops.
Material Handling Systems
Conveyors and robotic cells require cables that endure constant motion. The flexible wiring range of -5°C to +70°C allows the cable to move with machine parts without losing conductivity. The nickel-plated diecast zinc coupling provides durability and corrosion resistance, extending service life.
Installation & Setup Guidance
Proper installation is key to maximizing the reliability of this M8 connection cable. Follow these engineer-level guidelines:
- Torque: Tighten the screw fitting to the recommended torque of 0.6 Nm. The self-locking design helps maintain the connection under vibration.
- Bending Radius: For fixed wiring, ensure the bending radius is at least 10 times the sheath diameter to prevent stress on conductors. The sheath diameter ranges from 4.2 to 4.9 mm.
- Cable Routing: Avoid sharp edges and pinch points. Use cable trays or conduits where possible to protect the PVC jacket from abrasion.
- Environmental Limits: Verify that the ambient temperature stays within the specified range for the wiring type (fixed or flexible). Exceeding these limits can degrade insulation and lead to short circuits.
Maintenance & Reliability
To ensure long-term performance, inspect the cable periodically for signs of wear, cuts, or loose connections. Check the torque of the coupling every few months, especially in high-vibration applications. Clean the connector contacts with a dry, lint-free cloth if contamination is visible. Do not use solvents that may damage the PVC or TPU materials.
Because the cable is rated for category I insulation per IEC 60664-1, it is suitable for basic insulation applications. Always verify that the operating voltage does not exceed 250 VAC/DC for 3-pin configurations. For 5-pin versions, the limit is 125 VAC/DC, but this model is 3-pin.
Reliable M8 Connection Cable for Industrial Sensors and Actuators

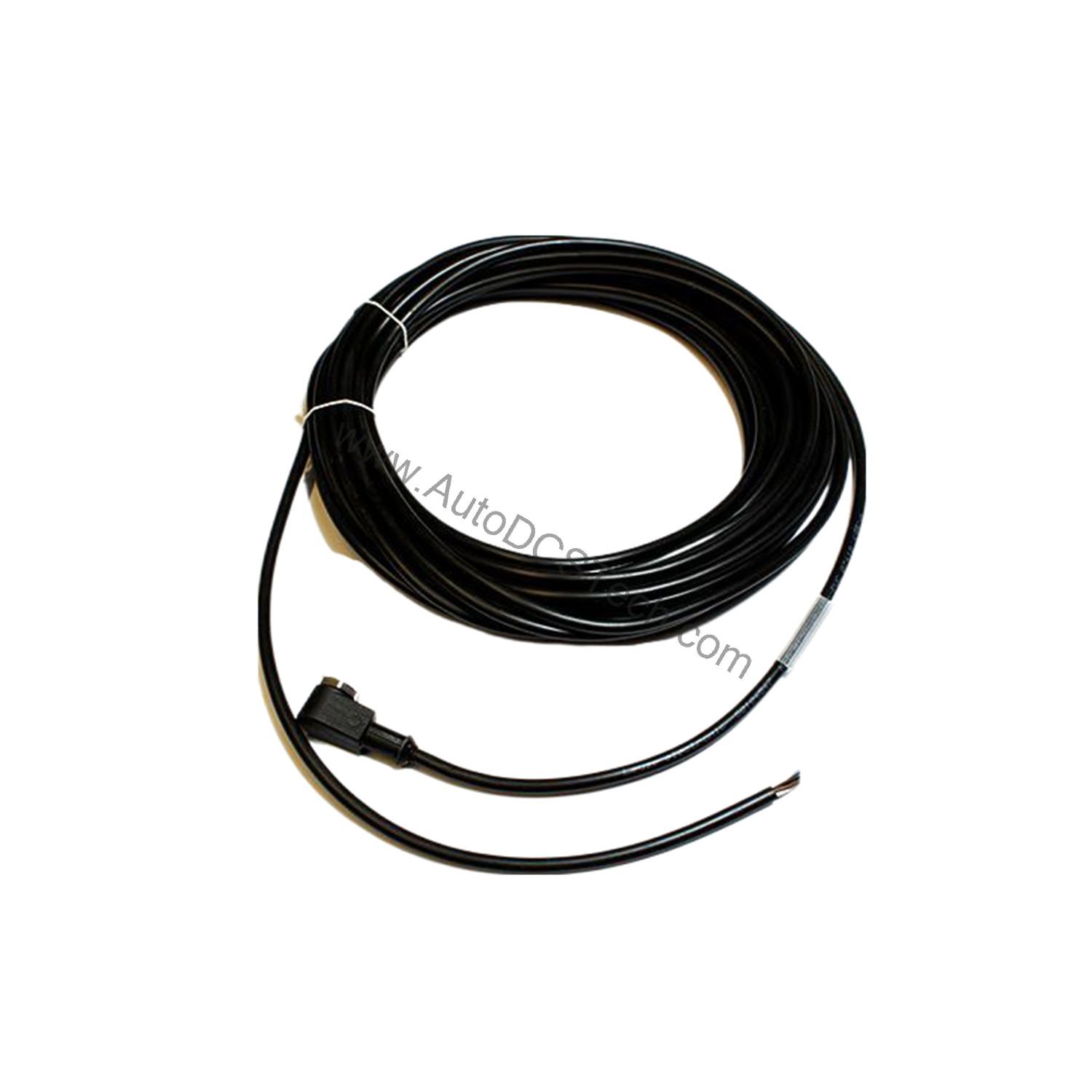

In automated production lines, a loose or failing connection cable can halt an entire process, causing costly downtime. The Lenze K-D M8W-3P-2m-PVC is a robust M8 connection cable designed to maintain signal integrity and power delivery in demanding industrial environments. This 2-meter cable with a 3-pin axial connector provides a secure, screw-locked interface for sensors, actuators, and other field devices. With its PVC jacket and TPU handle body, it offers dependable performance in applications where vibration, moisture, and temperature variations are common.
Compatibility & Integration
The K-D M8W-3P-2m-PVC is a standard M8 connector, making it compatible with a wide range of sensors and actuators that use M8 3-pin interfaces. It can be used with Lenze drives and controllers, as well as other industrial equipment with M8 ports. Always confirm the pinout and wiring diagram of your device before connection to ensure correct signal mapping.
Selection Guide & Purchasing Advice
When selecting a connection cable, consider the cable length, pin count, and environmental conditions. The K-D M8W-3P-2m-PVC offers a balanced solution for most applications requiring a 2-meter reach. If you need a different length or pin configuration, AutoDCSTech can help you source the right part.
Before ordering, verify the current lifecycle status and availability of this product with AutoDCSTech. Our team can also provide guidance on alternative cables if this model is discontinued or out of stock.
Troubleshooting & Common Issues
Intermittent Signal Loss – If you experience sporadic signal loss, check the torque of the coupling. A loose connection can cause intermittent contact. Re-tighten to 0.6 Nm.
Cable Damage – Inspect the cable for cuts or kinks. If the PVC jacket is damaged, replace the cable immediately to avoid short circuits.
Voltage Drop – Ensure the total current draw does not exceed 4 A per contact. Overloading can cause voltage drop and overheating.
Temperature Extremes – If the cable is exposed to temperatures outside the rated range, insulation may crack or soften. Relocate the cable or use a different routing method.
For further assistance, contact AutoDCSTech for expert advice on M8 connection cables and industrial automation components.
Availability & Condition at AutoDCSTech
| Part Number | K-D M8W-3P-2m-PVC |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | Germany |
