Introduction
Industrial automation has evolved from sprawling, multi-cabinet control systems to streamlined, single-rack architectures that reduce complexity and improve reliability. The Schneider Electric TSXRKY12 non-extendable rack exemplifies this shift, providing a dedicated platform for Modicon Premium systems. Designed exclusively for single rack configurations, this module simplifies system design while maintaining the robust performance expected from the Modicon family.
Product Overview

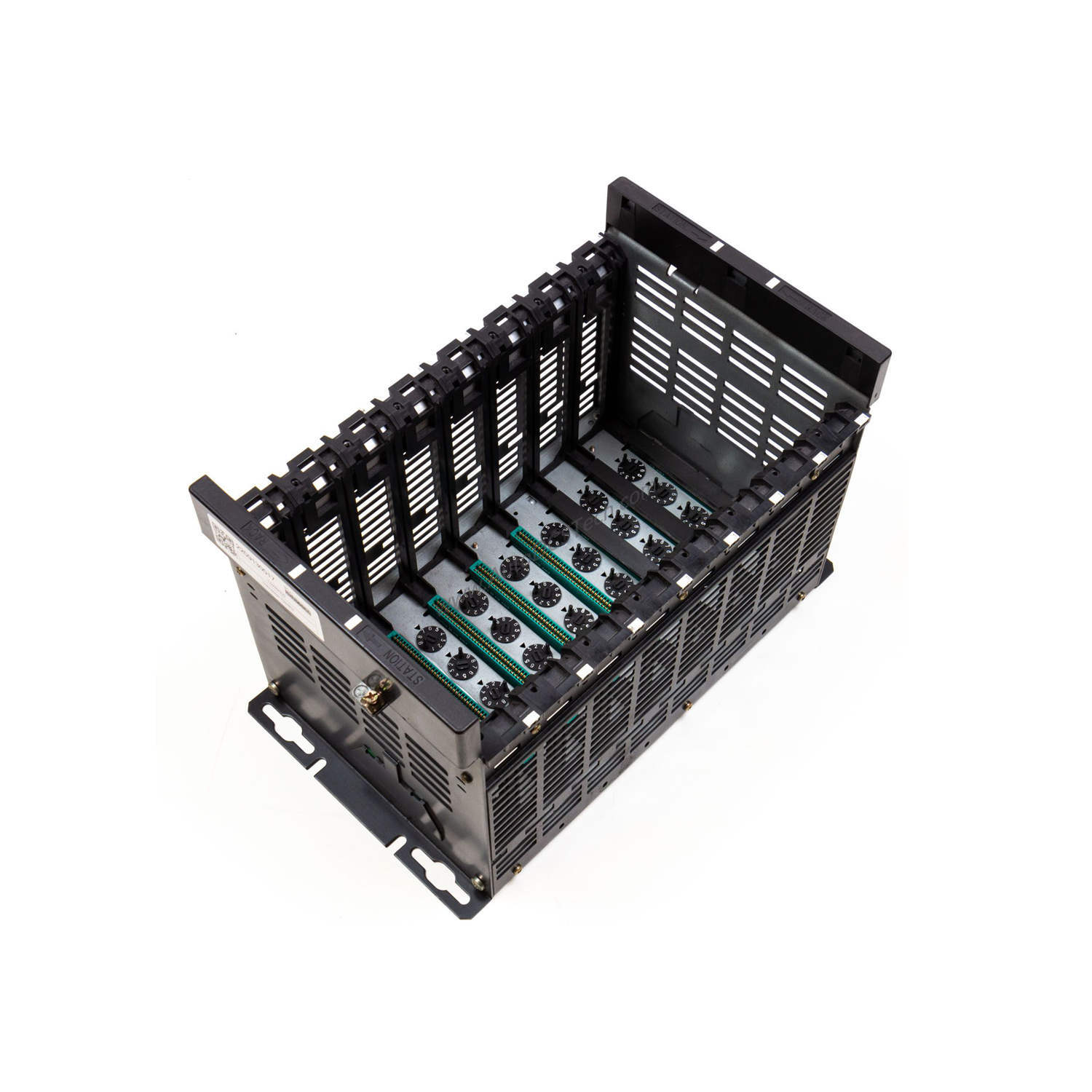

The TSXRKY12 is a non-extendable rack from Schneider Electric's Modicon product line. It serves as the backbone for a single rack setup, accommodating up to 12 slots for power supplies, processors, and I/O modules. This rack is fully compatible with Modicon Premium components, including TSXPSY power supplies and TSXP57 processors. Its compact design supports both panel mounting with four M6 screws and DIN rail mounting via clips on a 35mm symmetrical rail.
Technical Specifications Breakdown
- Number of Slots: 12 slots provide ample space for configuring a complete control system within a single rack.
- Mounting Options: Panel mounting uses 4x M6 screws, while DIN rail mounting uses clips for a 35mm symmetrical rail, offering flexibility in installation.
- Environmental Ratings: Operates in ambient temperatures from 0 to 60 °C, stores from -25 to 70 °C, and withstands relative humidity of 5 to 95% without condensation. Rated IP20 for protection against solid objects.
- Altitude and Pollution: Designed for altitudes up to 2000 meters and pollution degree 2, ensuring reliable operation in typical industrial environments.
Industry Applications
In manufacturing facilities, the TSXRKY12 supports discrete control systems where a single rack houses all necessary modules, reducing wiring and troubleshooting time. For process industries, it provides a centralized platform for monitoring and control, leveraging the Modicon Premium ecosystem. The rack's IP20 protection makes it suitable for clean, indoor environments like control rooms and electrical cabinets.
Installation & Setup Guidance
Mount the TSXRKY12 securely using either panel mounting with four M6 screws or DIN rail clips on a 35mm symmetrical rail. Ensure the rack is installed in a location with ambient temperatures between 0 and 60 °C and relative humidity below 95% without condensation. Verify that the mounting surface is clean and free of debris to maintain proper grounding and stability.
Maintenance & Reliability
Regularly inspect the TSXRKY12 for dust accumulation and ensure ventilation paths remain clear. Check that all mounting screws or clips are tight to prevent vibration-induced loosening. The rack's pollution degree 2 rating means it can withstand non-conductive dust, but periodic cleaning with a dry, lint-free cloth is recommended. Store the rack in temperatures between -25 and 70 °C when not in use.
Compatibility & Integration
The TSXRKY12 is fully compatible with Modicon Premium components, including TSXPSY power supplies, TSXP57 processors, and various I/O modules. It supports specific application modules for tailored control solutions. The rack integrates seamlessly into existing Modicon Premium systems, providing a stable foundation for single rack architectures.
Buying Guide
Before purchasing the TSXRKY12, verify that your system requires a single rack configuration with 12 slots. Confirm compatibility with your existing Modicon Premium modules and power supply. SpareTechPLC offers this rack with reliable availability and support for your automation needs.
Please verify current lifecycle status and availability with SpareTechPLC before ordering.
