Technical Specifications Breakdown
Key parameters for the 2097-V33PR6-LM are listed below for quick reference:
| Feature | Specification |
|---|---|
| Input Voltage | 80-132VAC, 1-Phase; 80-264VAC, 1-Phase; 80-264VAC, 3-Phase |
| Input Frequency | 48…62 Hz |
| Continuous Output Current (rms) | 12.0 A |
| Continuous Output Current (0-pk) | 17.0 A |
| Peak Output Current (rms) | 36.0 A |
| Peak Output Current (0-pk) | 50.9 A |
| Continuous Power Output | 3.00 kW |
| Safe Torque-Off | Yes |
| Dimensions | 9.37 x 7.29 x 3.06 in (238 x 185.1 x 12.38 mm) |
| Weight | 4.2 lbs (1.9 kg) |
Industry Applications
Its 3.00 kW continuous power output supports medium-duty loads, while the Safe Torque-Off function enhances operator safety during maintenance. The wide input voltage range (80-264VAC) allows deployment in global facilities with varying line conditions.
Installation and Setup Guidance
Mount the drive with minimum clearance as specified in the manual to ensure proper airflow. Use bonding techniques to reduce electromagnetic interference: connect metal chassis, frames, and enclosures to a zinc-plated or paint-free steel subpanel. Do not remove connector pin covers during installation to prevent debris from shorting circuitry. Avoid using circuit shield devices on the AC drive output as disconnects or motor surplus devices, as PWM waveforms can cause damage.
Maintenance and Reliability
Inspect the drive periodically for dust accumulation on cooling surfaces. Ensure ambient temperature stays within the operating range defined in the datasheet. The integrated Safe Torque-Off feature should be tested during routine safety checks. No disassembly is required for standard maintenance.
Solving Single-Axis Motion Challenges

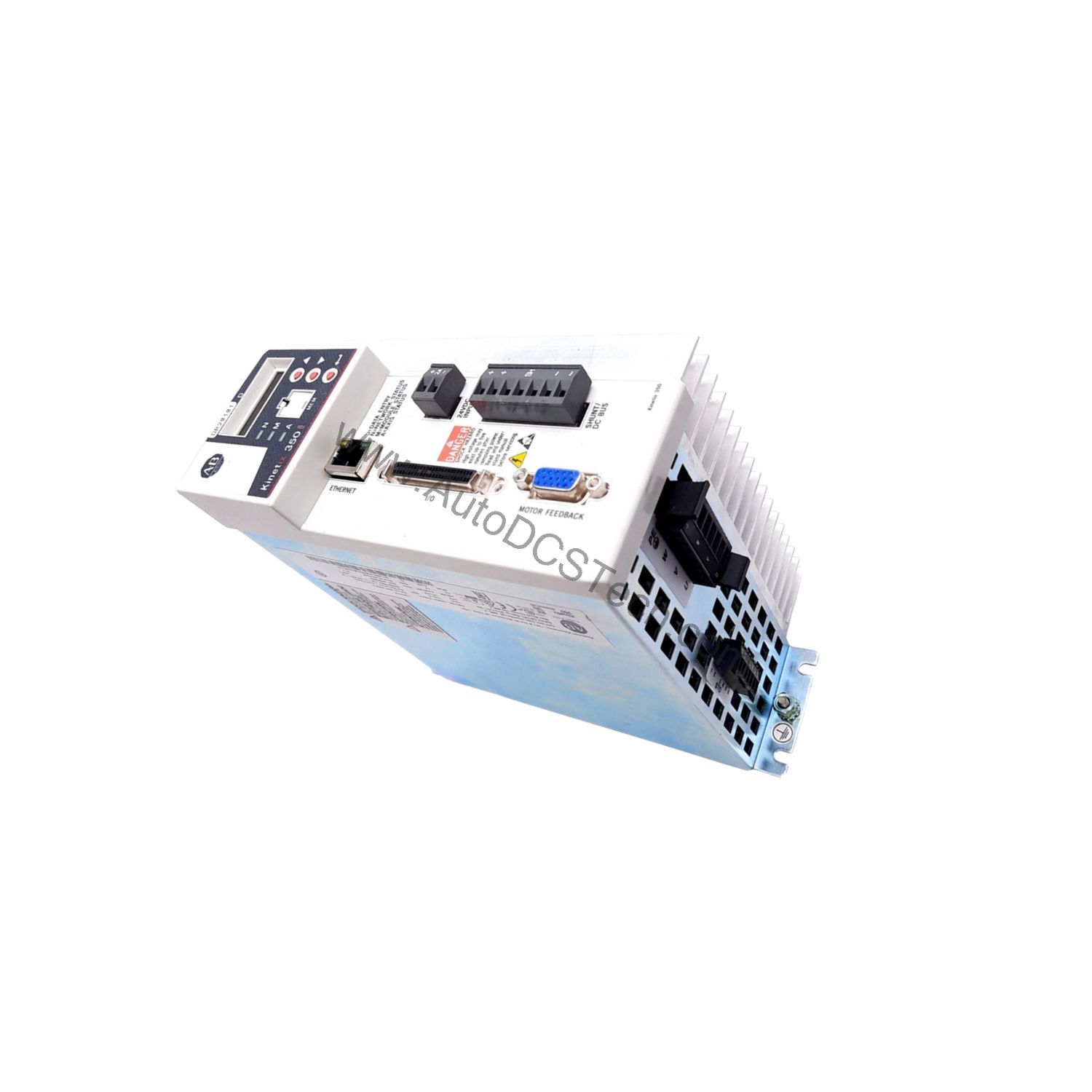

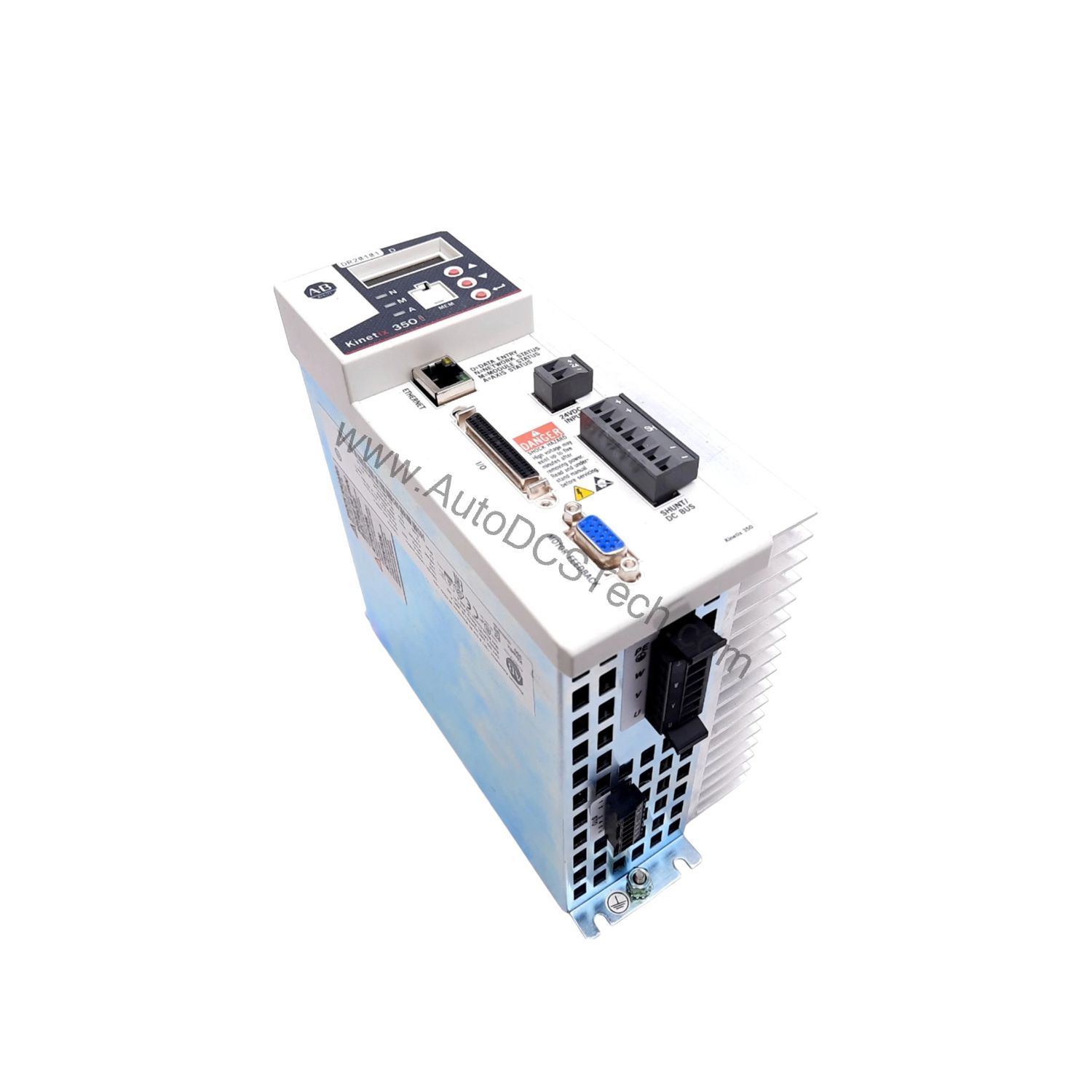

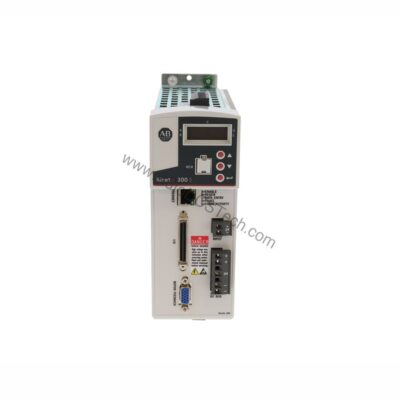

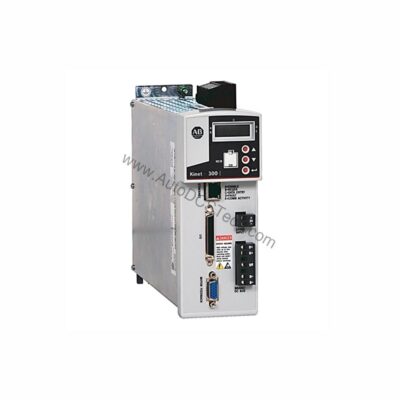

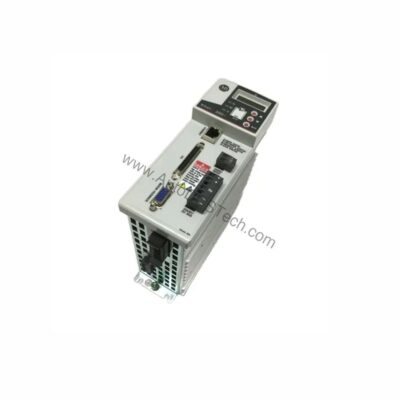

In industrial automation, precise single-axis motion control often requires a drive that balances power, safety, and integration. The Allen-Bradley 2097-V33PR6-LM Kinetix 350 servo drive addresses this need with a compact design and robust specifications. This drive supports Ethernet/IP communication, enabling seamless connectivity with modern control systems.
Compatibility and Integration
The 2097-V33PR6-LM integrates with MP and TL series drives and actuators, as well as Allen-Bradley PanelView terminals, 1734 Point I/O modules, MicroLogix 1400 PLCs, and CompactLogix/ControlLogix PACs. Ethernet/IP connectivity simplifies network setup and data exchange.
Selection Guide and Purchasing Advice
When selecting this drive, verify your system voltage and current requirements match the specifications above. For lifecycle status and availability, contact AutoDCSTech before ordering. Our team can confirm stock and provide support for your application.
Availability & Condition at AutoDCSTech
| Part Number | 2097-V33PR6-LM |
|---|---|
| Availability | In Stock |
| Condition | New |
| Warranty | One Year |
| Origin | US |
