Introduction

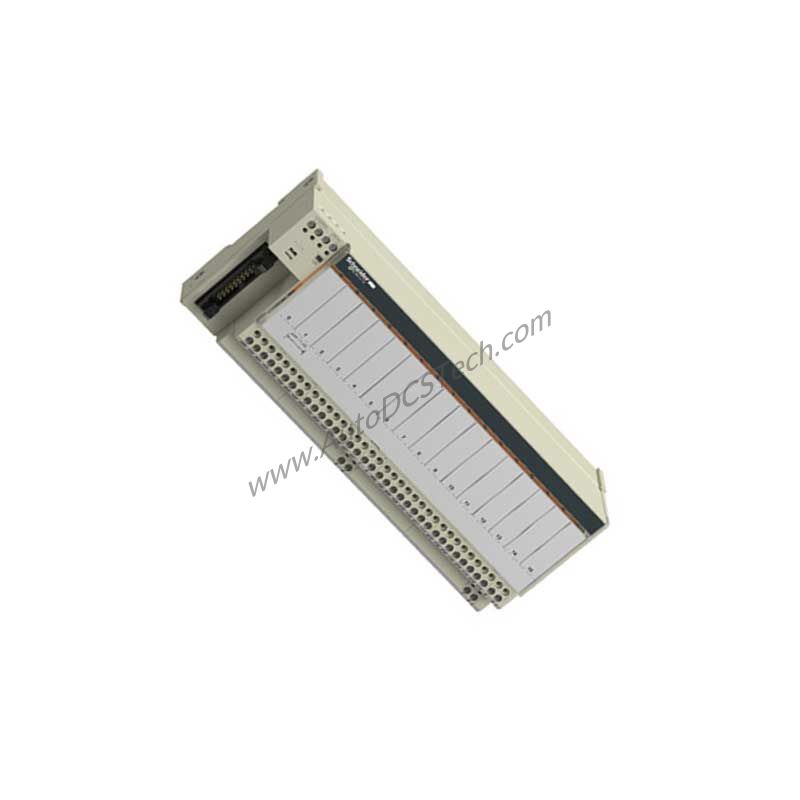

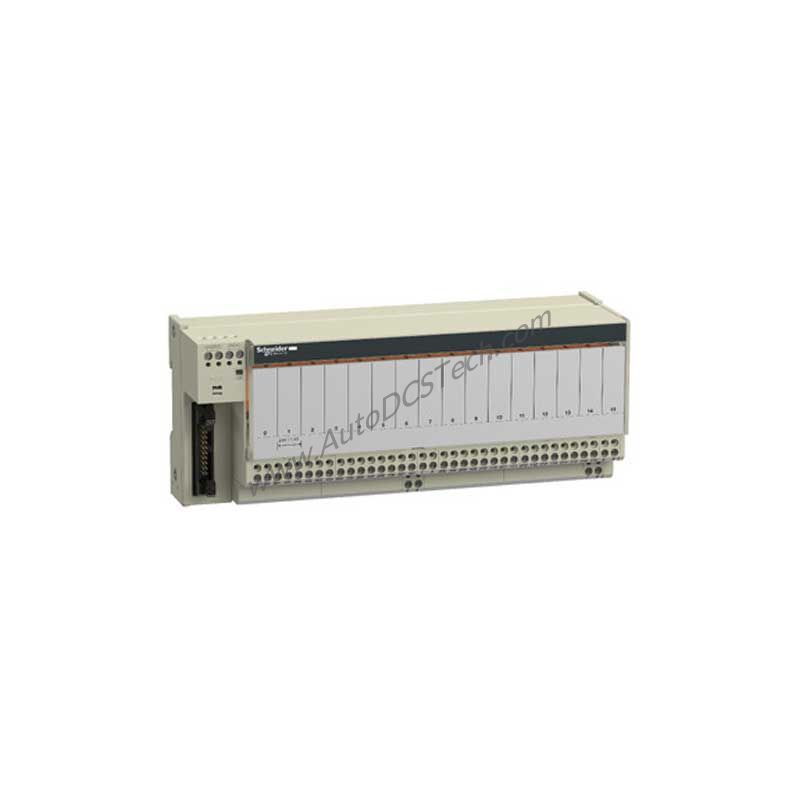

In the evolving landscape of industrial automation, the demand for reliable and modular control components has never been greater. As factories shift toward flexible manufacturing, the Schneider ABE7R16S210 electromechanical output relay sub-base stands out as a robust solution for discrete output switching. Part of the Modicon ABE7 series, this 16-channel sub-base provides a soldered relay interface that bridges PLC control signals to field actuators.
Technical Specifications Breakdown
The ABE7R16S210 operates with a rated supply voltage of 24 V DC for the PLC end, ensuring compatibility with standard control systems. It features 16 channels with 2 terminals per channel, allowing straightforward wiring. Each output common can handle up to 10 A, while each channel supports 5 A for the preactuator end. The relay contacts are 1 NO (normally open) type, switching up to 250 V AC at 50/60 Hz or 30 V DC, conforming to IEC 60947-5-1. With a switching frequency of ≤0.5 Hz at rated load and ≤10 Hz under no load, it balances speed and durability. The electrical durability reaches 500,000 cycles under various load conditions, and mechanical durability extends to 20 million cycles. The product measures 206 mm wide and weighs 0.405 kg, with an IP2X protection degree.
Industry Applications
This relay sub-base is ideal for controlling solenoid valves, contactors, and indicator lights in packaging lines, material handling systems, and assembly stations. In a typical automotive parts assembly line, the ABE7R16S210 can manage up to 16 discrete outputs from a PLC, switching actuators reliably even in environments with moderate electrical noise. Its robust electrical durability ensures consistent performance over years of operation.
Installation & Setup Guidance
Mount the ABE7R16S210 on a 35 mm symmetrical DIN rail using the built-in clips, or secure it to a solid plate with screws and a fixing kit. The removable terminal block simplifies wiring and maintenance. Use a flat screwdriver with Ø 3.5 mm to tighten terminals to 0.6 N·m. Ensure the supply voltage is 24 V DC and observe polarity distribution as volt-free. For optimal performance, keep ambient temperature between -5 °C and 60 °C.
Maintenance & Reliability
Periodically inspect the relay sub-base for signs of wear, especially on relay contacts after heavy use. The product’s electrical reliability is rated at 1e-8 failures per cycle, indicating high dependability. With a shock resistance of 15 gn for 11 ms and immunity to radiated fields up to 10 V/m, it withstands harsh industrial environments. Follow the manufacturer’s guidelines for routine checks to maximize service life.
Compatibility & Integration
The ABE7R16S210 integrates seamlessly with Modicon ABE7 remote I/O systems and any PLC that provides 24 V DC output signals. It supports volt-free polarity distribution, making it compatible with both sinking and sourcing logic configurations. No additional communication protocols are required as it is a pure relay output module.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system requires a 16-channel, 24 V DC relay output sub-base with 10 mm relay width. The ABE7R16S210 is a direct fit for Modicon ABE7 racks. For availability and lifecycle status, contact SpareTechPLC, a trusted supplier of industrial automation parts.
Frequently Asked Questions
Q1: What is the maximum current per channel on the ABE7R16S210?
A: Each channel can handle up to 5 A for the preactuator end, with a maximum of 10 A per output common.
Q2: Can this sub-base switch AC loads?
A: Yes, it can switch up to 250 V AC at 50/60 Hz, conforming to IEC 60947-5-1.
Q3: What is the operating temperature range?
A: The ambient air temperature for operation is -5 to 60 °C, and for storage it is -40 to 80 °C.
Q4: How many cycles can the relay endure?
A: Electrical durability is 500,000 cycles under rated loads, and mechanical durability is 20 million cycles.
Q5: Is the terminal block removable?
A: Yes, the terminal block is removable, simplifying wiring and maintenance.
